30mm solar clamps
- Product Type:Solar Clamp
- Product Model: SPC-EC-P30
- Material: Aluminum alloy,
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Framed solar modules
Product Description:
This model 30mm solar end clamp SPC-EC-P30 is designed for 30mm frame thickness of solar panels mounting.The general length of the end clamp is 40mm. It is used for clamping the edge frame of the solar panel to the mounting rail.
Our 30mm solar clamps are made of high quality anodized aluminum AL6005-T5, super anti-rust and corrosion resistance.It works with stainless steel bolt and nuts to fix the framed solar panel.
End clamps for 30mm solar, make the installation of solar panels more fast and easy.It just need simple steps to mounting the solar modules, the nut of pre-assembled end clamp kit was slide into the slot of the rail, and slide to the right position flexibly,fasten tight the bolt to secure the solar panel tightly.
Features of this 30mm solar end clamp:
- Simple and easy installation;
- High pre-assembled in factory;
- High corrosion resistance,long life span service;
- Good quality and reasonable price;
- Factory direct,competitive price
- Accept customized from our factory
We are end clamps for 30mm solar panel manufacture factory OEM and OMD. Our factory carry various types of solar clamps to fit different solar panels.We have full sizes of end clamp range from 20mm,25mm,30mm,32mm,35mm….to 55mm.Just let us know what you need.
For more details, to request a consultation with a specialist, or to get a quote, please feel free to visit our company website: www.solarpartscomponents.com.
| Brief Descriptions: | |
| Solar Mounting Clamps –30mm solar end clamp | |
| Item type: | Solar Panel Mounting Clamps |
| Type: | SPC-EC-P30 |
| Installation Site: | Solar Panel Installation |
| Profile Material: | AL6005-T5 |
| Fasten Parts | Stainless Steel |
| Color: | Silvery |
| PV Modules: | Framed |
| Wind Load: | 60m/s |
| Snow Load: | 1.4KN/M2 |
| Modules Orientation: | Landscape/Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Inquiry of 30mm solar end clamp
Q:
I’d like to Inquire the below item description, so let me know price and delivery time to Cairo ,Egypt
Solar Panel Mounting Systems Hardware, Solar-Mounting-Components-Mid-Clamp.
Kindly find the attached for more specifications.
A:
Before sending prices offer, I would like to get more details as below:
(1) Can I know thickness of solar panels: 30mm / 35mm / 40mm / 45mm /50mm ?
(2) How many units you would need for these end clamps?
30mm solar end clamps
Q:
Kindly be noted that we need the following:
| Item | End Clamps with Bolts | MID CLAMPS WITH BOLT |
| QTY | 16320 | 182784 |
| Thickness | 30 mm | 30 mm |
| Grade | Al 6005 – T5 | Al 6005 – T5 |
A:

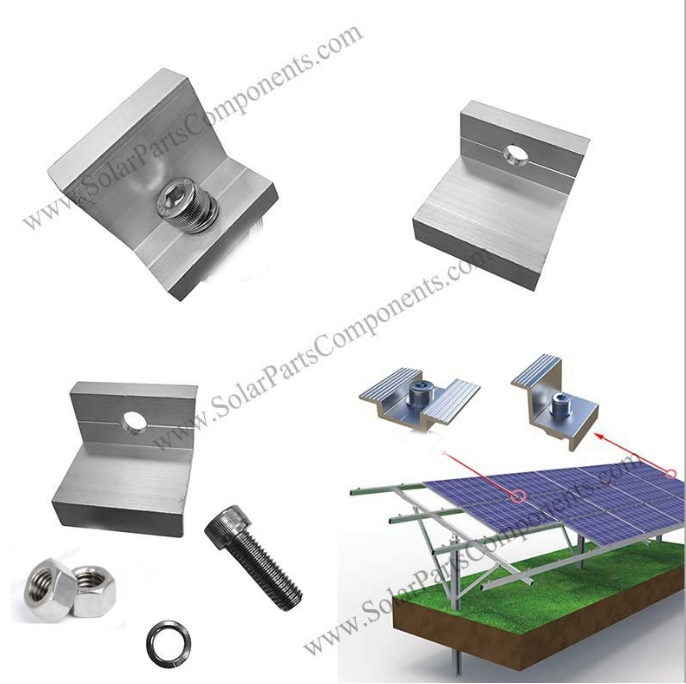

I just notice besides clamps you also need with BOLTS:
A: Aluminum Clamp;
B: Hex socket bolts;
C: Spring Washer;
D: Nut;
Please make sure you only need: A+B per set;
Q:
Please be noted that we need the following for both End and Mid Clamp Sets:
A: Aluminum Clamp;
B: Hex socket bolts;
C: Spring Washer;
D: Nut;
Please assume the appropriate diameter for bolts, nuts and washers as we don’t have such details
Also, please include CIF delivery at Ain Sokhna port, EGYPT
30mm solar end clamp
In addition to 30mm solar end clamp ,can other styles be customized?
30mm solar end clamp just one of our products.
Our end clamp products are available in various styles and specifications can be customized according to customer needs.

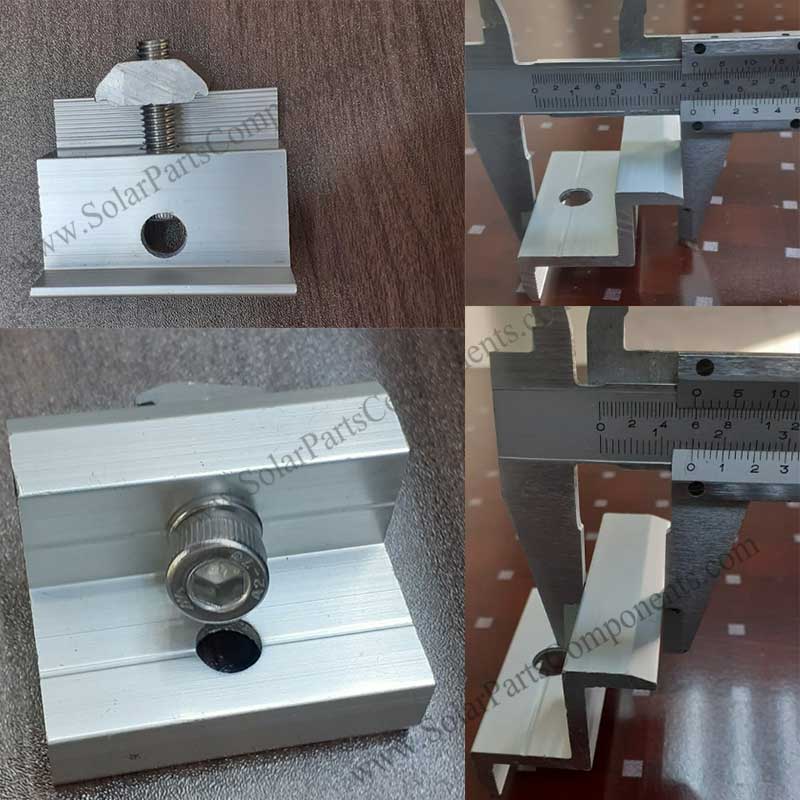

This end clamp has holes on both sides, so it can be applied to components with different frames.
The angle can be freely changed, allowing for flexible selection and a wide range of applications.
Aluminum alloy material has high strength, good casting performance and molding performance, and high corrosion resistance.
It is an important component in solar installation and is used to fix solar panels to the mounting rails.
Similar to 30mm solar end clamp
How to use 30mm solar end clamp?

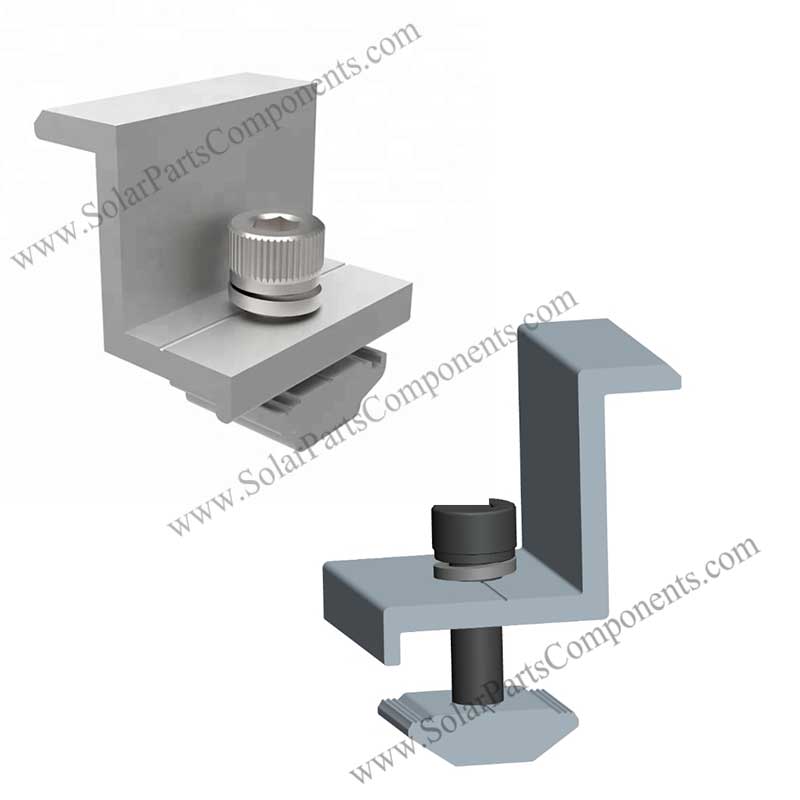

The shape of the 30mm solar end clamp is Z-shaped. During installation, Only need to place the clamp in the correct position and lock it with bolts and clamps to fix the solar panel.
An inquiry of 30mm solar end clamp:
Q:
I am Linh from Binh Phat JSC in Hanoi, Vietnam. We have an enquiry from the client for the product as following:
30mm solar end clamp : 58,868.00 sets
galvanized
Drawing as attachment
1 set including:
+ Z clamp (material : aluminum)
+ Cushion
+ bolt M8 ( stainless steel SS304)
+ warping washer
Please check and send us your quotation:
– price (CIF Danang, Vietnam)
– delivery time
– hs code
– warranty time
– way inspection
– form E?
– profile of your company and factory (employees, turnover, square of factory, machine to product…)
– some contracts from your company with clients before
Looking forward to hearing from you soon
A:
Appreciated for your inquiry about our clamp kit.
The factory price please see at attached.
10 years’ warranty;
Welcome to vist our factory for insepction;
Form E is offered.
Q:
Thanks for your quotation,
Please issue for us your quotation by pdf file
30mm solar end clamp
30mm solar clamps
What is an end clamp for a solar panel?

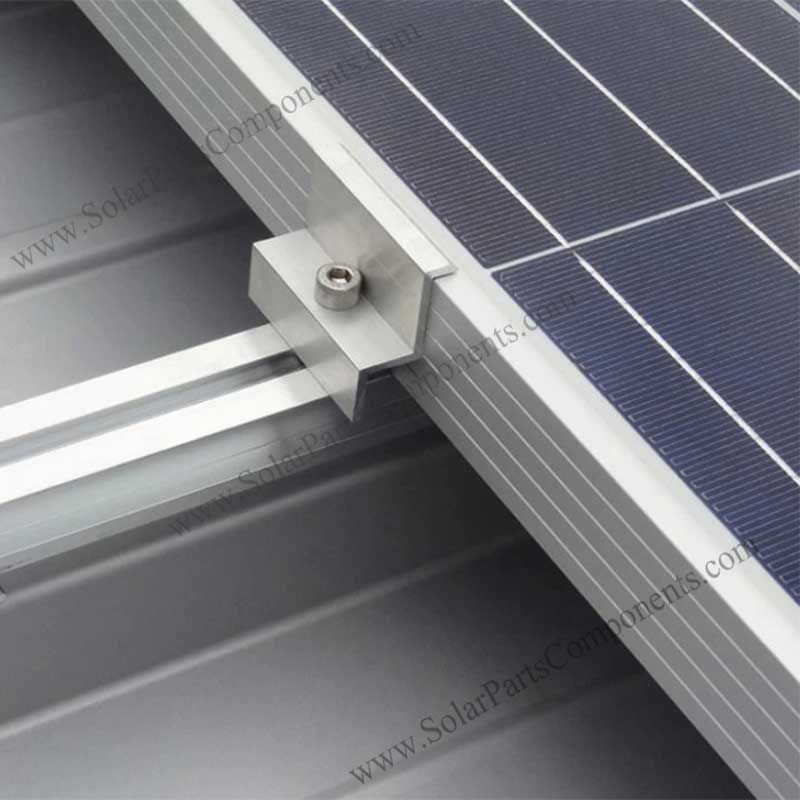

The solar end clamp is used to fix the solar panel on the installation rail, and it can be installed on one side of the panel and used in conjunction with the rail. It is an indispensable part of the solar mounting system installation. The following is an inquiry about 30mm solar end clamp.
Q:
Kindly provide us your best-discounted re-sale price and lead-time (ex-works) for the supply of the below items:
QTY. 1000 SETS
Solar Panel End Clamp with M8 Bolt and Flex Nut
QTY. 2000 SETS
Solar Panel Mid Clamp with M8 Bolt and Flex Nut
If possible, kindly attach the available datasheets/catalog for easy reference and please include the following info:
Validity (preferably 30 days); Warranty; Shipping weight/dimension; Lead time; Currency; Country of Origin
We would highly appreciate your prompt response as we look forward to receiving your formal quotation soon.
Thank you and best regards,
A:
Appreciated for your inquiry for our solar clamps the bolt kits.
- May I know what is the thickness of your solar panel?
So that we recommend you the right size item for you.
- Can you share us photo of the flex nut you need?
our regular type of the kits are as below, please let us know if they are what you need.
solar panel end clamp
Q:
For details, see attached.
Do you want to buy 30mm solar clamps at a beautiful price?
Our products by manufacturers direct sales, to provide pre – and post-sale service, the heart is better than action, come to buy!
For more details, please click here.
