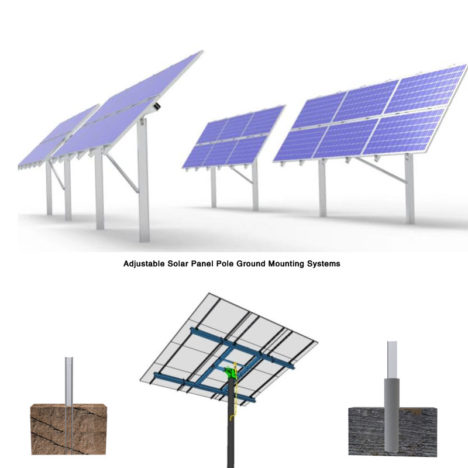

Adjustable Solar Pole Mounting Systems
- Product Type: Ground Solar Panel Pole Mounting Systems
- Product Model:Solar-Panel-Pole-Ground-Mounting-Systems-Adjustable
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portrait or Landscape
- Application: Ground flied
Product Description :
Our new solar ground mounting model is angle adjustable, single pole foundation .
Our solar panel pole mounting system can be tilted easily by one person according to different installing places . This
strucure is very suitable for small units of PV modules . To get optimized solar power angles with best latitudes, even
we can change tile direction for different seasons . To echieve more sun power generation with this angle adjusted
solar pole ground mounting system .

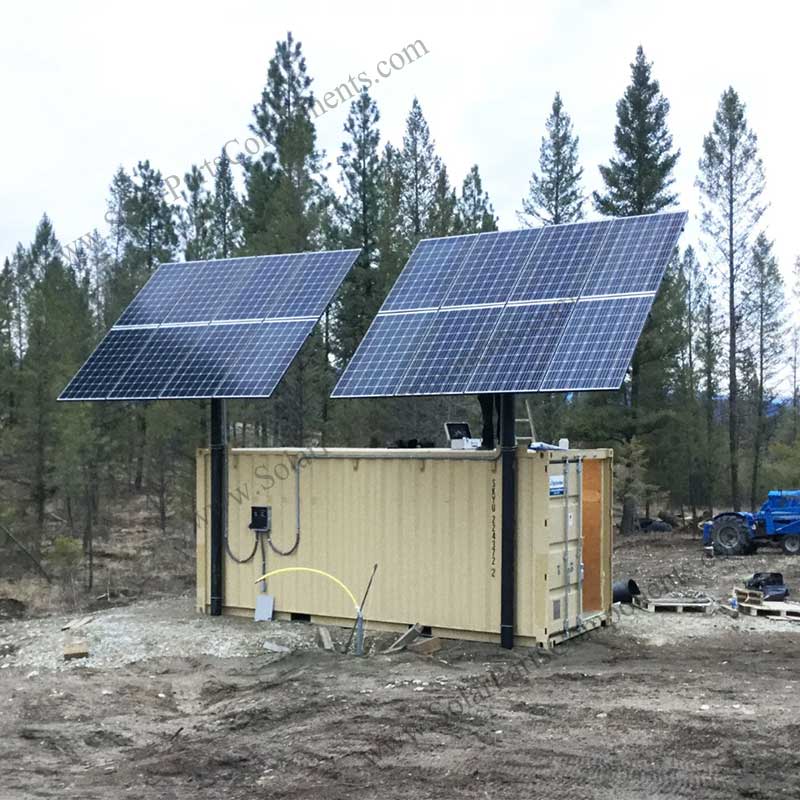

Since it’s mono pole design, PV modules can be installed in very wide places like mountain, grassland , sandbeach
,moor … The carbon steel / aluminum pole can quickly apply to solid ground / concrete base .
Our default tilt angle scale is 10 Degree, from 20° / 30° / 40° / 50° / 60° , customized design and engineering is
acceptable .
Our durable structure includes hot dipped galvanizing Q235 carbon steel , thick powder coating finishing , SUS304
stainless steel screws, AL6005-T5 mid / end clamps …
Single mono pole design can make PV module mounting be a simple and fast job .
Advantages :
1. Mono solar pole ground mounting for open field;
2. Quick manually adjust to different angles manually ;
3. Suitable for different terrain ;
4. Seasonally adjustable solar pole ground mounting kits;
5. Single row of vertical poles with less components for assembling ;
6. Anti-corrosive, long lifetime service ;
Parts and Components for this adjustable Solar Panle Pole Mounting Systems :
Pile, main beam, pipe adapter, elevation head, mid & end clamps …
Our solar ground mounting design standard base on different countries as below :
Australia AS/NZS 1170 ;
UK BS6399 ;
Canada 2005 VOL1 ;
China GB 50797:2012/GB 50009:2012 ;
European BS EN1991_1-7:2005 ;
Germany DIN 1055 Part 4 ;
India IS 875 ;
Japan JIS C 8955:2017 ;
Malaysia MS1553-2002 ;
South Africa SANS10160_1-7 ;
USA ASCE_7-16 ;
Philippines NSCP 2015 ;
Galvanization Standard Compliance :
International Standard BS EN ISO 1461:1999 ;
UK Standard BS 729(1971) ;
Australia Standard AS/NZS 4680:1999 ;
China Standard GB/T 13912-2002
| Brief Descriptions : | |
| Adjustable PV module pole mount for ground solar panel installation | |
| Item type: | Ground Mounting Systems, Tilt Adjustable |
| Technical Parameters : | |
| Type : | Pole ground solar mounting system |
| Installation Site : | Ground |
| Installation Angle : | 20° ~ 60° |
| Profile Material : | AL 6005 – T5 ( Anodized ) / Q235B (Hot-Dip Galvanized) |
| Fasten Parts : | Aluminum / Stainless Steel |
| Small Components : | AL 6005 – T5 ( Anodized ) |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 40 m / s |
| Snow Load : | 150 cm |
| PV Modules : | Framed, unframed |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |

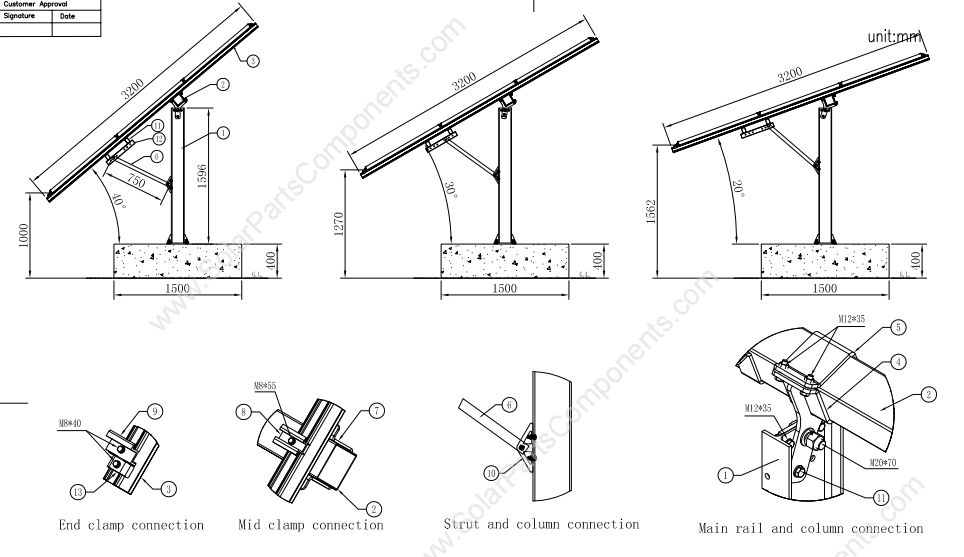

Introduction of our adjustable solar panel pole mount system :
Adjustable Solar Mono Pole Mounting Systems.
The angle of this ground installation system can be adjusted according to the project conditions. The adjustment angle range is wide. The project accepts customization. Welcome to contact us for more details. The following is a related inquiry:
Q:
Hello, I am interesting in your product of Adjustable Solar Panel Pole Ground Mounting Systems.
A:
Appreciated for your inquiry of our solar systems.
Need to know the size of your project and other circumstances.
Q:
Please refer to the attached information for specific project details.
I still waiting for your answer. Looking forward to hearing from you soon
A:
Nice to have a call with you just now .
Please refer to more information you need for this adjustable tilt concrete mounting system .
Thank you!
Adjustable Solar Mono Pole Mounting Systems
Inquiry of this Adjustable Solar Mono Pole Mounting Systems.
Q:
What is the cost of your adjustable solar pole mounting system for 3000 panels?
I was thinking of 2 x 3 for each array.
A:
Since this project is customized, we can design based on your requirements.
Please provide the following information:
(1) Information of your PV panels
Dimension: ___mm Length x___mm Width x__mm Thickness,
Array: ________Nos. in a row x________Nos. in a column;
Layout: Horizontal or Vertical?
Total Number of your panels
(2)How is weather there,such as wind speed and snow load?
___m/s anti-wind speed and____KN/m2 snow load.
(3) Mounting Tilt Angle （Recommended angle is 5-15°）
(4)Ground Clearance
——————————————————————————————–
It would be great if you could provide me with the company information.
Q:
Here is the requested information of this adjustable solar pole mounting system:
(1) Information of your PV panels
Dimension: 2067 mm Length x 1046 mm Width x 46 mm Thickness,
Array: 2 Nos. in a row x 3 Nos. in a column;
Total array: 500
Layout: Horizontal
Total Number of your panels: 3000
(2)How is weather there,such as wind speed and snow load?
40 m/s anti-wind speed and 3.8 KN/m2 snow load.
(3) Mounting Tilt Angle 48.3（Recommended angle is 5-15°）
(4)Ground Clearance 1200mm
adjustable solar pole mounting system
A:
That’s great!
Our engineers will design the best solution according to your needs!
See attachment for more details.
How to install This Adjustable Solar Mono Pole Mounting Systems ?
– Easily Adjustable, no equipment needed ;
– Durable & Rigid Structure for all-weather environment ;
– Cost-effective ground mounting small system for home / business / industrial ;
– Keep solar panels off ground and hand operating adjusting racks for snow / dust removal ;
– Achieving Maximum power of your PV modules ;
