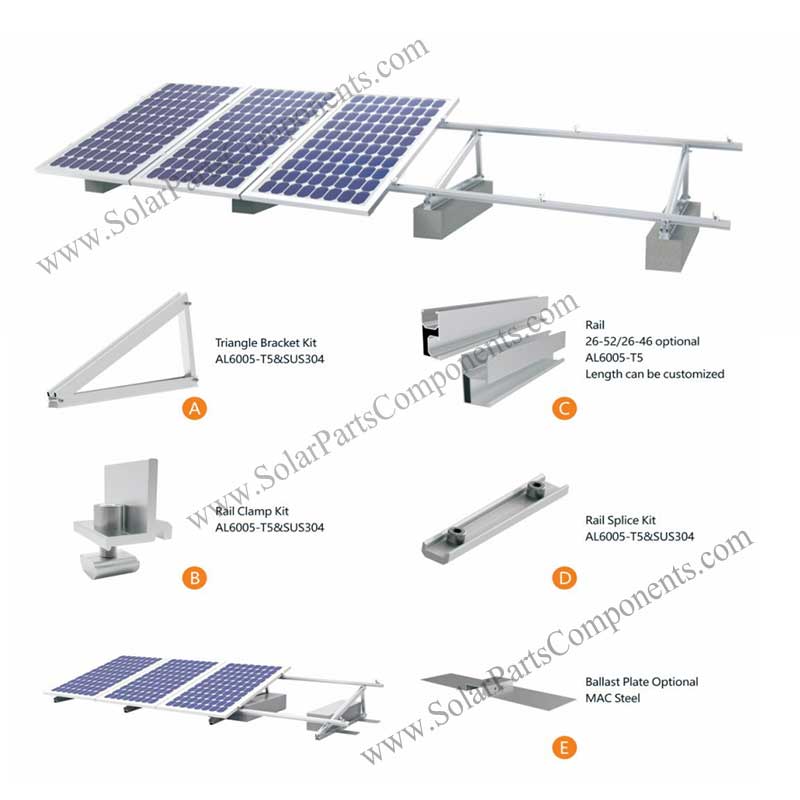

Adjustable Tripod Solar Roof Mounting can easily fit different flat roofs or open terrain applications, due to its variable footing options for both roof clamp and roof penetration.Moreover, it offers a more cost-effective solution compared to the traditional ballast mounts.
The adjustable Tripod Solar Roof Mounting engineered to withstand harsh weather conditions, providing reliable and sustainable energy production. It’s a perfect choice for both commercial and residential applications.
Benefits of the adjustable Tripod Solar Roof Mounting
High corrosion resistance and salt tolerance;
Fixed with concrete ballast to achieve strong wind resistance;
Specific bottom rail design;
Flexible installation;
Horizontal and vertical. Structure can be adjusted according to demand;
High corrosion resistance and salt tolerance;
Good wind resistance, strong reliability, and no damage to the roof waterproof structure;
The construction method is simple, and the bracket can be installed at the same time when making the counterweight, saving construction time.
Technical Parameters For this adjustable Tripod Solar Roof Mounting :
| Configuration | Horizontal, vertical |
| Application | Flat roof, tin roof, open terrain |
| System installation angle | 10-15deg, 15-30deg, 30-45deg |
| Material of main system part | Anodized aluminum 6005 T5 |
| Sub keel | stainless steel 304/410 |
| Main keel | stainless steel 304/410 |
| Main material Compacted yard | Aluminum alloy |
| Wind load | 60 m/s |
| Snow load | 3.4KN/m2 |
| Quality assurance | 10 years |
| Component type | Framed, non-framed |
Welcome get more details from www.SolarPartsComponents.com for this adjustable Tripod Solar Roof Mounting system .
