Solar Ground Racking Systems
- Product Type:Aluminum Ground Mounting System
- Product Model:SPC-GA-2V-N
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Open Ground
Product Description:
Open ground mounting systems for solar panels are very common.
Our racking model SPC-GA-2V-N is a kind of high-quality aluminum extrusion made with 10 years warranty.
The bases are ground screws which can be drilled on most of kind of terrain like: sand, hill, desert, soil land…
Because of the span range limited from front legs to rear legs,
This N type solar ground mounting system is most suitable for 2 row and portrait PV module array.
Except HDG ground screws, all mounting components are made of high-quality aluminum and stainless-steel fasteners.
Quality controlling for SPC ground mounting kits are strictly monitored as factory direct from raw material, casting, punching, anodized, cutting to packing and shipping.
Features of this aluminum solar mounting system SPC-GA-2V-N:
1. MAX Wind load 60m/s and Snow load 1.4 KN/㎡ ;
2. Suitable for both crystalline or thin film PV modules;
3. Pre-assembling for quick installation and save labor cost;
4. Not complicate installing steps, turn-key solution;
5. Good appearance and light weight for aluminium profiles;
Parts and Components for this solar ground mounting system SPC-GA-2V-N:
-Girder;
-Rail (Purlin);
-Strut;
-Ground screws;
-Base;
-Fitting;
Aluminum solar ground racking system (SPC-GA-2V-N) can be applied to large commercial plant.
With proper inner and end clamps, this mounting structure is suitable for both frame and frameless solar panels.
Besides ground screws, other foundations also are available like: concrete base, single pile …
Designated seismic grade, wind speed, snow depth can be customized with our talented experienced engineers.
Brief Descriptions: | |
Solar Mounting Systems – Aluminum (N type) Ground Installation | |
Item type: | Solar Ground Mounts |
Type: | SPC-GA-2V-N |
Installation Site: | Open Ground |
Profile Material: | Aluminum Alloy |
Fasten Parts: | Stainless Steel / Aluminum |
Color: | Silvery or according to customer requirements |
Wind Load: | 60 m / s |
Snow Load: | 1.4 KN / M2 |
PV Modules: | Framed, Frameless |
Module Orientation: | Portrait and Landscape |
Standards: | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C8955: 2011/ 8956-2017 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Lifespan | 25 years |
Packing Details: | |
Inner: | Bubble bag+inner box+Carton |
Outer: | Wooden Box, Steel Pallet, MDF, etc |
What is the Aluminum Ground Mounting System?
The Aluminum ground mounting system is highly anti-corrosion and the most aesthetic structure for ground
mount installations.
Utilzed AL 6005-T6 material, the supporting footing is delivered with highest pre-assembly to unfold at site. The optimized design is carried out by experienced engineers to offer diferent joints according to diferent site conditions. It can use ground screw or concrete foundations, and achieve variable inclination and height makes
plant design flexible.

Aluminum solar ground mounting
Features of the Aluminum ground mounting system
Ecological and low-maintenance for entire life span
Ground screws and concrete foundations optional
– Pleasing aesthetics , high recycle value
– Highly pre -assembled before shipment really simplify for easy installations.
– Corrosion resistant and light-weight ensured by Aluminum structure
– Wide range of rails and different joints design for site conditions
Solar Ground Mounting Systems Aluminum for Q cell solar panel
Q:
Hello,
We will be installing Q Cell solar panels (spec attached) ground mounted panels on racking.
Can you provide a proposal for what size of ALUMINUM GROUND RACKING SYSTEM we would require to mount these.
Panels will be vertically racked 2×9.

Solar Ground Mounting Systems Aluminum for Q cell solar panel
Wind and snow loadings unknown, assume norms please.
20 degree mounting angle. Ground clearance tbd, 0.5-1m
I’m needing recommended frame sizes to cost up for several solar farm locations. If you got provide spec detail and a cost per 2×9 rack for 600 sets that would be great.

Solar Ground Mounting Systems Aluminum for Q cell
A:
Hi Greg
Thank you for your patient.
Please refer to our initial design for 600 arrays of each 2×9 layout.
If there is any need improvement,just let us know.
Thank you!

Solar Ground Mounting Systems Aluminum for Q cell panel
Where can I buy ground mount solar panel racking?
Buy solar ground mounting racks from www.SolarPartsComponents.com
Aluminum mounting racks, good quality with 25 years lifspan.
Just offer more information requires for aluminum mounting racks:(1) PV module sizes;
(2) Max wind speed;
(3) Max snow loading;
(4) ground clearance;
(5) Tilt angle;
(6) Array details (or offer Geographic location: latitude / attitude)
(7) foundation type: concrete base / ground screw …
Our professional engineer and sales team will contact you within 24 hours.

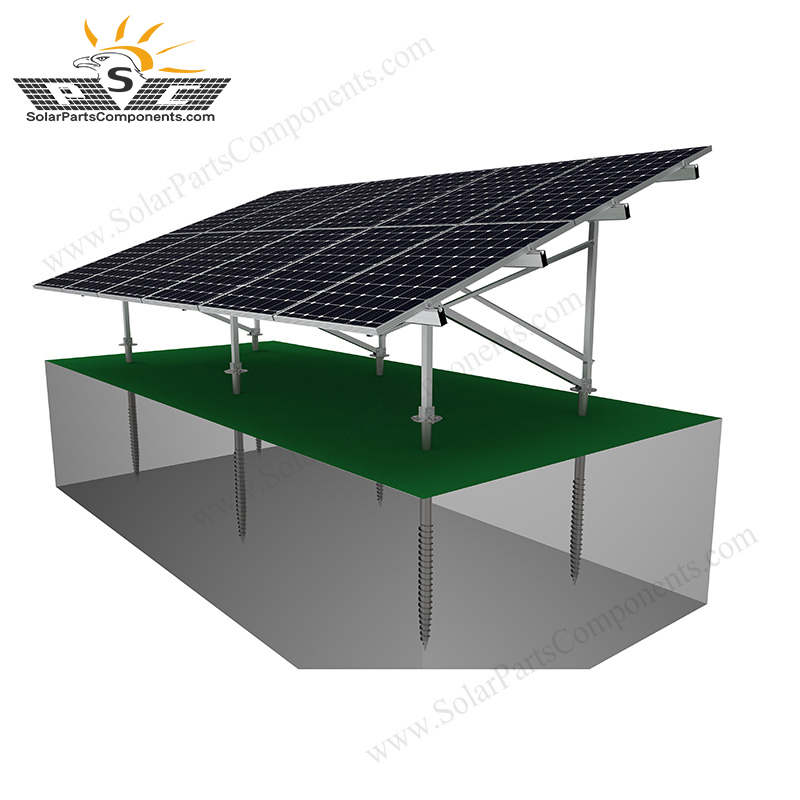

Aluminum solar ground mounting system N type
Designed for fast and economical installation of ground mounting systems, very suitable for installation of photovoltaic on open ground, using any kind of modules on the market. The service life of aluminum is prolonged and the corrosion resistance is strong.
Feature:
- Quick and easy installation directly on the ground;
- Lightweight and corrosion-resistant aluminum structure;
- Flexible to adapt to most solar panels;
- Affordable and durable environmental performance;
- Strong security and stability;
Aluminum solar ground mounting system N type
solar ground mounting aluminum brackets
solar ground mounting aluminum brackets made of high-quality aluminum alloy and corrosion-resistant stainless steel fasteners .
Aluminum ground mount solar racking - N type
This post is mainly about ground mount solar racking system – N type, showing the features in details.
