BIPV roof mounts
- Product Type: Roof Mounting Racking
- Product Model: SPC-BIPV-Roof-Mounting
- Material: Aluminium, Carbon Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Roofing top
Product Description:
BIPV roofing mounting is an energy solar pv install system.
The key advantage is replace conventional rooftop with pv modules, generate electricity directly.
BIPV roof mount can be widely applied for home, business or factory roofing.
Components for SPC solar BIPV roof mounts: pv modules, upper cover,W shape trough, mid clamps,U laterial trough, padding block, baffles, bolts, nuts, adhesive tapes …
Features of this BIPV solar roof:
– Waterproof available;
– Standard components for quick installation;
– Save traditional roofing cost for new construction or retrofit;
– Good for environmental protection with clean energy;
– Suitable for both framed / frameless bifacial solar panel installation;
Installation tips for our BIPV roof mounts:

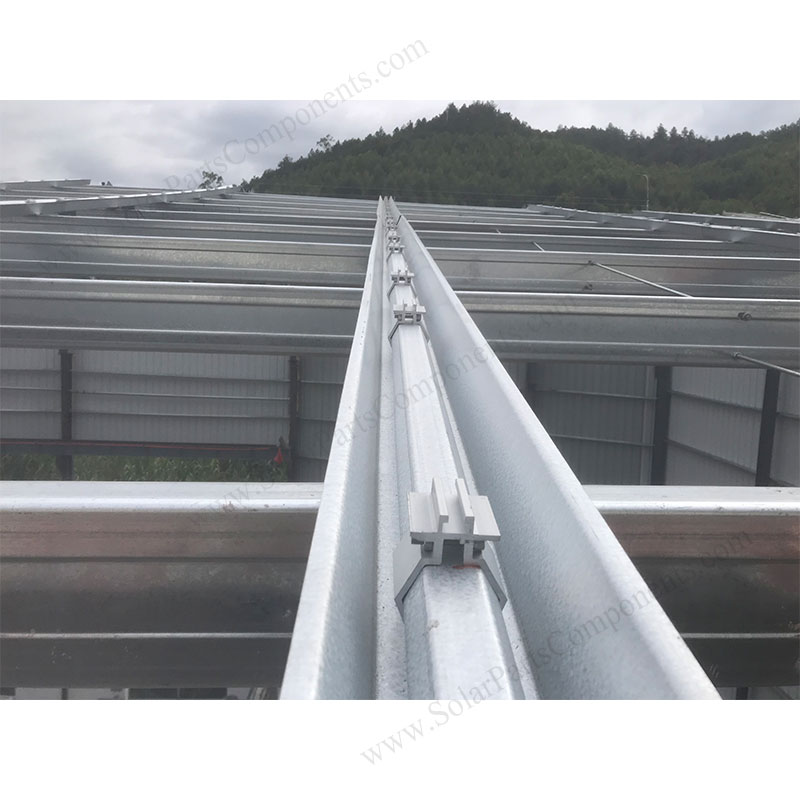

(1) Instllation troughs on steel beams with bolts;
(2) Fix baffer, lateral trough and pv modules;
(3) Install left / right / lower baffles;

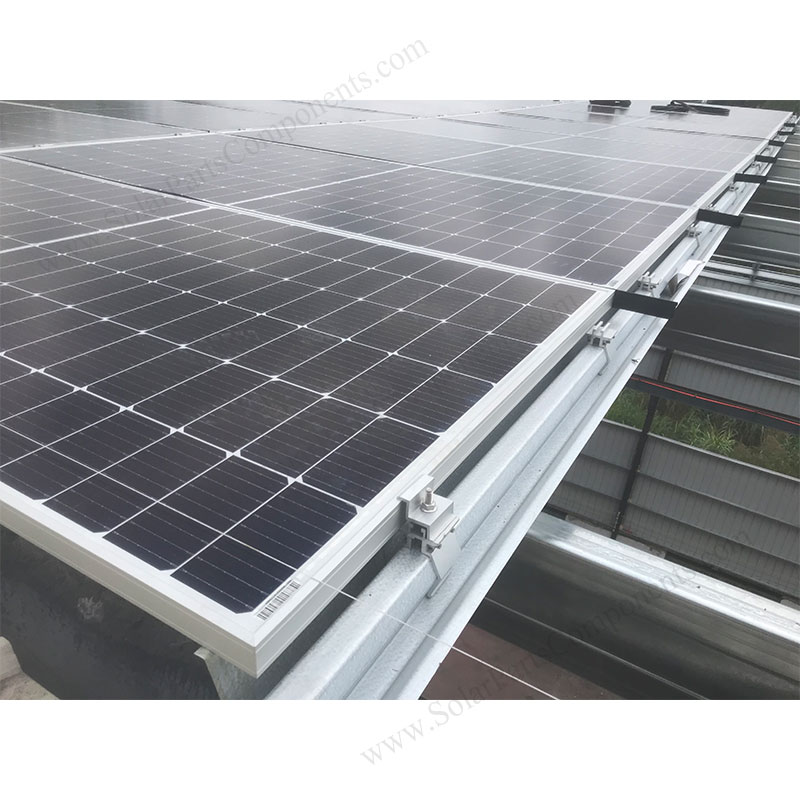

(4) Fix solar panels with mid / end clamps;
(5) Install upper cover;
Building integrated photovoltaic system is beautiful in appearance, easy for installation.
VS BAPV, our roof mounting structure is cost effecitive.
Welcome to get more details of our BIPV roof mounting system which integrated pv modules with roofing tops.
| Brief Descriptions: | |
| Solar Racking System –BIPV Roof Mounts | |
| Item type: | SPC-BIPV-Roof |
| Type: | Rooftop Installation |
| Installation Site: | Metal Roof |
| Profile Material: | Aluminum / Galvanized Steel |
| Fasten Parts: | Stainless Steel |
| Color: | Silvery |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Landscape / Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |

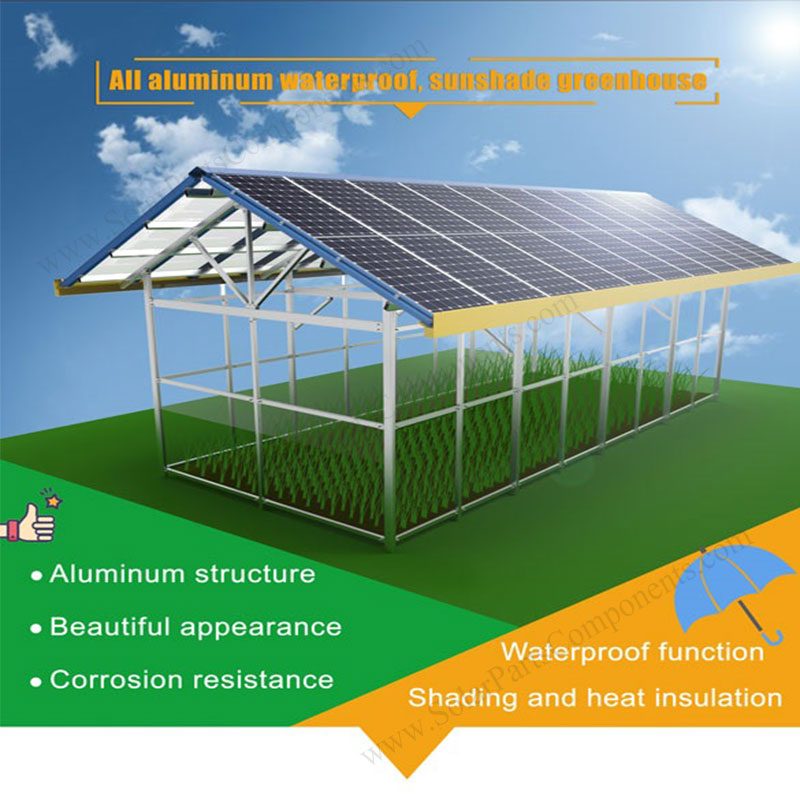

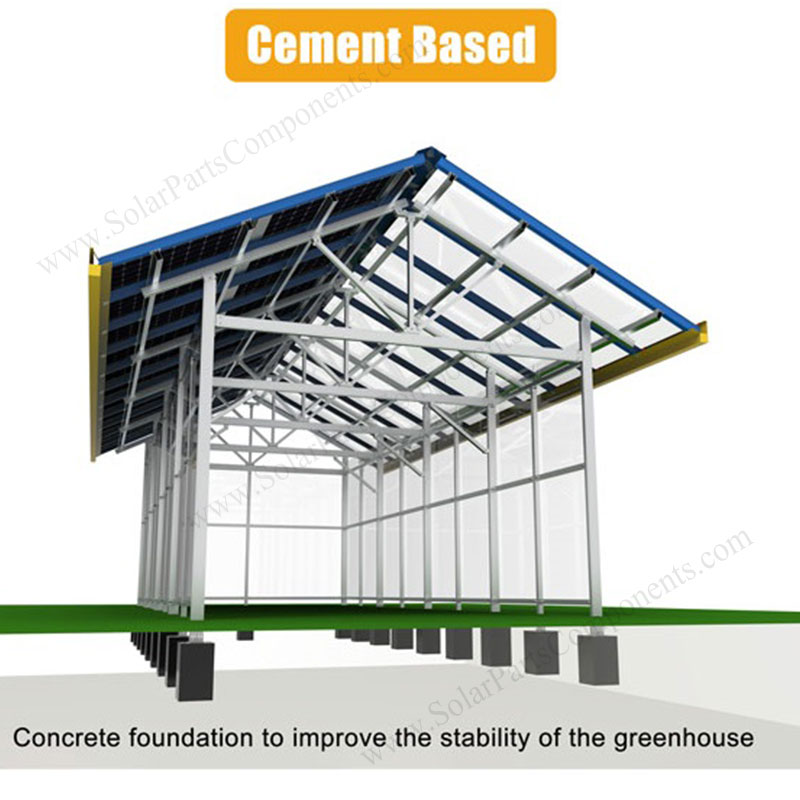

What is the BIPV solar roof mounting Greenhouse?
Solar A-frame greenhouse BIPV solar roof mounting system combines the structural advantages of an A-frame design with solar energy generation capabilities. This type of greenhouse is optimized for natural light intake and can integrate solar panels to harness renewable energy, making it an eco-friendly choice for gardeners and farmers. Now this type of greenhouse is becoming more and more popular among customers. The following project is the best proof.
More detailed informations please refer to the link: https://www.solarpartscomponents.com/solar-a-frame-greenhouse-mounting
What is the BIPV solar roof mounting Greenhouse?
BIPV solar roof mounting Greenhouse is mainly applied to theinstallation agricultural solar PV farms, achieving the dual-use of lands.
Our BIPV solar roof mounting Greenhouse is widely applied in farm land with ground screw foundation.Solar power agricultural support can make full use of light to generate electricity without affecting the growth of crops.
Farming crops under solar panels, a process called agrivoltaics, can boost food production, water savings.
and the efficiency of electricity production.
The solar panels could be tilted at certain angle, leaving some gap from each side of the solar panels to meet the sunshine demands of crops
BIPV solar roof mounting Greenhouse

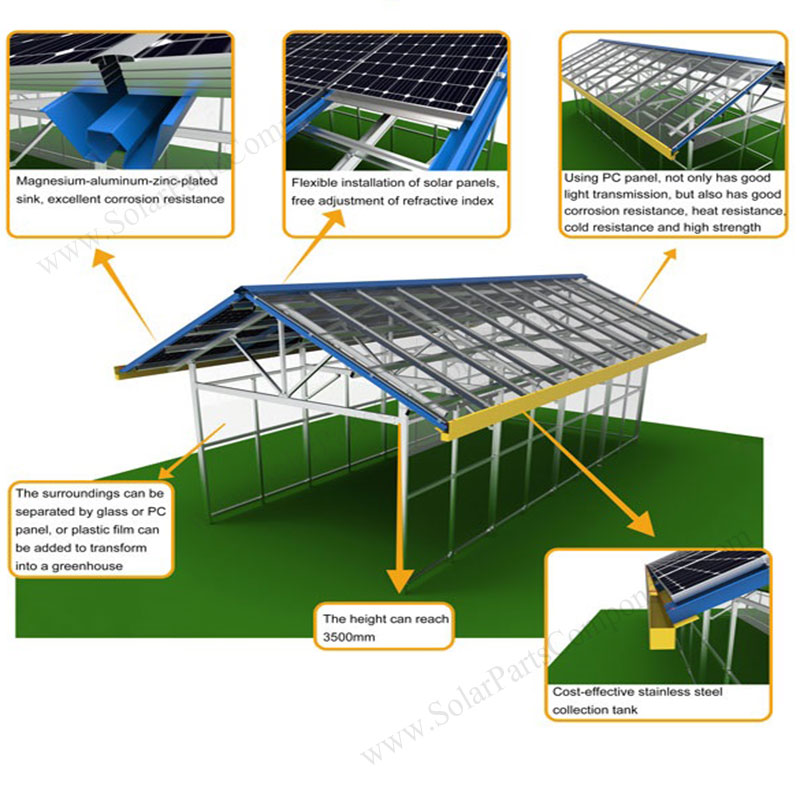

Features of the BIPV solar roof mounting Greenhouse
Dual-Use of Land lmprove the Economic Benefit
Install solar projects above the planting land, achieving the dual-use of land to improve the economic benefit.
Create Different Growing Conditions for Different Plants
To satisfy the diferent ight exposure reguirements of varied plants, Our agricutural greenhouse mounting system can be instaled with diferent transmitance solar modules or
different solar module arrays.
Pre-assembled Components Save Onsite Installation Time
Solution design case by case, most components pre-assembled in factory,no onsite cut and drll request, saving the onsite installation time and cost
No Drill on Portrait Beam
It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.
Can this BIPV mounting system kits be used for metal roof?
BIPV mounting kits for metal roof
| Module Length (mm) | 1352 | Module Width (mm) | 898 | Module Thickness(mm) | 60 | ||||||
BIPV mounting brackets for metal roof
BIPV mounting systems for metal roof
Can solar roof top canopy be like your BIPV solar roof mounting system?
Do you sell Mounting Clamps for our BIPV Solar Projects Seperately?
Question:
Dear Sales Team,
We connected on whatsapp,
I have regular requirement for Mounting Clamps for our BIPV Solar Projects.
Quantity – 5,000 Pcs
Please share pricing and availability for the same.
I have share link from your web for BIPV items we need..
Meanwhile can you share delivery leadtime for the same,
Also share / suggest any assembly video or drawings of the use of clamp.
Also attached pictures of Clamp too.
best regards,
Vishalkumar Waghela
8655653833
Jayraj Solar LLP
Answer:
Dear Vishalkumar
Appreciated for contacing us through whatsapp & email.
Well noted for more details of sizes / model / weblink for your BIPV clamps you required.
Our factory price has sent by email as following BIPV items:
(1) Clamp SPC-IK-PS,;
(2) Mid clamp, SPC-IC-35;
(3) End clamp,SPC-EC-35;
We can ship them in 5-7 days against payment.
Please refer to mounting details for this BIPV system as email file attached.
BIPV Solar Components Factory
How does BIPV work?
Building-integrated photovoltaics (BIPV) are dual-purpose: they serve as both the outer layer of a structure and generate electricity for on-site use or export to the grid. BIPV systems can provide savings in materials and electricity costs, reduce pollution, and add to the architectural appeal of a building.
Our BIPV solar roof mounting system has these features and is very popular by customers.

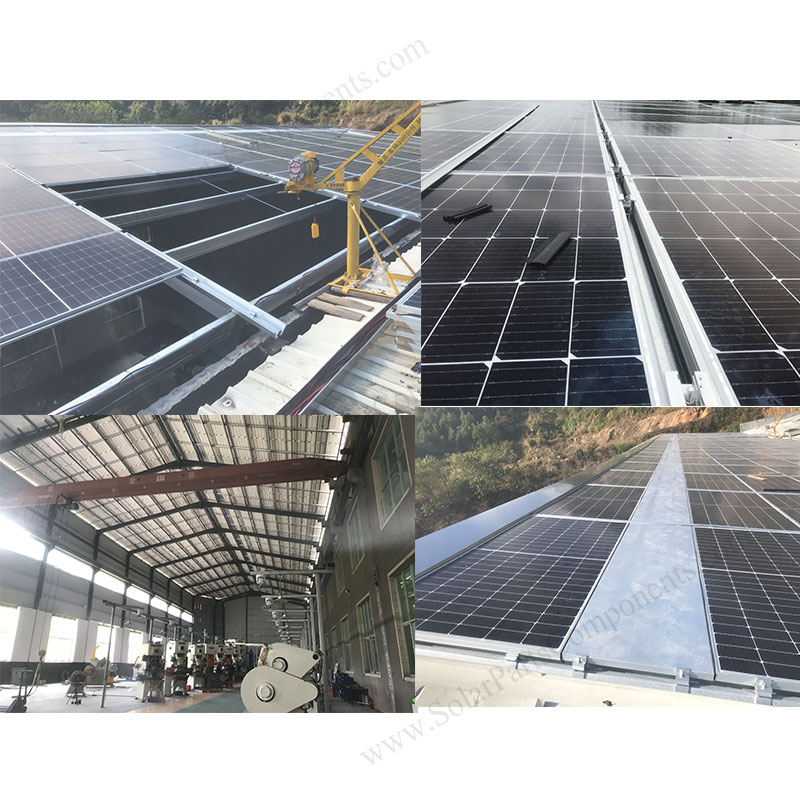

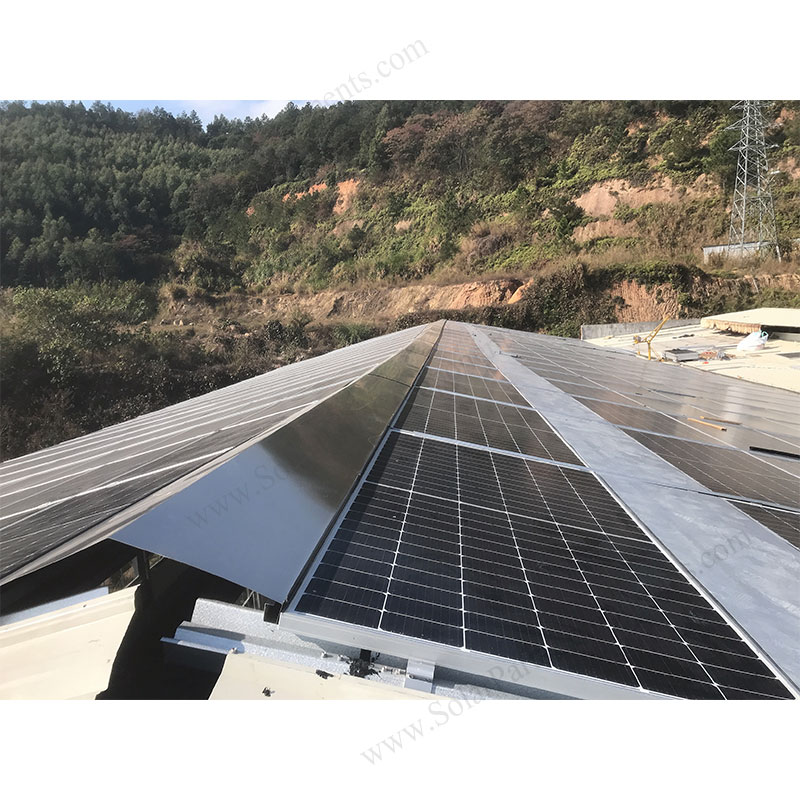

Here is one case of the BIPV solar roof mounting system from our client:
BIPV-solar-roof-mounting-system
Q:
Hello
It’s possible for you to send me a quotation for one “BIPV solar roof mounting system” and also one quotation for “SPC-GPA-V3-RW” system?
Regards
Anthony
A:
Hello Anthony,
Glade to receive your inquiry.
Attached the BIPV solar roof mounting system datasheet for your reference first.
I noticed that you are providing a full smart Energy Procurement service. Are you going to help your customers purchase carports? Do you want aluminum alloy or steel? Want to be waterproof?
Do you have specific carport project information?
Our carport system can be customized according to speicfic project. If you have project information, you can provide the informations as much as possible for design and quotation
Looking forward to further discussion.
Q:
Hello Doria
Thank you very much for all the information you provided to me. Your products are very interesting
Our project is to offer our customers carports and BIPV solar roof mounting system that can be used with 2093mm x 1134mm x 30mm solar panels.
We would initially like to order a BIPV solar roof mounting system (dimensions : 6535mm x 5650mm) and the SPC-GPA-V3-RW (for two cars, i.e. a dimension of: 7900mm x 5989mm). Do you think that would be possible?
After validation, we would like to be able to offer your models to our customers.
Regards
Anthony
A:
Hello Anthony,
Thanks for your kindly reply.
For the BIPV solar roof mounting system (dimensions : 6535mm x 5650mm) and the SPC-GPA-V3-RW (for two cars, i.e. a dimension of: 7900mm x 5989mm) you mentioned, are they both set? If there are multiple sets, it can be supported, but each set can only be used as a sample for these two small areas. The material cost and processing cost of the sample will be relatively high. Therefore, the overall price will be higher.
In addition, if you think it will be OK, please confirm that the bottom type of the BIPV solar roof mounting system is to directly use the column to match the BIPV system?
Looking forward to further discussion.
Q:
Hello Doria
It’s two sets. A BIPV solar roof mounting system and an SPC-GPA-V3-RW. Each set will be mounted in a different area as a single block.
It’s good for us. The bottom type of the BIPV system is not a problem for us. We will follow your recommendations.
For the first order of samples and to optimize the loading of the container, is it possible to have 2 pallets of solar panels delivered to your depot? So in the container that would leave from your compagny, we could load the BIPVs and the SPC-GPA-V3-RWs that we would order from you and the two pallets of solar panels.
And so, to have an idea of price, can you tell me the price of a 20″ container only with SPC-GPA-V3, with the quantity of SPC-GPA-V3? As well as the price of a container with only BIPV, with quantity of BIPV?
Anthony
A:
Hi Anthony,
Please find attached our BIPV solar roof mounting system and aluminum waterproof carport SPC-GPA-V3-RW designs and quotations for the samples.
Please note the quotation is based on EXW Xiamen now and the valid time is 7 days as bigger fluctuations in the cost of raw materials recently.
This quotation is based on EXW Xiamen terms, if you can tell me your destination port, I can check the shipping cost for you.
These two samples were designed by our engineers based on the information you provided and combined with our structure features. Solar panel specifications 2093mm x 1134mm x 30mm, BIPV system (dimensions : 6535mm x 5650mm) and SPC- GPA-V3-RW carport( dimension of: 7900mm x 5989mm)
BIPV system (dimensions : 6535mm x 5650mm)
SPC-GPA-V3-RW carport( dimension of: 7900mm x 5989mm)
Please try the order, you can know our products and services.
Any question, please feel free contact me.
Q:
Hello Doria
Thank’s you very much for this explanation.
It’s good for us. We can order.
If I repeat the command in its entirety:
– 1 BIPV solar roof mounting system with panels : 1
– 1 BIPV system Sample with panels : 2
More :
– 48 pannels Ref.500W
– 30 M channel (Spec : 5000mm)
– 80 Mid Clamp components
– 168 Block kits
– 32 End Clamp components
A:
Hello Anthony,
Thank you so much for your prompt feedback,
In response to your feedback, I sorted out all the Items and updated the quotation. Please check the latest quotation in the attachment.
No matter it is FCL 20GP container or LCL, we both support it. If it is FCL 20GP container, it is recommended that you add BIPV solar roof mounting system. A container can support a total of 72pcs solar panel with BIPV system. In this way, the overall cost will be more cost-effective, and maybe the goods can also be avoided damaged by crushing.
Q:
Hello Doria
I asked our forwarder to position a container in your company. It’s possible.
So as you said, if you could tell me your exact factory address and let me know in advance if the goods are ready, I will arrange the container with our forwarder.
Can you send me an updated offer and we will send it back to you signed
Best regards
Anthony
A:
Hello Anthony,
Thank you for your reply.
Please check the updated quotation and PI attached. Please note that only the freight is removed from this quotation and PI, and the rest of the price remains unchanged. Although the price of our raw materials has increased, in order to facilitate the first cooperation, we still maintain the previous price for you.
If there is no problem, please follow up the PI information to make payment and provide a payment slip. We will arrange the order as soon as possible after receiving the payment and provide you with the specific delivery factory address.
Any questions please feel free to contact me
Q:
Hello Doria
You will find in attached files the signed proforma.
I will send you the payment slip as soon as possible.
Best reagards
Anthony
Can this BIPV mounting system kits be used for ground mounting?
Yes, our BIPV mounting system kits can be used for ground mounting.
The BIPV mounting system kits is East-West Orientation with an adjustable tilt between 0- 60 degree which would be modular in multiples of 12 Solar panels(6 facing east and 6 facing west), adaptable to all sites and easy to install, and would help us use most of the space at the site.
East west solar ground system
Our system can be used on roofs or on the ground. The main material is galvanized steel. The system support customized and is also available in waterproof. Our system can completely match different sizes.
Drawing
East west solar system
