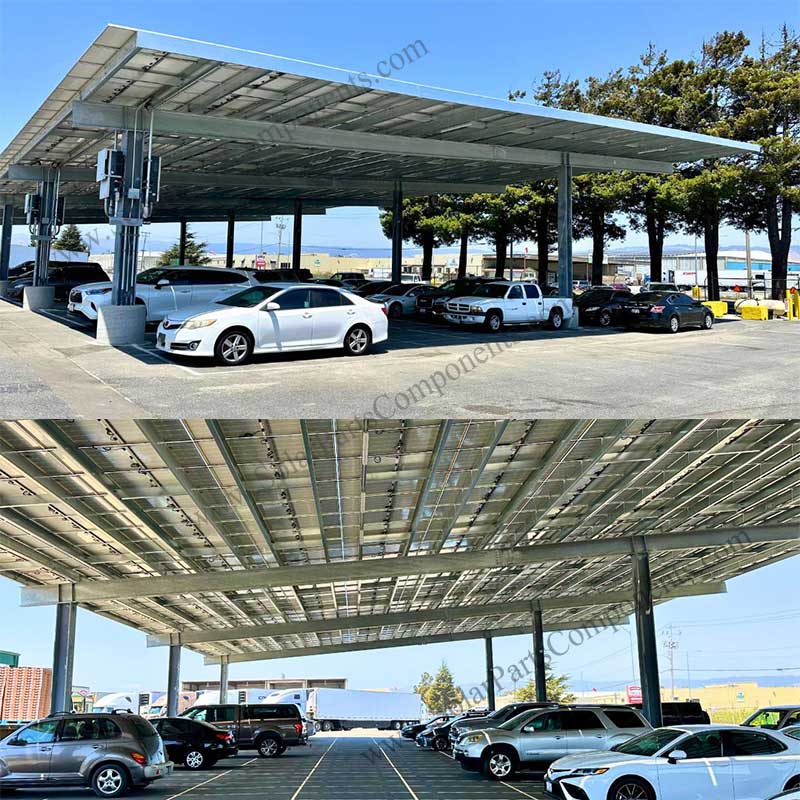

Good quality Q235 carbon steel double Rows waterproof solar carport is widely used for PV solar panel installation .
High efficient but competitive than aluminum structures .
Double Rows waterproof solar carport is one of the company’s main products with H Type Steel Pile column and a waterproof structure. The Smart Solar Carport has obvious price advantages over peers and cultivated a group of old customers who support each other. The solar carport makes our sales continue to rise and become stable.
The Double Rows waterproof solar carport is one of the most popular solar carport in the market.
For example, one of the customer inquiries we received recently was about this Double Rows waterproof solar carport.
“ We are developing several projects, I tell you one of them that we are designing parking of vehicles, to mount porticos where they will mount solar panels of 355W 1995x992x40, for a total of 800 kW.
The parking is two vehicles facing (as the attached photo) of 12Mts wide, detailed below the dimensions of the porticos
Lot 1: 12 x 8, quantity1 = 96m2
Lot 2: 12 x 22, quantity1 = 264m2
Lot 3: 12 x 28, quantity1 = 336m2
Lot 22: 12 x 32, quantity10 = 3.840m2
Lot 5: 12 x 28, quantity1 = 336m2
Lot 6: 7 x 44, quantity2 = 616m2
total area to be covered = 5,488m2
This parking area will allow to cover the parking lots of the cars and generate energy. “
We would be interested if to quote us all the structure, columns, pillars, roof mounting, ground mounting, and structure to support the panels.
To support the customer, we added a foot base at the bottom of the column to connect with the foundation.
“We are interested that the columns are fixed to concrete foundations
It would be very helpful to have that information, or some example to estimate the costs
The roof of CARPORT (parking) has 36 rows x 6 columns of panels placed portrait, angle of inclination 15 º to 30 º to be defined, with a total of 192 panels.
There are 14 CarPorts, of equal length and 3 of ditth length all add up to a total of 3.133 panels”

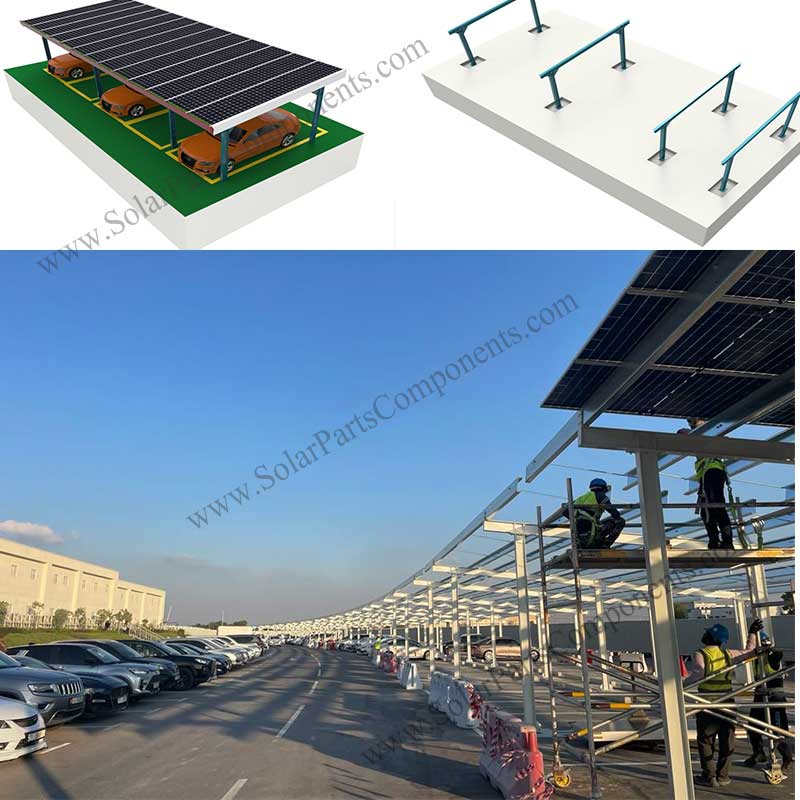

The new Double Rows waterproof solar carport is designed by our engineering team and it is easy-installation & has a good waterproof function & high wind-resistant. As the support construct of panels, this bracket allows the user to maximize the space, and come with perfect waterproof function.
If you also want to build a Double Rows waterproof solar carport like this, please contact us. I can provide free consultation, design, and quotation.
Technical Parameters For ThisDouble Rows waterproof solar carport:
| Brief Descriptions : | |
| Double Rows waterproof solar carport | |
| Item type: | Carport solar structure |
| Technical Parameters : | |
| Type : | SPC-FPC |
| Installation Site : | open area, Garage for home, car parking for commercial |
| Installation Angle : | 5° ~ 15° |
| Profile Material : | ZAM&hot dip galvanized steel |
| Fasten Parts : | SUS 304 / A2-70 Stainless Steel |
| Small Components : | AL & Stainless Steel |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s ( 130 mph ) |
| Snow Load : | 3.6 KN / M2 |
| PV Modules : | Frame, Frameless solar Module |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
