Flat Washer Solar Mounting Components
- Product Type: Solar Panel Mounting Hardware
- Product Model:SPC-F-P108
- Material: Stainless Steel
- Application: Solar Panels Installation
Product Description:
Flat washer is a kind of very common components for bults, screws or nuts.
In solar mounting industry, M8 size flat washer is the most often used.
The function of M8 flat washer is bearing surface and equally distribute fastener over a wider area like aluminum rails, mounting clamps, beams …
The material of flat washers can be: stainless steel, nylon, fiber, copper, PTFE, silicon bronze, aluminum, Monel, phenolic, PVC, brass …
Surface treatment of flat washers can be: stainless steel, plain, black oxide, zinc-plated, galvanized, neoprene …

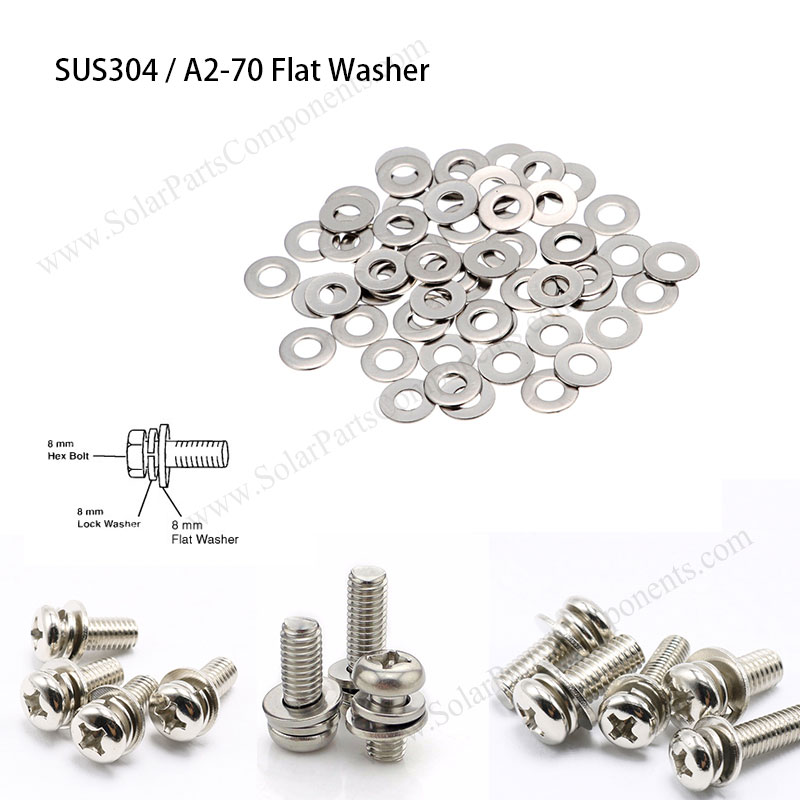

Our flat washers for bolts are all SUS304/ A2-70 stainless steel which have good performance for outdoor rust-proof.

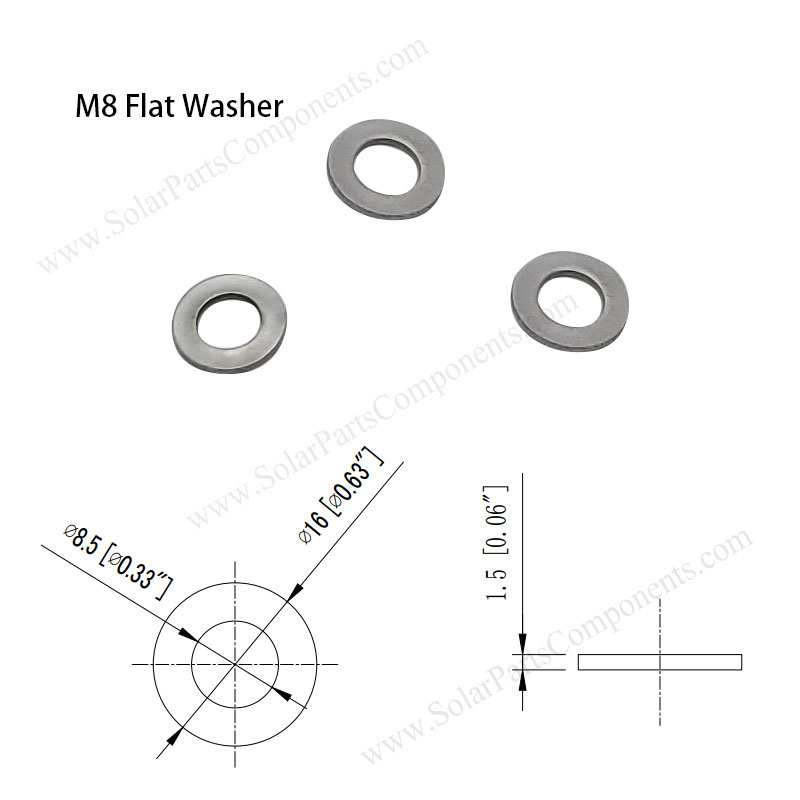

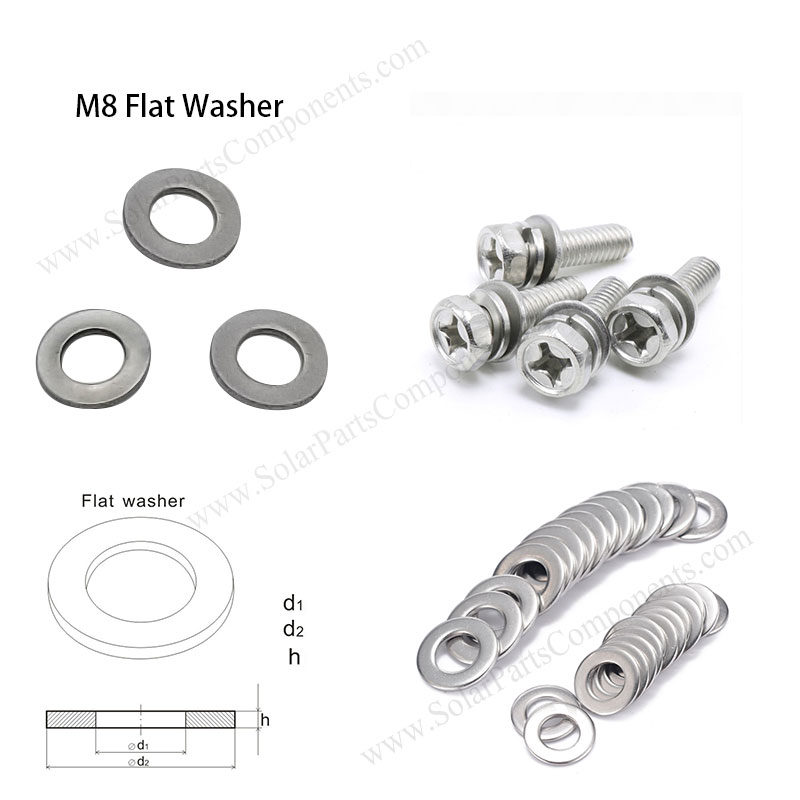

The sizes of M8 flat washers are:
(1) Inner Diameter d1: Φ8.5mm [Φ0.33″];
(2) Outside Diameter d2: Φ16mm [Φ0.63″];
(3) Thickness of flat washer h:1.5mm [0.06″];
Features of this #8 flat washer:
1. Prevent shaking loose, anti-rust;
2. Together used with nuts / bolts and screws;
3. Standard ship from our factory inventory;
4. OEM like round trims, thickness, odd shaped shims, passivation can be available;
5. Wide types of flat washers for your application from machine, aluminum surface to construction.
Besides stainless steel M8 flat washers, SPC solar have other size like: M6, M10, M16…
Our engineer also would recommend proper model for your uses like nylon models for reduce noise, sealing washers for hydraulic projects, sus304 models for outdoor construction …
Brief Descriptions: | |
Solar Mounting Components – Stainless Steel Flat Washer, M8 (SPC-F-P108) | |
Item type: | Bolt & Screw Flat Washer |
Type: | Fasten Parts |
Installation Site: | PV module installation hardware |
Profile Material: | SUS 304 Stainless Steel / A2-70 / Customized |
Fasten Parts: | Together used with Bolts / Screws / Nuts |
Color: | plain or finished with a coating like zinc |
PV Modules: | Framed, Frameless |
Module Orientation: | Portrait and Landscape |
Standards: | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955: 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Lifespan | 25 years |
Packing Details: | |
Inner: | Bubble bag+inner box+Carton |
Outer: | Wooden Box, Steel Pallet, MDF, etc |
How to using this Flat Washer Solar Mounting Components ?
