Instruction for frameless glass solar panel mid / end clamps mounting
Nowadays frameless glass laminate PV modules are more and more popular because of good appearance & high efficiency .

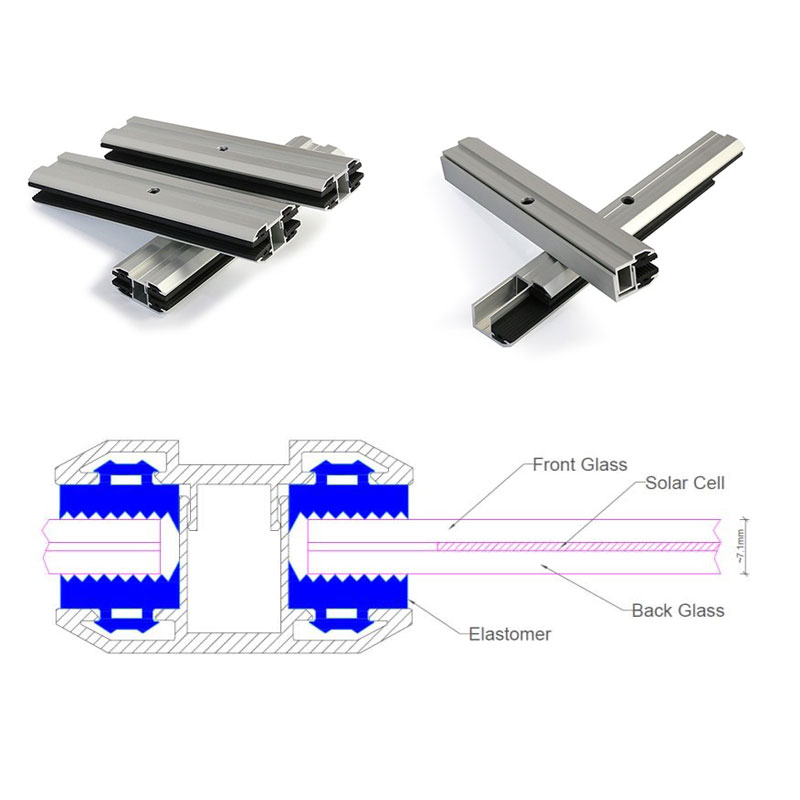

As a professional solar mounting parts & components factory, we release frameless solar panel mid / end clamps to fit different
thickness glass PV modules, range from 2 mm – 12 mm .
Since there are many kinds of mounting rails in the market .
Installation structures for frameless glass modules with our clamps:
Different mounting structure company may have their own patented
aluminum rail profile , but mainly following three types .
Please refer to mounting & manual details for how to install our unframed glass module clamp series :

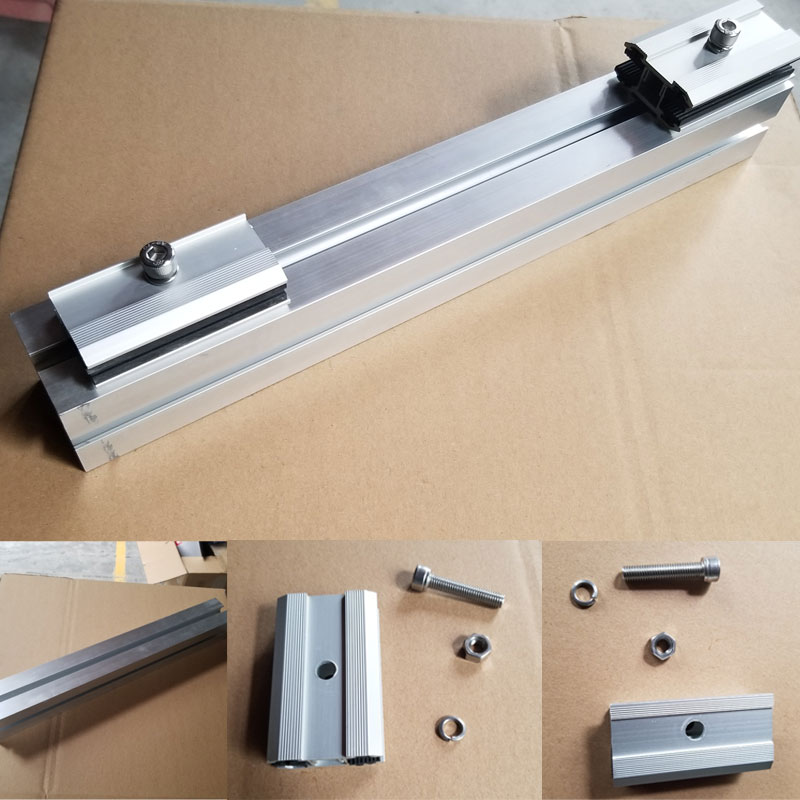

(1) Side mounted aluminum rail structure :
Profile Material : Aluminium shell + EPDM Rubber x 2 pcs ;
Fasten Parts : M8 x 40 Hexagon socket head cap screws (SUS304) x 1 pcs + T block x 1 pcs ;
(2) Top / Bottom mounted aluminum rail structure – A :
Profile Material : Aluminium shell+ EPDM Rubber x 2 pcs ;
Fasten Parts : M8 x 40 Hexagon socket head cap screws (SUS304) x 1 pcs + Hexagonal nut x 1 pcs ;

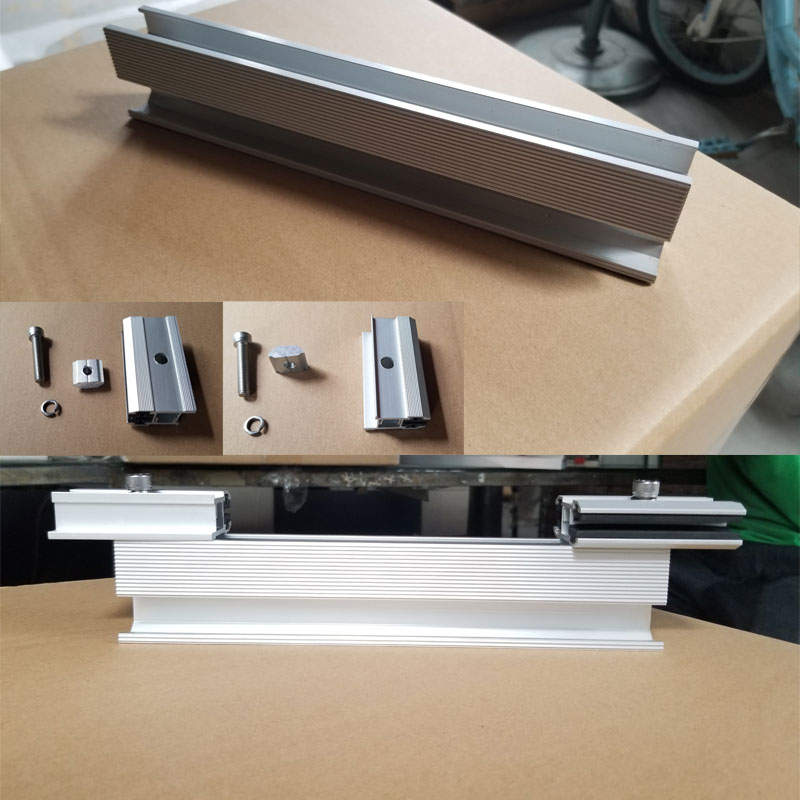

(3) Bottom mounted aluminum rail structure – B :
Profile Material : Aluminium shell + EPDM Rubber x 2 pcs ;
Fasten Parts : M8 x 40 Hexagon socket head cap screws (SUS304) x 1 pcs + T block x 1 pcs ;

.
.
.
They are also many type of aluminum profiles ,
we can customized proper T-sliding blocks and related components for your glass PV modules project .
With our special design frameless clamp series, mounting to Different Aluminum Rails is a piece of cake .
Our frameless module clamps specification:
– Safely designed set onto mounting rails ;
– Complied with national wind / snow loading standards ;
– No deform / affect under thermal circumstance ;

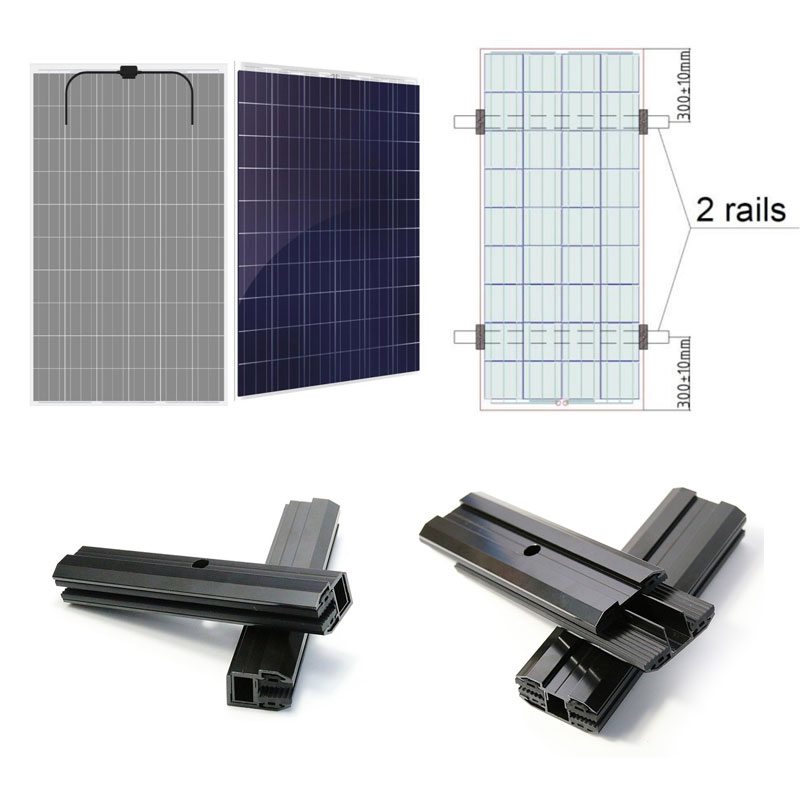

– four clamps (two on each long side) is recommended for one solar panel each ;
– Mill finish or black color available for our frameless clamps ;
– No grounding necessary for frameless module structure clamps ;
– Rubber guards inside to protect glass from over tightening;
– Pre-assembly & pre-wiring service beneficial for labor cost ;
To bear mechanical wind loading ±2400 Pa for our glass PV modules, 80 – 100 mm length mid / end clamps are required ;
To bear mechanical wind loading ±5400 Pa for our glass PV modules, 160 – 200 mm length mid / end clamps are required ;
Maintenance for our frameless glass solar panel clamps :
By cleaned water with soft sponge / cloth ;
Mind detergent is strongly recommendation ;
Welcome to choose proper overall series of unframed solar mounting clamp kits from www.SolarPartsComponents.com
