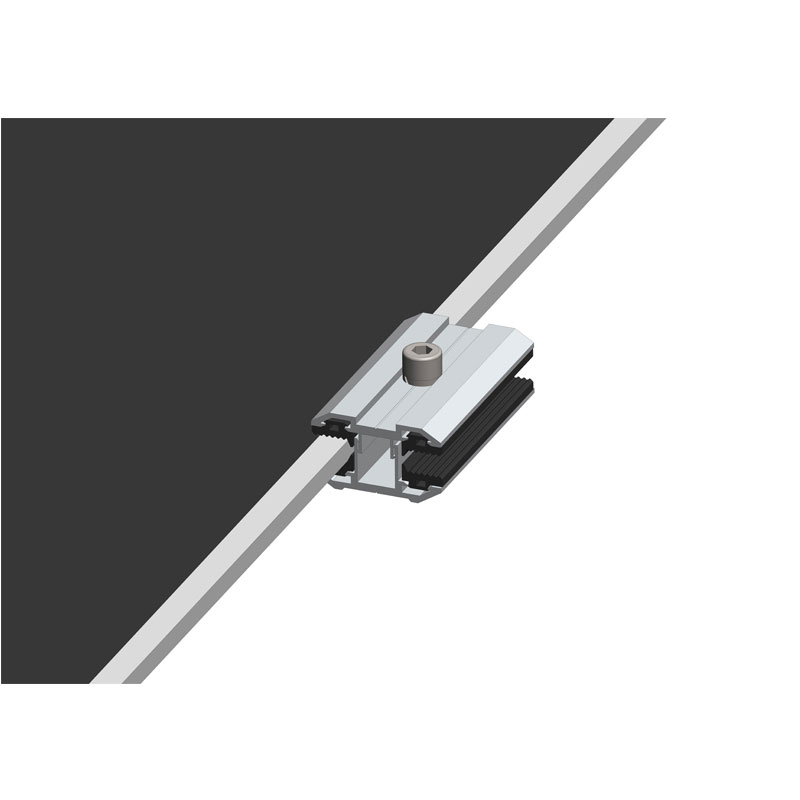

Mid Clamps for Frameless Solar Panel Mounting

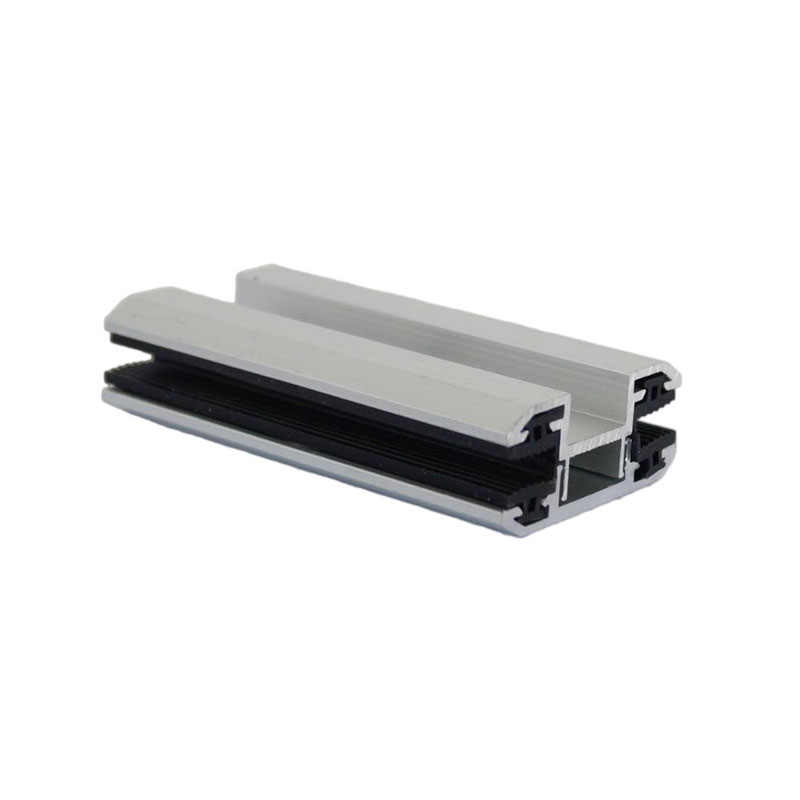

Frameless Solar Panel Mid Clamps is a clamp specially designed for flexible solar panels.

It can be adjusted according to the thickness of the solar panel. It is designed with a rubber pad inside and will not damage the solar panel.

Here is a related inquiry.

Q:

Looking for clamps and bolts for the attached Canadian Solar module.

A:

Nice to receive your enquire about our frameless GLASS PV module mid & end clamps .

As per module information given, I recommend you using our frameless end clamps and mid clamp. Please refer to our specification of these two models .

Can I know how much quantity you would need ?

Q:

Thanks William,

Right now, I only need (340) Mid Clamps and (340) End Clamps.

Can you confirm the spring nuts fit in a standard solar rail?

Please see attached.

A:

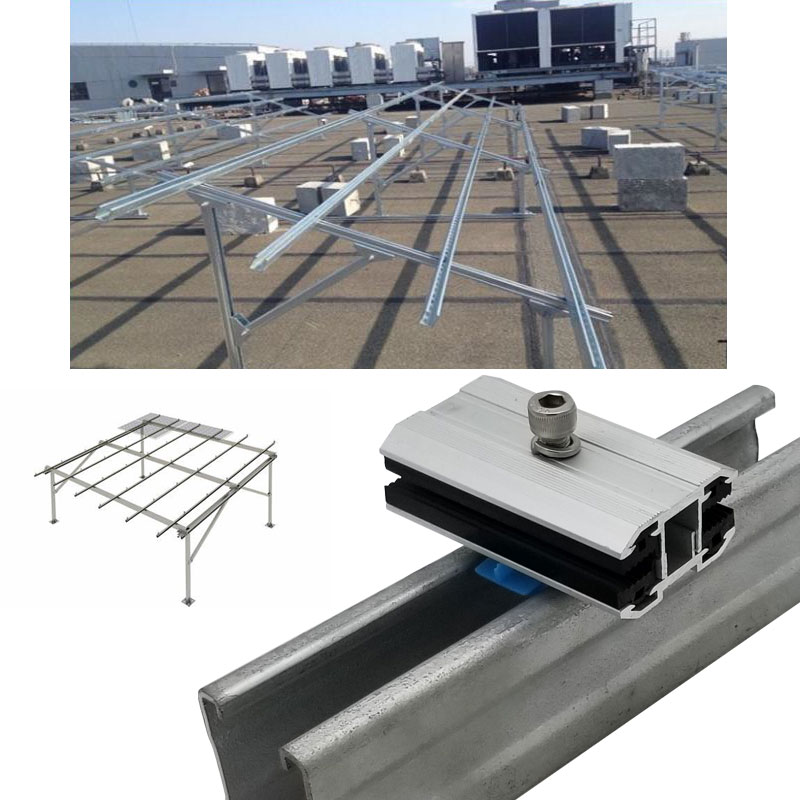

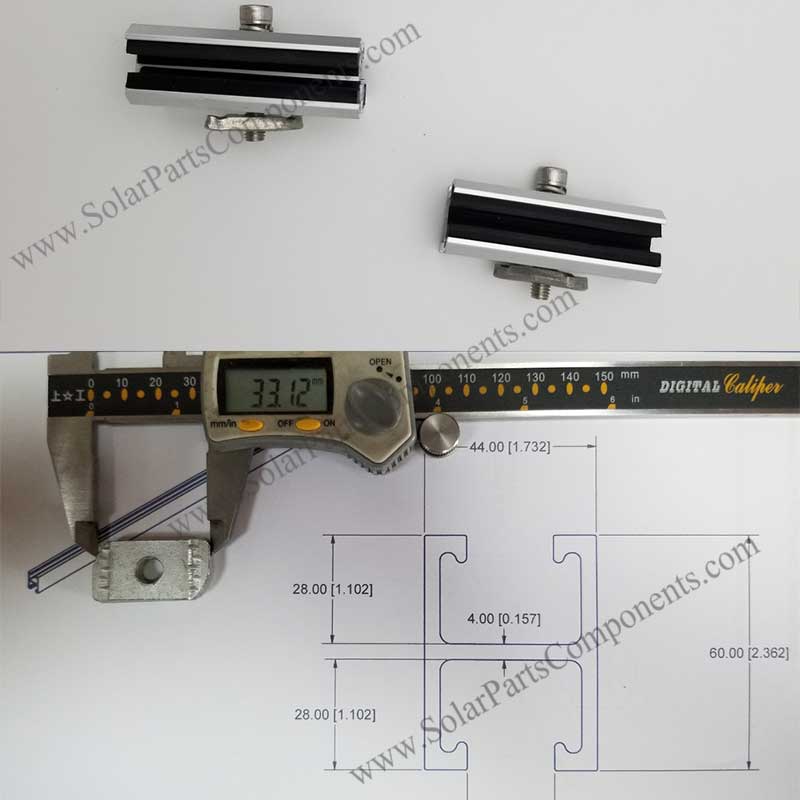

Yes, we can offer match nuts for rails as below:

Frameless Solar Panel Mid Clamps

Q:

I am seeking pricing and lead time for Frameless Solar Panel Mid Clamps compatible with Trina DouMax Twin_DEG14C.07(II) modules. Do you carry?

We are looking for 2,302 end clamps and 13,649 mid clamps.

A:

What is the thickness of solar panels for this project ?

Q:

Do you have a clamp closer to these clamps? Confidential data sheets.  Looking for 150 instead of 80 for length. And what is the delivery time line for a larger order?

A:

Yes, I will send you 150 mm length samples for you in 3 days .

Q:

Can you please forward me cutsheets/datasheets for the 150mm frameless module clamp? I also need to know the availability and lead time for:

Esplanade –         Mid: 9,100  End: 1,600

YMCA –                Mid: 1,300  End: 300

A:

Please refer to our specifications for 80mm frameless clamps .

I have no ready files for 150mm models in my computer .

150mm length samples will be on the way to address below within 3 days .

The leading time for clamps can be around 10 days for mass order .

Q:

The lead time of these clamps are critical to our decision making efforts. Can you please provide us with a lead time?

Q:

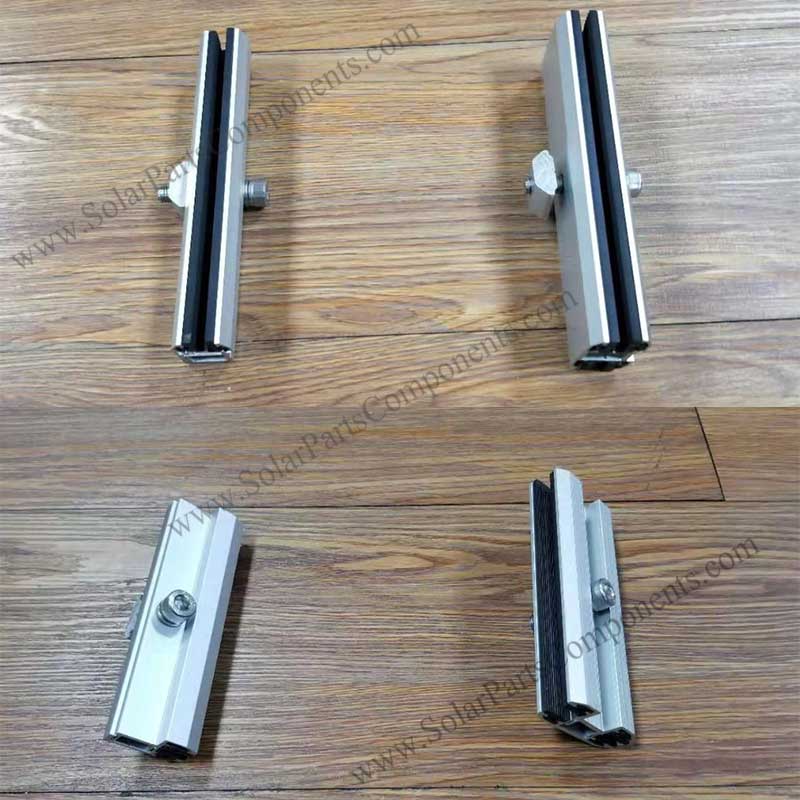

About samples, we sent two models for your choosing :

(1) two sets of 150mm length as below ,

(2) two sets of 120mm length as below ,

Just test them and let me know which model can fit your glass PV module well .

ETA you can get them late this week .

Frameless Solar Panel Mid Clamps

Q:

“ Hi there, I am in Australia and wish to buy some Clamps for Frameless Solar Panel Mounting

.Do you have any vendors in Western Australia?”

A:

“Hi Andre, glad to hear from you.

You can purchase directly from our factory with competitive price.

We are Clamps for Frameless Solar Panel Mounting Factory with regular stock and fast delivery.

May I know how many do you need?

Please refer to drawing of our hot sale thin film solar panel clamps as below:

1. End Clamps for Frameless Solar Panel Mounting:

end Clamps for Frameless Solar Panel Mounting factory

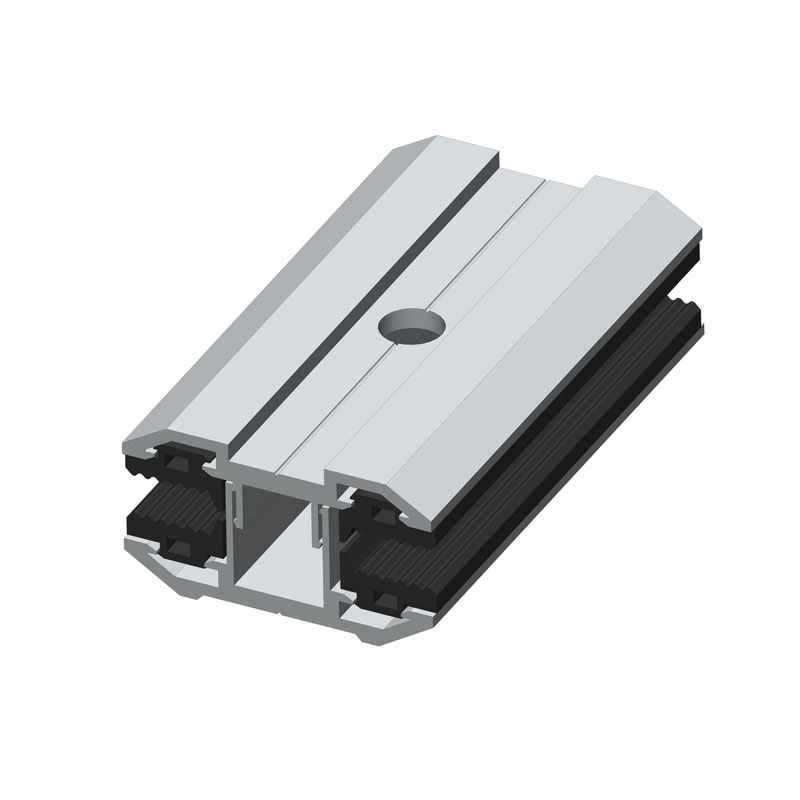

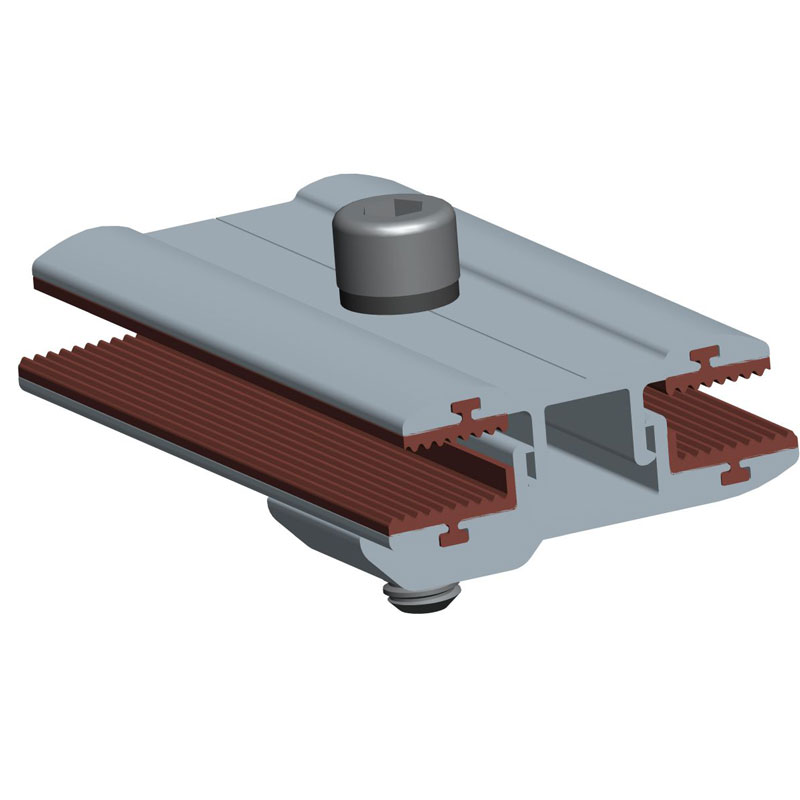

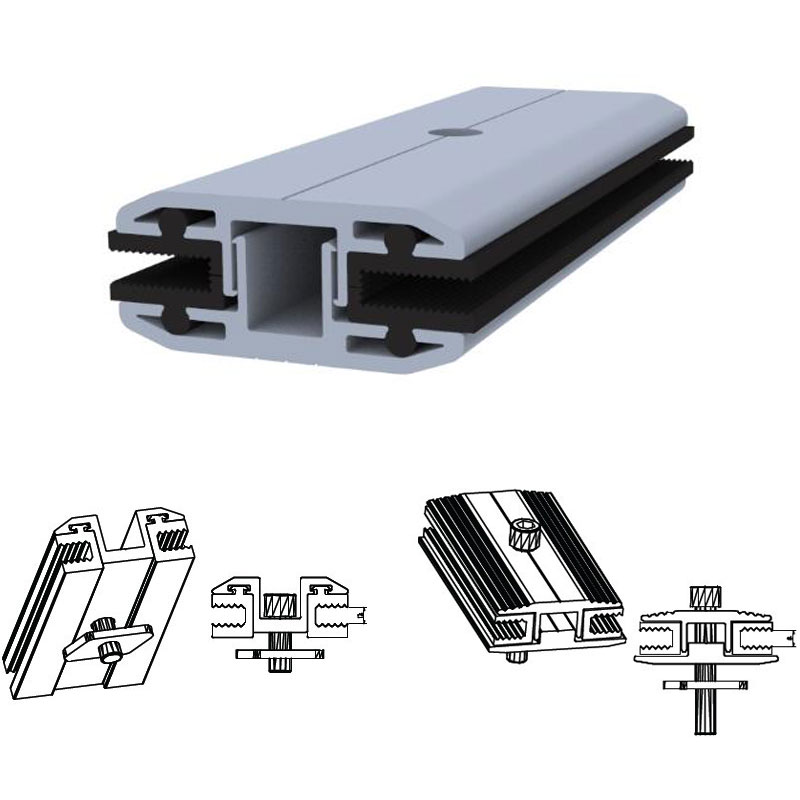

2. Mid Clamps for Frameless Solar Panel Mounting:

drawing of mid Clamps for Frameless Solar Panel Mounting

”

Q:

“How much each item? I need 250 and 100 Nos.”

A:

“Thank you for your fast feedback. I have sent quotation to your email, please kindly check.”

Looking for your early reply!

SPC Team

Yes, our frameless bifacial PV module mid / end clamps can be customized .

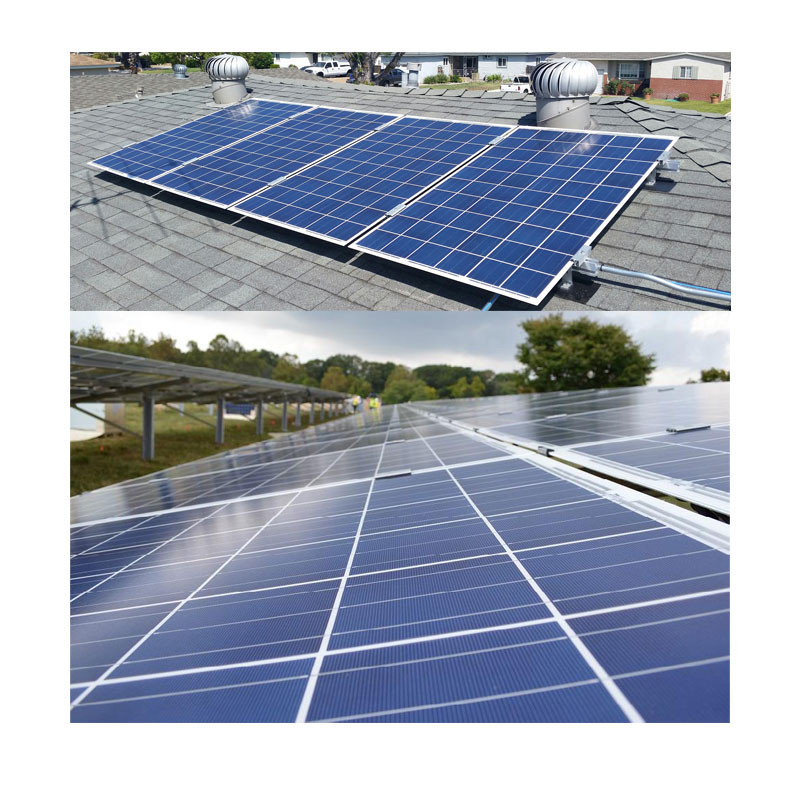

As good aesthetics and performance for frameless PV modules, more and more solar projects use bifiacial solar panels today especially for roof tops / carport …

SPC also release mid and end clamps to fit frameless modules for very convenient and quick installation .

Our frameless clamp length can be customized according to different frameless PV modules sizes ;

Our frameless clamp color can be customized base on roof structure like : grey color in default / black color / RED / GREEN / BLUE … They can help your whole solar installation project in very good appearance .

Our unframed clamps accessories can be customized too .

Since clamps are fixed with aluminum rails, we can offer different A2-70 hex screw size like : M8 X 40 , M8 X 30 … and different nuts & bolts …

frameless bifacial PV module clamps

Features of frameless bifacial PV module clamps :

– 80 / 120 / 150 / 200 MM sizes available;
– Silvery / Black color ;
– Good quality anodized finished AL-6005-T5 Aluminum Material ;
– Application : 3mm – 6mm super thin solar panels / 5 mm – 10.5 mm frameless bifacial panels;

Welcome to customized frameless bifacial PV module MID / END clamps from www.SolarPartsComponents.com

Mounting clamps for thin film laminate solar panel Installing

As Thin film frameless laminated solar panels are more and more popular in today’s solar energy market .

Base on different thickness from different PV module manufacturer range from 3 mm – 10 mm .

We design two series of laminate clamps for solar panel installation as photo below:

laminate solar panel mid clamps,laminate solar panel end clamps,

One set is designed for 3 mm – 8mm thickness glass PV modules (Left one);

The other set is designed for 5 mm – 10mm thickness glass PV modules (Right one);

Normal color is silvery, we also can do black color as sample we sent .

The standard bolt & nut is hexagon bolt with T sliding nut (for rails);

We also can offer hexagon bolt and hexagon nut ;

We can customize for clients base on aluminum rail extrusion profile given .

More features of this laminate solar panel mid / end clamp series :

– High quality clamps for AL6005-T5 made ;
– EPDM rubber seal inside ;
– Short time delivery ;
– Flexible for different thickness of laminated frameless PV module ;

More details for our mid & end clamps, kindly contact us by [email protected]

Factory direct mid / end clamps for thin film PV laminate solar panel installation.

Mid clamp for frameless solar panels are designed to install bifacial pv modules.

More details kindly check >>>

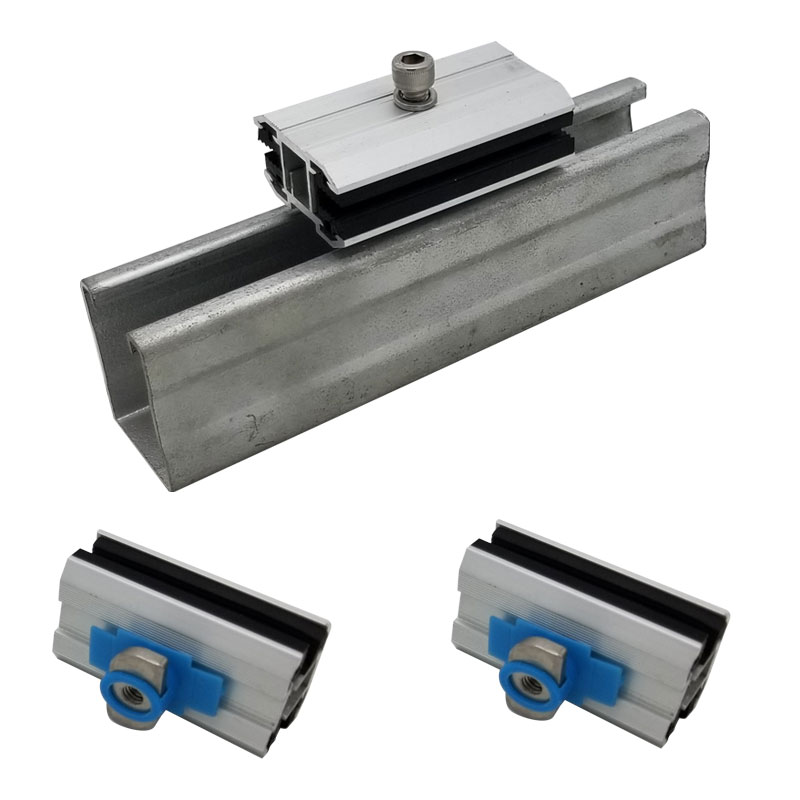

There are some choices for clamp nuts when you install frameless solar panels,

More details kindly check >>>

frameless bifacial PV module mount with mid / end clamps

for one solar plant project.

More details kindly check >>>

specification of frameless glass solar pv module mid clamps mounting instruction,

More details kindly check >>>

Glass Solar Module Mounting Mid / End Clamps :

More detail kindly check >>>

Mid Clamps for Frameless Solar Panel Mounting

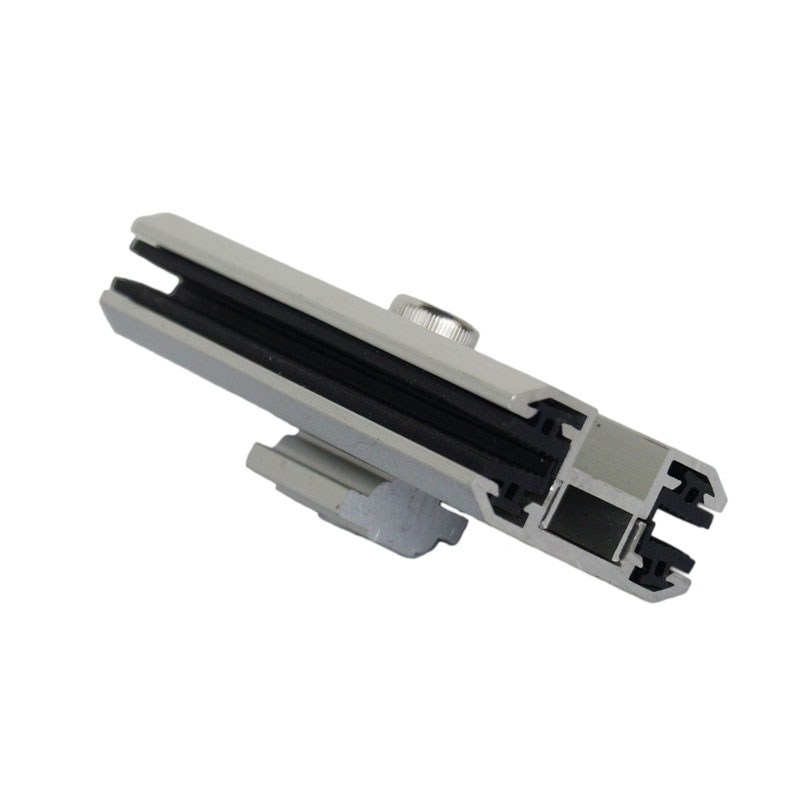

This mid / end clamps are designed for frameless Glass Solar PV Modules ,

– 80mm / 120mm / 150mm / 200mm / Customized length for options ;
– Suitable for thin-film solar panels / double glass solar panel / frame-less PM modules installation ;
– Body Color : Mill finish / black / others ;
– Thickness Range : 5 mm – 12 mm glass thin film solar module ;
– Material: Anodized 6005-T5 Aluminum + EPDM rubber strips inside ;
– Fasten Parts : SUS 304 hex bolts (A2-70) ;
– Cost effective / Great Value ;
– Wind Speed: Up to 200 KM/Hour ;
– Snow Load: Up to 1.4 KN/M2
– Warranty: 12 years in material, 25 years lifespan

Glass Solar Module Mounting Mid / End Clamps

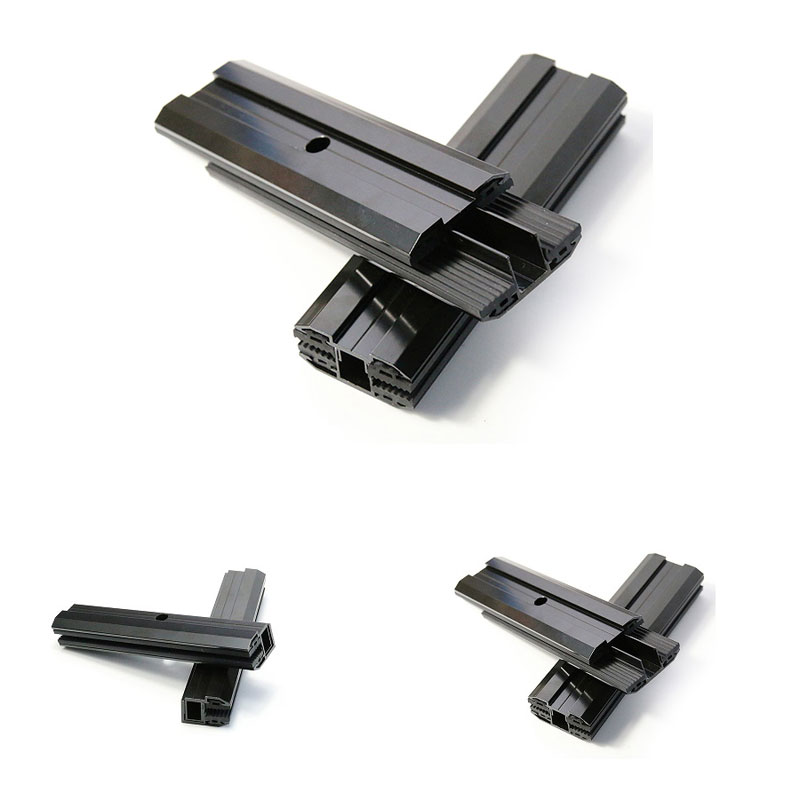

Yes, We can produce BLACK frameless solar panel mid clamps .

Although our default finish color is grey / silvery,

We can customized black / white color if solar mounting project required .

– EPDM rubber inside holding of glass PV module well ;
– Compact & Elegant design ;
– Pre-assembled service available ;
– Anodized in Silvery / Black / White …
– Manufacturer Direct , Price competitive ;
– Quick & Safe Installing ;

Glass PV Module Mounting Clamps

Solar Parts Component Factory can offer Mid / End clamps for your framed / frameless module installation .

Frameless / thin-film clamps can be well used for composition asphalt shingle roof mounting project .

More details kindly check >>>

interior / mid clamps for unframed PV module mounting ,

More details kindly check >>>

Double glass solar panels Mid clamps with EPDM rubber pads

More details kindly check >>>

Thin Film Solar Panel Clamp Series

More details kindly check >>>

Sizes, profile and drawing for frame less PV module mid bracket ,

More details kindly check >>>

“Dear all,

I am a Mechanical Engineer working on solar panel assembly for a solar Company in Luxembourg. Today, we are looking for a
supplier able to design and produce for us a waterproof electrical connector. Are you open for discussion ?

I have a other request regarding:

Solar Mounting Components –Clamps for Frameless Solar Panel Mounting

Do you have a PDF or STEP with the dimensions of the Mid Clamps and end clamps for Frameless Solar Panel Mounting?

I could found it on your website and I need it to finish writing the specification of our solar panel assembly.

The solar panel thickness is 8.8mm

Best regards,”

“May I know how many quantity of the frameless clamps would you need and what is the purchase shedules after the first
trial order approval.

Thank you and have a nice day!”

”
Good morning,

Please update the quantities:
400x Mid Clamps for Frameless Solar Panel Mounting
100x Bifacial solar panel end clamps

For the next year, we forecast 300 000 unities for 1 assembly machine.

Best regards”

” Good morning, well understand, base on 8.8mm thickness of your solar panel,please refer to our quotation for this size
of the frameless clamps for solar mounting as file attached.

Feel free for any question and concerns.

Thank you and have a nice day!”

“Good,

Find the paypal validation.

When will delivery take place ?”

“Thank you for your payment.

We will arrange the shipment in 1-2 workdays.

Will update you the tracing No.

Thank you

Best Regard

Clamps for Frameless Solar Panel Mounting Supplier”

Yes, frameless module mid clamp rubber pads are essential for prevent breakage .

More details kindly check >>>

Factory direct thin-film module mid clamp with wholesale price

More details kindly check >>>

EPDM black rubber pads inside clamps to well protect glass modules from damage, and keep it fixing without moving

More details kindly check >>>
