M10 T Bolts for Solar Mounts

Q:

Hi, we are interested t bolt M10 25 s304 4000pcs nut M10 s304 4000pcs hex bolt M8x60 s304 5000pcs

A:

Nice to receive enquiry about solar mounting bolts and nuts,

as per size and models you are interested in,

The factory price please see at attached.

Hope the bolts and nuts are correct as you need,

if it’s not matched, please reply me with right photos and details.

Thank you!

Q:

Thank you for your kindly reply!

T-bolts come in various sizes, the regular sizes are M8 or M10*25/30/35/40/45, etc. Here is M10 T Bolts for Solar Mounts.

Specific size specifications can be customized according to customer needs. Details of T-bolt inquiry are as follows:

Q:

What size is your solar system mounting kit t-bolt? What are its dimensions and thread?

If the kit is fairly inexpensive and the bolt is the right right size, you may have a market for it among owners of the several brand names of Chinese-made 920 metal lathes — JET, Grizzly, Central Manufacturing, and others.

It looks like a t-bolt that would fit the cross slide slot and be far better than the bolt that comes with those lathes. They break, and those with the skill make one that looks like your bolt.

A:

Appreciated for your inquiry of our T bolts.

As a factory direct, we can offer several models of T bolts.

Do you have drawing sizes of T bolt head and thread ?

I will check and recommend proper model for you.

How much quantity you would need ?

More details of your requires would be favorable for me.

Q:

See the attachment for details, thank you.

Q:

I’m looking for M10 T Bolts for Solar Mounts for a solar panel change out. The bolts that we have are ¼ x20 by ¾.

A:

Appreciated for your inquiry about our M10 T Bolts for Solar Mounts.

Can I get any size drawing of T bolt model you need ?(Especially thread detail)

How much quantity you would need ?

Q:

I have a picture of the bolt the thread is 1/4x 20 there is no model number on the bolt. Let me know if this will work.

I will probably need around 50000 or more.

A:

Yours information is very important.

Can I also know the thread details ?

It will effect if you need to put bolt thread into rail groove.

I need to make sure it can fit well.

Q:

1/4×20 standard thread

A:

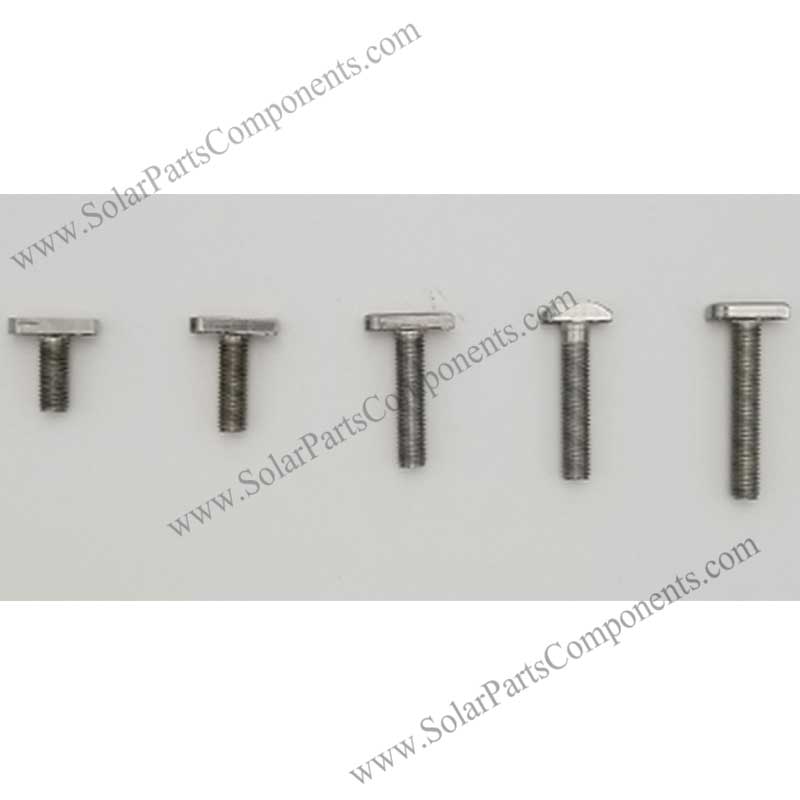

Quick check some of our T bolt sizes.

Is any model workable for you ?

Q:

Some of these may work for me what kind of lead time am I looking at to get them to United States ,Alabama ?

A:

INVOICE see at attached.

Q:

Thanks I will let you know if we plan on ordering this from you all.

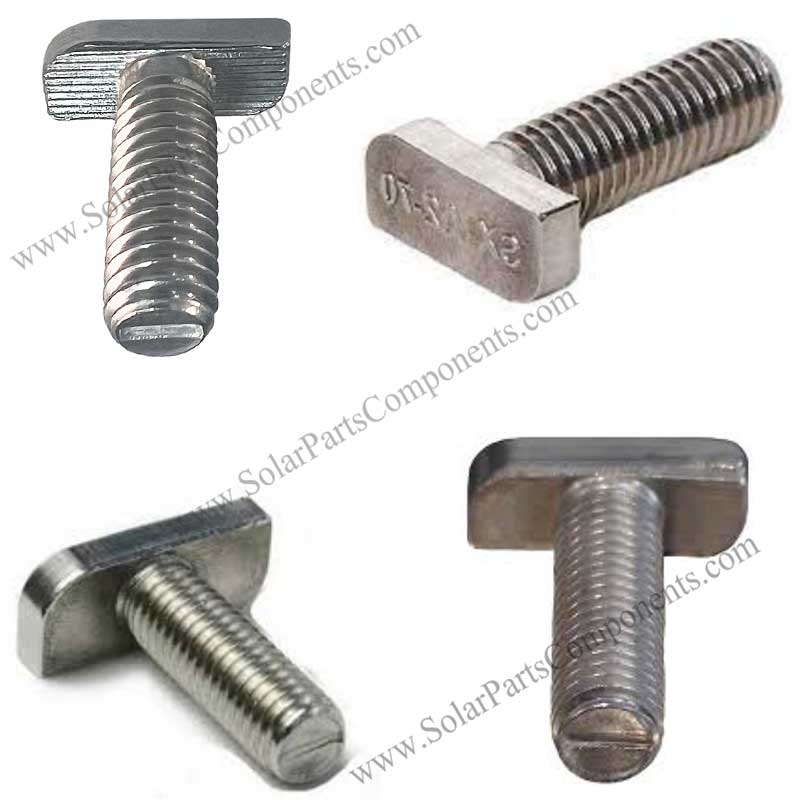

M10 T bolt – which means the outside diameter is 10mm.

There are many specifications of M10 T Bolts for Solar Mounts on the market, and the most common one is M10 Tbolt.

It is designed for permanent fixing of solar components, and has different lengths and sizes to meet different requirements.

The following is a related inquiry about M10T Type Bolts.



Q:

good day .

Maybe you are big China supplier

hope to do business with you. Wait for your solar catalogue.

A:

We are Solar Parts & Components wholesale factory with more than 12 years experience.

Click to read more of our brochure:

https://www.solarpartscomponents.com/images/SPC-Catalogue.pdf

Q:

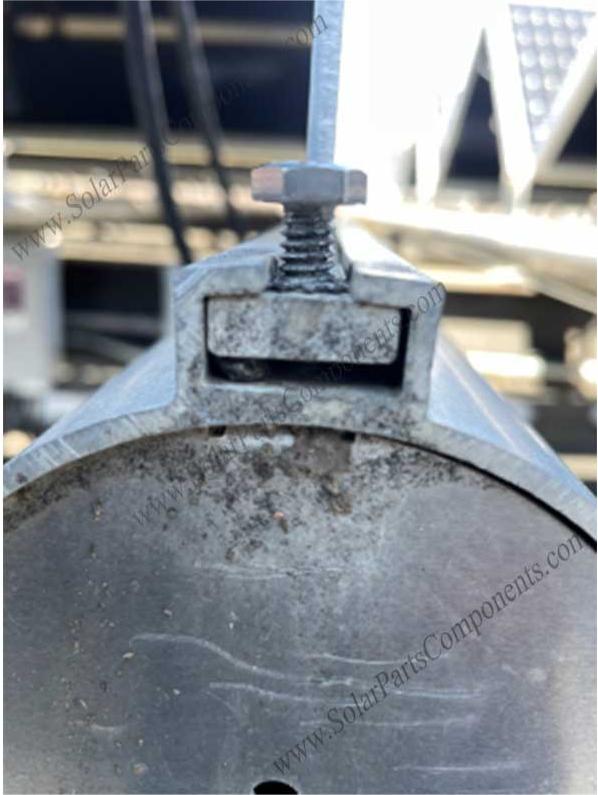

I am looking to find some hardware for a commercial retrofit install with some existing aluminum rails. I would like to get a sample to see if this drop in that you have will do the job for the picture that below. Let me know if this is possible or can you send me a cad file of this part for me to confirm fit.

A:

Thank you for your email.

FYI.

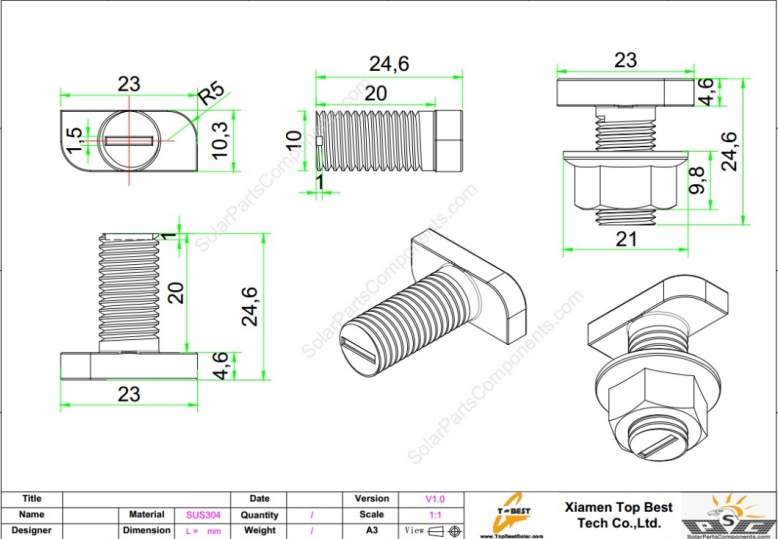

One drawing size of our M10X20MM T bolt

Q:

Please provide the invoice to me for 5000pc.

A:

Please refer!

” Hi, we are looking to purchase 20000 M10 T Bolts for Solar Mounts.

The size of our T bolt is smaller than your regular size.

Can you offer us the M10 T bolt as we need?”







” Hello Tim,

Yes, we are M10 T Bolts for Solar Mounts customized factory OEM & OMD, we can provide the M10 T bolt as your requirement.

Please double confirm our drawing size for you M10 T Bolts for Solar Mounts below.”





“Looks perfect. Please send your best price with cost to  Powell Rd, Ste 143 Powell, OH 43065.

Thank you!”



” Nice to hear that, I have just sent our quotation for 20000 M10 T bolts to your email.

Any questions just let me know,Thank  you!

Q:

Thanks for sending your newest Catalogue.

We do have some length of your solar rail SPC-DR-L left. We need a couple of components for this.

Do you have connectors to connect 2 of the above rails in a cross?

Other than that we need following:

–   70pcs   End Clamp 40mm SPC-EC-F40      (see pictures)

–   100pcs   D Module plus M8 screw (aluminium nut that slides in the solar rails) (see pictures)

–   10pcs    Ground Lug

–   Cable clips: which clip is the one that fits the above rails mentioned?

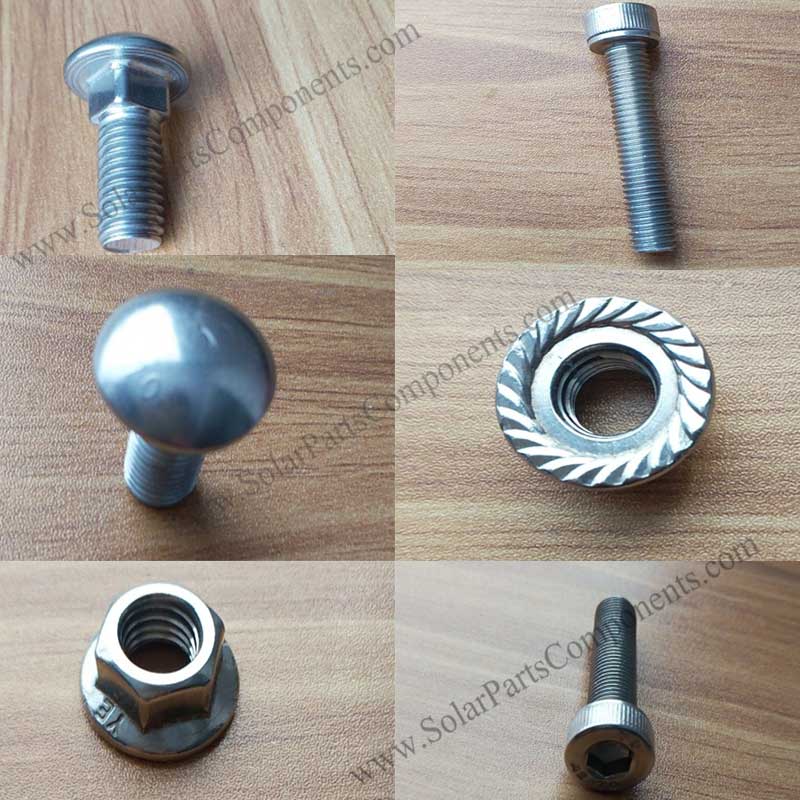

– Bolts and nuts, please quote a selection of screws. I suppose they are all in Stainless steel? A2 or A4?

– Could you supply more info and price on the Adjustable Roof system?  (see picture)

– Do you sell any MC4 Y connectors and other cables? DC breakers?

Please prepare a quote. Ex factory, to be shipped within China. Paid in RMB.



A:

Appreciated for your kindly requiry for our mounting kits.

May I know many quantity of the following item would you need:

1.T bolt    ( what is the size do you need)A2

2.Allen bolt ( what is the size do you need)A2

3.Flange nuts A2

4.Adjustable Roof system

5.MC4 Y connectors , other cables and DC breakers

I will come back to you quotation in next email.



Q:

I would like to know the dimensions of the T Bolt head. They are M8 right? So they fit in a 10mm track? Head is about 15mm long?

Maybe you could quote me some samples:

– 10pcs  T Bolt M8x45

– 10pcs  Flange Nut M8

Adjustable Roof system

– 20 pcs Tilt foot  (see picture)

– 20 pcs tilt foot with adjustable leg (see picture)

MC4 connectors

– 5pcs  MC4 Y connector pair

– 5pcs MC4 triple connector pair

– DC breaker 2 pole 16A   /  20A like the Suntree SL7-63C16



A:

Please refer to our factory price as attached.



Q:

Thank you for your swift reply.

A couple more questions:

In the part ‘Adjustable leg’ there I can see an aluminium angle. (see picture)

Do you sell these angles individually? Only the angle?

How long is the adjustable leg in its shortest and in its longest position ?

Do you know the weight of the discussed parts? Weight per unit would be helpful.



A:

Thank you for your kind reply.

1.The adjustable leg in its shortest is 400mm and in its longest position is 720mm.

Suitable for tilt angle adjustable range from 15-30 degree.

2.The angles we don’t sell  individually.

3.The weight of the front leg is 220g, and the adjustable rear leg is 700g per unit.

Just let me if any question and conerns.



Q:

Thank you for your explanations.

About this one:

” 2. The angles we don’t sell  individually.  ”

Do you sell any angle piece similar to this? or what is the next closest angle piece you sell.



A:

Thank you for your fast respose.

May I know what will you use for the “angle”

How about our L foot?



Q:

I was thinking of the L foot. But it is a bit big. You don’t have anything a bit smaller?

I try to connect 2 rails in a cross, and other applications.

What is the price of this L-foot, just like this without screws?



A:

How many do you need?

I need to calculate the amount.



Q:

How much is the normal L-Feet, Without the self drilling screw, but with the connector to the rail?



Q:

I am sorry for creating all that work. It does help me a lot and I appreciate your effort.

Amongst others I need the price for

– Socket Head M8*20

– L Foot including connector to rail



A:

Please refer to the file attached for the weight details.



Q:

This is excellent.

How long can I receive?



A:

Have a nice day!

I will message as soon as possible.

Q:

Hi, I am interested in some M10 T Bolts for Solar Mounts you have on your website. I see you have 8mm bolts on your site, but I was wondering if you could get them in 3/8″-16 x 1″?Thank You,

Chad Zachmeier



A:
