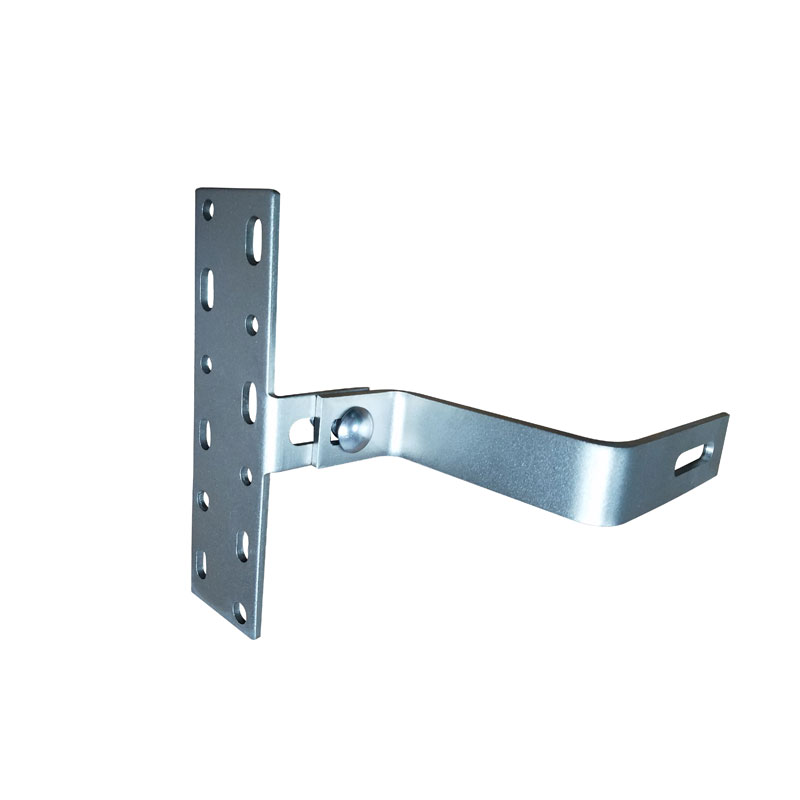

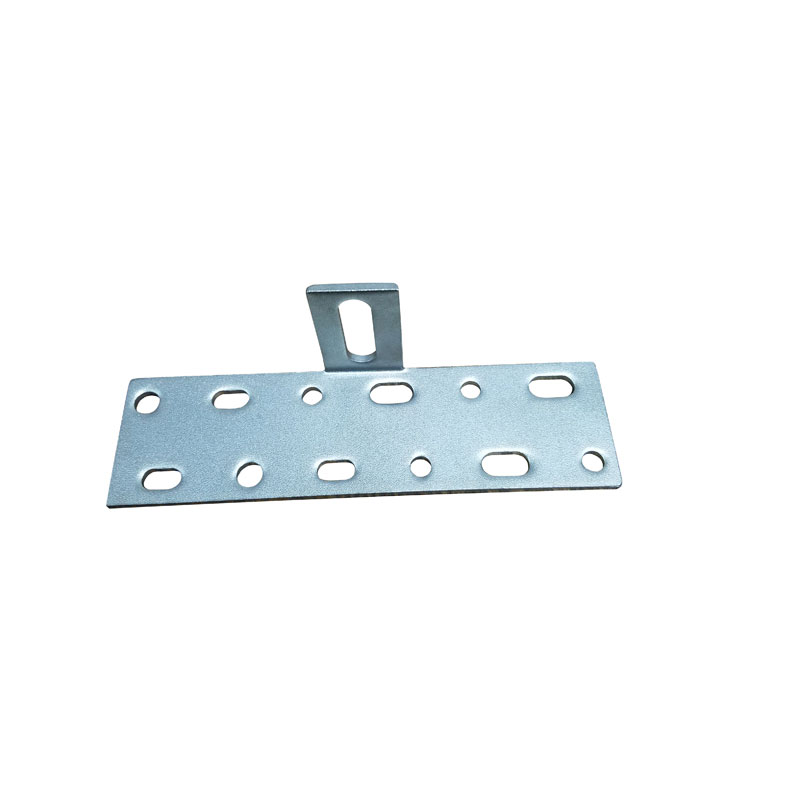

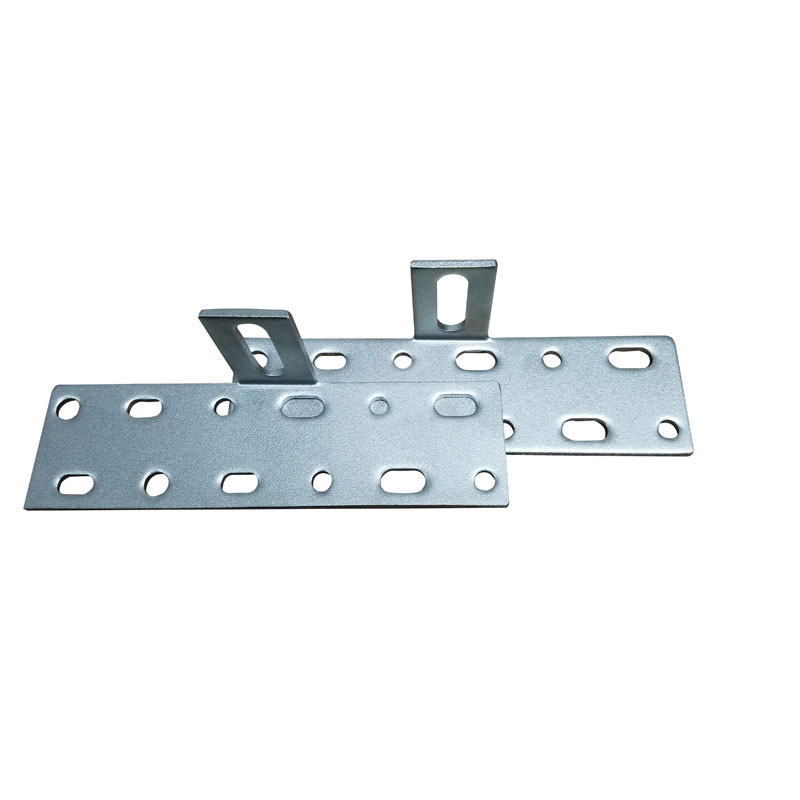

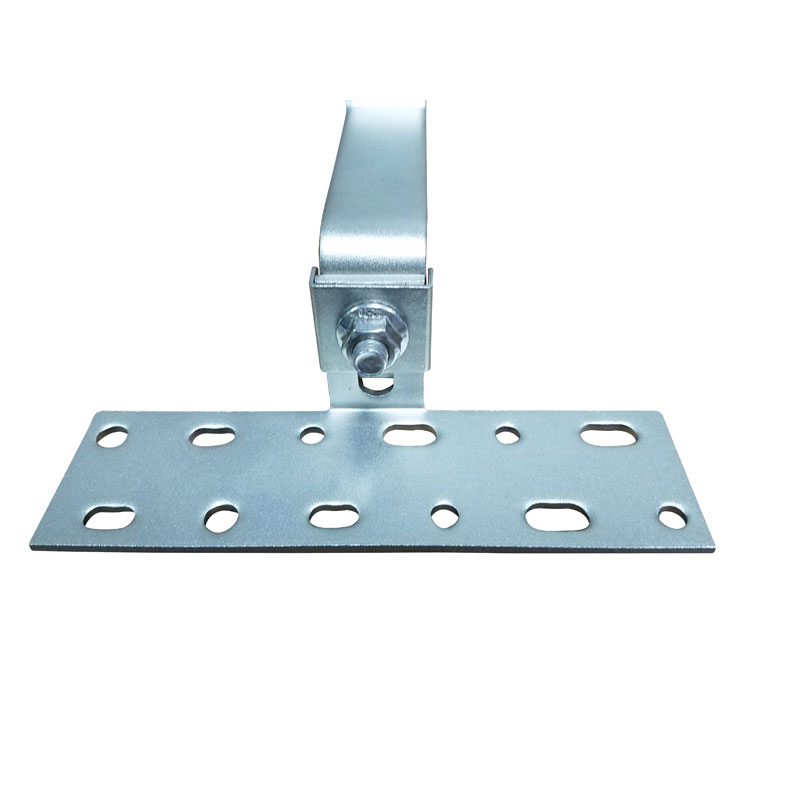

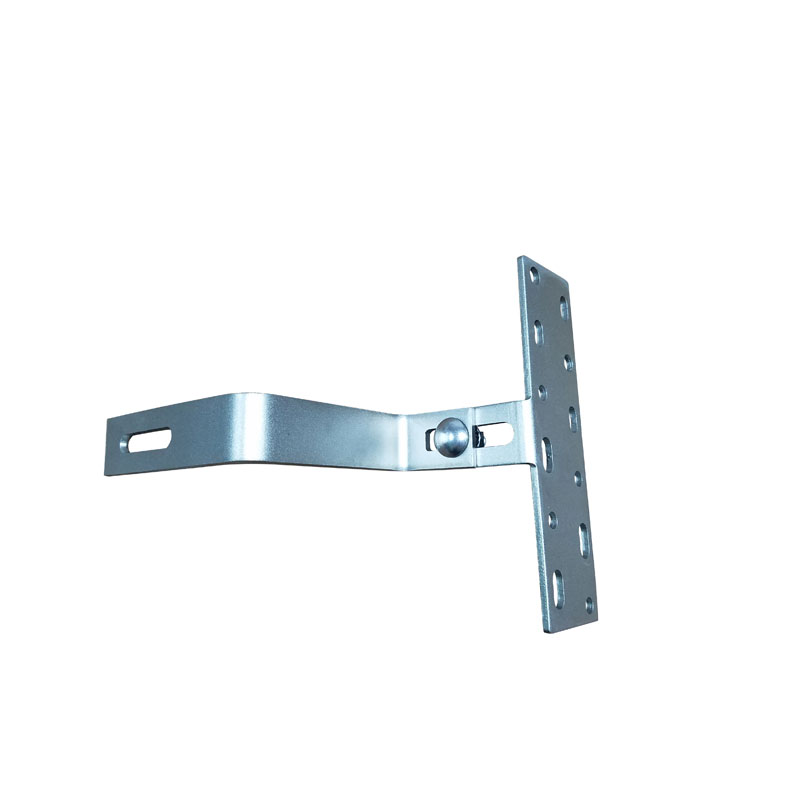

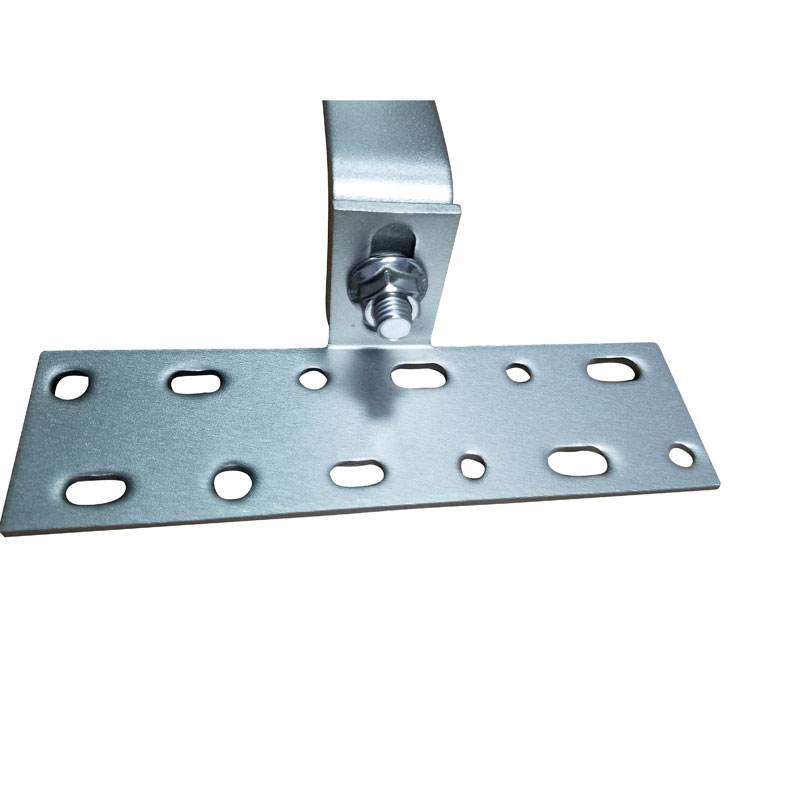

Weld-less, Roman Tile Roof Hooks, Base Adjustable, Side Mounts
- Product Type: Solar Curved Tile Roofing Hook
- Product Model: No-Welding-Solar-Spanish-Tile-Roof-Hooks-Adjustable-Side-Mounting
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Pitched Curved Tile Roofing Installation
Product Description :

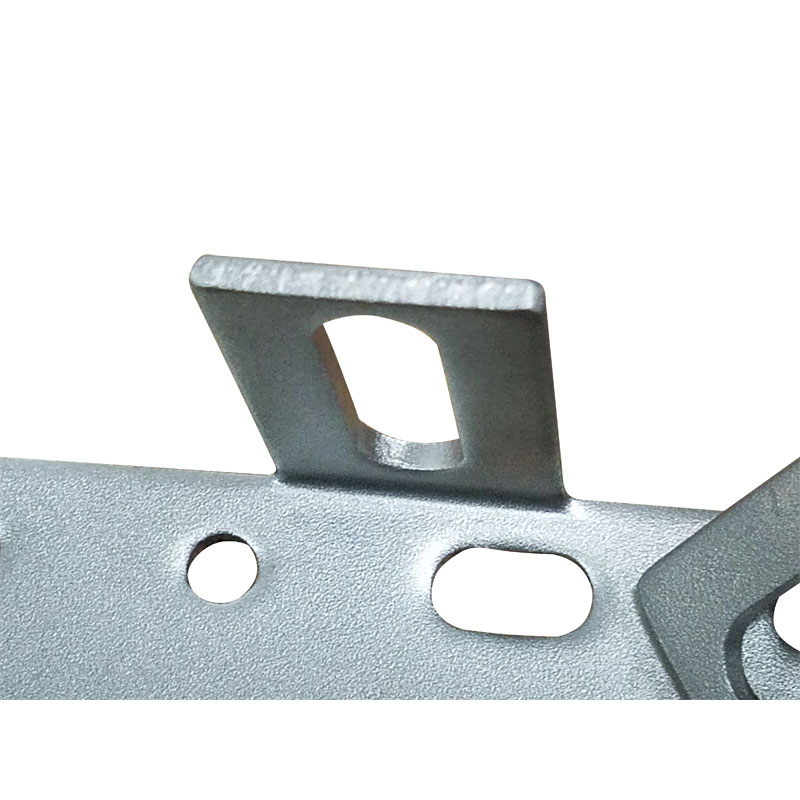

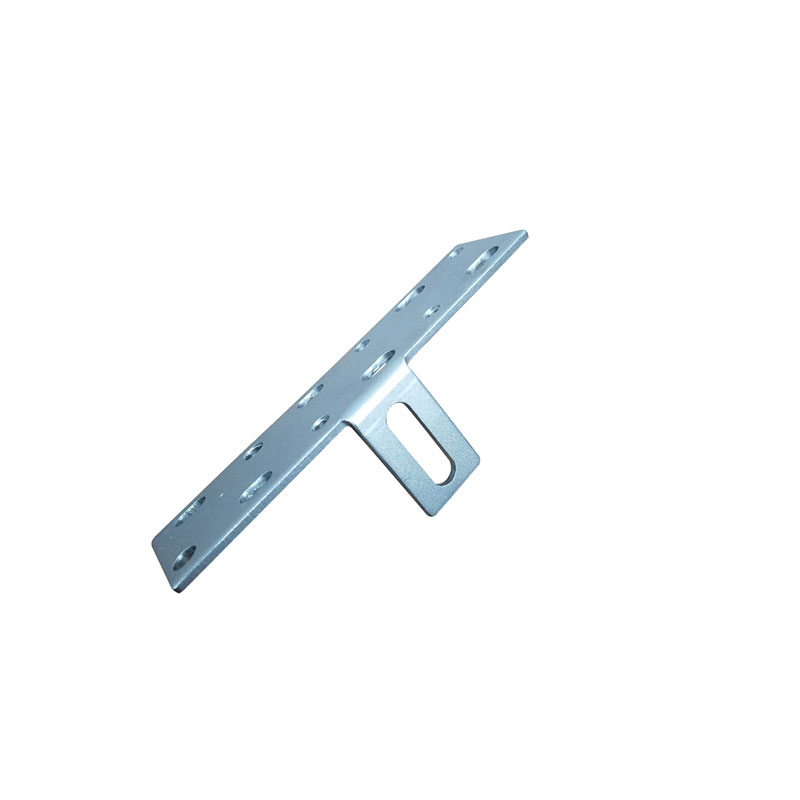

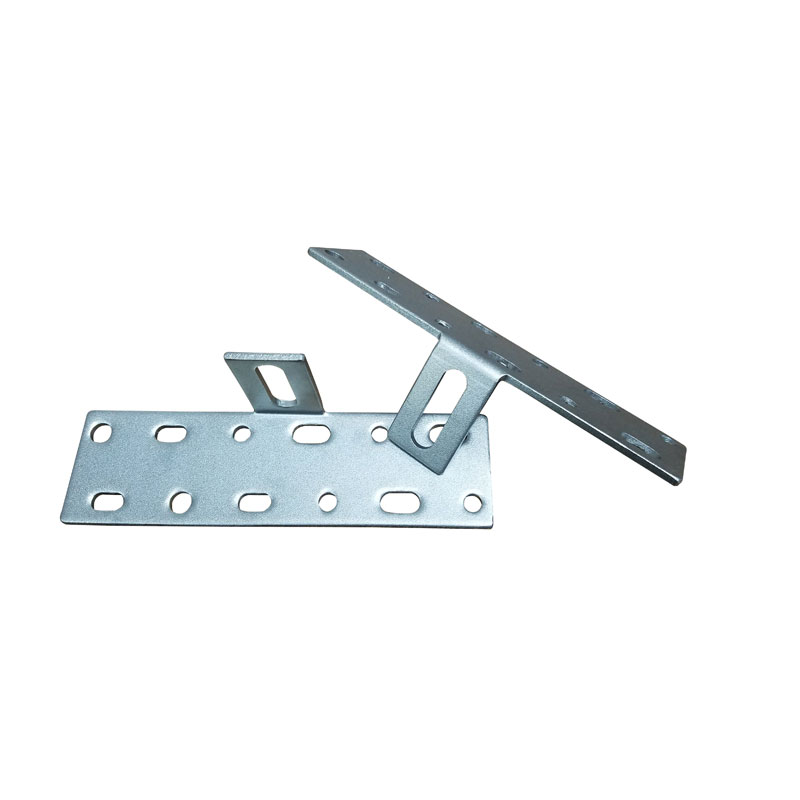

Solar spanish roof tie hook is no welding , you don’t worry about faulty soldering for base plates .

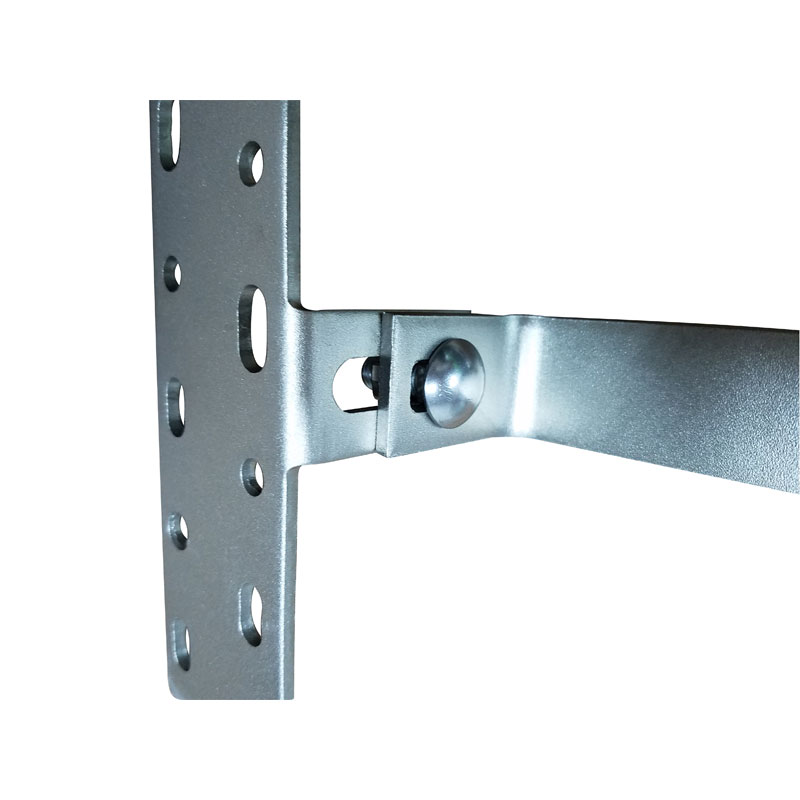

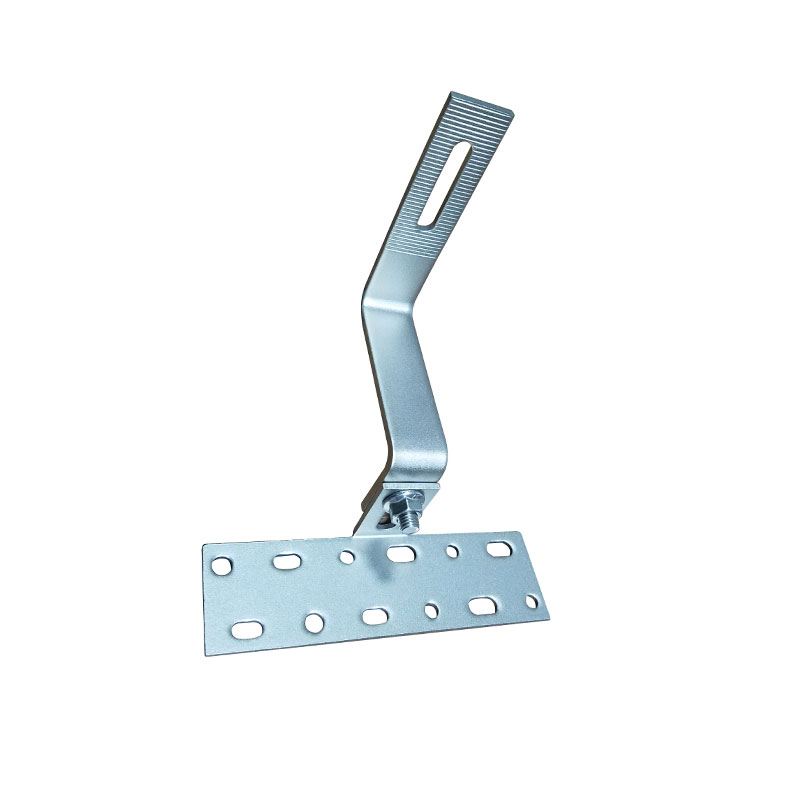

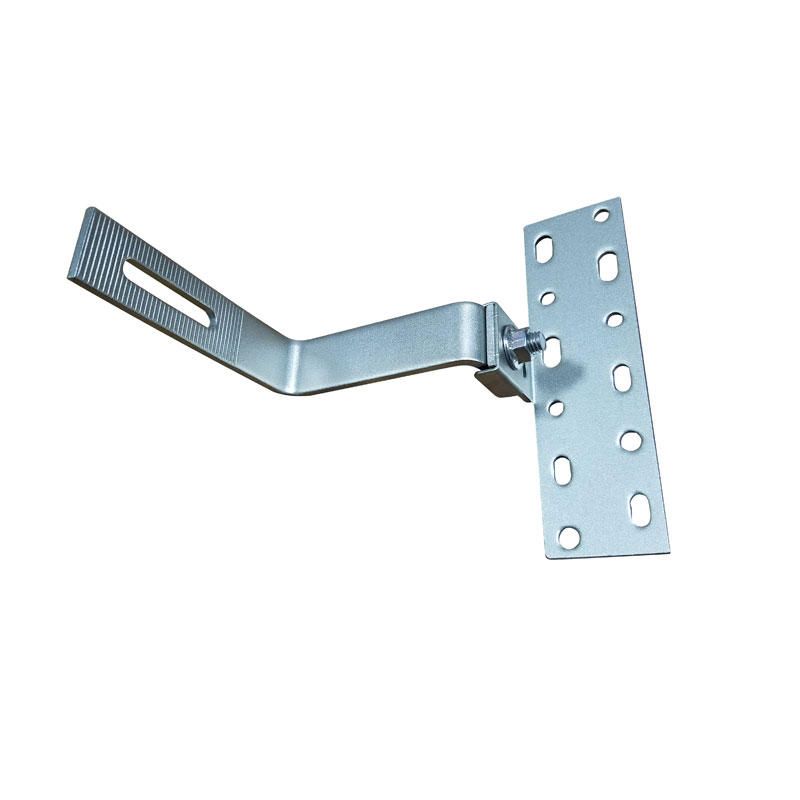

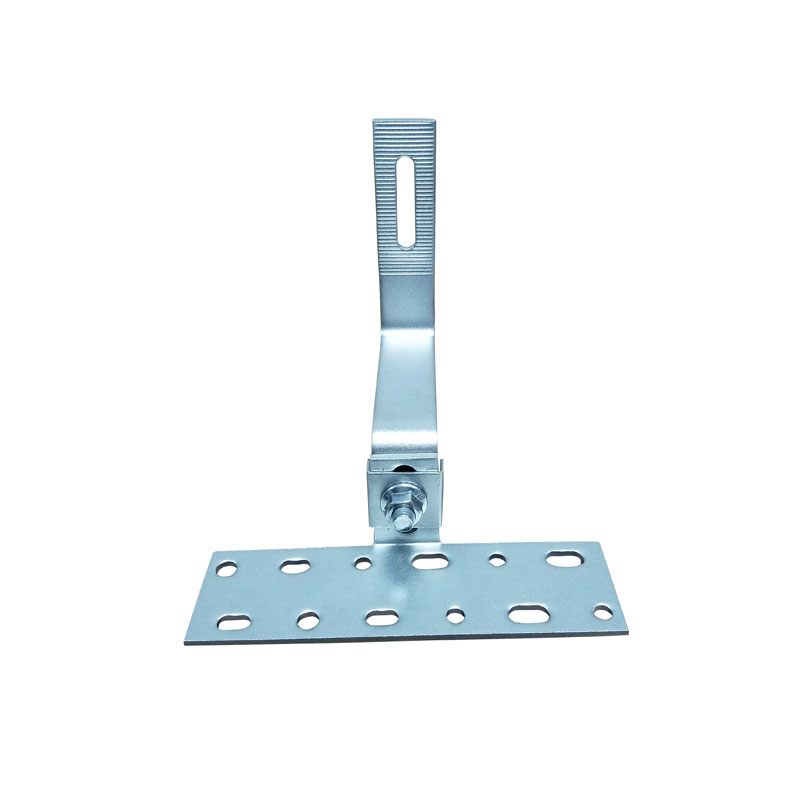

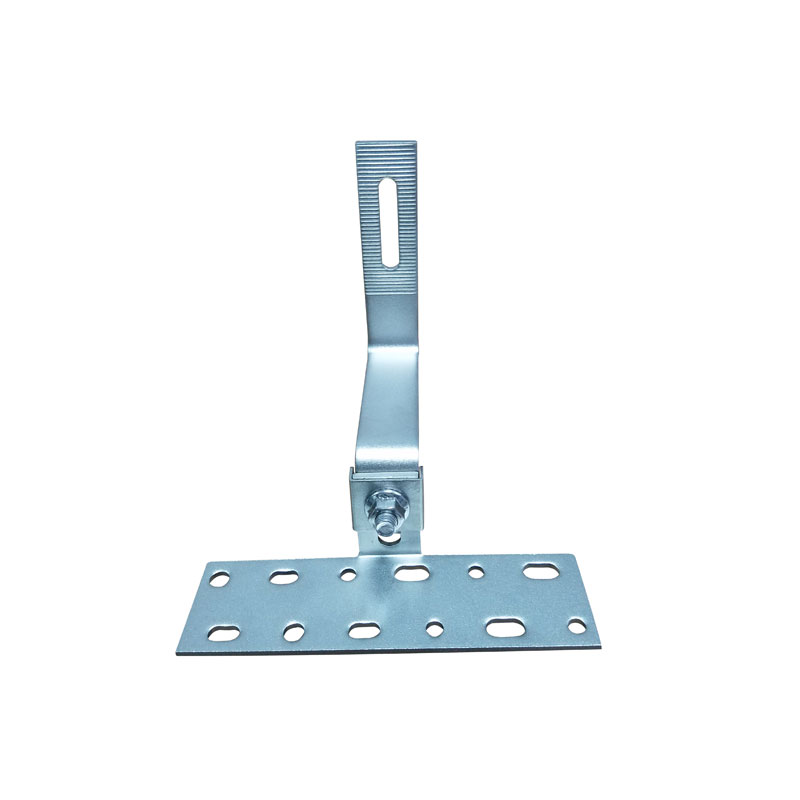

This 90° side mounts weld free solar Roman tile roof hook can have 8 mm – 10mm height adjustment which can providing more
flexible for solar panel installers .

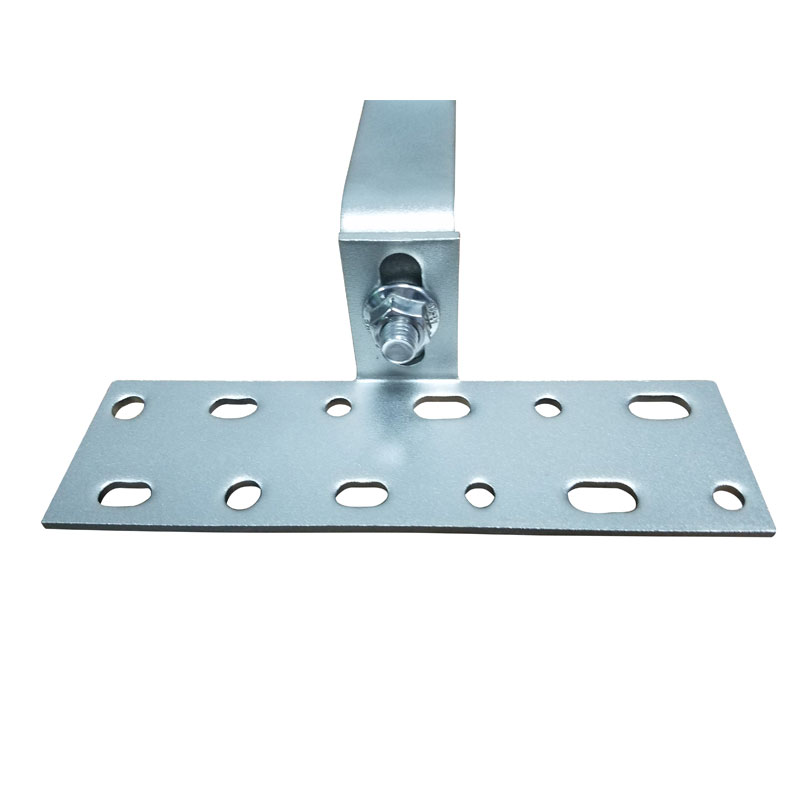

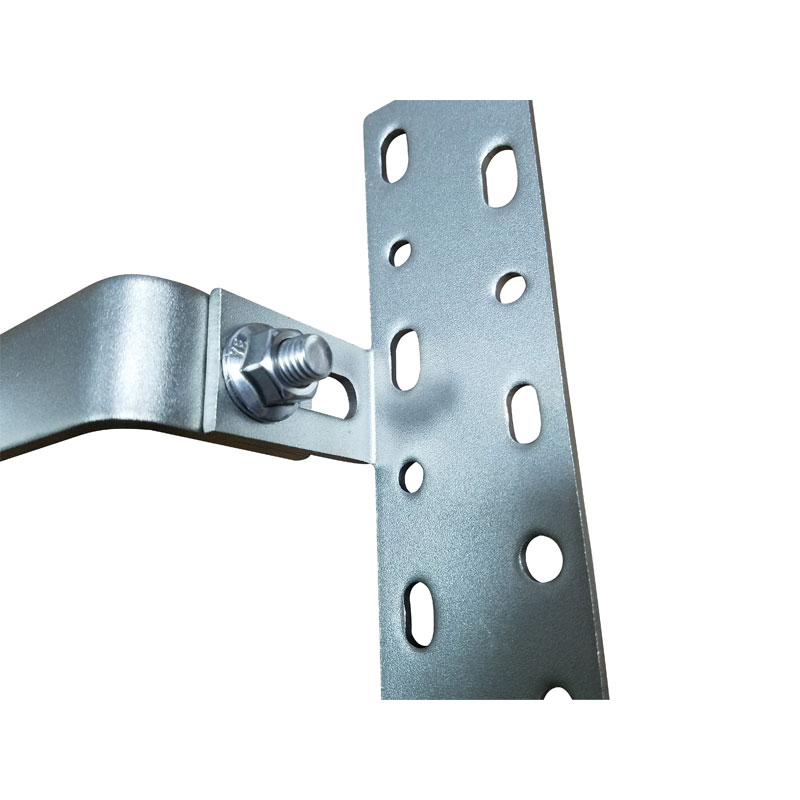

There is a screw slot which can adjust height of mounting aluminum rail according to solar panel installation requirements.
Our weldless solar hook series can be installed on pitched roofing, with our matched wooden screws , washers, bolts and nuts …
Installers can finish solar project efficiently and quickly .
Advantages :
a) Simple, fast and labor effective installation ;
b) Using SUS 304 Stainless Steel ;
c) Corrosion resistant , water proof , good quality ;
d) Full range of accessories for choose, factory direct, one-stop-shopping .
Parts and Components for this No Welding Solar Roman Tile Roof Hooks, Base Adjustable, Side Mounting :
1 adjustable solar roof hook ;
2 mounting screw bolts ;

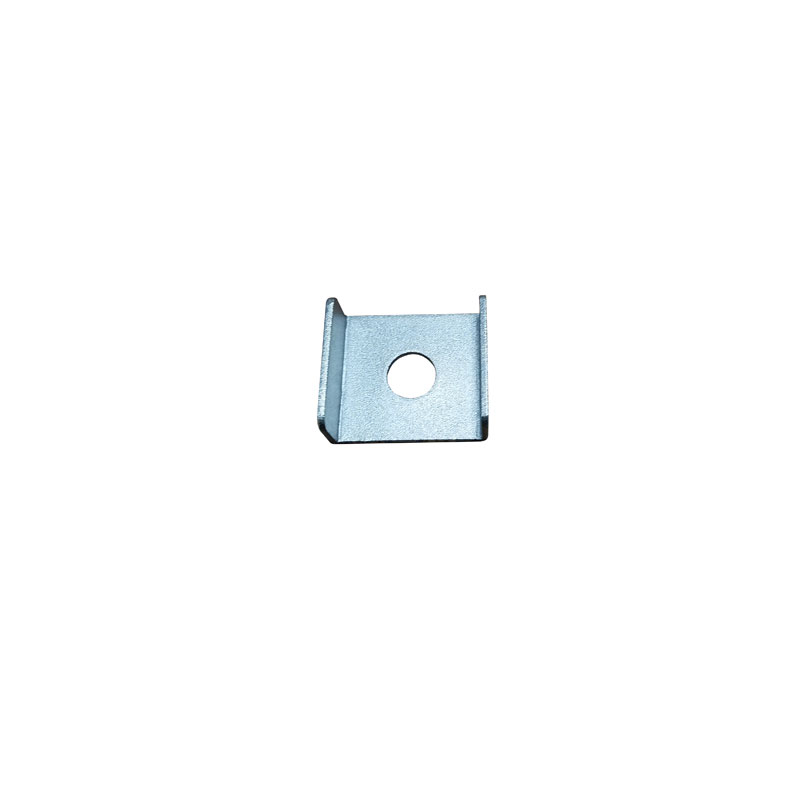

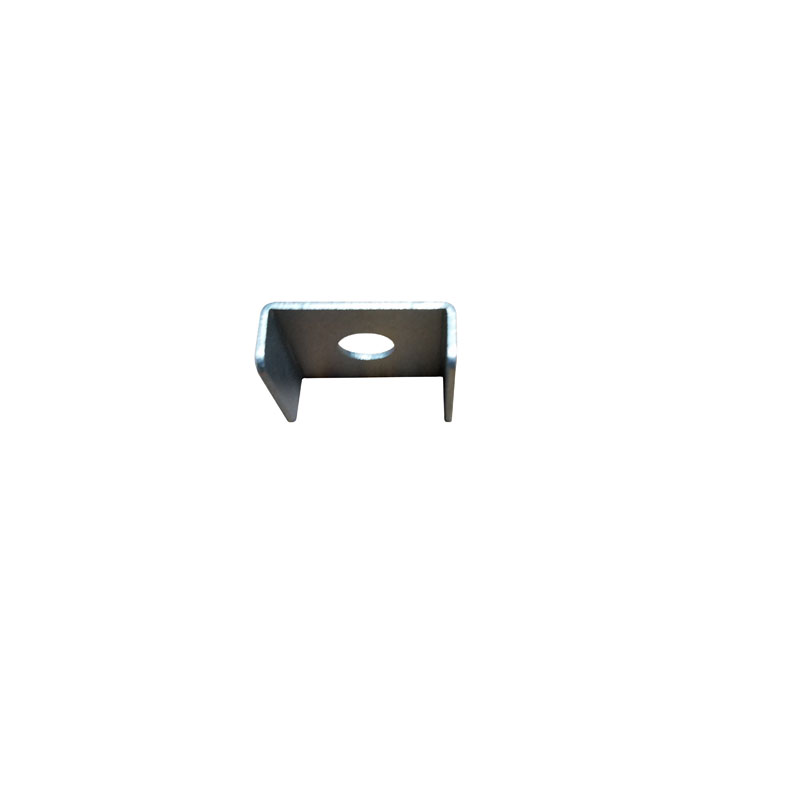

1 rail slot ;

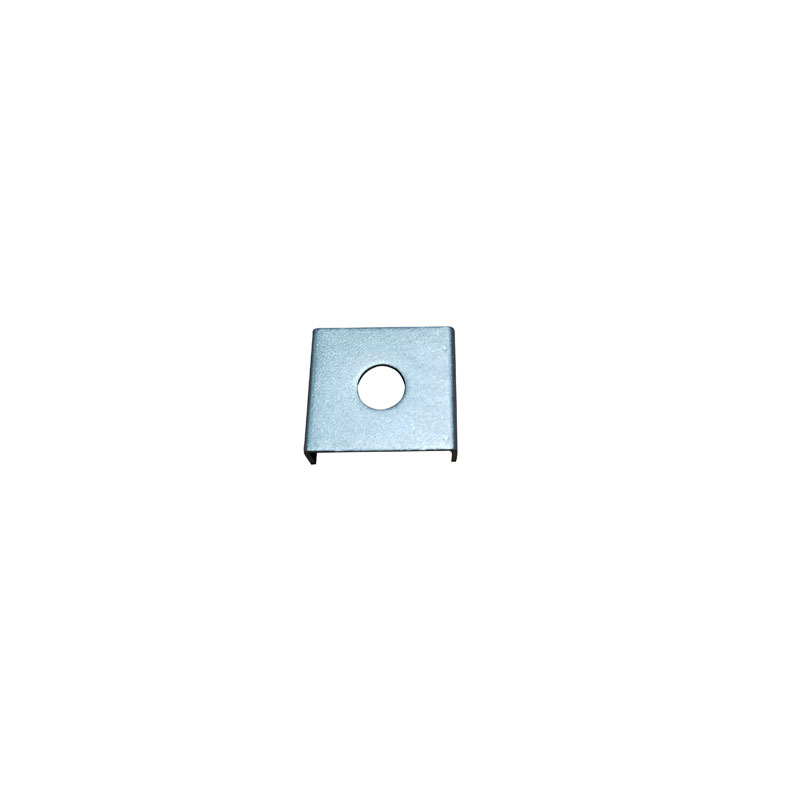

1 set of carriage nut and bolt .
Installation:
- Remove Romain tiles from installing area ;
- Locate and mark wood rafter ;
- Locate Hook and predrill two holes with Drilling Bit ;
- Fill holes with sealants ;
- Fasten Curved Hook with matched screws.
| Brief Descriptions : | |
| Solar Mounting Components – Weld less, Roman Tile Roof Hooks, Base Adjustable, Side Mounts | |
| Item type: | Solar Curved Tile Roofing Hooks |
| Type : | Roofing Hook |
| Installation Site : | Pitched Roofing |
| Profile Material : | SUS 304 Stainless Steel |
| Fasten Parts : | Stainless Steel / Aluminum T Sliding Nut |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
New series of Weld Free Solar Spanish Tile Roof Hooks
No Welding Solar Spanish Tile Roof Hooks, Base Adjustable, Side / Bottom Mounted
– Great engineered to comply with Industry leading standards ;
– Price compatitive , quick to installing;
– Height Adjustable allow for versatile flat & curved tiles ;
– Sample avaialbe for determine your solar panel roofing jobs ;
– Side-mounted / bottom-mounted rail tile hooks option ;
