Securing Solar Panels to Roof Tiles with Aluminum Roof Hooks
To secure solar panels to roof tiles with aluminum roof hooks, you can use the adjustable solar tile roof hooks specifically designed for Spanish, Roman, or clay tile roofs. Here’s a brief guide on how to do it:
Installation Process

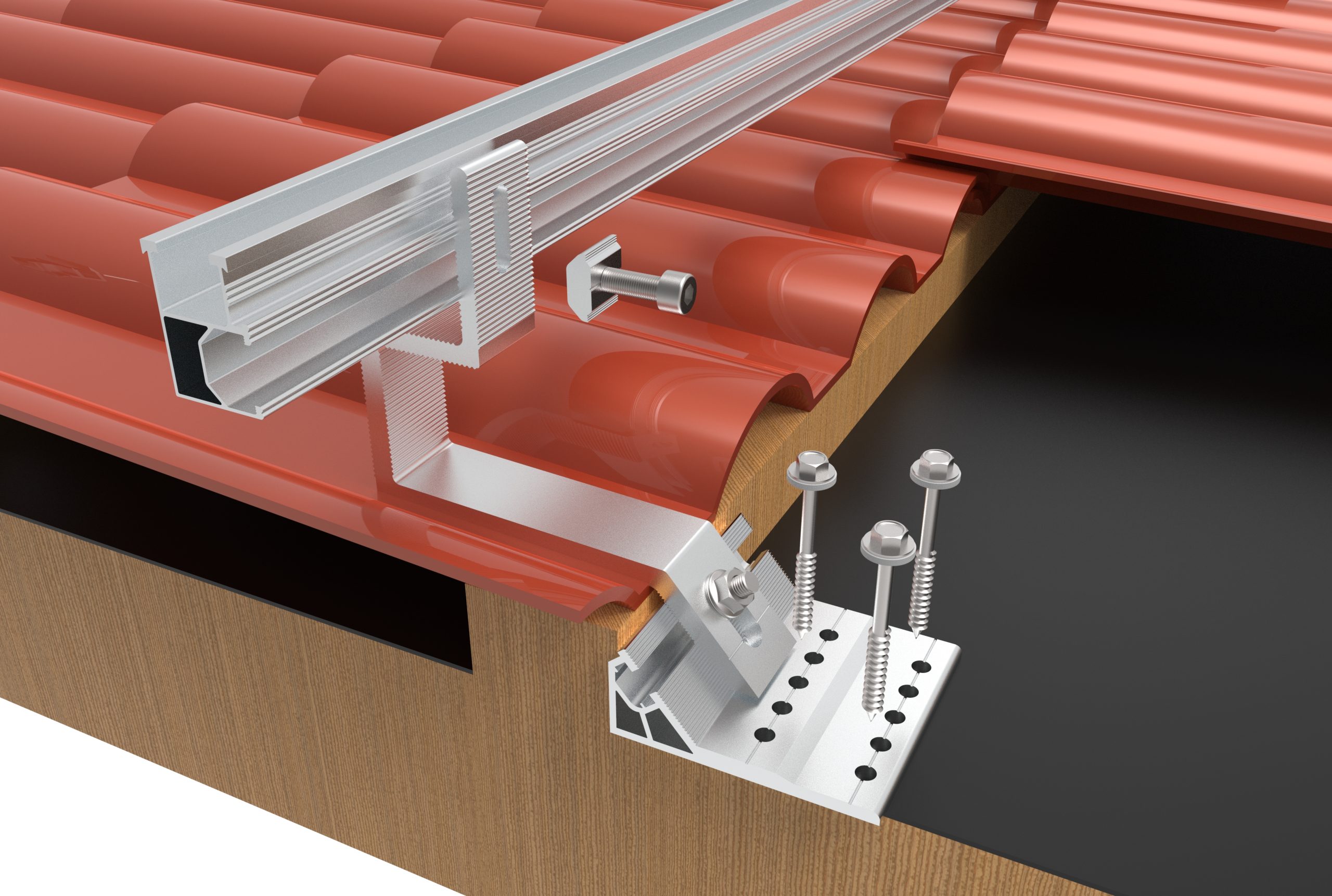

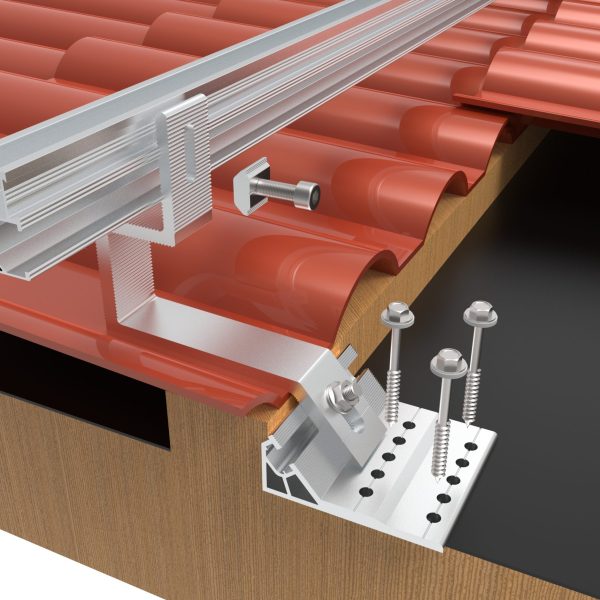

For wooden beam roofing, use wooden screws to fix the bottom of the hook to the wooden beam and connect the top of the hooks to the rail with clamps.
Also it can be suitbale for concrete construction, use expansion screws or steel nails to fix the hooks.

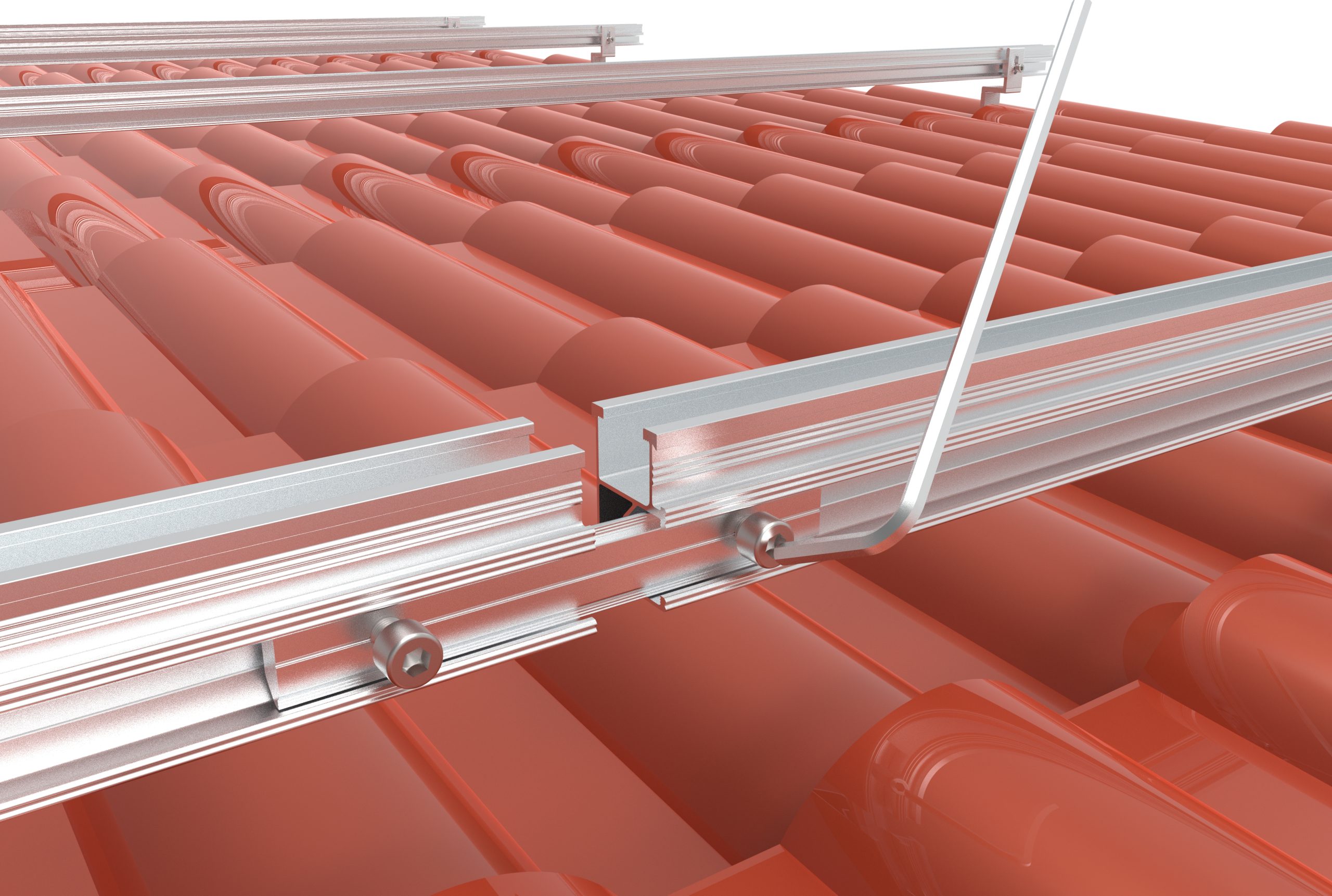

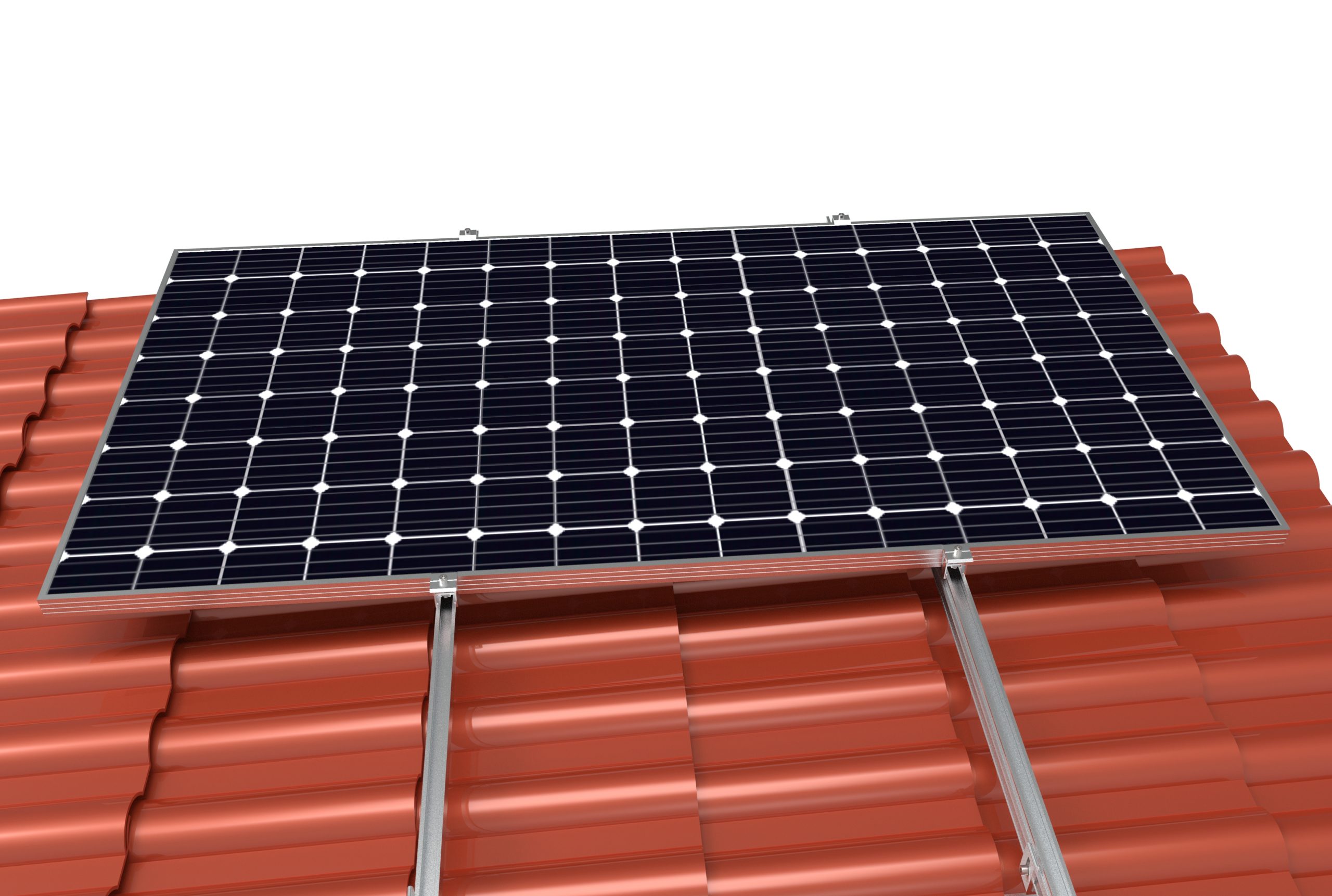

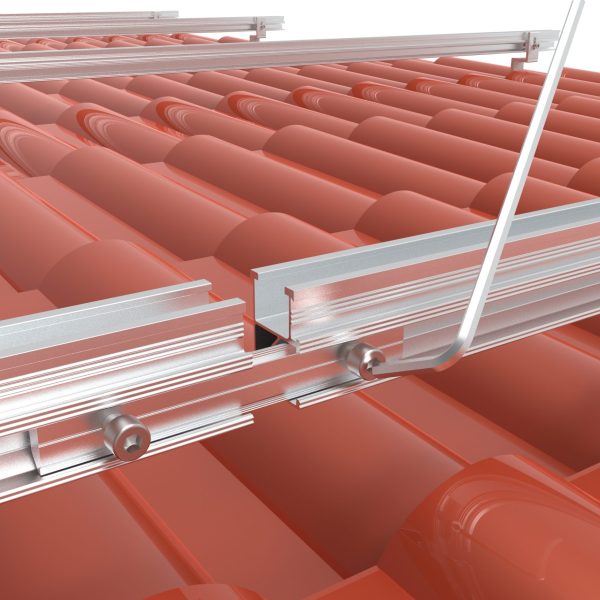

After fixing the base plate, use clamps to fasten the hooks and the rail, adjusting upper hook arms to keep aluminum rails parallel and the mounting structure in a horizontal plane.Each rails connect with rail splice. After rails mount, use our quick mount mid and end clamps to secure the solar panels on the rails.

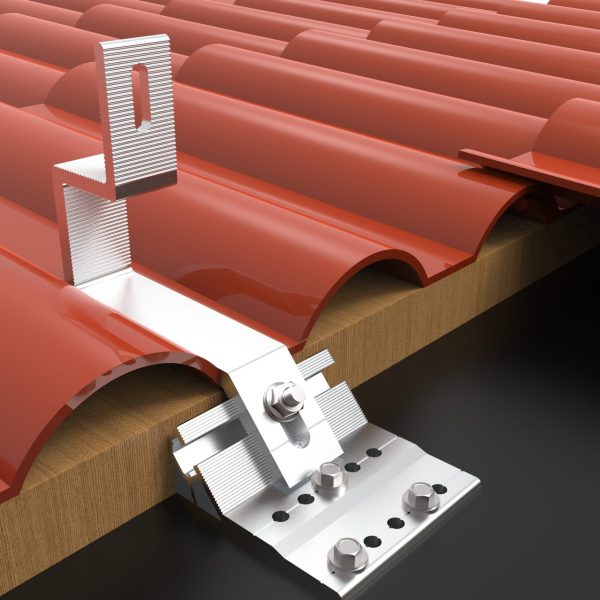

Features of Aluminum Tile Roof Hook
1.Arm position can be adjusted.
2.Made of high-quality material (SUS304) with good rust-resistance.
3.Custom-made tile hooks based on tile specifications available.
4.Easy and fast installation with a long lifespan.
5.Suitable for various kinds of tile roofing, offering flexibility and convenience.
Tile Type and Size: The type and size of the tiles on your roof will determine which type of mounting system is best suited for your needs.
Roof Pitch and Orientation: The pitch and orientation of your roof will also impact the type of mounting system that is best suited for your needs.
Weight Capacity: It’s important to choose a tile roof mounting system that can safely support the weight of your solar panels.
Wind and Weather Conditions: Consider the wind and weather conditions in your area when selecting a mounting system.
In summary, the aluminum solar tile roof hooks offer a secure and customizable solution for mounting solar panels on various types of tile roofs, providing flexibility, durability, and ease of installation while ensuring a safe and secure attachment. Furthermore, securing solar panels to roof tiles with aluminum roof hooks involves installing the hooks securely, attaching the panels using clamps or brackets, and ensuring the preservation of the roof’s integrity while providing durability and weather resistance.
