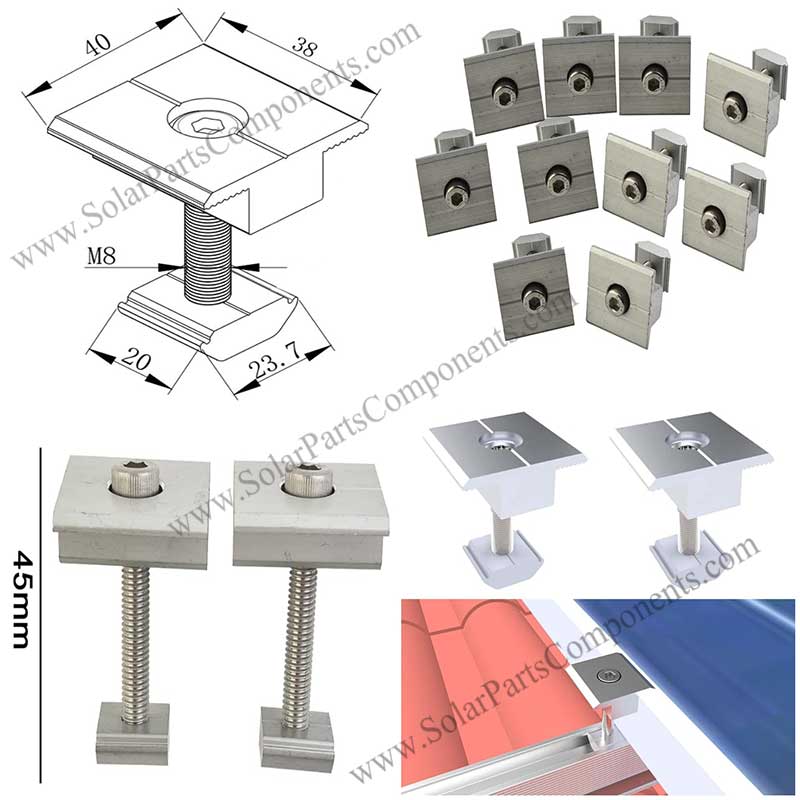

Inter Clamp PV Module Components
- Product Type: PV Module Mounting Systems Hardware
- Product Model:PV-Module-Inter-Mid-Clamps-For-Solar-Panels
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Framed Solar Panels Installation
This PV module inter clamp is suitable for carports, roofing, ground mounting structures .
Our fasten parts for mid clamp is made of high quality hex SUS304 stainless bolts with sliding nuts .
We can customized nuts for any aluminum extrusion / carbon steel profile besides our standard nuts for rails .
By using our different length M8 Hex bolts, this PV module inter clamps can fit different frame solar panel deepth well : 30mm, 35mm, 40mm,
45mm, 50mm … Please select correct size depending on solar panel thickness .
This inter clamp for PV module mounting can be pre-assembled together with our hexagon screws and other kits .
Advantages :
– AL6005-T5 aluminum material for mid / inter clamps ;
– Height can be from 30mm to 55mm for module frames;
– Quick & easy installing by labors with our instruction guide ;
– High tensile strength & anti-corrosive aluminum mid clip ;
– Anodized finishing and pre-assembled before shipping ;
(BOM) Material List for Inter Clamp Solar Mounting Components :
Aluminum inter clamp, one unit ;
Tilt-in aluminum nut, one unit ;
Socket head screw, one unit ;
Spring Washer, one unit .
Welcome to purchase framed / frameless mid / inter clamps from www.SolarPartsComponents.com
| Brief Descriptions : | |
| PV mounting inter clamps for framed solar panels installing | |
| Item type: | Solar Installation Components |
| Technical Parameters : | |
| Installation Site : | Ground / Roof / Carport solar panel mounts |
| Profile Material : | AL 6005 – T5 ( Anodized ) |
| Fasten Parts : | SUS 304 Steel |
| Color : | Silvery or Black |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| PV Modules : | Framed |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Inquiry of inter Mid Clamps.
Q:
I’m inquiring about the Inter Mid Clamps Solar Mounting Component, the smaller t-block. What is the cost for each?
A:
Can you let me know weblink (model) / solar panel thickness / Quantity / delivery details ?
If you would share me more with your solar panel mounting project, that would be great.
Q:
I need 18000. The t-blocks are about 50mm long. I ran out and am looking for a supplier of just the t-blocks/clamps.
When I originally purchased, it was a full mounting system and I need just the clamps. I did not see a price, if you sold individually or in sets, ect. I’m located in Claremore, OK.
A:
Sure, we can sell it standalone for you.
The factory price please see at attached.
Inter Mid Clamps
How to buy solar clamps for galvanized steel rails?
Client:
I am in need of solar panel mid clamps and end clamps for galvanized steel rails.
These clamps hold down the solar panels to the rails which is made of steel.
Do you supply these?
Most of my solar panels are 40 mm. I could order a few hundred if the price is right.
Please let me know the prices for both end clamps and mid clamps.
I can order 100 mid clamps and 100 end clamps. All for 40 mm thick panels.
If you tell me the breakdown of shipping cost, I can order more.
Thanks for your help.
Ray Farmer
Dear Farmer
Nice to receive new inquiry of mid / end clamps for steel rails.
Ours are fixed height base on your solar panel size like: 30mm / 35mm / 40mm … in thickness.
Our nuts are matched for standard galvanized steel structure:
solar clamp nuts for galvanized steel rails
(1) Mid clamps for HDG steel rails:
solar mid clamps for galvanized steel rails
(2) End clamps for HDG steel rails:

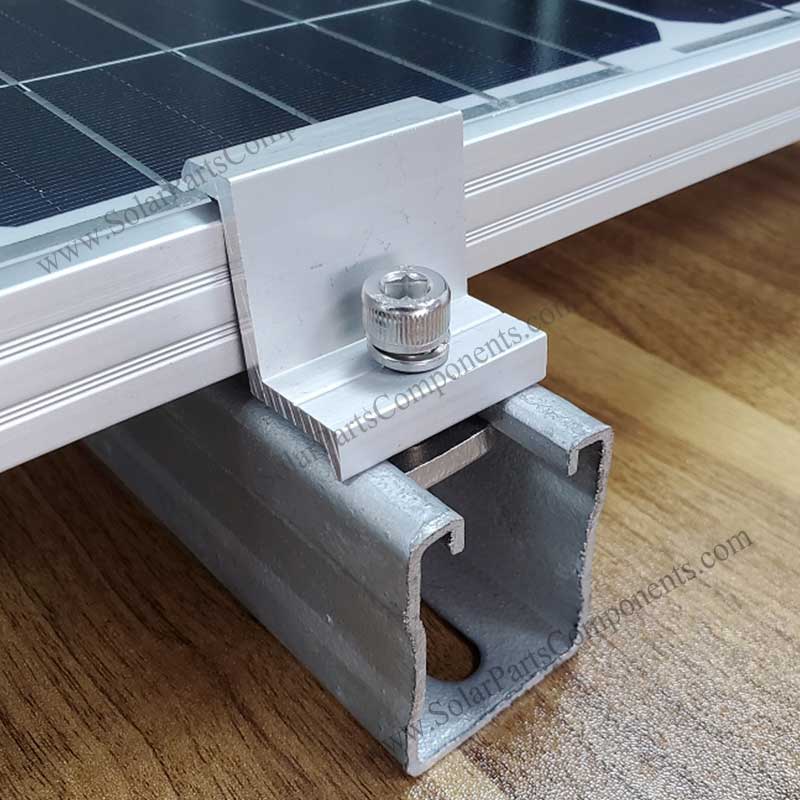

solar end clamps for galvanized steel rails
-Factory price for end clamps is sent by email for 100 sets, Weight: 6.5KGS;
-Factory price for mid clampis is sent by email for 100 sets, Weight: 7KGS;
-Fedex express cost for 13.5 KGS also sent by email;
Thank you
Solar clamps for galvanized steel rail Factory
PV module clamps for solar mounting system
The mid clamps and end clamps are always perfect for various solar modules and PV installation structures.
