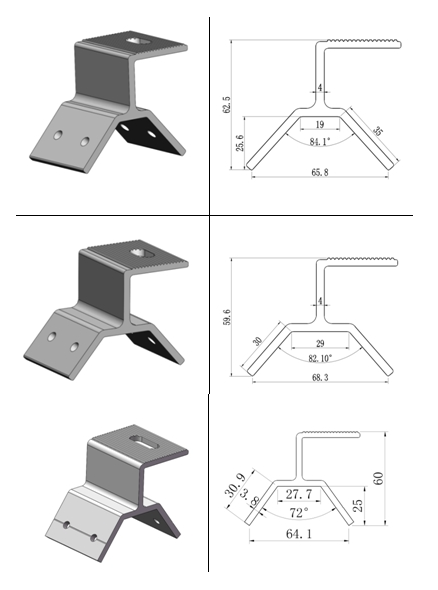

Railless Clamp Solar Mounts
- Product Type: Solar Panel Mounting Systems Hardware
- Product Model: SPC-CK-05
- Material: Aluminium
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Panels Installation
Product Description:
Railless solar metal roof clamps are designed for trapezoidal metal roofs and are easy to install. It can be directly fixed on the roof without aluminum rails, saving costs and the steps of rail installation. The clamp is one of the components of the trackless solar installation system, which can be used to install solar modules on the trapezoidal metal roof. It provides a solar installation solution with a roof attachment.
The roof accessory is used for trapezoidal metal roofs without using guide rails, and has a lower cost, and can be installed with familiar components and fewer components while reducing installation time. They are compatible with most solar modules. The design focus of the system is to simplify installation and reduce installation time and cost.
Railless solar panel roof brackets fix the trapezoidal metal roof, and install the first or last solar cell module on each row of the solar cell array on the roof without using any rails. With its new railless mounting, it creates a new solution for solar trapezoidal metal installation. It is a highly adaptable installation system component.
Feature of rail-less solar metal roof clamps, SPC-CK-05:
1. Railless installation is suitable for most solar modules with frames;
2. Reduce costs and reduce installation time;
3. High-quality materials make the installation system have good anti-corrosion performance;
4. Professional design reduces the use of materials;
5. The most economical trapezoidal metal roof installation system;
We quickly installed the rail free solar roof clamp. Designed for the installation of metal roofs without guide rails, it is an ideal solution for trapezoidal metal roofs. The fully pre-assembled components make the product easy to use and quick to install. The unique design can be adapted to specific trapezoidal metal roof types.
Using railless solar metal roof clamps for mounting system to fix the panel to a specific trapezoidal metal roof panel is a cost-effective metal roof installation solution. We will design a plan for your roof that meets the needs of the project. If you have any questions, please feel free to contact us: www.solarpartscomponents.com
| Brief Descriptions: | |
| Rail-Less Solar Metal Roof Clamps Bracket, SPC-CK-05 | |
| Item type: | Solar Metal Rooftop Mounting Clamps |
| Type: | SPC-IK-05 |
| Installation Site: | Trapezoidal Roofing Top |
| Profile Material: | Aluminum |
| Fasten Parts: | Self-Tapping Screws |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Installation instructions for trapezoidal roof clamp,SPC-CK-05
What are the different types of roof clamps?
The use of clamps is essential when installing solar panels, which play an important role in supporting the panels above the roof. There are many styles of clamps, including: rail-less clamps, ordinary clamps, etc. Guide rail-less clamps are an innovative design based on ordinary clamps, which can effectively simplify the installation process, save costs, etc. The following is an inquiry about Railless solar metal roof clamps.
Q:
May I get a quote and how to order 5600 of the rail-less solar roof mounting system, rail free solar roof clamp spc-ck–05?
Respectfully
A:
Nice day!
Thank you for your inquiry for our Railless solar metal roof clamps SPC-CK-05 .
Our factory price please see as attached.
If the price is workable for you, please share us your delivery address.
I will check freight cost for your reference
Please advise!
Q:
They will be shipped to 146 Hedges Cir. Weatherford, TX.76086.
Do they come with the solar panel claps(holdowns). If not can I get a quote with the clamps that hold the panels, bracket, and the shipping cost?
Respectfully
A:
Thank you for your quick response.
Please refer to our factory price as attached.
Please let me know if this is workable for you.
Q:
Thank you for your kind reply.
Paypal payment is on the way, receipt of payment is attached.
A:
Thank you!
Railless solar metal roof clamps
Rail-less solar metal roof clamps
Q:
I would like to mount 200 235watt panels to a corrugated roof.
I would also like to mount the panels without rails.
I would imagine I would need 6 of these to mount two panels.
Can you sell me that small a quantity?
A:
Could you provide the drawing of the corrugated roof so that our engineers can match it?
Thank you and have a good day!
Q:
Rail-less solar metal roof clamps.
For details, see attached
A:
Thanks for your quick reply, the following is the best solution designed by our engineers according to the drawings you provided.
please check.
Q:
That’s great!
How long is the lead time?
How do I place an order?
A:
The order has been placed according to your needs, see the attachment for more details.
Rail-less solar meral roof clamps for trapezoid metal roof.
Q:
I would like to mount 240 x 455w panels to my trapezoid metal roof and want a quote for 800 rail-less solar metal roof clamps SPC-CK-05, complete with 540 end clamps and 260 mid clamps.
A:
Nice to get your inqiry for our railless solar metal roof clamps.
rail-less solar metal roof clamps
I have sent the quotation to your email, please check.
How to using this rail-less solar panel roof brackets ?
Could you please send me more information about solar metal roof clamps?
Hi,
I’m looking for a solar panel mounting system for a trapezoidal ribbed metal roof. I took a quick look at your website, could you please send me more information about Rail-less solar metal roof clamps, SPC-CK-05?
Thank you,
Glen Hansen
Mesa Research and Development LLC
505-252-9514
Dear Glen
Appreciated for your inquiry about our Trapezoidal metal roof solar panel mounting.
Can I know more details of your project as below:
(1)
What is your pv panels dimension?___mm Length x___mm Width x__mm Thickness
(2)
What’s the roof profile ?
CAD / PDF file would be favoriable.
(3)
What’s the nearest seaport to your company ?
(4)
How is weather there,such as wind speed and snow load?
___m/s wind speed and____KN/m2 snow load.
(5) How about the oriention the solar panels :
solar metal roof clamps orientation
(6) How much quantity you will mount ?
Row X Column X Arrays
More details of your project would be favorable for our engineers.
Thank you !
