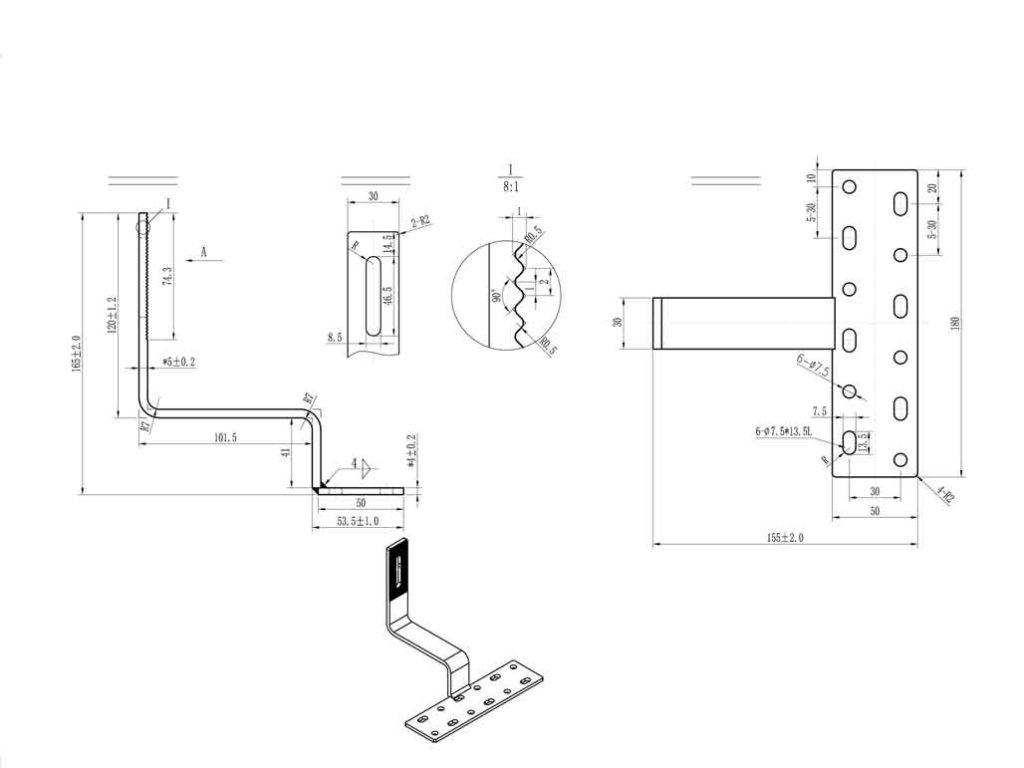

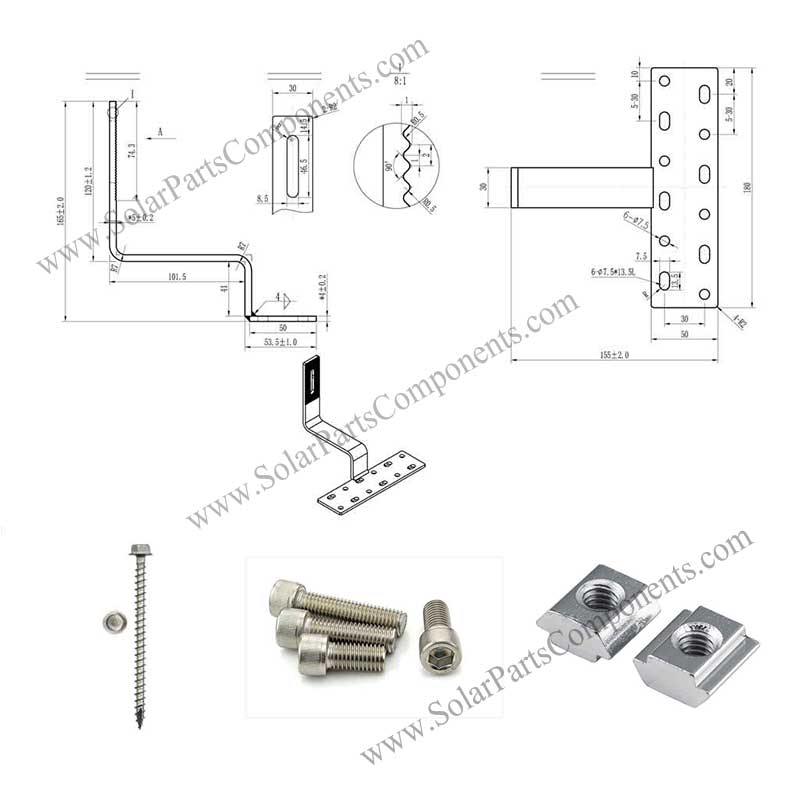

Drawing for Side Mounted Curved, Spanish, Roman Tile Roof Hooks
90° Curved Tile Roof Hook Arm – 165mm , Height non-adjust range , kit with perper screws, nuts and slots for curved / Spanish /
Roman tile roofing .
Item : Solar Curved Tile Roof Hooks , Non-adjustable, Side Mounted ;
Finishing : Sandblasting ;
Material : SUS 304 Stainless Steel ;
Total Size : 180 mm ( Width) X 155 ± 2.0 mm ( Depth ) X 165 ± 2.0 (Height) ;
Bottom End to Top End : 165 mm ;
Thickness : 5 mm ;
Rail Slot Size : 8.5 mm X 46.5 mm ;
Matched Bolt & Nut Size:
Inner Hex Head Allen Bolt M8 mm X 25 mm ;
M8 T sliding nut ;

Base Plate Size : 180 mm X 50 mm X 5 ± 1.0 mm ;
Mounting Screw Slots Size : 7.5mm X 13.5mm & Φ 6.0 – 7.5 mm Cross Arrangement ;
Matched Screw Size: Hex Washer Head solar mounting screws 6.3 mm (1/4″) x 60 mm ( 2 1/4” ) ;

Our Solar Parts & Components Quality Controlling Team
stictly test following parameters of this Side Mounted Curved Tile Roof Hooks item, None adjustable before delivery:
Waterproof IP class , downward loading test , uplifting test …
Welcome get more details from www.SolarPartsComponents.com for this curved tile roof hook .
