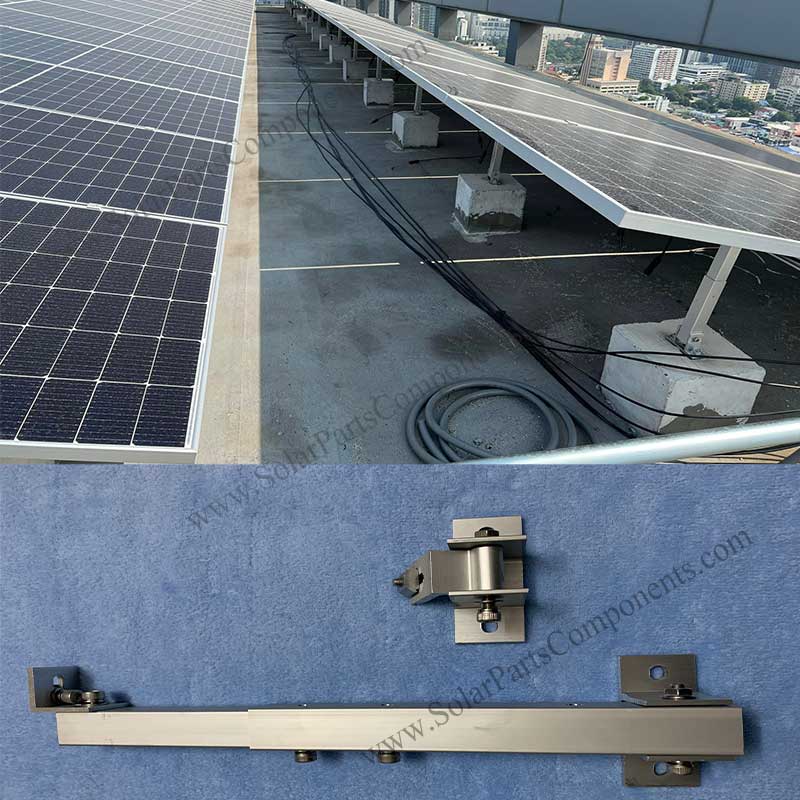

Solar adjustable Tilt Legs are a turn-key solution suitable for flat roof,pitched tin roof,boat and any off-grid solar panels mounting, feel free to ask. I’m here to help! If you’re looking for information on the different types of solar mounting options available, I can provide you with a brief overview.
When considering a solar mounting system, it’s important to take into account factors such as the orientation and tilt angle of your solar panels. The adjustable tilt legs feature of the solar mounting system allows you to optimize the angle for maximum sunlight exposure. By adjusting the tilt angle, you can increase the efficiency of your solar panels and maximize your energy production. This is particularly beneficial in regions with varying sunlight conditions throughout the year. For example, in the winter months when the sun is lower in the sky, you can adjust the tilt angle to capture more sunlight and compensate for the reduced solar radiation.

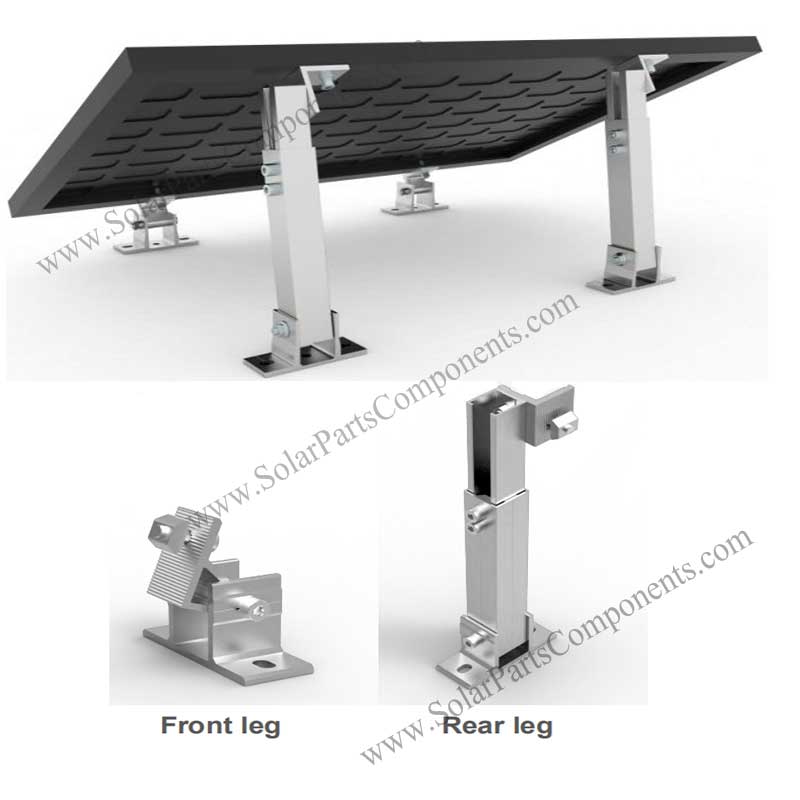

Solar adjustable kits have been developed as a universal PV-mounting system for pitched and flat roofs. With three adjustable tilt legs, these parts can tilt panels from between 10-45 degrees.
Through its innovative design, the tilt legs can cope with all common purlin distances.
About this solar adjustable tilt Legs
【Easy to install】The structural components of our solar panel stand are largely assembled and require the use of the stainless steel screws and nuts included in the package to easily mount the stand to the existing mounting holes in the solar panel.
【Adjustable design】Our adjustable solar panel mounting bracket is equipped with individual fasteners and the long arm is adjustable to a length of approximately 14-27 inches. You can flexibly adjust the position of the bracket with an angle of 5-45° (the maximum tilt angle depends on the size of the panels).
【Quality materials】Our solar panel mount is made of high-quality aluminum alloy material, with strong load-bearing capacity, not easy to rust and corrosion, durable, wind-resistant, impact-resistant, and suitable for a variety of environments. Lightweight design, easy to carry.
【Suitable for roofs】Our solar panel mounting brackets are best suited for mounting on flat roofs and can also be mounted and used on any sturdy flat surface. If mounting the bracket on the side of a wall, please note the angle of the solar panel and tighten all screws. (Mounting oversized or heavy solar panels is not recommended).
【Wide application】Our solar panel mounting kit is perfect for mounting on flat roofs, garages, walls, floors, RVs, boats, or other flat surfaces. Solar panel stands are available for solar panels from 50W to 400W. The tilted design collects up to 50% more solar energy, which helps your solar panels produce more power in different seasons for optimal performance.
In conclusion, the solar adjustable Tilt Leg is a versatile component of a solar mounting system that allows for easy adjustment of the tilt angle of the solar panels.
Technical Parameters For This solar adjustable tilt Legs :
| Brief Descriptions: | |
| Solar adjustable tilt Legs | |
| Item type: | Solar Panel adjustable tilt Legs |
| Type: | SPC-AD-FRL |
| Installation Site: | Flat Rooftop, Ground |
| Profile Material: | Aluminum Alloy |
| Fasten Parts | Stainless Steel,Aluminum |
| PV Modules: | Frameless or Framed |
| Wind Load: | 60m/s |
| Snow Load: | 1.4KN/M2 |
| Modules Orientation: | Landscape/Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Welcome get more details from www.SolarPartsComponents.com for this solar adjustable tilt Legs.
