Solar Panel Carport Mounting System, 13 KW Brazil Project
Solar Parts & Components (SPC) can offer installing solutions for different site such as roofs, ground, farm house , even
carport …
Photovoltaic panels for parking structures is very suitable for South America area, since it’s abundant sunlight weather .
Renewable energy systems have huge market in Brazil .
Following is one instance which we design for carport with solar panels , Brusque, Santa Catarina .

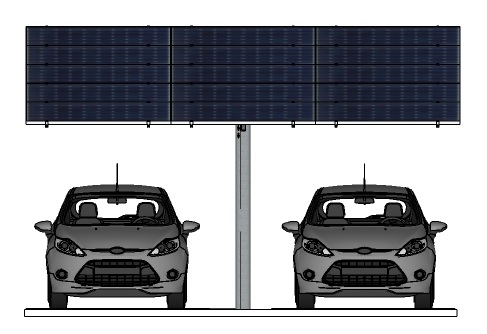

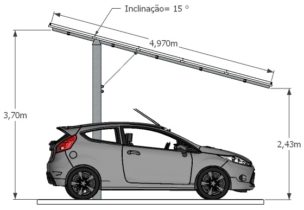

It’s design for carport which can park 4 vehicles , as designed we use 50 units of poly solar panels on the top .
Each polycrystalline silicon PV module is 1648*990*35 in size with 270 Wpeak in power .

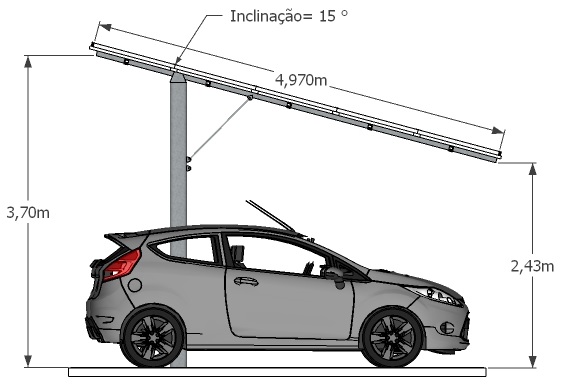

Solar panel layout is landscape in 5 rows X 10 columns , tilt angle is 15 degrees.
30 m / s in wind speed , not snow loading requires .

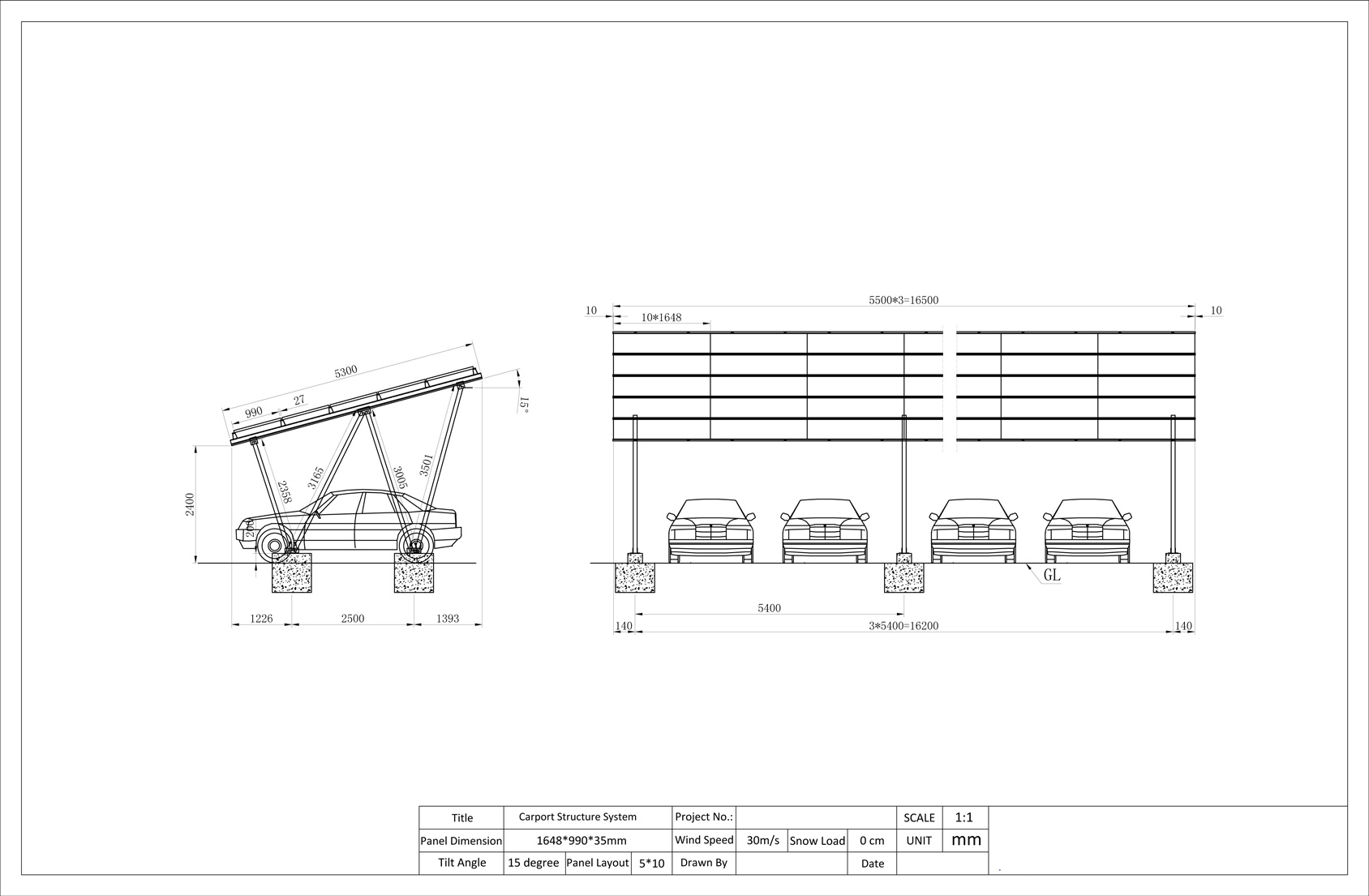

Base on specification above, we choose our patented aluminum rail system for this carport constructure.
The BOM ( Bill of Material ) details as following :
(1) Aluminum Carport Rails 18 sets ;
(2) Main Beam 4 sets ;
(3)
Inclined Support model 2385, 4 sets ;
Inclined Support model 3165, 4 sets ;
Inclined Support model 3005, 4 sets ;
Inclined Support model 3501, 4 sets ;
(4) Bottom Base 02# 8 sets ;
(5) Beam Connect Kit 01#, 8 sets;
(6) Beam Connect Kit 02#, 4 sets;
(7) Carport Rail Splice Kit, 12 sets ;
(8) Rail Fasten Clip, 96 sets ;
(9) Mid Clamp, 80 sets ;
(10) End Clamp, 40 sets ;
| Solar Carport Structure,UNIFEBE, Brazil, 13kw | ||||||
| ITEM NO. | DESCRIPTION | DETAILS | LENGTH (mm) | MATERIAL | UNITS | QTY |
| 1 | SPC-CS-CR | Carport Rail | 5500 | AL6005-T5 | pcs | 18 |
| 2 | SPC-CS-MB | Main Beam | 5300 | AL6005-T5 | pcs | 4 |
| 3 | SPC-CS-IS | Inclined Support(2358,3165,3005,3501) | 2358 | AL6005-T5 | pcs | 16 |
| 4 | SPC-CS-BB-02 | Bottom Base 02# | 280 | AL6005-T5 SUS304 | SET | 8 |
| 5 | SPC-CS-BC-01 | Beam Connect Kit 01# | 140 | AL6005-T5 SUS304 | SET | 8 |
| 6 | SPC-CS-BC-02 | Beam Connect Kit 02# | 250 | AL6005-T5 SUS304 | SET | 4 |
| 7 | SPC-CS-CRS | Carport Rail Splice Kit | 520 | AL6005-T5 SUS304 | SET | 12 |
| 8 | SPC-CS-GRC-50 | Rail Fasten Clip | 50 | AL6005-T5 SUS304 | SET | 96 |
| 9 | SPC-MC-C-L35 | Mid Clamp | 35 | AL6005-T5 SUS304 | SET | 80 |
| 10 | SPC-EC-C-L35 | End Clamp | 35 | AL6005-T5 SUS304 | SET | 40 |
Welcome get more details from www.SolarPartsComponents.com for this carport solar mounting system .
