solar clamp with grounding pin
- Product Type:Solar Mounting Clamps
- Product Model: solar clamps with pin
- Material: Aluminum alloy, rubber
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Framed Solar Panel
Product Description:

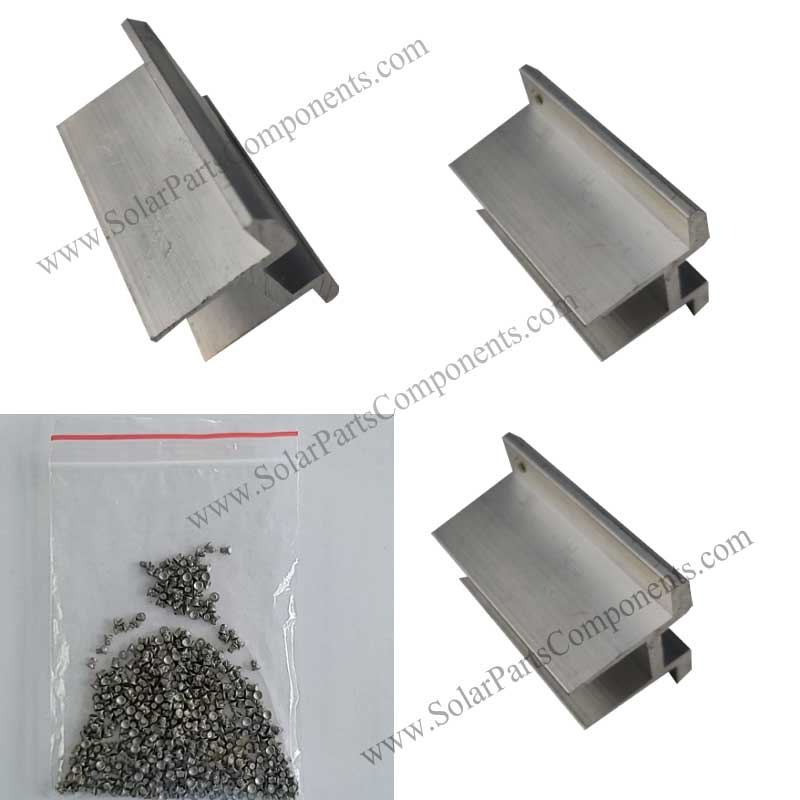

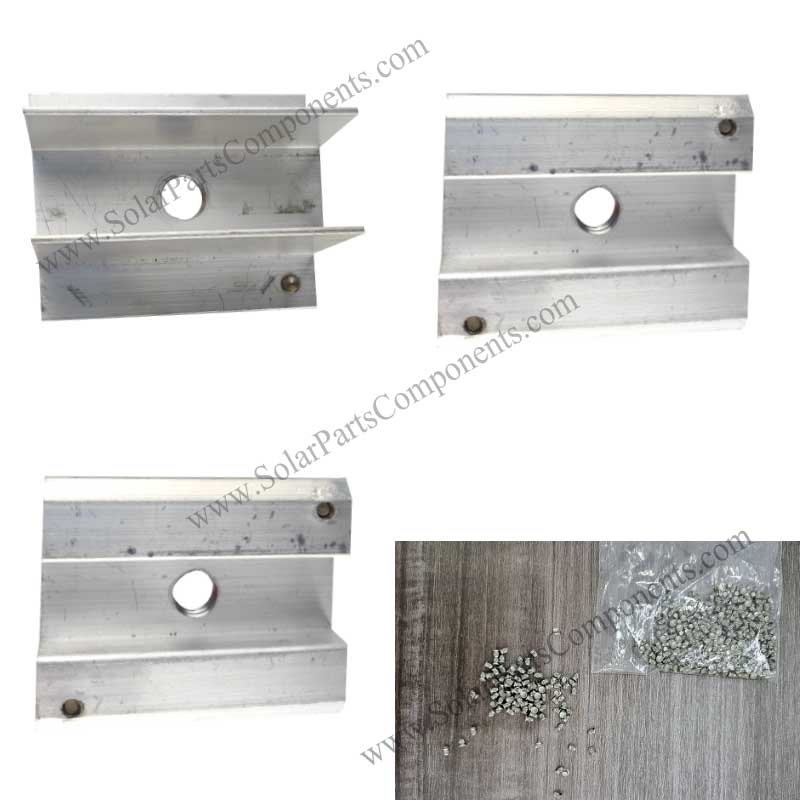

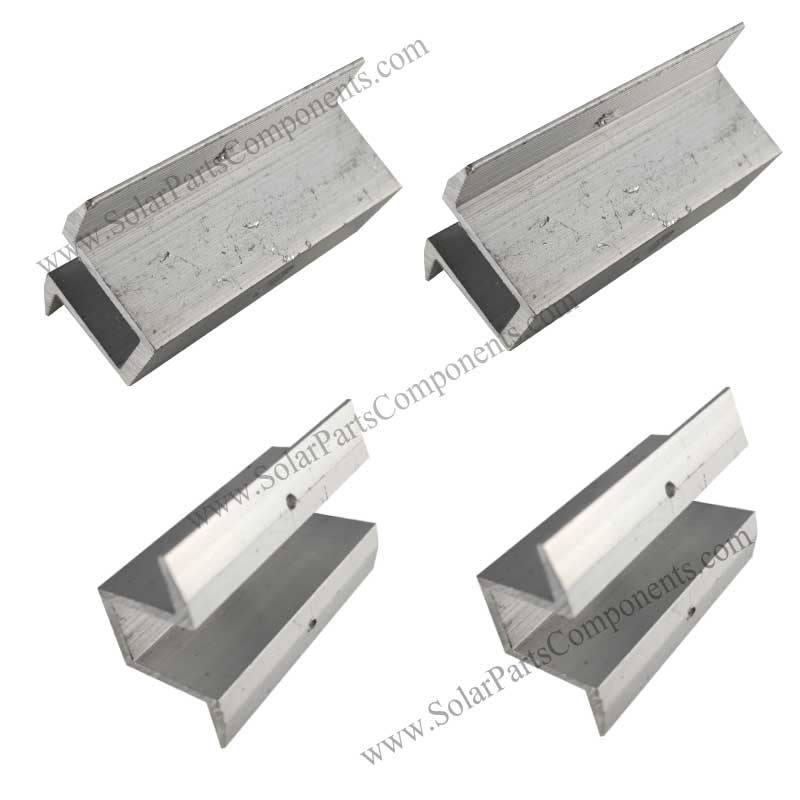

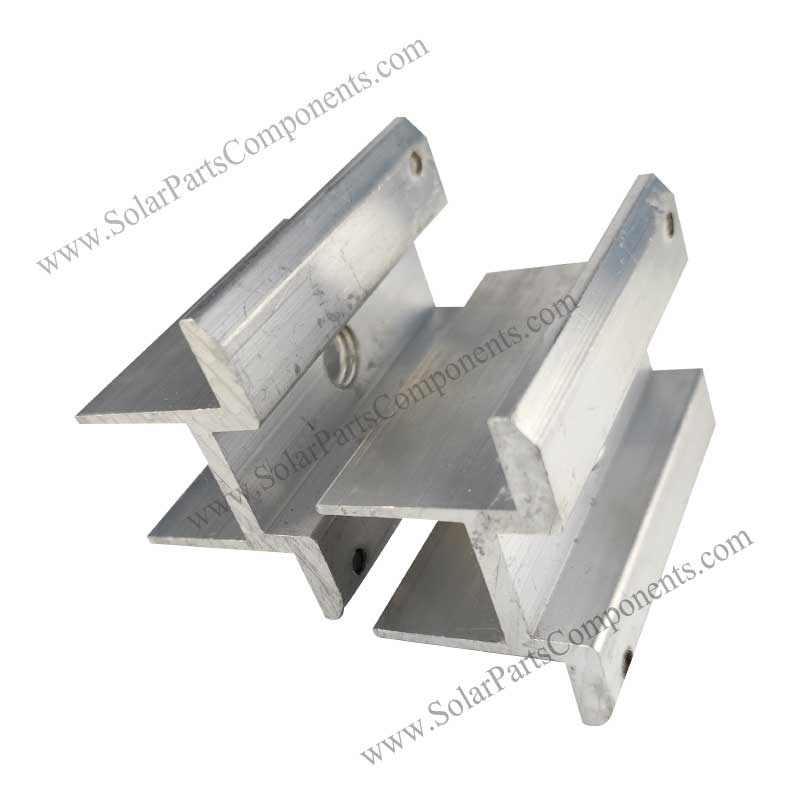

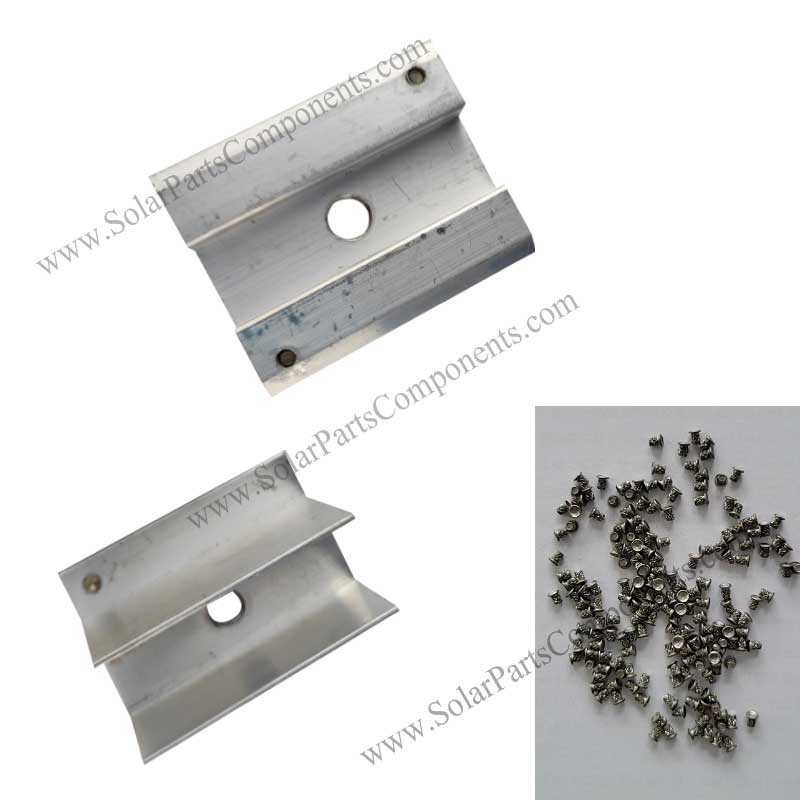

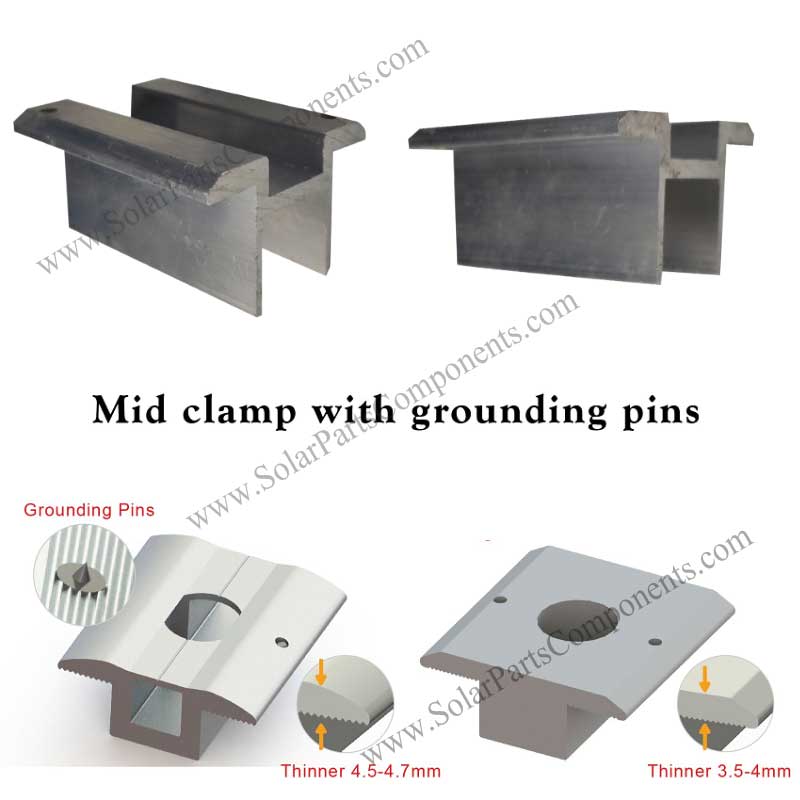

This Solar clamp with pin is upgraded from old mid clamp,bonding with a grounding pin in both two wing of the mid clamp. The special designed two grounding pins replace the grounding clip to pierce into the anodized coating of the mounting rails,and create well electrical conduction.
Use this solar clamp with grounding pin for solar panel mounting,can eliminate the grounding clip installation,reduce the cost and on site installation time, also guarantees quality and strength.
Our solar clamp with pin bonding is made of high quality anodized aluminum,corrosion resistance and durable.It is designed for framed solar panels mounting.It’s used between two panels to fix them well,makes more convenience for solar panel installation.
Advantages
- Save material cost and reduce installation time;
- Anodized surface, anti-corrosion;
- With grounding pins make well electrical conduction;
- 10-years Warranty , Quick response for after-sale service.
5.This clamps can be widely-used for residential, commercial, remote area and marine applications.
Solar parts & Component factory, devoted to manufacture solar clamps for more than a decade, we carry various type of solar clamps. Welcome to inquire from us any time. our website is: www.solarpartscomponents.com.
| Brief Descriptions: | |
| Solar Mounting Components-Solar Clamp with pin | |
| Item type: | Solar Panel Clamps |
| Technical Parameters: | |
| Installation Site: | Solar panel mounting |
| Profile Material: | AL 6005 – T5 (Anodized) |
| Fasten Parts: | SUS 304 Steel |
| Color: | Silvery or according to customer requirements |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN/M2 |
| PV Modules: | Framed |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
