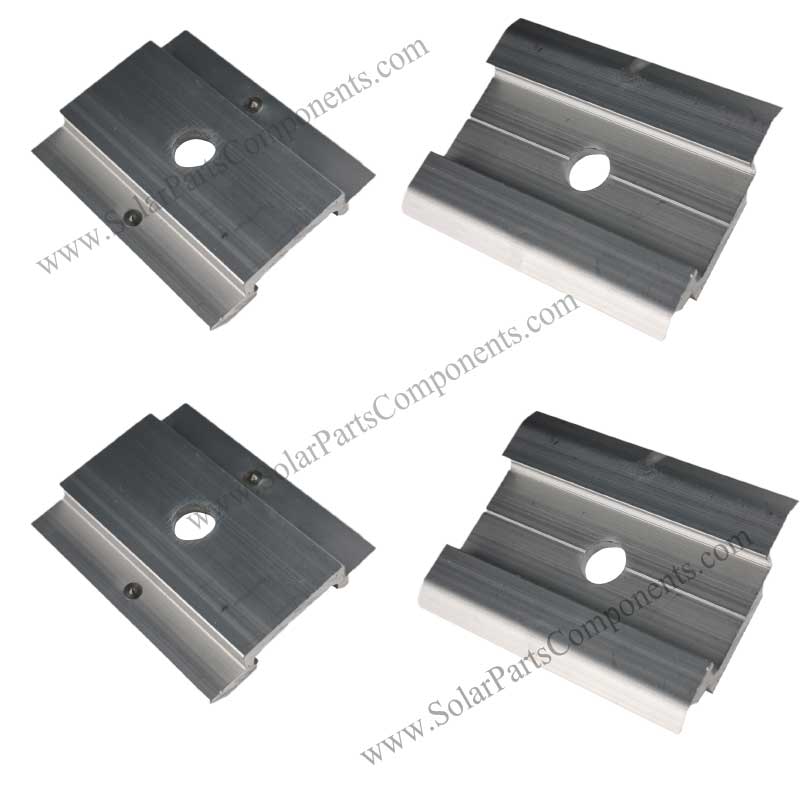

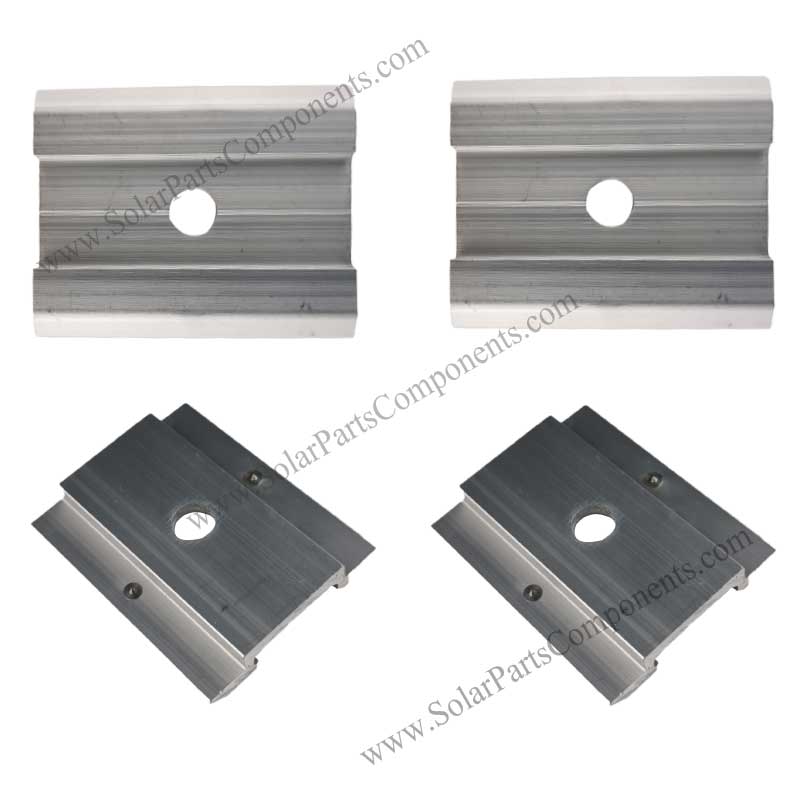

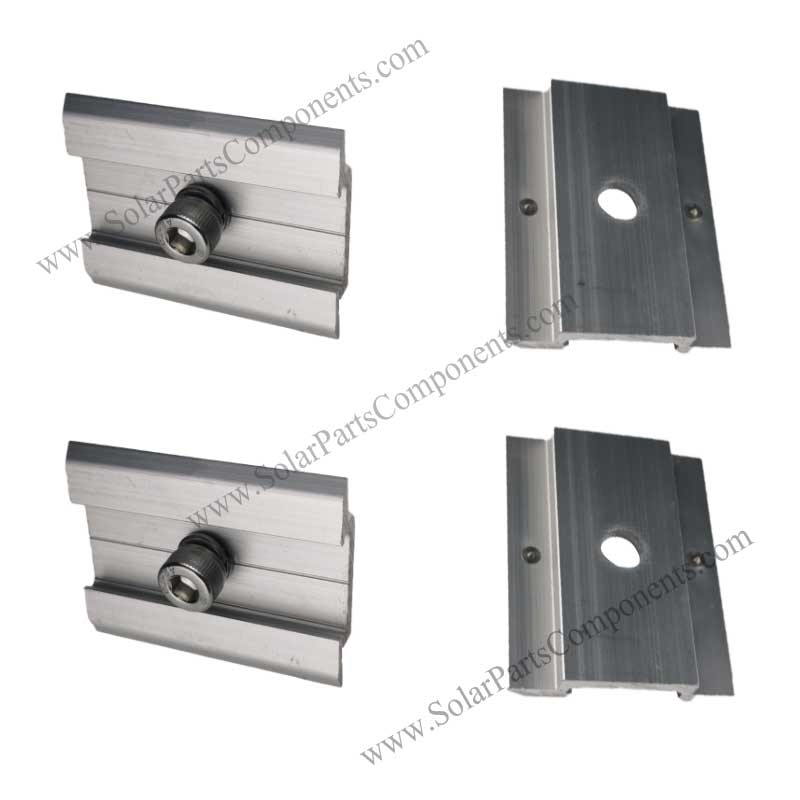

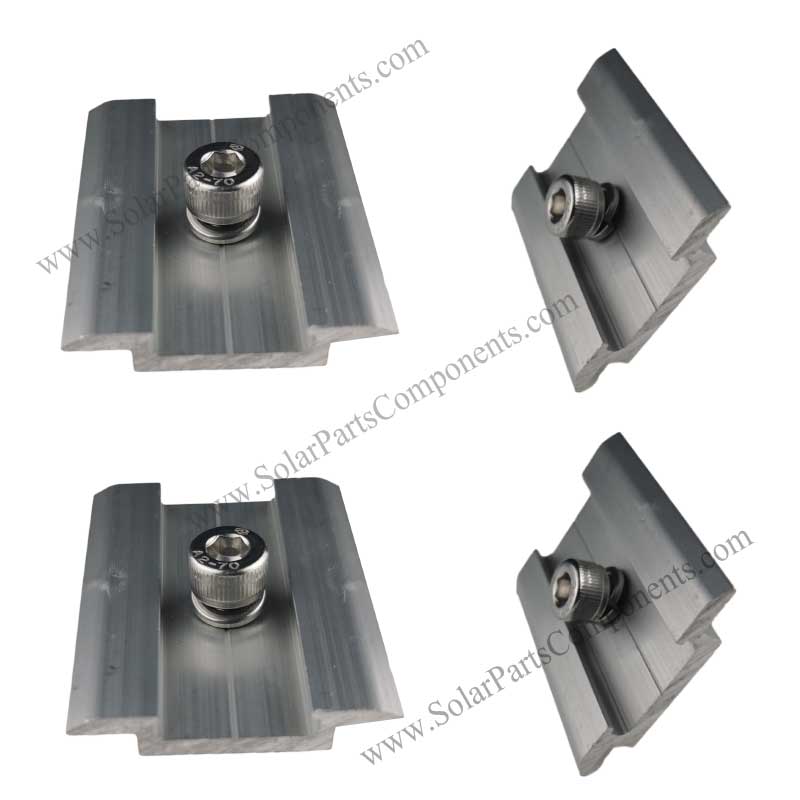

Solar Mid Clamp with Ground Pin
- Product Type:Solar Clamp
- Product Model: Solar clamp with pin
- Profile Material: Aluminum alloy
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Frameless modules
Product Description:
Solar clamp with grounding pins,is a turn-key solution for solar panel mounting.The clamp with one pin in each wing of the solar mid clamp.When you fix the solar clamp,the sharp point of the pins can pierce into the surface coating of the frame of solar module instead the function of the solar ground clip.It provides more fast installation solution without needed of the solar ground clip.
The solar mid clamp with ground pin, eliminate the need of solar earthing clip,also save the material and installation time cost of the project.
Features of this solar clamp with grounding pins:
- Easy and fast to install;
- High quality material,corrosion resistance and maximum lifespan;
- Cost-effective;
- Elimination use of grounding washer;
- Factory direct;
- Accept customized.
We are a professional solar solar clamp with bonding pins manufacture factory,superior quality and reasonable price.The solar clamp with pins is just one of our solution.We also accept customized for the solar clamps. Moreover, our experienced work team support all detail the solar panel mounting system,structure analysis, drawings…. and also will offer full service for your solar panels installation.
For more details, do not feel hesitate to contact us , our company website: www.solarpartscomponents.com.
| Brief Descriptions: | |
| Solar Roof Mounting Bracket –Solar-clamp-with-grounding-pins | |
| Item type: | Solar PV Clamp |
| Type: | Solar Mid Clamp |
| Installation Site: | Metal Roofing 0-60 degrees |
| Profile Material: | Aluminum |

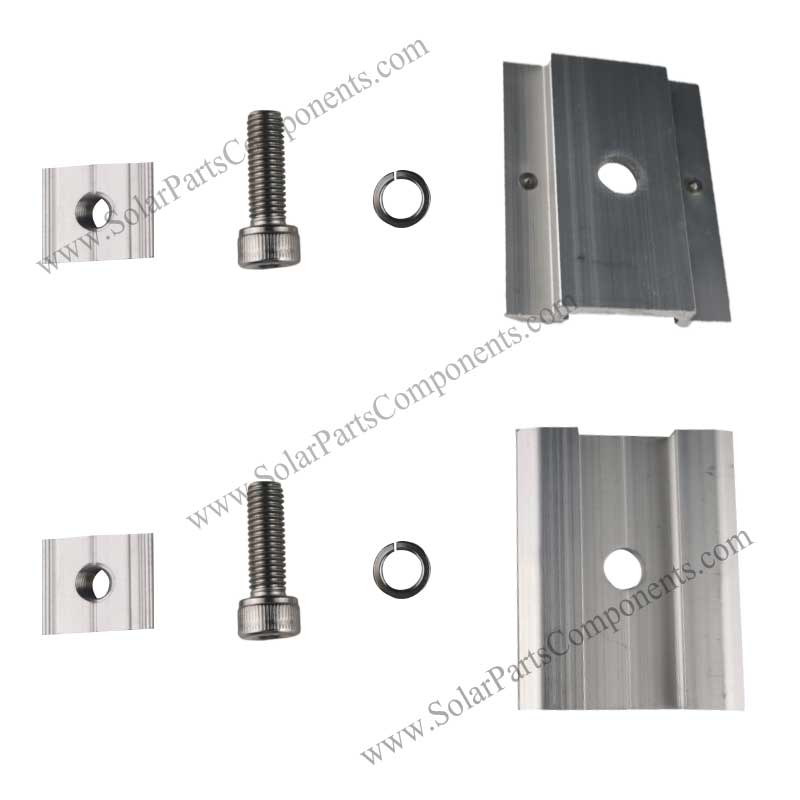

| Fasten Parts | Stainless Steel / Aluminum T Sliding Nut |
| Color: | Anodized Silvery |
| PV Modules: | Framed |
| Wind Load: | 60m/s |
| Snow Load: | 1.4KN/M2 |
| Modules Orientation: | Landscape/Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Solar clamp with grounding pins customized
“Hello,
My name is Ryan Hagen,
I am an engineer for a solar racking company, I am inquiring regarding some of your Solar clamp with grounding pins customized (see Below), I noticed There are several different designs, can you provide a drawing or let me know the hardware used M6, M8?
Can you please provide your minimum order QTY, and let us know the maximum Monthly QTY you have capacity for? I have a bottom piece already can you give general pricing for the top only?”
solar clamp with grounding pins
“Yes, we can accept custimized for your solar clamp with pins, can you share us your drawing size?”
”
Thank you for your response,
We are a new solar mounting company developing a system to be sold in the U.S residential, and Utility scale markets. We are looking for clamp suppliers that are compatible with C strut channels (see below), The clamps will need to have the integrated bonding pin for our applications. The bonding pin you show below is very similar to other pins seen on the market and would be compatible with our application.
Do you sell the clamps themselves or do you manufacture parts designed by solar mounting companies, or possibly both?
… I was seeing if you have a solution compatible with the strut channel below? We would prefer to use 1/4×20 threads but can use M8 if needed.
Please see below, drawing size for our solar clamp with pins
solar clamp with grounding pins drawing
We are solar clamp with grounding pins and other mounting components OEM & ODM munufacture factory.
Sure, we can drill holes with ¼” bolt(6.4mm) diameter as you required.
Yes, it can be black color.
Our processing is anodized finishing for whole 6 meter long rails and cut 50mm for each piece.
What is the solar clamp with grounding pins?

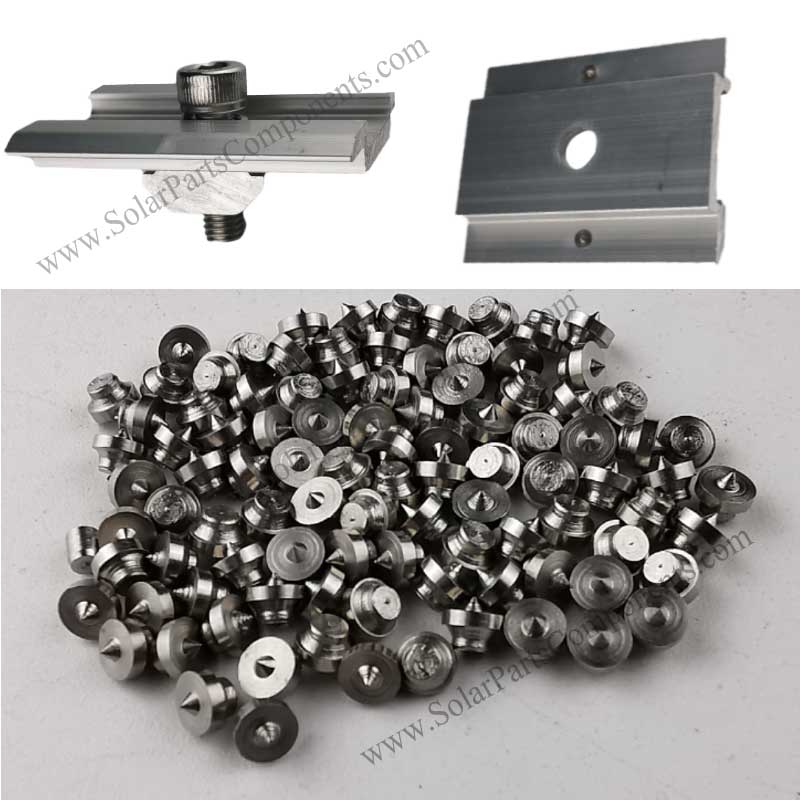

Solar clamp with grounding pins is a grounding pin embedded on the side of the mid clamp that is in contact with the component frame.
Grounding pin are used in the process of clamp and component installation. They are embedded in the clamp to replace grounding clip, saving a lot of costs and shortening the construction period. The following is an inquiry about clamp.
Q:
Could you please advice if AL MID CLAMP
Can make grounding (only) with out using stanliess steel washer between aluminum pv fram and galvanized steel structure
Thanks
A:
Thank you for your email about the Solar clamp with grounding pins.
Please refer to our Aluminum Mid clamp with pin:
The sharp point can pierce into the surface coating of the Galvanized steel, without needed of the Stainless steel ground washer.
We can accept customized for this Clamp, what is the quantity you would meed?
and what is your delivery address, I will come back to you quotation with freight cost.
Thank you!
Solar clamp with grounding pins
Q:
I need 1000pcs of solar clamp with bonding pins, delivery address see as attached.
Solar Clamp with grounding pins OEM factory
Hi Solar Clamp with grounding pins OEM factory
Please help to quote for 5000pcs Solar Clamp with grounding pins,

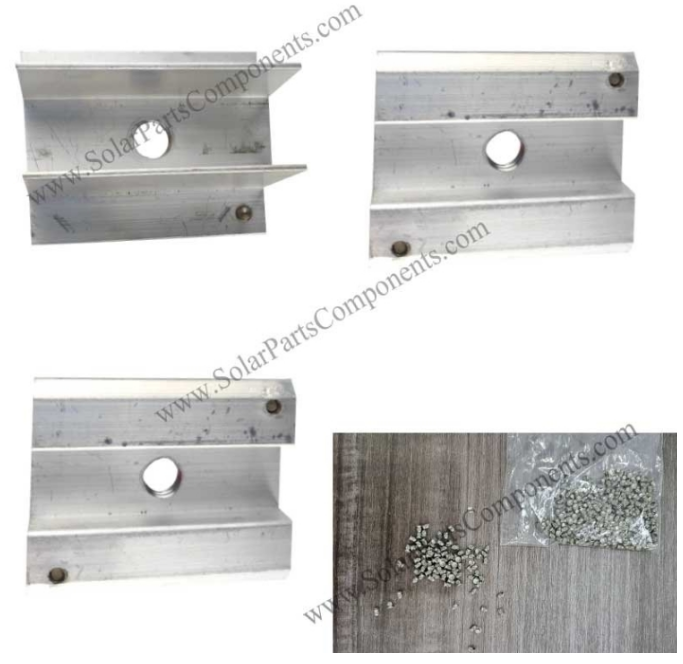

I prefer to take the mid clamp with earth, U look at the photo, there are 2 small pin left and right.
I need 60mm in length of this clamp,can you supplier this?
Solar Clamp with grounding pins ODM
Hi Vilson
Thank you for your new inquiry from us for our solar mid clamp with pins.
Our regular size for this clamp is 40mm length.
But sure we are U look at the photo, there are 2 small pin left and right
We can customize 60mm length as you request.
I have sent our quotation to your email, please kind check.
The price is good, we would like to proceed this order.
I just made the payment, please find the attached bank slip.
Much appreciated for your entrust with us.
The clamps with grounding pins are ready for shipping today.
Solar Clamp with grounding pins OEM
Thank you and have a nice day!
Solar Clamp with grounding pins OEM factory sales team
What is a solar mid clamp?
Q:
Dear Sir/Madam,
Please offer solar clamps as listed below:
INQUIRY
| SIZE | Item picture | Description | qty |
| „30” 26,8×32,8×2,8 | Alu.end clamp M8 | 1pal | |
| „30” 26,8×32,8×2,8 | Alu.end clamp M8 black RAL 9005 | 1pal | |
| 50x36x25 | Alu.middle clamp M8 | 1pal | |
| 50x36x25 | Alu.middle clamp M8 black RAL 9005 | 1pal | |
| 50x36x25 | Alu.middle clamp M8 with nail | 0,5pal | |
| 50x36x25 | Alu.middle clamp M8 black RAL 9005 with nail | 0,5pal |
Please let us know price FOB nearest train station and ready term for collection
Looking forward to hearing from you soonest.
A:
Appreciated for your inquiry for our solar clamps.
Please refer to our quotation as file attached.
May I know how soon will you need these clamp?
Any comments, just let us know.
I have just added your whatsapp for further communication.
Q:
Thank you for your immediate reply. We are very satisfied with your products. How long can we receive?
A:
We have it in stock, ready to ship.
