Solar Metal Roof L foot Clamps for Corrugated Tin Zinc Roofing
- Product Type: solar corrugated metal roof mounting clamps
- Product Model: Solar-Corrugated-Tin-Zinc-Metal-Roof-L-Foot-Clamp
- Material: Aluminum
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Zinc Tin Metal Roofing Solar Panels Installation
Product Description :
Our solar L foot clamps can work well for both new or retrofit corrugated metal roofings.
Solar L bracket is made of permium aluminum and is affordable in prices comparing stainless roof clamps.
By using rubber gasket under L foot base, it can prevent rain drops well .
You can dip a little mastic on screw, it can also help as sealant when installing .
Our mill finishing zinc metal roofing L foot can be installed in cold, hot weather as good performance in high – tensile strength, AL 6005 – T5 standard alum material .
This solar L bracket is developed for both residential and commercial corrugated metal rooftop mounts .
These L feet clamps can support solar panels freely installed on even or sloping roofing.
This L-Foot kits for alum railing footing includes : L-foot, rubber insulator, screw, bult and nut .
Advantages :
(1) Fast Installing : Fast and easy installing with our cross-module, rail and L foot clamp ;
(2) Versatile Application: Our Solar ” L” bracket can be used for most tin metal roofings ;
(3) Warranty : Our professional QC can offer reliable solar kits always ;
(4) 25 Years long life designed .

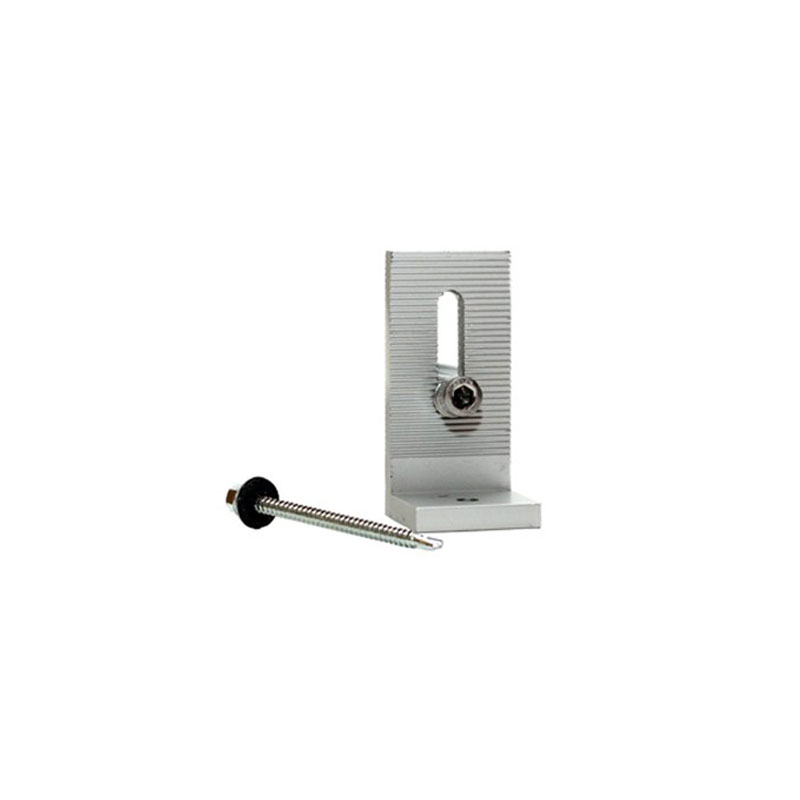

Parts and Components for L foot Metal Roof clamps for Solar Panels :
a) one piece of L-Feet solar clamp ;
b) one piece of rubber gasket ;
c) one piece of stainless steel screw .
Brief Descriptions : | |
Solar Metal Roof L Foot Clamps for Corrugated Tin Zinc Roofing | |
Item type: | Solar Corrugated Metal Roof Brackets |
Type : | Solar Roofing Mounting Clamps |
Installation Site : | Corrugated Metal Roofing |
Profile Material : | Aluminium 6005- T5 |
Fasten Parts : | Stainless Steel |
Color : | Silvery or according to customer requirements |
Wind Load : | 60 m / s |
Snow Load : | 1.4 KN / M2 |
PV Modules : | Framed, Frameless |
Module Orientation : | Portait and Landscape |
Standards : | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955 : 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed Life Span | 25 years |
Packing Details : | |
Inner : | Bubble bag+inner box+Carton |
Outer : | Wooden Box, Steel Pallet, MDF, etc |
Solar Metal Roofing L Foot
I’m interested in Solar Metal Roofing L Foot for metal roofs. We have a 88Kw on a metal roof we’ll be using an 8” tilt leg and railing. Could I get pricing on those?
thank you,
Jamie

Solar Metal Roofing L Foot
Dear Jamie
Nice to receive your enquiry about our Solar Metal Roofing L Foot bracket .
As per 88KW mounting project, please kind find the attached files for our quotation.
Includes:
(1) One piece of “L” bracket;
(2) One piece of EPMD Rubber pad ;
(3) One piece of M8 X 80 mm carbon steel timber screws with washer;
(4) One unit of hexagon bolt M8 X 30mm ;
(5) One unit of aluminum T sliding nut .
Don’t hesitate contact me if you need more information.
Thank you !
–They look good. I sent the information to our purchasing to run numbers.
Thank you
L foot clamp, L feet mounting bracket system
Solar Parts & Components Factory offer small mounting kits for standard PV modules .
Following is :
Four Solar Panel Modules Kit for Solar Installation Mounting with good Quality, competitive Price and Quick
delivery .

L foot clamp , L feet mounting system bracket
– 2 pcs x 4200mm Aluminium Mounting Rails.
– 2 pcs x Rail Joiners to ensure the mounting rails form 1 continuous structure.
– 12 units x Tin roof interface brackets with EPDM Rubber to avoid cross metal contamination between the bracket & roof.
– 12 sets x Generic roofing screws.
– 2 units x Earthing Lug to earth the PV array & racking system.
– 7 pcs x Earthing plates to earth the PV panels to the racking system, reduce the risk of fire & lightning strike of their customers PV arrays.
– 4 pcs x Generic Cable Clips
– 10 units x Mid Clamps (Inner clamps) 32-50mm adjustable to suit nearly all solar panel frame sizes.
– 4 units x End Spacers which conveniently turn mid clamps into end clamps for the end of any solar array. 32-50mm adjustable.
Welcome to purchase standard mounting kits from www.SolarPartsComponents.com
(1)AS/NZS 1170 wind standards.
(Wind loading 80m/s up ) ;
(2)10 years warranty;
1 x 4 Module Tin Metal Roof Mounting Package with L feet brackets .
What's the function of L foot bracket ?
L-Foot bracket is essential components to support enough strength between metal roofing and solar panel (PV Modules)
– Quick install by timber screws and T sliding block for aluminum rail system / racing system ;
– EDPM pads are supplied for sealing / waterproofing after drilling to metal sheet ;
– Widely used for Tin roof / asphalt shingle roofing …
– 6005-T5 aluminum extrusion made ;
– 10 years warranty ;
– Matched FLASHING can be offered as accessories ;

metal roof solar clamps L foot bracket
Metal Roof Solar Clamps L Foot Bracket belongs Support components for solar panels ;
The Adjustable height to fit multiple PV modules, We also accpet Customized size are available ;
Welcome to buy more roof clamps from Solar Parts & Components Factory !
L foot Metal roof solar mounting, L foot Kenya project
Solar railing mounting system metal roof project details
Solar Panel L Foot Bracket Kit for roof mounting system
PV Module L Feet Mounting Bracket Kits
L feet bracket is essential mount component for solar panel roof installing structure .

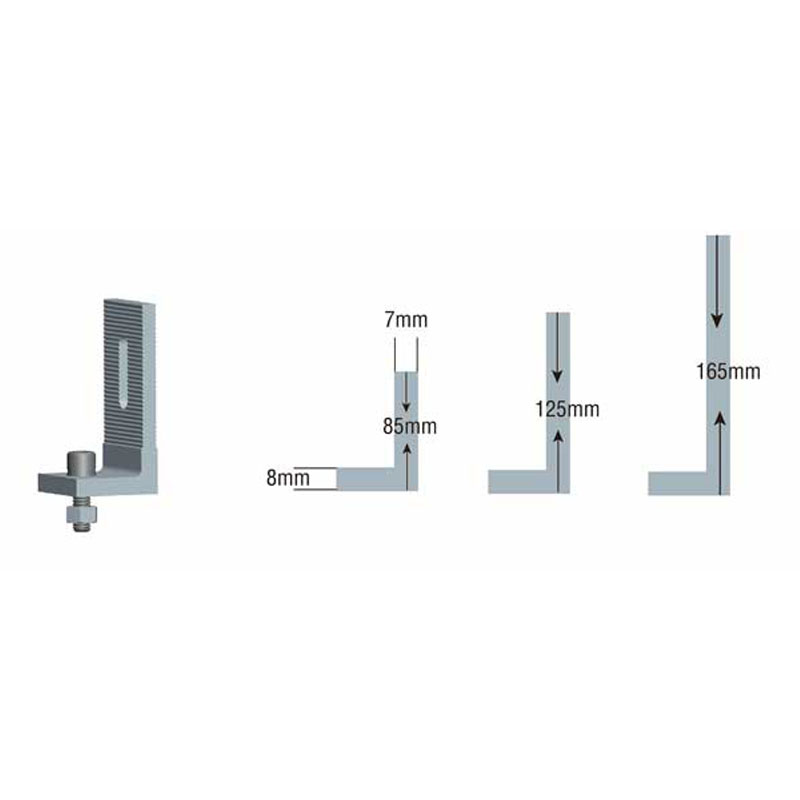

Our serrated L-foot bracket have several height for choice 85mm , 125mm , 165mm … Also can be customized .

L foot bracket kit
Features of our L foot bracket kit :
– Made of extruded aluminum;
– Strong for home & business solar PV module installation;
– Work as joint between roofs and aluminum rails ;
– Corrosion resistance, durability, versatile uses ;
– 10 years warranty for our L feet bracket kits ;
– pre-assembled & quick installing ;

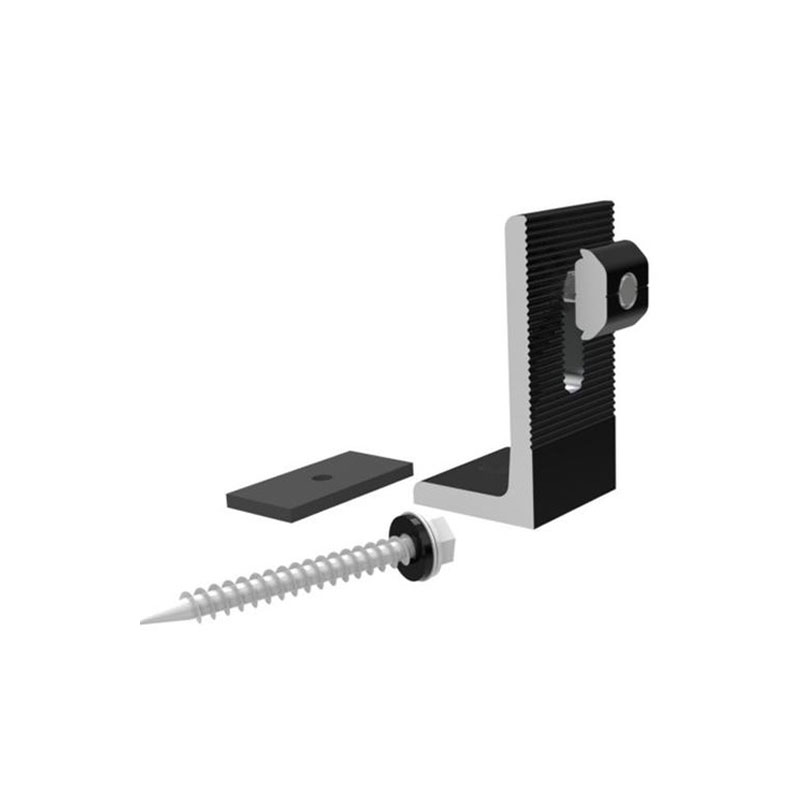

The whole L feet mounting kit Includes:
(1) One piece of “L” bracket;
(2) One piece of EPMD Rubber pad ;
(3) One piece of M8 X 80 mm carbon steel timber screws with washer;
(4) One unit of hexagon bolt M8 X 30mm ;
(5) One unit of aluminum T sliding nut .

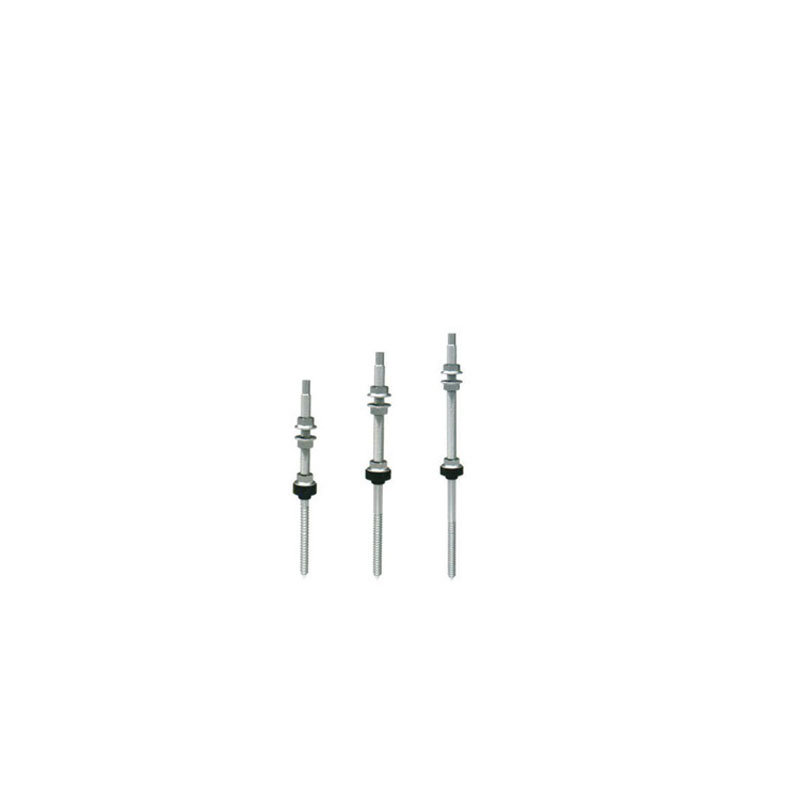

Some customized components like hexagon nut , hanger bolts … can be chosen base on solar power projects .

L feet bracket kit
Factory direct PV module mounting L feet bracket kits, Quick & fast installation components .
