Tile Roof Hooks, Adjustable, Side Mounting
- Product Type: Solar Tile Roof Hooks
- Product Model:SPC-IK-03
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Pitched Tile Roof Installation
Product Description :
This adjustable solar curved roof hook is designed for Roman, Spanish and clay tiles.
The adjustable curved tile hooks are suitable for both residential or commercial roof tops. It’s for side mount rails with 90° whatever for portrait or landscape solar panels installation.
We use good quality stainless steel for our PV mounting hooks . Matched with our mid-clamps and extruded aluminium rail.
You can install pitched roof hooks very samply and fast.
The upper steel hook can be up and down for around 40 mm adjustment according to thickness of curved tiles.
Advantages :
- Quick and easy installing with pre-assembly packing;
- With adjusted innovation, this solar roof hook works on curved tile heights ranging from 65 mm to 95 mm ;
- 10 Years ‘s Quality guarantee ;
- Anodized treatment for 6005-T5 aluminium kits and Stainless steel (SUS304), anticorrosive ;
This adjustable clay tile roof hooks are with good struture safety and lood-carrying capacity reliability.
The pitched roof hook with good adjustability can be installed most Roman & Spanish tiles , good flexible and compatible.
Parts and Components for Solar Curved Tile Roof Hooks, Adjustable, Side Mounting :

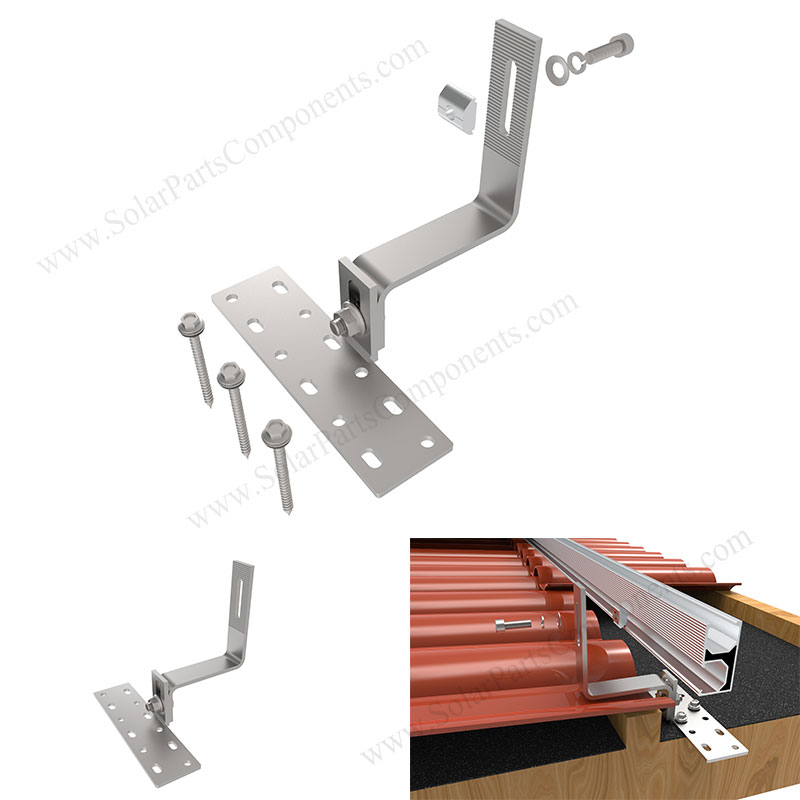

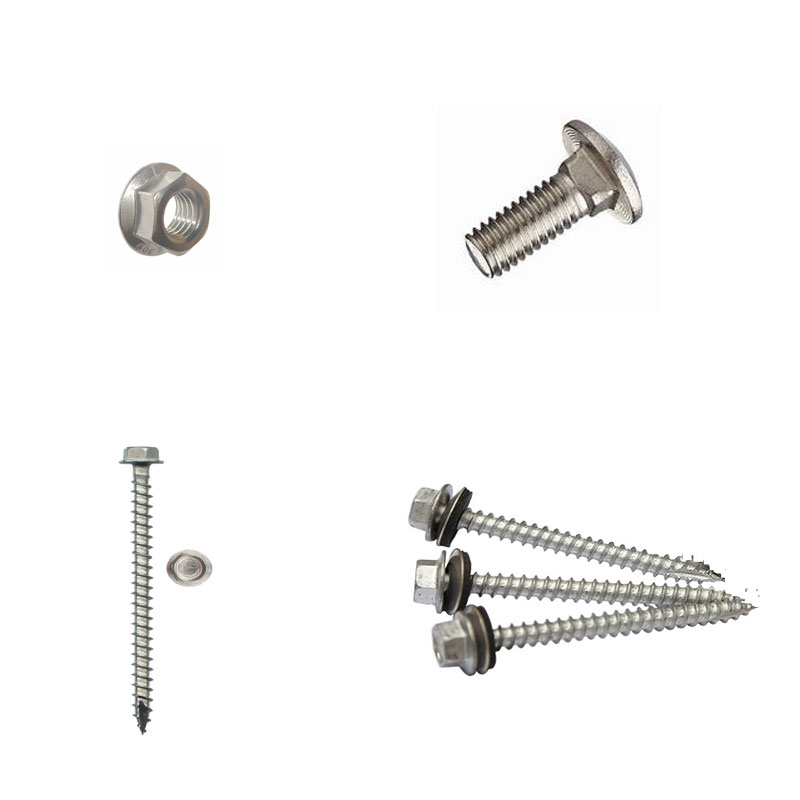

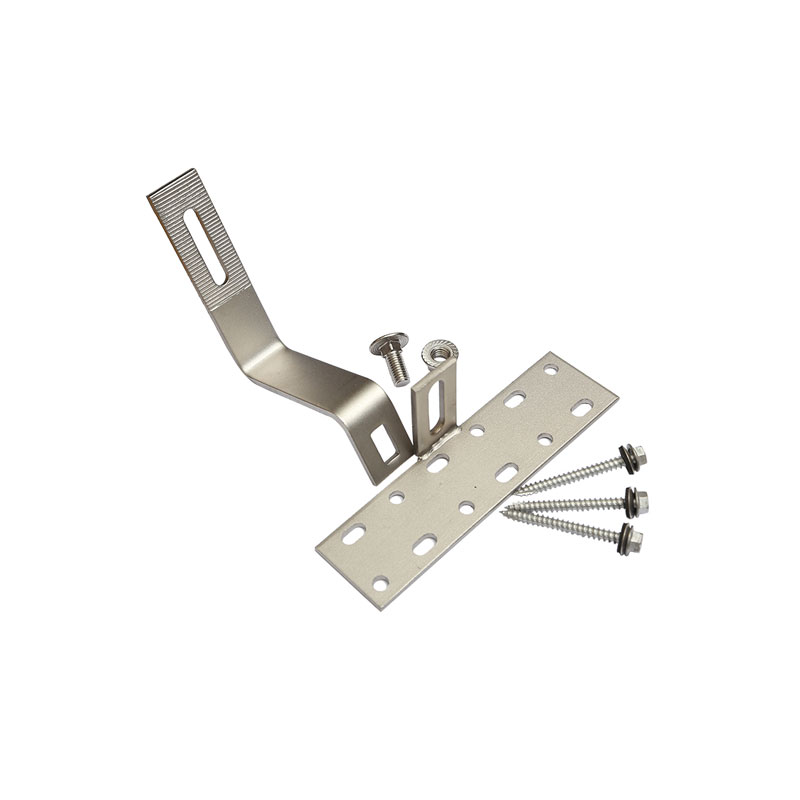

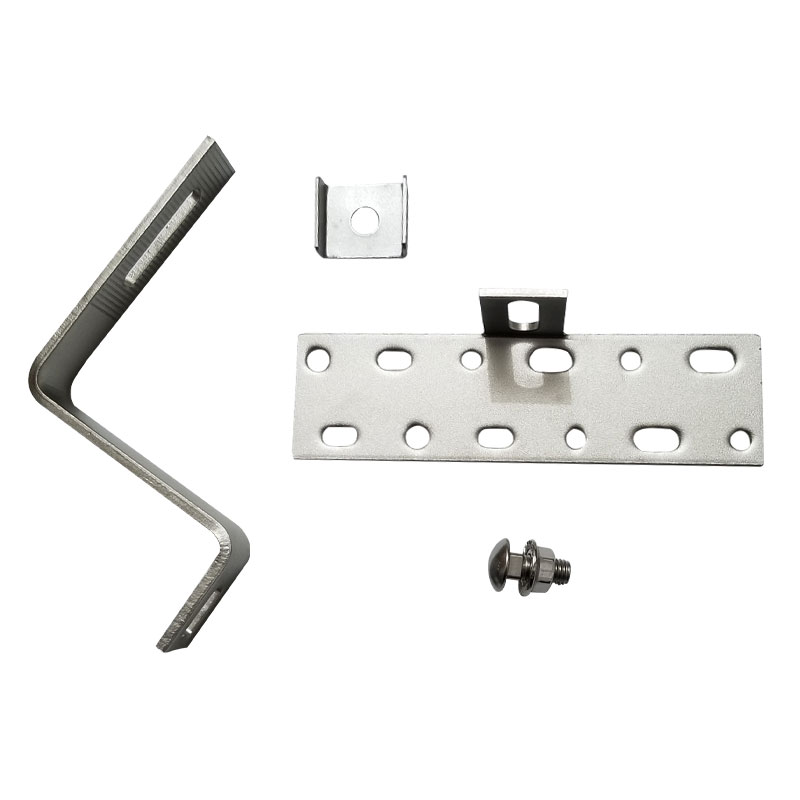

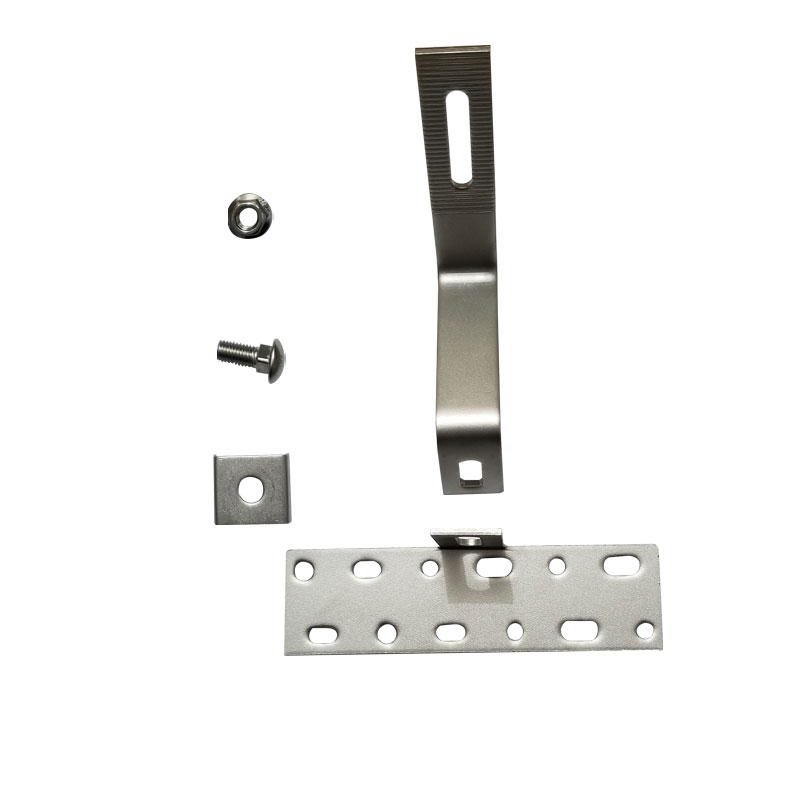

(1) 1 SET of Stainless SUS304 hook and base ;
(2) 1 SET of Carriage bolt and hex flange nut ;
(3) 3 PIECES of Hex Washer Head Stainless Steel Solar Mounting Screws .
Racking products for solar panel installation vary from components to the whole mounting system. Buy from our SPC is the best choice. We can meet your needs.
Contact us by our website: www.SolarPartsComponents.com
| Brief Descriptions : | |
| Solar Mounting Components – Curved Tile Roof Hooks, Adjustable, Side Mounting,SPC-IK-03 | |
| Item type: | Solar Curved Tile Roof Hooks |
| Type : | Roofing Hooks |
| Installation Site : | Pitched Roof |
| Profile Material : | US 304 Stainless Steel |
| Fasten Parts : | Stainless Steel / Aluminum T Sliding Nut |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Installation Manual for Solar Roof Hooks SPC-IK-03
How to use roof hook solar correctly?
In today’s society, solar energy, as an important part of clean energy, is widely used for household and industrial purposes.
As an expert in installing solar energy systems, it is particularly important to master the skills of using roof hook solar correctly.
Roles of Solar Tile Roof Hooks Adjustable Side Mount Rail
Solar Tile Roof Hooks Adjustable Side Mount Rail play the important roles in solar installation systems.
Roles of Solar Curved Tile Roof Hooks Adjustable Side Mount Rail

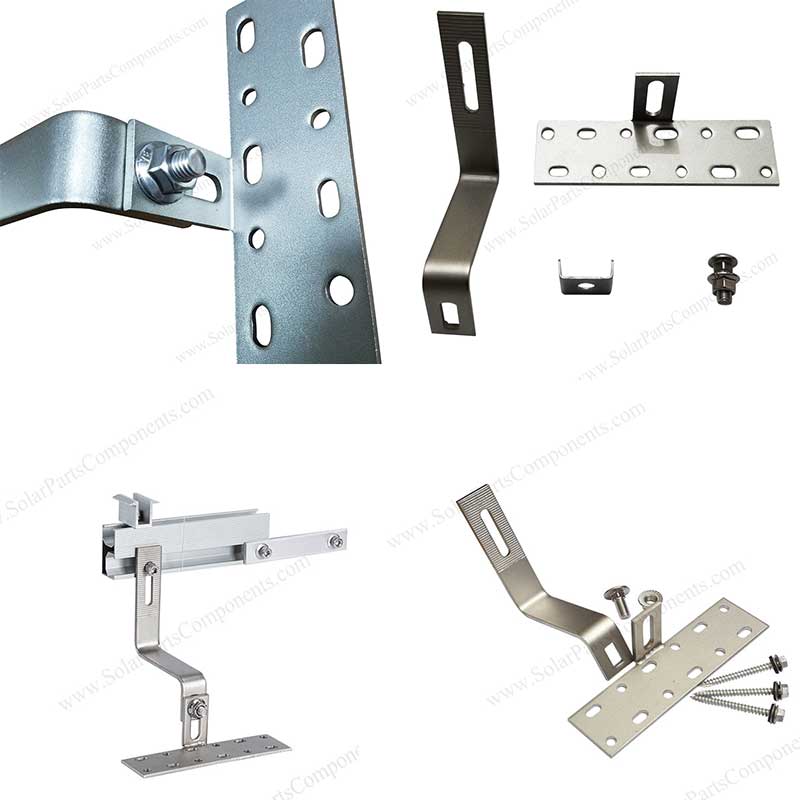

Detail of Solar Tile Roof Hooks
Q:
I would like to order 30000 of these Solar Tile Roof Hooks please.
‘Curved Tile Roof Hooks, Adjustable, Side Mounting
Can I ask how long this would take to get these to us? We are in UK.
A:
Appreciated for inquiry of SPC-IK-03.
Factory price please see at attached..
We are a manufacturer of solar accessories, factory direct sales with large inventory and fast shipping.
Please don’t hesitate to let me know if you have any question.
Thank you!
Q:
Thank you for your kind reply.
Solar Tile Roof Hooks
An inquiry of Solar Tile Roof Hooks.
The Solar Tile Roof Hooks is made of high-quality steel profiles with exquisite workmanship and undergoes strict surface treatment.
It can be used for many types of tiles and is the best choice for the public.
Q:
Dear Xiamen Top Best Tech Co., Ltd.
I’m interesting in your product of Tile Roof Hook.
In your product details have material is steel. It’s requirement from my team.
Can you please quote this item by MOQ and be CIF LCB?
However you can quote by aluminium material too.
If you need more information, please feel free to let me know.
A:
Appreciated for your inquiry about our adjustable tile bracket.
As real factory direct, the model SPC-IK-03 you selected, we can meet small quantity for you.
Can I know how much quantity you would need ?
So that I can calculate CIF price for you in the next email.
Please refer to our size detail and specification for this model.
Yours early reply would be great.
Q:
Thank you for your kind reply!
Please see the attachment for a list of requirements
Curved Tile Roof Hooks
The features of Solar Curved Tile Roof Hooks.
Features
- Good corrosion resistance: Due to the material of stainless steel. Safe and durable, which could be used for very long time.
- The design of the adjustable structure: Increase flexibility to ensure the best Angle of the solar panel to achieve maximum energy output.
- Good structural safety, reliable bearing capacity.
- No cutting of the tile required: Decrease Labor and costs.
- Simple to install and easy to use, bring much convenience to you. With high construction efficiency.
The installation method of Solar Curved Tile Roof Hooks.
Solar Curved Tile Roof Hooks is made of stainless steel, which is corrosion-resistant and has a beautiful appearance.
The installation method is simple and convenient, and it is very easy to use:

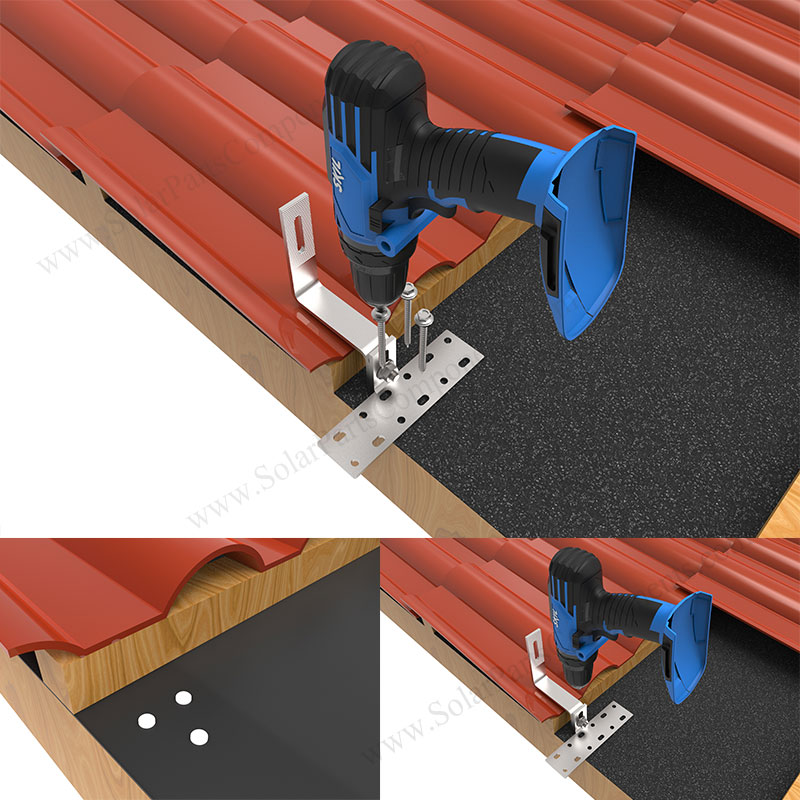

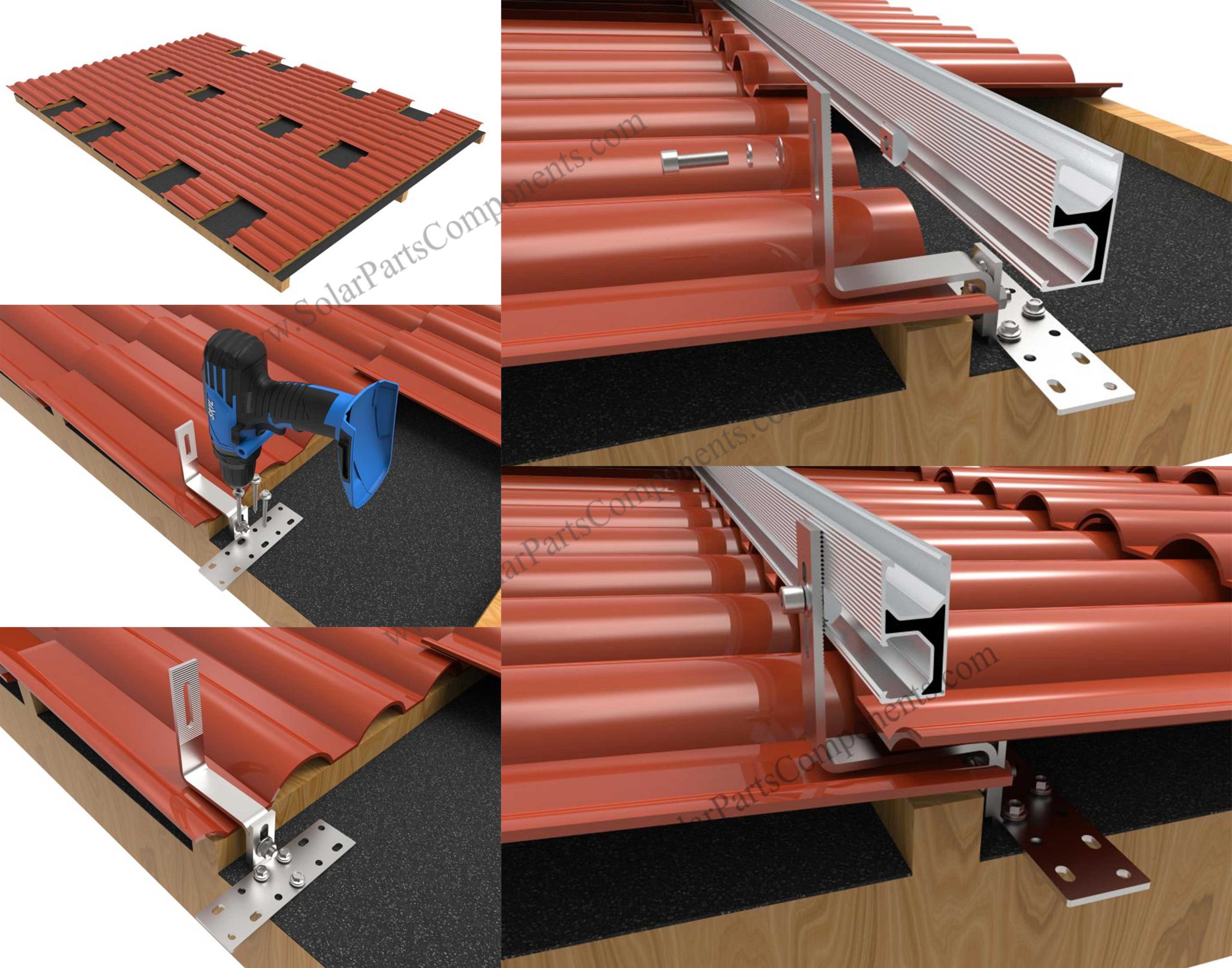

First, according to the size on the construction drawing, lift the tile where the hook needs to be installed, put the hook on the installation position of the main beam, and fix the hook with three ST6.3*80 wood screws;
Secondly, install the track on the hook with the block bolt assembly of M8*25;
Use the track connector for the connection between the track and the track, insert the connector into the groove behind the track, insert 75mm into each side, and then insert the bolt lock;

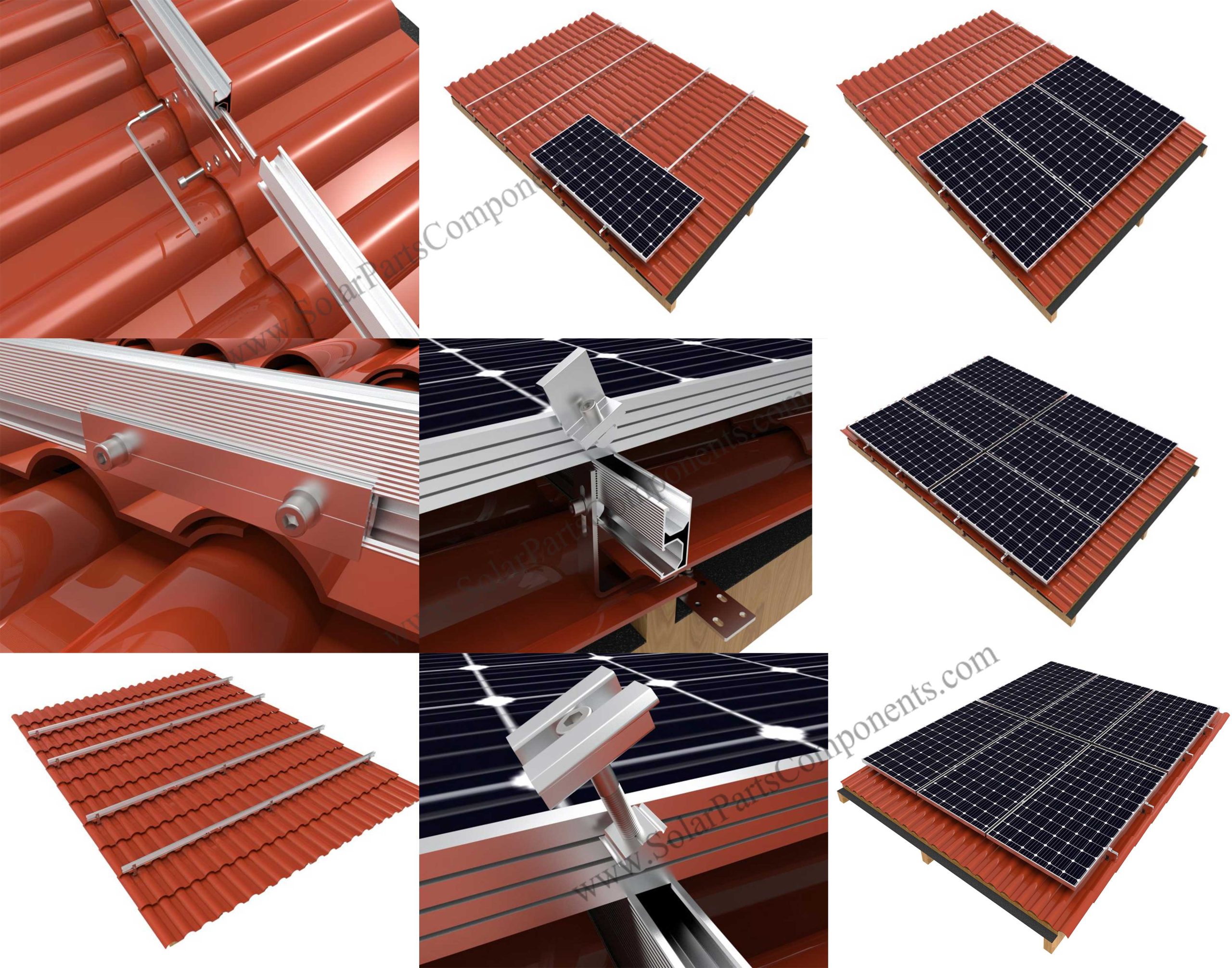

Then, install the track on the hook according to the construction drawing, and place the panel vertically on the two rails. The installation sequence can be installed from left to right and from bottom to top;
Finally, use the end clamp to lock the side, screw the block on the end clamp to the bottom of the bolt, and then put it sideways into the groove of the track. The installation of the mid clamp is the same as that of the end clamp. The mid clamp is screwed to the bottom of the bolt, and then put sideways into the groove of the track, and the plate is installed sequentially from left to right with the mid clamp.
The adjustable hook for side mounting is made of stainless steel, which is corrosion-resistant and has a beautiful appearance.
Solar mounting component
How can I purchase 500 units of tile roof hooks, model:SPC-IK-03
Roberto ing. Scaglia
Sede operativa:
Via Cottolengo, 81 – 10079 Mappano (TO) – Italy
Tile Roof Hooks, Adjustable, Side Mounting, SPC-IK-03 specification
Tile Roof Hooks, Adjustable, Side Mounting, SPC-IK-03 with C clamp

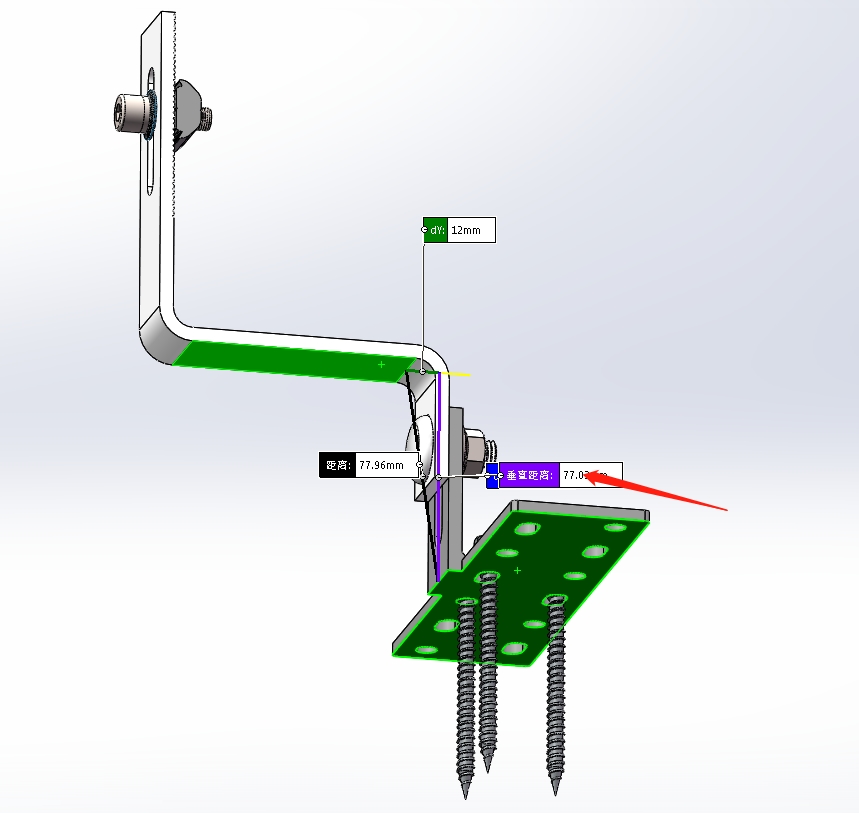

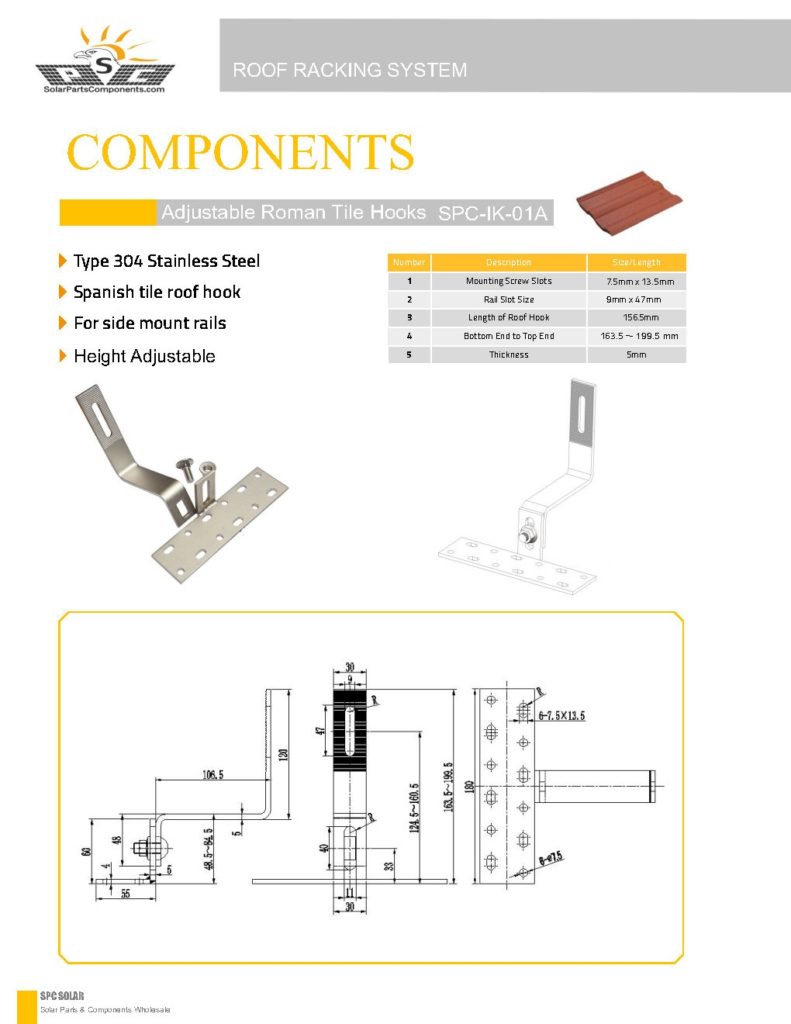

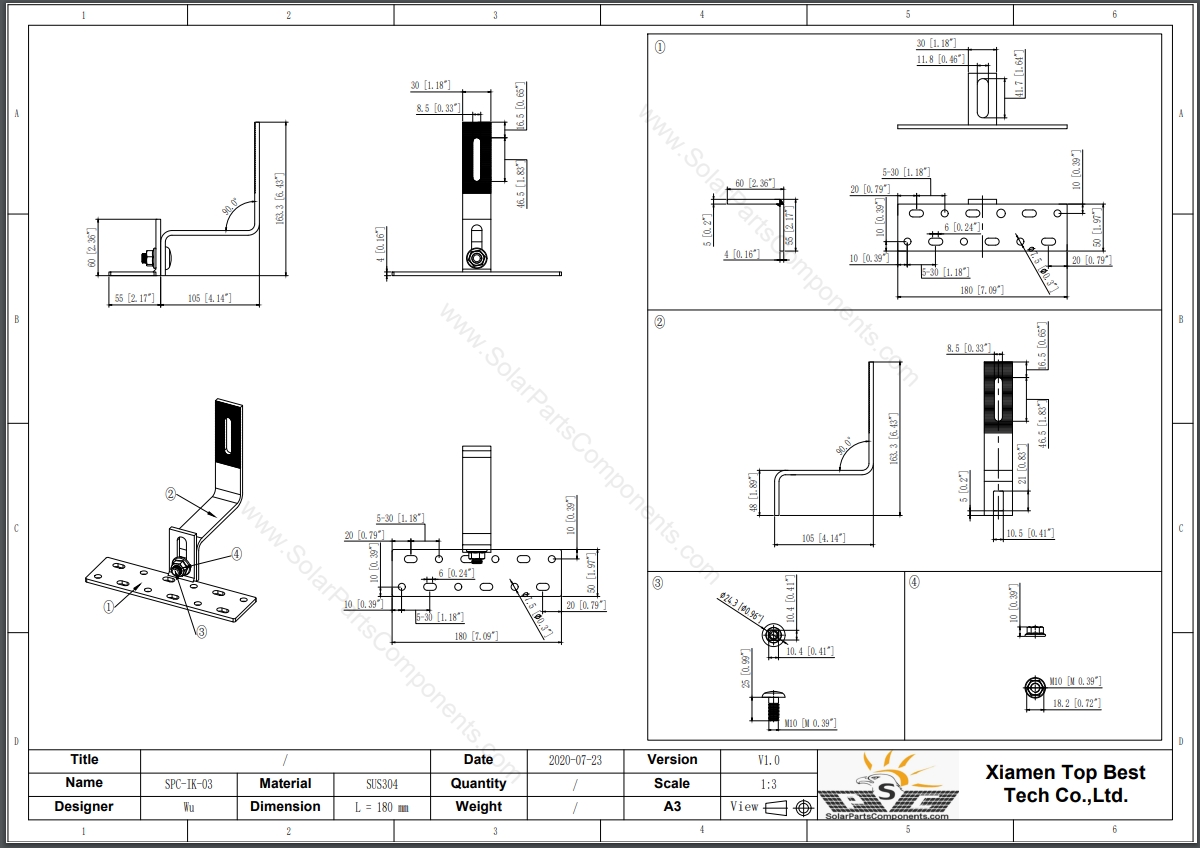

Drawings / Sizes / Dimension for this solar roof hooks -SPC-IK-1A(03)
Drawings / Sizes / Dimension for this solar roof hooks -SPC-IK-1A(03)
Height Adjustable, side mounted
More details, Kindly click below >>>
solar roof hooks, adjustable SPC-IK-01A
Do you need adjustable hooks for solar tile roof with guaranteed quality service?
We are a professional solar tile roof adjustable hooks factory, can accept customized for other type of the roof hook.
Factory direct, wholesale price.
For more details, please consult:
https://www.solarpartscomponents.com/adjustable-hooks-for-solar-tile-roof-spc-ik-04
How to install the Solar Curved Tile Roof Hooks?
Adjustable solar roof hook factory is suitable for solar roof track side installation on glazed tile, ceramic tile and asphalt tile roofs.
The hook is fixed above the tile roof by three wood screws (ST6.3*80), and the track is installed on the hook with the M8*25 clamp bolt assembly.
The track and the hook are in a 90 degree vertical shape, and the solar panel above can be installed horizontally or vertically.
Adjustable solar roof hook
Adjustable V.S. Fixed Solar Clay Tile Roof Hooks
Some comparing features for fixed / adjustable solar panel roof mounting brackets .
Can solar panels be installed on tile roof which is 75 mm of height ?
”
Hello,.
Would need mounting bracket parts for solar panel instalation.
For solar tile hooksModel:SPC-IK-03, can you provide technical drawing please?
Need at least 75 mm of height from the base to the tile.
Were can I order them & deliver to Portugal?
If you have got any dealer in europe that i could buy from, that would be great.
Thanks in advance
Pedro
”
”
Dear Pedro
Appreciated for your inquiry about our solar tile hooks Model:SPC-IK-03.
Yes it can be meet your requirement of 75mm height from base to tile.
You can buy from our factor and ship to Portugal directly.
Thank you !
Best regards,
Solar Parts & Components Sales Team
”
Solar panels be installed on tile roof hooks

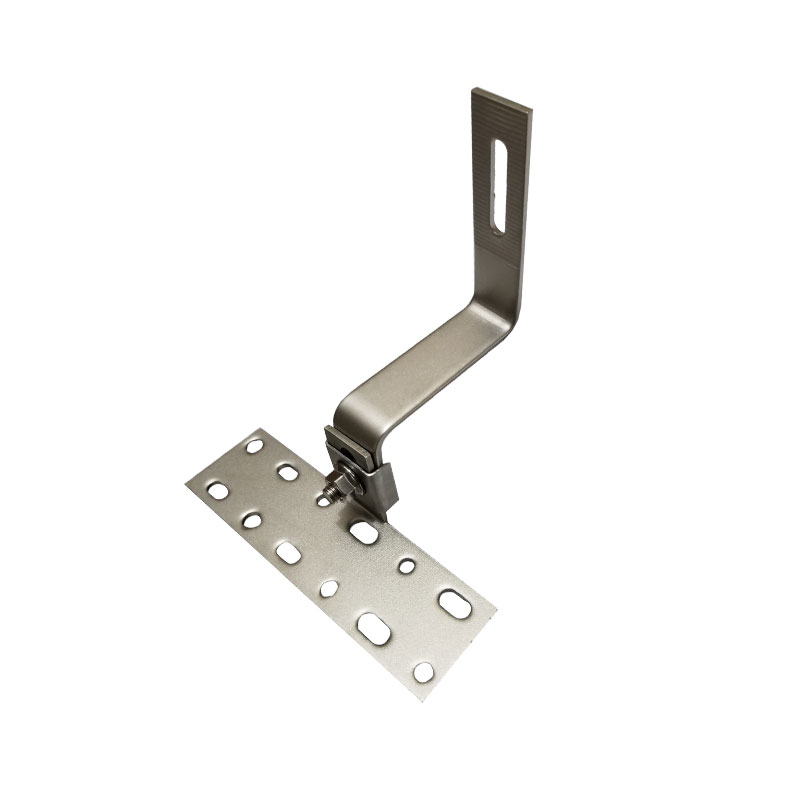

Fixed Clip for this Adjustable Solar Curved Tile Roof Hooks
We have fixed clip / clamp / hoop , stainless steel made for this Adjustable Solar Curved Tile Roof Hooks

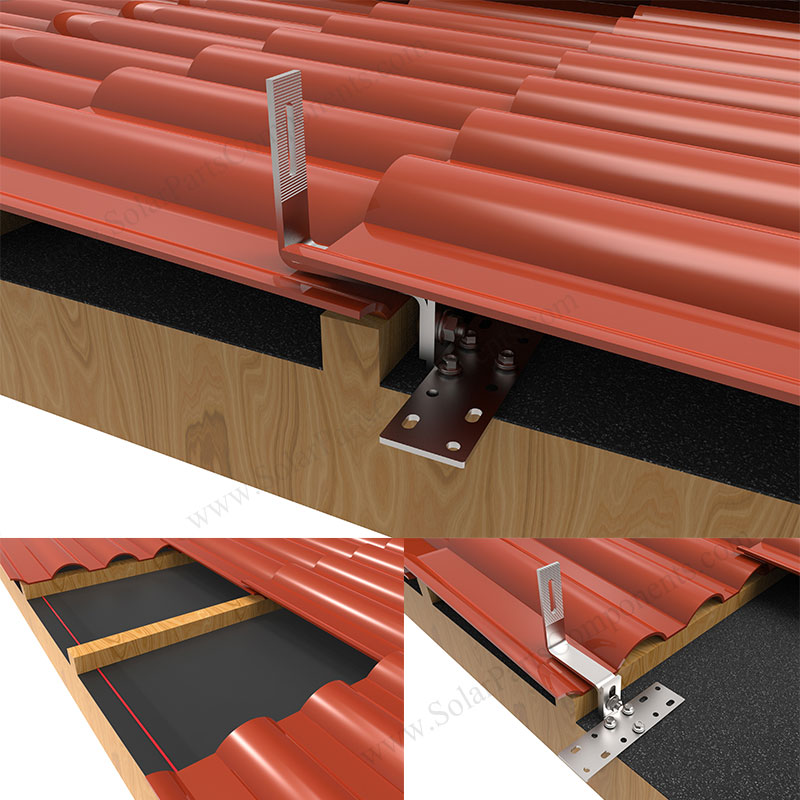

How to installation tile roof hook #03?

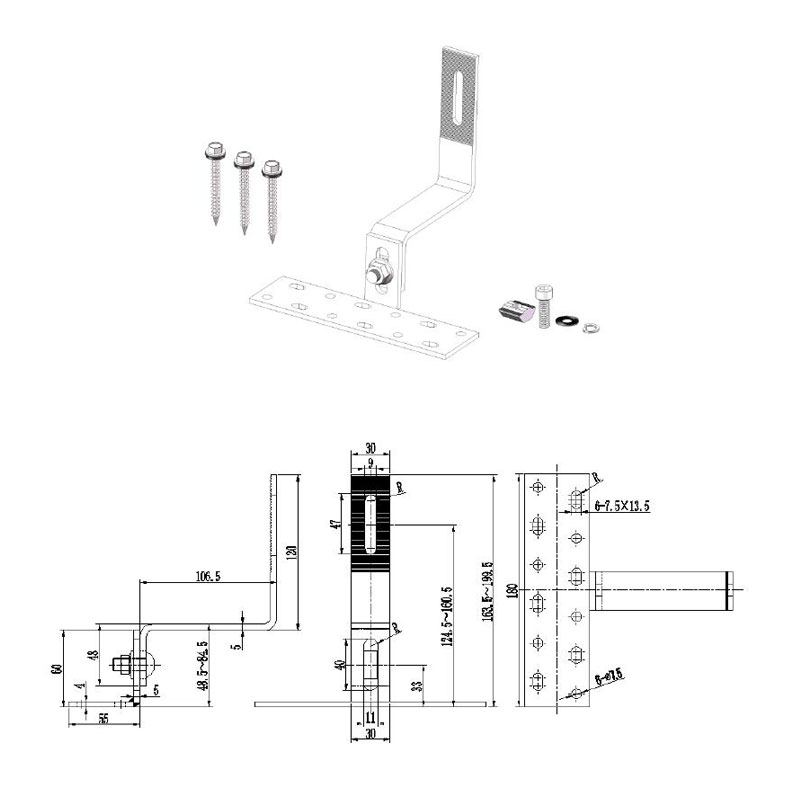

Drawing for this Adjustable Solar Curved Tile Roof Hooks
