Good quality Solar Driven Pile Ground Mount systems are widely used forHome / Indurstrial / Commercial PV solar panel installation .

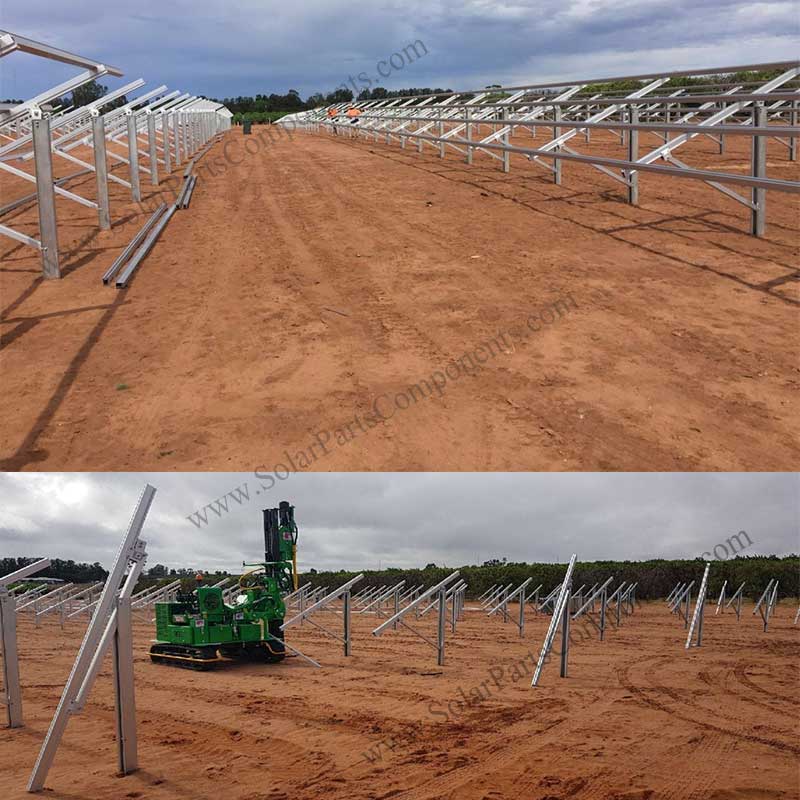

The Solar Driven Pile Ground Mount, designed for servicing to large-scale solar farm (1-100MW). And It required no ground screw pile or concrete base.
Adaptability to uneven or sloped terrain.
In addition, this innovative mounting solution can be effortlessly adjusted to accommodate different ground conditions to ensure a seamless installation process regardless of the landscape’s topography.
Benefit of easy maintenance and cleaning of the panels
Furthermore, with the panels elevated on the mount, access to the underside of the solar array is simplified, enabling technicians to conduct routine inspections and cleanings with ease.
The advantages of the Solar Driven Pile Ground Mounting
Besides, we use the pile column as foot, and have its foot firmly grounded in durability, adaptability and reliability. In particular, its hot dip galvanized thickness is more than 80 microns.
Conclusion
In summary, solar pile ground mount systems are a popular choice for large-scale solar installations due to their exceptional durability, ease of installation, and adaptability to various terrains.
By providing a sturdy and secure foundation for the solar panels, these mounting systems offer a reliable solution for solar projects in diverse geographical areas.

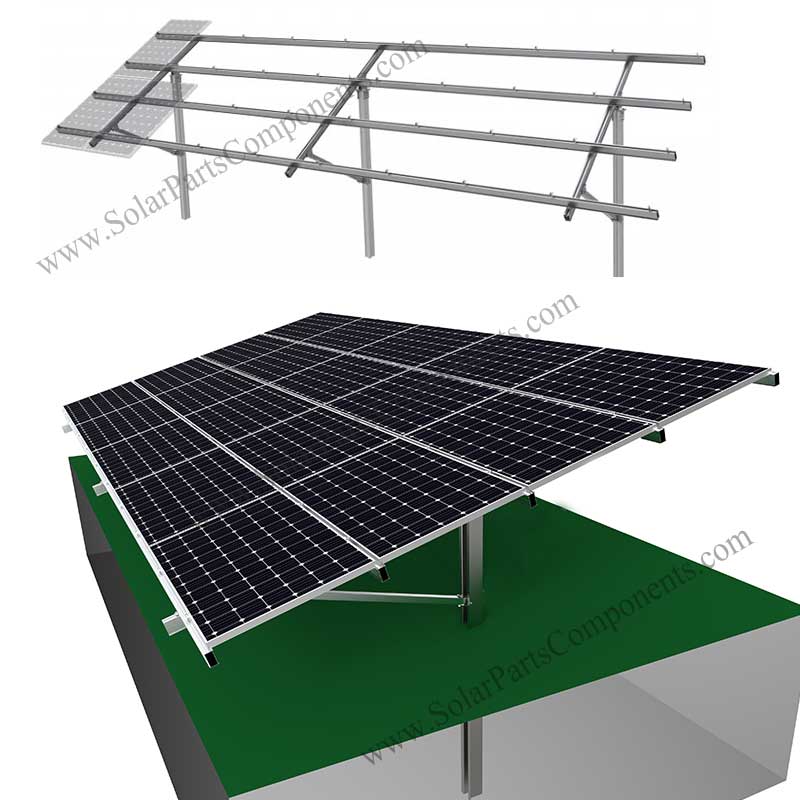

Technical Parameters For ThisSolar Driven Pile Ground Mount :
| Brief Descriptions : | |
| Solar Driven Pile Ground Mount, SPC-CA-4H-PCW | |
| Item type: | Pile Solar Ground Mounting Systems |
| Technical Parameters : | |
| Type : | Solar Driven Pile Ground Mount |
| Installation Site : | Home / Indurstrial / Commercial |
| Installation Angle : | 0° ~ 60° |
| Profile Material : | (Hot-Dip Galvanized) with Al6005-T5 |
| Fasten Parts : | SUS304 / Carbon Steel Pile |
| Small Components : | AL 6005 – T5 ( Anodized ) / SUS 304 |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 3.6KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portrait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Welcome get more details from www.SolarPartsComponents.com for this Solar Driven Pile Ground Mount, SPC-CA-4H-PCW.
