Solar panel earthing clip plates, A2-70, SPC-GW-19

Earthing Clip Solar Mounting Components

Product Type: Solar Panel Mounting Systems Hardware
Product Model:SPC-GW-19
Material: Stainless Steel
Application: Solar Panels Installation

Contact by Email

Product Description:

Ground earthing plate is a kind of essential but easy neglect hardware in solar panel power project.

This solar earthing clips (Model: SPC-GW-19) can create bond between pv module and mounting system.

It’s a kind of universal design model which can applied for most of aluminum rail extrusions.

This grounding clip is stainless steel material, durability for long time service.

The teeth of earthing plate can pierce aluminum rail coating and pv frames, generate and electrical path to the ground.

The specification of solar earthing clips are:

(1) Inside Diameter Φ8.1mm [Φ0.31″] – Φ8.2mm [Φ0.32″];
(2) Outside Diameter Φ34mm [Φ1.34″];
(3) Thickness of grounding plate H=1.3mm [0.05″];
(4) Diameter of penetration hole: Φ2.0mm [Φ0.08″]

Features of this #19 stainless steel grounding plates:

1. Prevent rust, stainless steel made;
2. Round shape with symmetrically strength for racking rails;
3. Without oxidation, excellent conductivity;
4. Comply with CSA / ANSI / UL467 / UL 2703 standards;
5. Customized model are available upon drawings and specific solar power project design;
6. High quality, good strength and cost effective;

The general use, SPC-GW-19 earthing clips can be widely used for roof / ground / carport … racking systems.

Xiamen Top Best Tech Co., Ltd can offer several kinds of pv grounding parts and solutions for your options.

Stay connected with SPC grounding components and keep your solar power plant grounded and safe.

For more information:

https://www.SolarPartsComponents.com

Brief Descriptions:
Solar Mounting Components – Universal SUS304 Solar Grounding Clips
Item type:	SPC-GW-19
Type:	Earthing Hardware
Inner Size:	Φ8.1 MM
Outer Size:	Φ34 MM
Thickness:	8.000 MM
Penetration Hole:	Φ2.0 MM
Installation Site:	PV Module Mounting
Profile Material:	SUS 304 Stainless Steel
Color:	Plain
PV Modules:	Framed, Frameless
Module Orientation:	Portrait and Landscape
Standards:	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955 : 2011
	International Building Code IBC 2009
	California Building Code CBC 2010
Warranty	10 years
Designed Lifespan	25 years
Packing Details:
Inner:	Bubble bag+inner box+Carton
Outer:	Wooden Box, Steel Pallet, MDF, etc

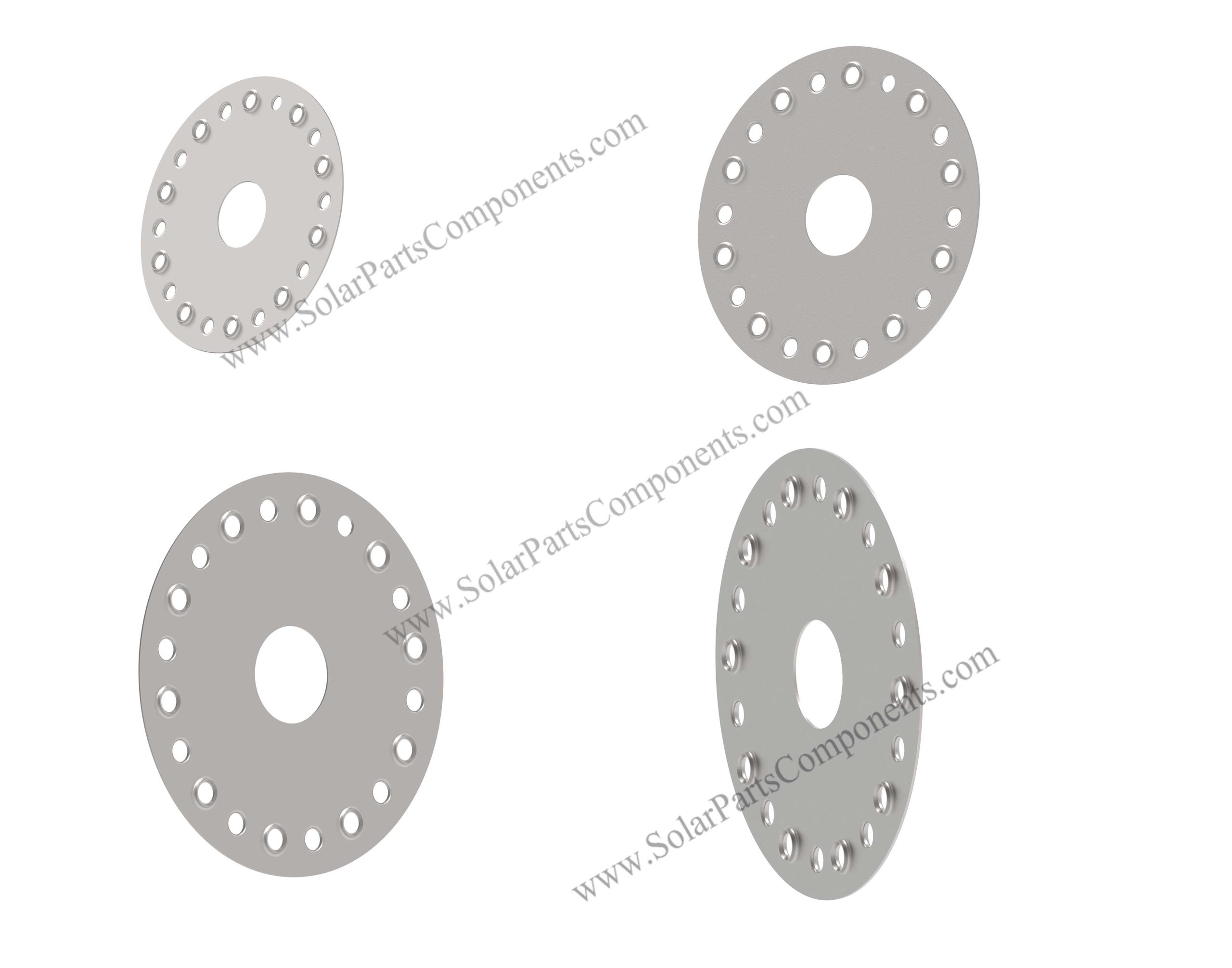

Drawing & Size for SPC-GW-19

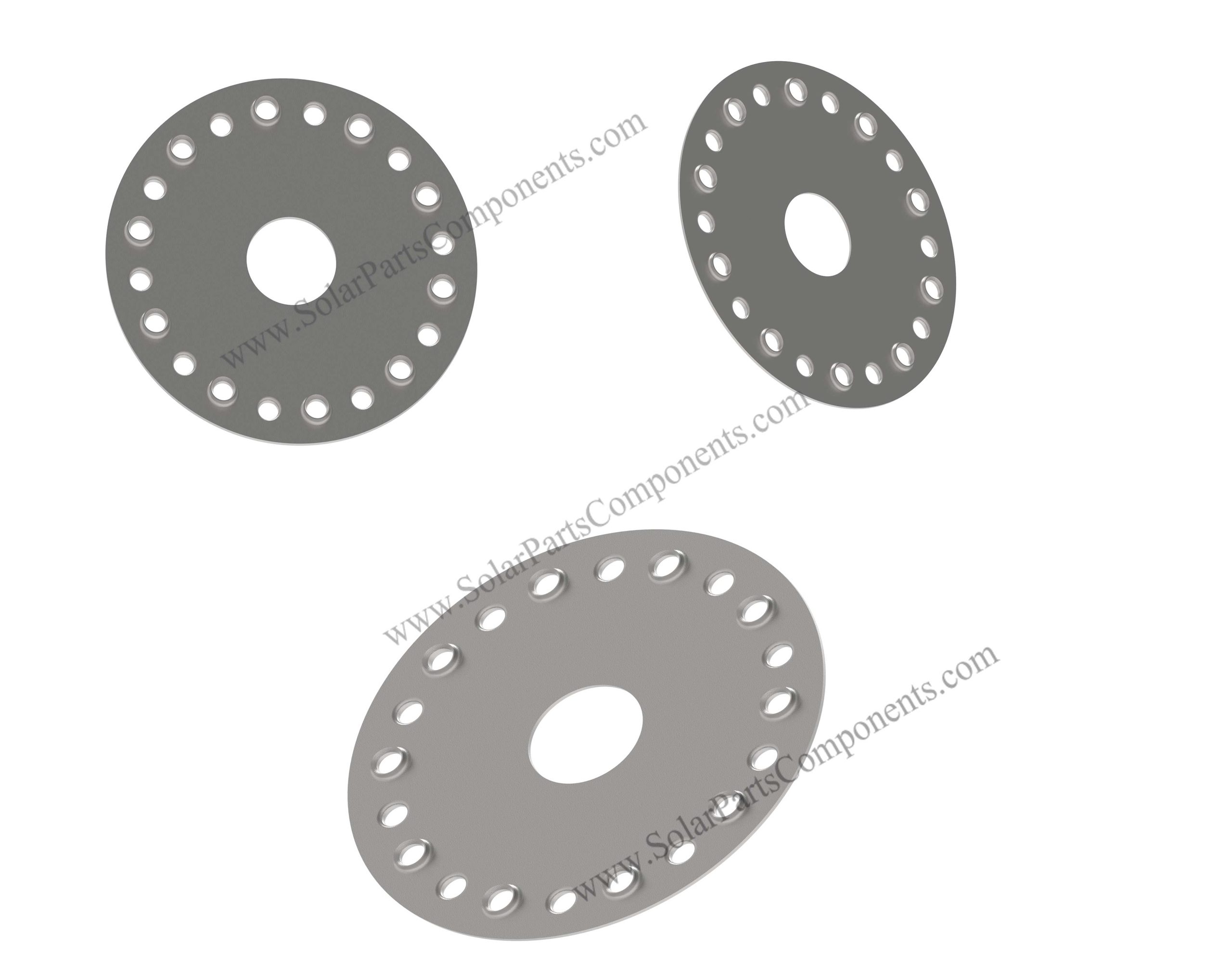

Solar earth grounding clips SPC-GW-19-EN

Innovative circular solar conductive sheet

Whether you want to improve the energy efficiency of electronic devices or optimize the solar charging experience, you need a solar grounding clip with excellent performance and unique structure.

And our round solar conductive sheet is your perfect choice!

Innovative circular solar conductive sheet

Features of Solar earth grounding clips

Features：

Good corrosion resistance: Due to the material of stainless steel and anodized treatment on surface, it’s safe and durable, which could be used for very long time.
Good electrical conductivity：Safe to be used as a conductor of electricity.
Lightning protection：Protecting the whole solar mounting system from grounding and lightning damage.
Burr-free: Smooth surface, safe to use.
The teeth number of these Solar earth grounding clips are more than other clips, so that the effect of puncturing the oxide film is also better than others.
High Pre-assembly: Save labor costs and time at the installation site.
Simple to install and easy to use, bring much convenience to you. With high construction efficiency.
Factory directly and cost effective.
Provides various grounding clips to choose to fit the panel modules and rails.

Solar grounding clips

What is Solar Pv grounding clip?

Description:

Universal solar grounding clip through strict selection, the use of high-quality stainless steel 304 material, in strict accordance with industry standards for processing, the product has excellent electrical conductivity, with high strength corrosion resistance. The surface of the product is treated by a special process to make it smooth and burr free.

The wholesale appearance of the universal solar grounding clip factory is 34mm in diameter and 0.3mm in thickness. It has a sprint hole design on both the positive and negative surfaces. When it is installed, after it is locked between the components, it can puncture the oxide layer on the surface of the component frame and guide rail, thus forming an interconnected electrical circuit between the components to ensure the current flow between the components and prevent the components from being damaged.

Universal solar grounding clip supplier produce a wide range of products, SPC-GW-19 conductive sheet is a universal conductive sheet, can be applied to a variety of photovoltaic assembly installation process, conductive sheet is one of the indispensable parts of the solar support system installation process, is used between the guide rail and solar panels

Product Specifications:
1. Size :34*0.3mm;
2. Gram weight: 1.95g/ piece;
3. Material: SUS304;
4. Material specification: 0.3*37*36.

Product features:
1. Strong versatility;
2. Double-sided sprint hole design;
3. Good electrical conductivity, good corrosion resistance;
4. Quality material selection, long product life.

universal solar grounding clip, wide versatility, strong conductivity.

Universal solar grounding clip supplier

Solar earth grounding clips universal

This model of PV earth grounding clip SPC-GW-19 is design for univeral used. Rounded clips can suitable for most types of the mounting rails.The diameter is 34mm (1.339″) and the hole size is design for M8 screw.
