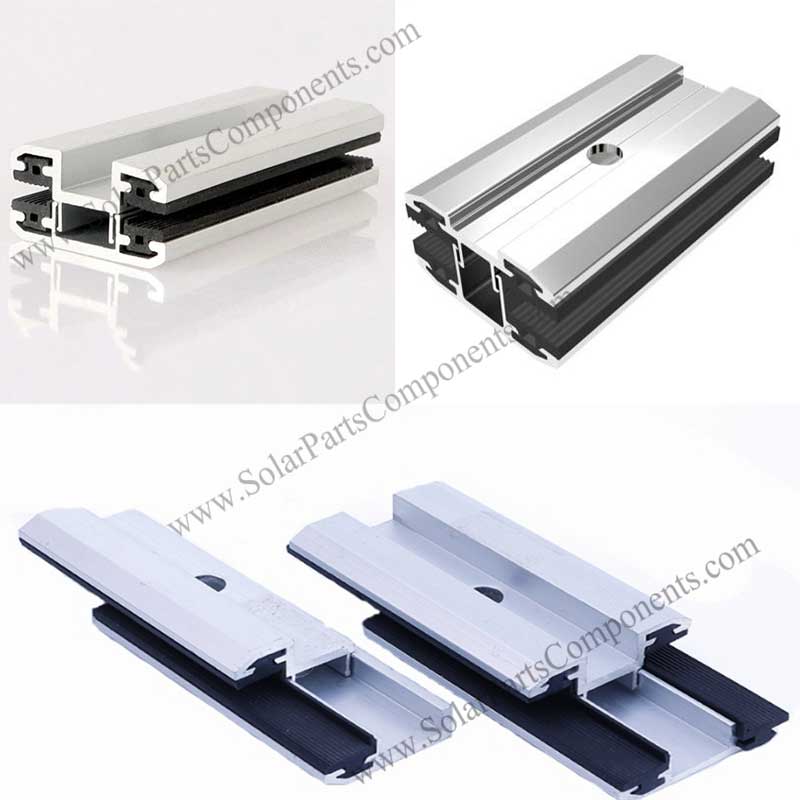

The clamping range of solar film clamps mainly depends on their design specifications and the characteristics of the solar film modules to which they are adapted.
The following is a description of the conventional clamping range and the special application range:
- Conventional clamping range
—Solar film clamps are usually designed to support clamping of film modules with a thickness of 1mm to 10mm. This range covers the thickness of most commercial solar film modules and meets different needs.
–For film modules with larger width and length (for example, modules with a width of 0.5m to 2m and a length of up to 5m), the clamp can adjust the position of the fixing point through modular design to adapt to modules of different sizes.
–Support lightweight modules, with a single module weight generally between 0.5kg and 10kg. The material and structure of the clamp are optimized to stably fix lightweight film modules without damaging their surface.
- Special application range
In some special scenarios, flexible solar clamps can also be expanded or customized as needed:

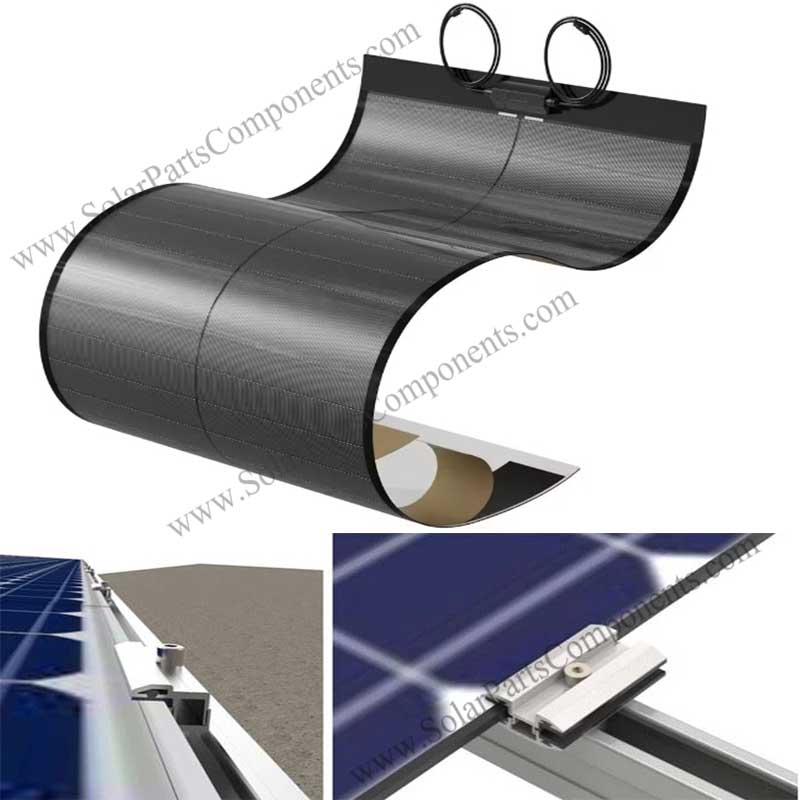

–For curved roofs or building structures, the clamp can fix softer film modules and ensure that the modules adapt to the curved surface without deformation.
–For ultra-thin flexible solar panels with a thickness of less than 1mm, a clamp with a buffer design can be used to avoid indentation or damage to the panels.
–In double-layer installation, the clamp needs to fix two layers of thin-film panels at the same time to ensure that they are stable and do not shift under wind or snow load conditions.
- Adjustment characteristics of the clamping range
Modern solar film clamps are mostly adjustable to adapt to various specifications of components, such as:
–Clamp width adjustment: achieved by knobs or slide rails, allowing components of different thicknesses to be clamped.
–Multi-angle adaptation: When installed at an angle or vertically, the clamp can adjust the angle to ensure a stable fixation.
–Compression adjustment function: built-in buffer pads or flexible materials to disperse pressure, suitable for thin and light components.
The clamping range of solar film clamps usually covers components with a thickness of 1mm to 10mm, and supports a variety of sizes and flexible design requirements.
At the same time, for special environments and component specifications, the clamp can be customized or improved to achieve a wider range of adaptation, providing a safe and reliable fixing solution for thin-film components.
