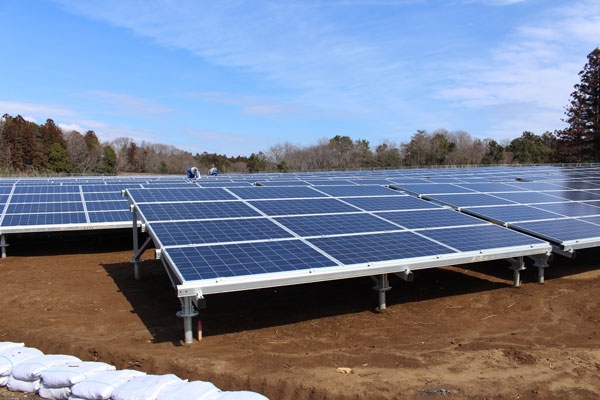

Project case design for aluminum solar ground mounting system with screw pile
As a professional solar mounting system manufacturer, we also assist our clients design mount structure different installing case whatever
big or small .
Following is one of our design solutions :
Essential information for solar installation project :

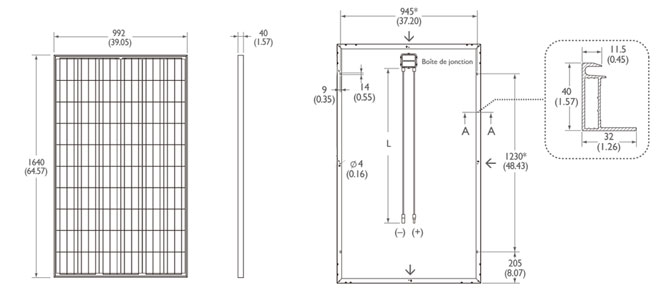

(1) Mono crystal solar panels size : L 1640 mm X W 992 mm X T 40 mm ;
| ELECTRICAL CHARACTERISTICS: | |
| Specifications: | SPC-290W |
| Peak Power | N/A at this time |
| Nominal Voltage | 20 V |
| Voltage at Max Power (Vmp) | 31.70 V |
| Current at Max Power (Imp) | 9.15 A |
| Open Circuit Voltage (Voc) | 39.30 V |
| Short Circuit Current (Isc) | 9.44 A |
| Max System Voltage | 1000 Vdc |
| Module Efficiency | 17.83% |
| Dimensions | 64.6″ x 39″ x 1.57″(1640 x 992 x 40 mm) |
| Weight | 41.9 lbs (19kg) |
| Connectors/Cables | MC4 Compatible Connector/Cables |
| Number of Cells | 60 Monocrystalline cells |
| Operating Temperature Range | -40C to + 85C |
| Max Series Fuse Rating | 20 A |
(2) Installation Site : Flat ground near sea ;
Considering it’s near Ocean , we using AL6005-T5 aluminum ground mounting structure for this project, so that it can offer great
anti-corrosive and salt resistance performance .
(3) PV panel array: 2 Rows X 4 Columns;
As like solar modules matrix illustration below,
m = 2 , n = 4 .
Since it’s not clarified PV solar modular are vertical or horizontal arraying , we offer two drawings for option :

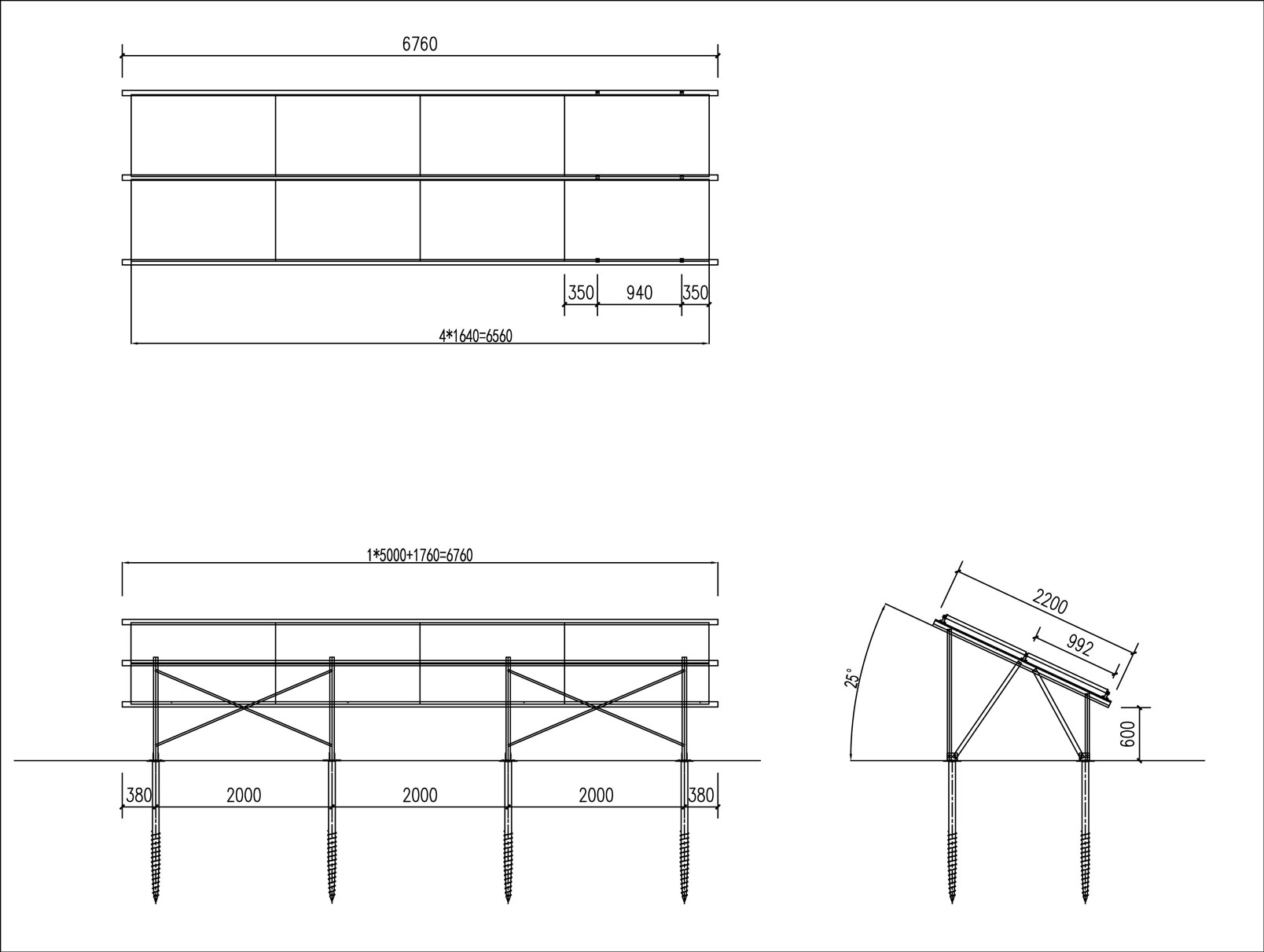

- Landscape Array

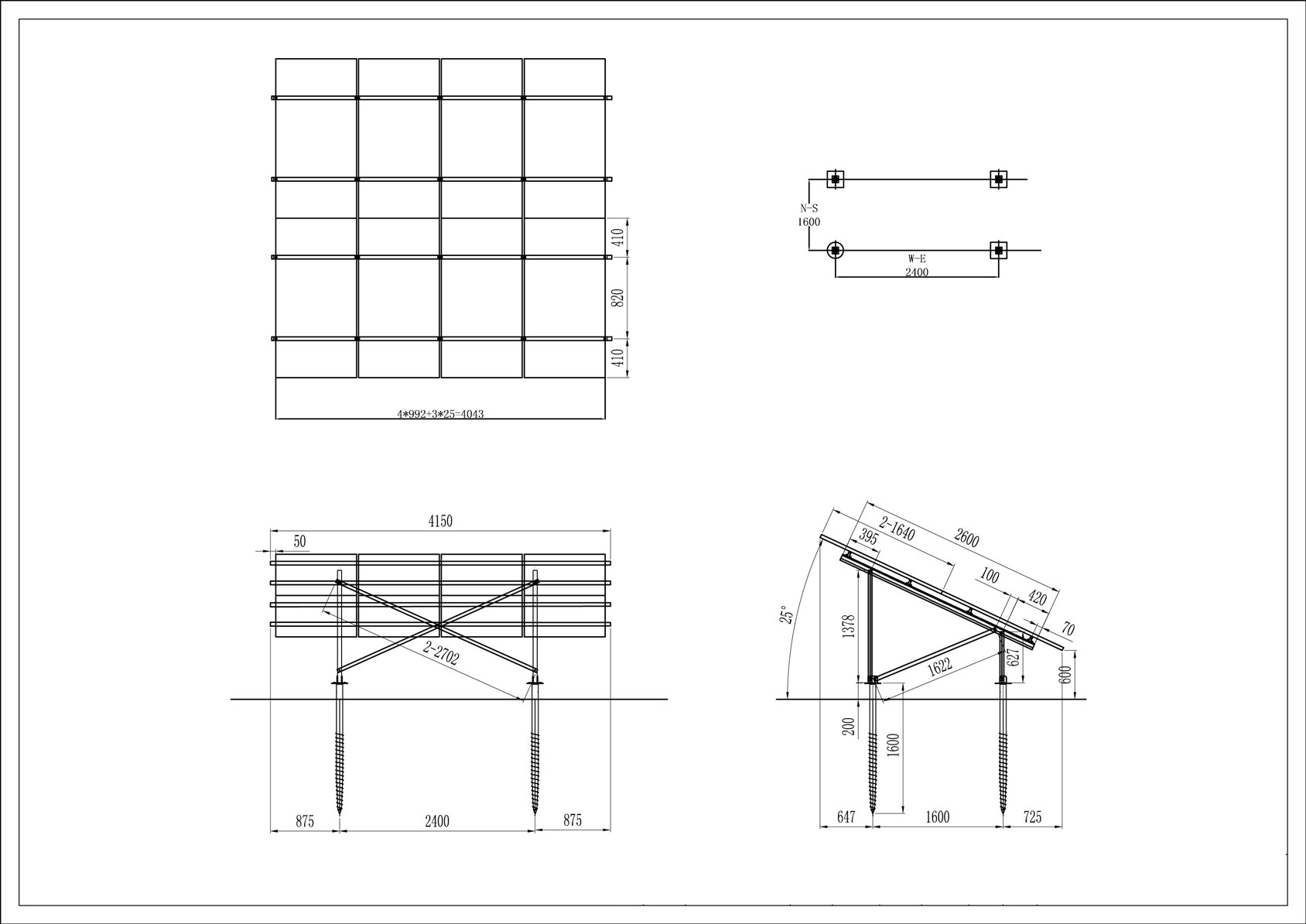

- Portrait Array
(4) Minimum wind speed : 40 m/s anit-wind speed
Minimum snow pressure : 1.0 KN/m2 snow load.
Our real design for max can be : 60 m/s for wind speed and 1.4 KN/m2 for snow loading .
(5) Foundation Circumstance : earth , screw piles support , 60 cm height from the ground ;
(6) Tilt angle : 25 Degree.
(7) Solar Project Quantity : 100 Sets .
Welcome get more details from www.SolarPartsComponents.com for this ground solar mounting system project.
