Carbon Steel Solar Ground Mounting Systems
- Product Type: Ground Solar Panel Mounting Systems
- Product Model: Solar-Ground-Mounting-Systems-Q235-Carbon-Steel-Structure
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portrait or Landscape
- Application: Ground Area
Product Description :
Our carbon steel solar ground mounting system can apply for PV module installing on the ground.
The main structure are made of Q235 hot dipping galvanized steel which can be anti corrosive in bad weathers .
C steel is a kind of lower cost profile than aluminum rackings . It can give you good investment return for our solar panel
plant project .
Q235 carbon steel with hot dip galvanized treatment can be adapted to extreme bad climate .
Our engineer can design specific your solar mounting project according requirements whatever on ground / roof / carport or
other places .
Advantages :
1. Fits for concrete ground , ballasted base ground, ground screw supporting field / terrain;
2. 80 um up hot dip galvanizing thickness up with good outdoor performance ;
3. Strong racking and cost effective by using this carbon steel ground mounting;
4. Customized solar mounting array design is welcome for quotation ;
5. Economic / Sturdy / Quick mounting structure for our Q235 carbon galvanizing mounting racks ;

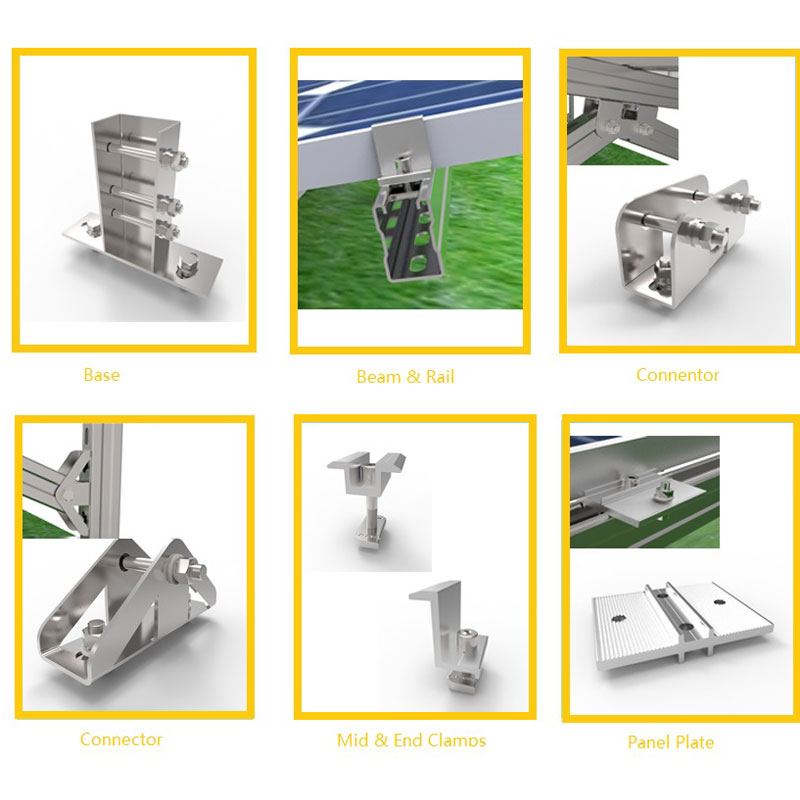

Parts and Components for Carbon Q235 Steel Type Solar Ground Mounting Systems :
(1) Base ;
(2) Beam & Rail ;
(3) Connector 1 ;
(4) Connector 2 ;
(5) Mid clamp & End clamp ;
(6) Panel plate ;
carbon steel solar ground mounting system components

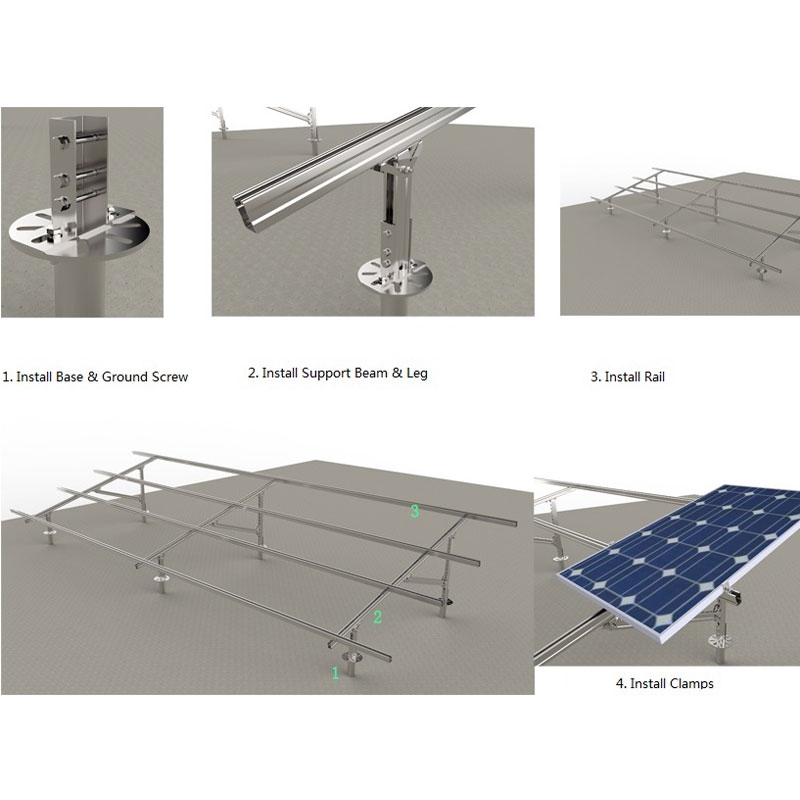

Installation Guide for Q235 solar ground mounting structure :
1.install ground base & carbon steel ground screws;
2.install support Q235 beam & legs;
3.install c steel rail;
4.install mid & end clamps.
carbon steel solar ground mounting system installation
| Brief Descriptions : | |
| Carbon Steel Solar Mounted Systems for ground solar panel installation | |
| Item type: | Ground Mounting Systems |
| Technical Parameters : | |
| Type : | Q235 ground solar mounting system |
| Installation Site : | Home / Indurstrial / Commercial |
| Installation Angle : | 0° ~ 30° |
| Profile Material : | Q235B (Hot-Dip Galvanized) |
| Fasten Parts : | Carbon Steel Screws |
| Small Components : | AL 6005 – T5 ( Anodized ) / SUS 304 |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Plastic thin film wrapping |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Carbon steel solar ground mounting system
The carbon steel bracket system is a common ground installation system, which is cheaper than the aluminum alloy system. After hot dip galvanizing, the carbon steel can obtain higher hardness and excellent corrosion performance; the raw materials are easy to obtain and the production cost is low. Compared with aluminum profiles, carbon steel has a greater density, greater hardness and higher strength. Simple installation, safety and reliability.
