Good quality Q235 HDG steel Solar Ground Screws are widely used for PV solar panel installation .
High efficient and competitive than concrete foundation .

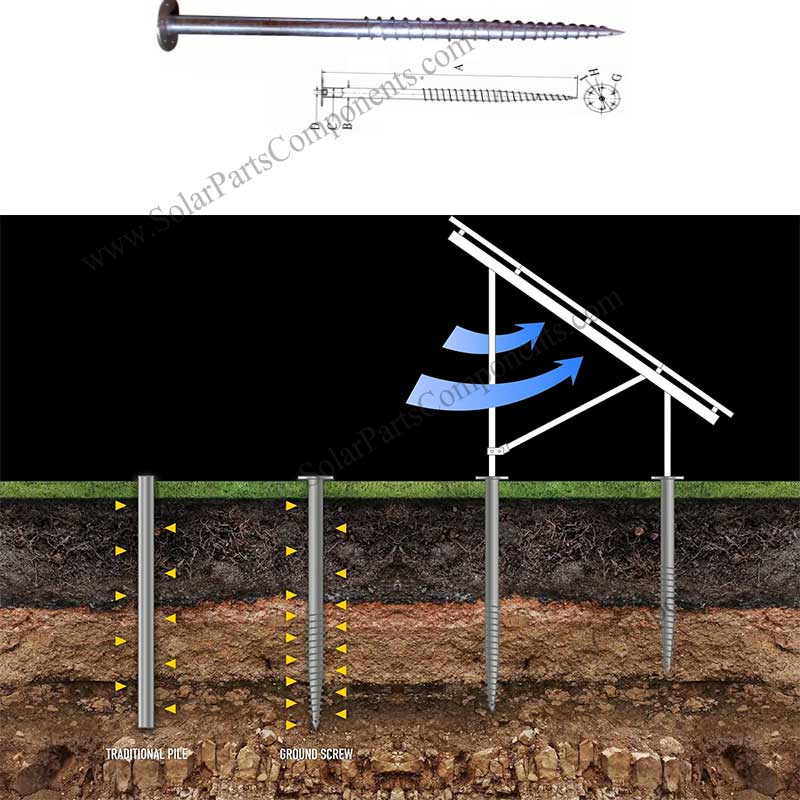

Solar Ground screw is sturdy metal screws used to secure solar photovoltaic (PV) panels to the ground without needing concrete foundations.
Besides,our screws penetrate deep into the soil, providing a stable base for the solar panel array. They are particularly beneficial in areas with diverse terrain or rocky soil where traditional foundation methods may not be practical.

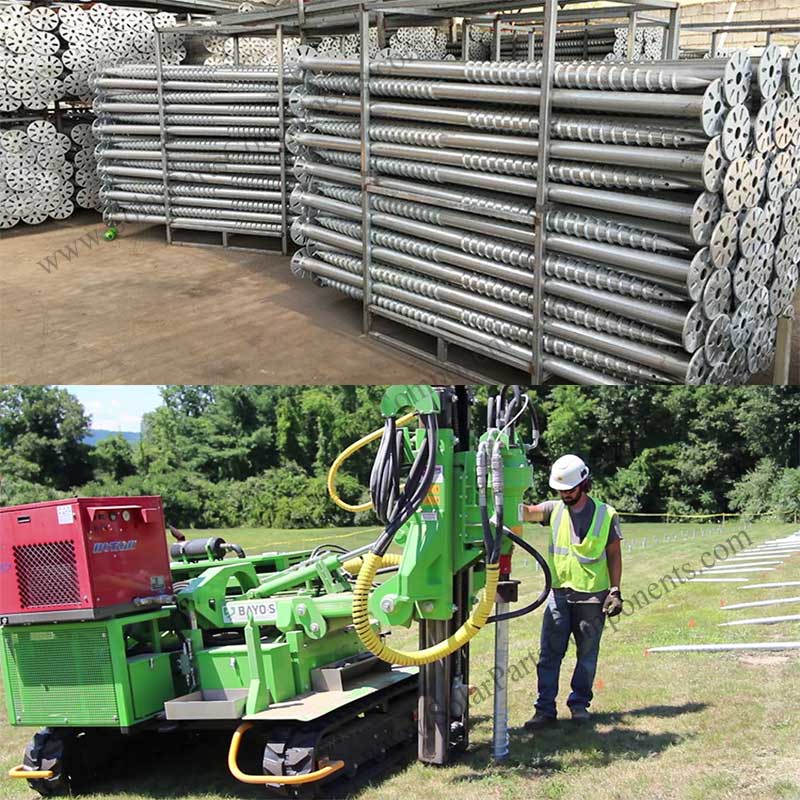

The installation process for ground screws is faster compared to traditional methods. This efficiency is crucial in regions with unpredictable weather patterns, allowing solar PV projects to be completed more quickly
Benefits of Using Solar Ground Screw
- Easily removed at the end of the solar array’s lifespan
- Ground screws are highly adaptable and can be used in various terrains, including urban landscapes, countryside, and suburban neighborhoods.
- Install over sloping, uneven and soft ground
- It can install any time of the year, in any weather
- Support installation without the impact driving of piles
- Save time and avoid costly delays
In addition, one of the significant strengths of SPC Ground Screws over traditional pile foundations is the increased uplift and horizontal forces they withstand.
Totally,SPC Ground Screws and SPC Solar Racking Systems allow for the rapid installation of solar energy systems of all sizes, without damaging land or natural habitats, and avoiding costly delays.
Technical Parameters For This Solar Ground Screw:
Brief Descriptions : | |
Screw piles foundation | |
Item type: | Solar ground screws |
Technical Parameters : | |
Type : | SPC-GS |
Installation Site : | House projects, piers, garden rooms, solar ground project |
Wall thickness : | 3 mm ( 0.12″) |
Profile Material : | hot dip galvanized Q235 steel |
Length : | 1m, 1.2m, 1.6m, 1.8m, 2.0m, 2.5m, 3.0m, customized |
External diameter : | 76 mm ( 3″) |
Color : | Silvery or according to customer requirements |
Wind Load : | 60 m / s ( 130 mph ) |
Snow Load : | 3.2KN / M2 |
Connector : | Flange |
Flange diameter : | 160mm 170mm 185mm 200mm 220mm 240mm 250mm |
Standards : | AS/NZS 1170 |
DIN 1055 | |
GB50009-2012 | |
IBC2009 | |
TUV | |
JIS C 8955 : 2011 | |
International Building Code IBC 2009 | |
California Building Code CBC 2010 | |
Warranty | 10 years |
Designed LifeSpan | 25 years |
Packing Details : | |
Inner : | shrinkable wrap |
Outer : | Pallet |
Welcome get more details from www.SolarPartsComponents.com for this Solar Ground Screw.
