Customized Solar Ground Screws – 50,000 units
As a professional solar panel mounting kits factory, we can offer ready made and sound solutions for different application like : tile roofing, ground location, carport or any other special places like lake & seaside,
vehicles …
Besides we also can customized mounting components base on drawings given by our clients ,
following is one instance which we assist for tailor size solar ground screws .
The client is from Vietnam, he would install a large ground solar power station .
Installing location for this customized PV module ground screws project :
The key information of PV mounting details as below :

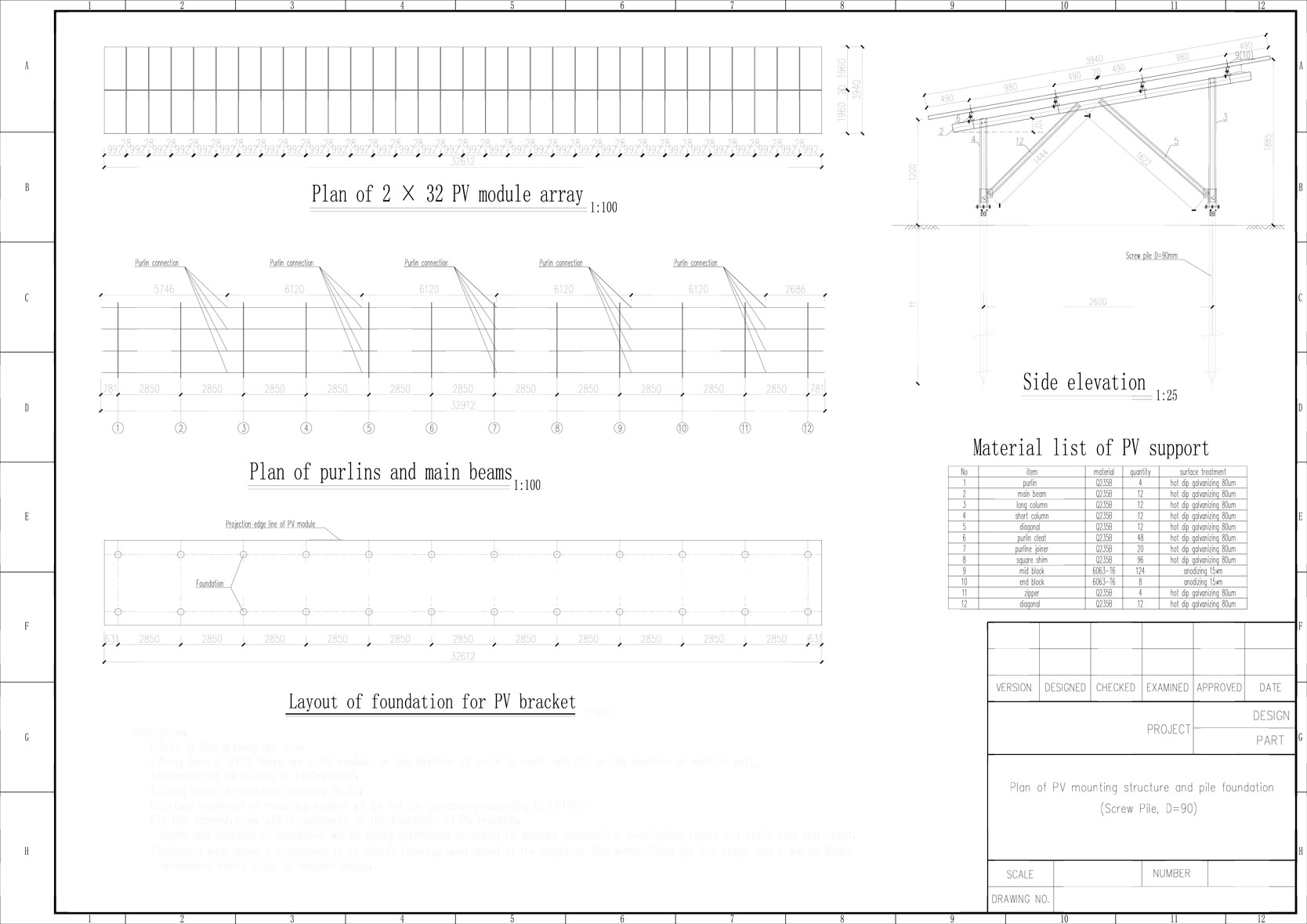

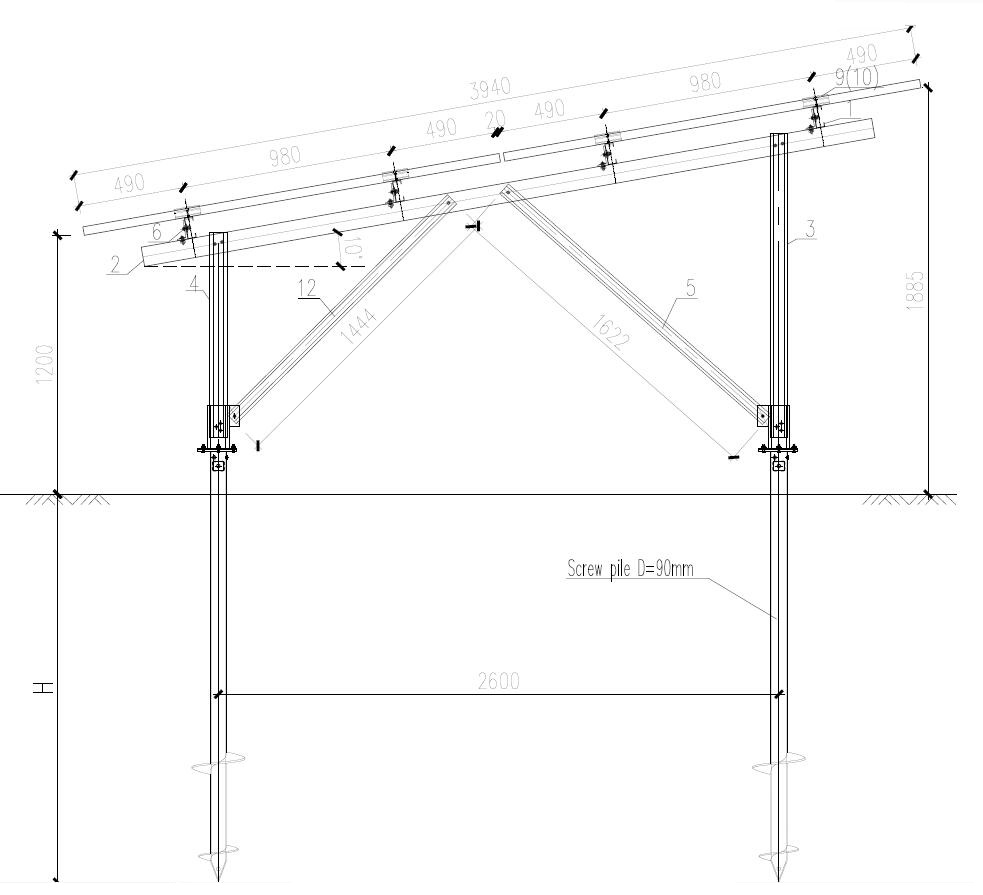

Layout of foundation for PV bracket
Description:
1. Units in the drawing are mm ;
2. Array form is 2 X 32 , there are 2 PV modules in the direction of south to north and 32 in the direction of west to east;
3. Dimension of PV module is 1960 X 992 X 40 mm;
4. Tilting angle of mounting structure is 10 Degree;
5. Surface treatment of mounting system will be hop dip galvanizing accouring to EN1461 ;
6. In this scheme, screw pile is considered as the founding of PV brackets , Depth and diameter of foundation will be finally determined according to detailed geotechnical investigation report ans static load testing
result;
7. Designing wind speed is considered to be 24 M / S ( Average wind speed at the height of 10 m within 10 min ) at this stage, and it will be finally determined during stage of detailed design ;
BOM (Bill of Material) For This Carbon Steel Mounting Kit :
| Material List of PV Support | ||||
| No. | Item | Material | Quantity | Surface Treatment |
| 1 | Purin | Q235B | 4 | Hop Dip Galvanizing 80 μm |
| 2 | Main Beam | Q235B | 12 | Hop Dip Galvanizing 80 μm |
| 3 | Long Column | Q235B | 12 | Hop Dip Galvanizing 80 μm |
| 4 | Short Column | Q235B | 12 | Hop Dip Galvanizing 80 μm |
| 5 | Diagonal | Q235B | 12 | Hop Dip Galvanizing 80 μm |
| 6 | Purlin Cleat | Q235B | 48 | Hop Dip Galvanizing 80 μm |
| 7 | Purlin Joiner | Q235B | 20 | Hop Dip Galvanizing 80 μm |
| 8 | Square Shim | Q235B | 96 | Hop Dip Galvanizing 80 μm |
| 9 | Mid Block | 6063-T6 | 124 | Anodizing 15μm |
| 10 | End Block | 6063-T6 | 8 | Anodizing 15μm |
| 11 | Zipper | Q235B | 4 | Hop Dip Galvanizing 80 μm |
| 12 | Diagonal | Q235B | 12 | Hop Dip Galvanizing 80 μm |
| 13 | Q235B | Hop Dip Galvanizing 80 μm | ||
Since they would need 50,000 units of solar ground screws, they need a factory directly offer piles and ship to Vietnam site .

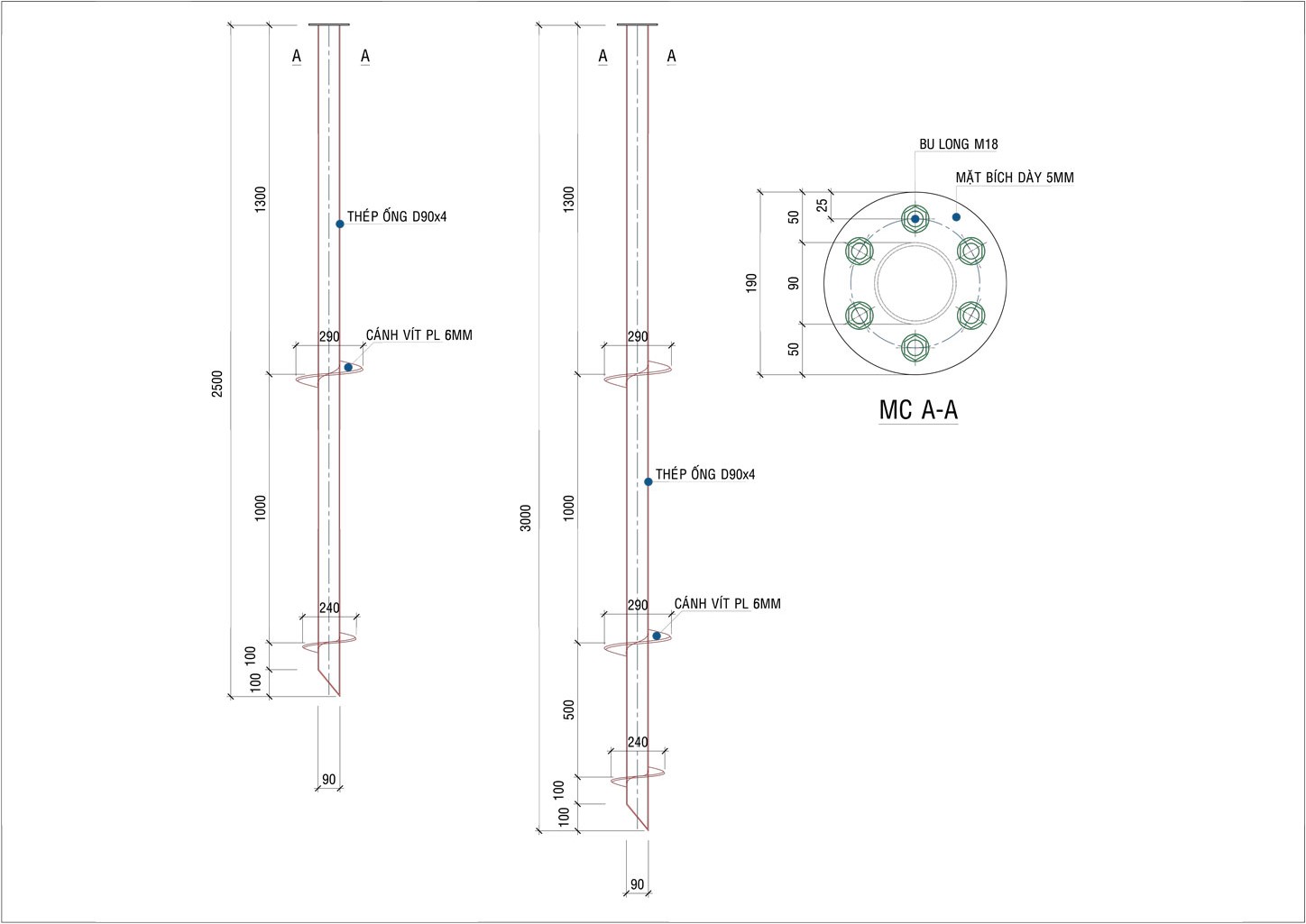

The solar screw pile size and drawing as following , two models :
Parameters
Model : SPC-solar-screws-MC-A-A
Profile material: Q235 Carbon steel
Finishing : Hot dip galvanizing is 80um
Connector : Fixed Flange ( Six holes for M18 bolts)
Flange Diameter: D:190mm
Applications : PV Modules Ground Mounting
Each 2 X 32 PV module array would need :
12 units of 2.5 meter length ground screw, model : MC-A-A-2.5M
and
12 units of 3.0 meter length ground screw, model : MC-A-A-3.0M
Totally it would need :
25,000 units of MC-A-A-2.5M solar ground screws and 25,000 units of MC-A-A-3.0M solar ground piles for this solar panel
mounting project .
| Description | Item No. | Parameters |
| Carbon Steel Ground Screws | SPC-solar-screws-MC-A-A | Model : SPC-solar-screws-MC-A-A |
| Profile material: Q235 Carbon steel | ||
| Finishing : Hot dip galvanizing is 80um Anodizing is 15um |
||
| Connector : Fixed Flange | ||
| Flange Diameter: D:190mm | ||
| Applications : PV Modules Ground Mounting |
SPC customized carbon steel ground screws with features :
– anti-corrosion, high-quality with 8 μm thickness Hot-dip galvanizing treatment ;
– good alternation with Q235 ground screws for quick install, save cost ;
– can be install by drilling machines, labor effecient ;
– seveal types for choosing, special size can be tailored for soil, earth, sand …
– ground crews anchors are removable and relocatable ;
To be a team , Good service, Competitive product is always our goal we pursuing for our clients .
Welcome get more details from www.SolarPartsComponents.com for this carbon steel solar mounting system .
