Solar Mounting Components – Solar Grounding Lugs
- Product Type: Solar Earthing Kits
- Product Model: Solar-Grounding-Lugs-PV-Earthing-Lug
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar earthing Grounded
Product Description
PV gounding lug is designed to fit alum rail perfectly , it’s a common component for bonding and earthing system.
Solar ground lugs can be made of aluminium in material, located for side of alum rails .
Galvanized grounding lugs are well electric conductive . We don’t using bare-copper or low quantity aluminum which can be corroded and cause faulty circuit and fire hazard.
PV grounding clamps is a essential parts for grounding solar panels.
Prevent oxidation by using serrated teeth and ribs .
Advantages
- Accelerating installation by pre-assembled grounding lug kits ;
- Quick installation prevent damage from rack or panel ;
- Electro plated tin finishing solar earthing lug ;
- Corrosion resistance, easy torque .
- Good performatnce in salty and fog environment like seaside or forest .
- This solar grounding clamps can fit aluminum rails firmly , 10 years’ warranty .
Material List for solar grounding clamps : anodized AL6005-T5 aliminium clip , stainless steel head screw , SUS 304 bolt .
Our SPC offers various solar mounting components for you. There must be one or more satisfied to you.
Click here for more: https://www.SolarPartsComponents.com
| Brief Descriptions : | |
| Solar Grounding Lugs for earthing grounded systems | |
| Item type: | Solar Mounting Components |
| Technical Parameters : | |
| Installation Site : | solar panel mounting |
| Profile Material : | AL 6005 – T5 ( Anodized ) |
| Fasten Parts : | SUS 304 Steel |
| Color : | Anodized Silvery |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| PV Modules : | Framed |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
What are grounding lugs for solar panel SPC-GL-06?
Q:
“Dear sir,
Greeting of the day.
This Siva from Hyderabad India. We have requirement of solar grouding lug SPC-GL-06.
Qty:300 no’s.
Kindly send best quote accordingly.”
A:
”
Please refer to the quotation for SPC-GL-06 as the file attached.

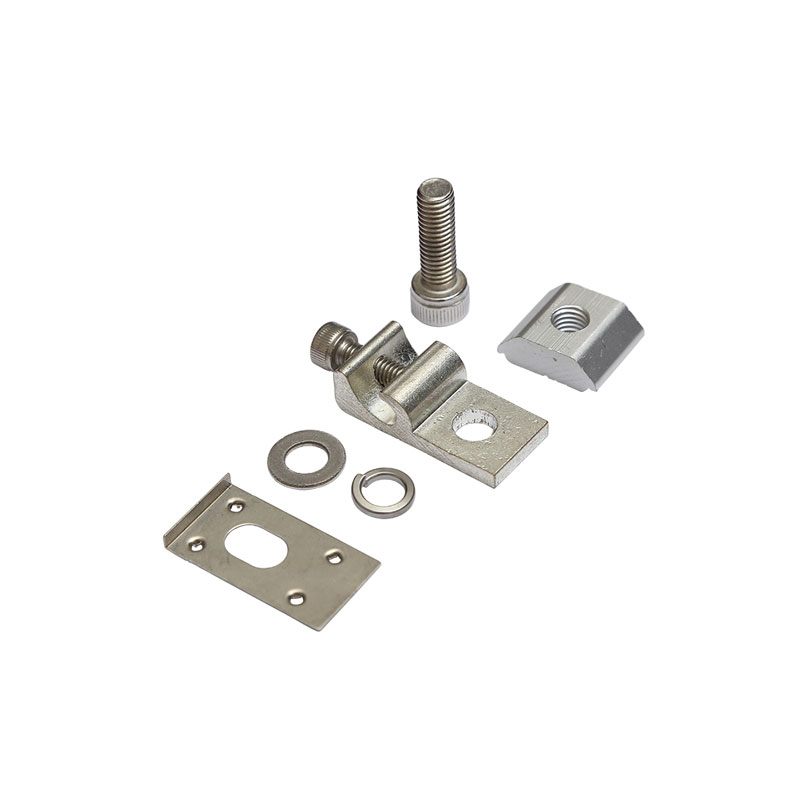

each set including:
1 pcs of lug,
1 pcs of M6X20mm hex socket bolt;
1 pcs of stainless steel grounding clip;
1 pcs of flat washer;
1 pcs of spring washer;
1 pcs of M8X25mm hex socket bolt;
1 pcs of rail nut;
Please advise.
Thank you!
SPC Team.”
Features of Solar Grounding Lugs.
Features of Solar Grounding Lugs:
- Good corrosion resistance;
- High-quality aluminum;
- Convenient grounding system;
- Strong strength;
- High Pre-assembly;
- Factory direct sales, higher cost performance.
Solar PV Earthing lug
Why to choose SPC solar panel grounding lugs?
SPC delivers a new product – solar panels grounding lugs in copper lay in lug, it is a smart design and easy to install.
solar panel grounding lug
Tinned copper lugs are the best choice for grounding solar panels. They can be used in conjunction with grounding clips to achieve better results, allowing the use of a continuous grounding conductor, or as a jumper for multiple locations. No need to thread the connector. Just loosen the set screw, “lay” the wire, and retighten.
Feature:
1. Suitable for most aluminum rails
2. Simple and fast installation
3. Anti-corrosive
4. Materials include aluminum, stainless steel, copper
5. custom designs available upon request
solar panel grounding lug
Solar Grounding Lugs aluminum
” Hello, please let us know if you can supply the solar grounding lugs aluminum.
We are looking for 10000 set for current project.”
Solar Grounding Lugs aluminum
” Hello, yes we are solar grounding lugs factory. We have this aluminum grounding lugs, it consist of ground lug body,earthing plate,bolt,screws , nut and washers for each set. This model is one of the most popular in your market.”
” Great, they look nice, please send me your best offer for this solar grounding lugs aluminum material.”
“Please kind find the attachment for our quotation for 10000 aluminum solar grounding lugs,
Just let us if any problem.
Thank you!”

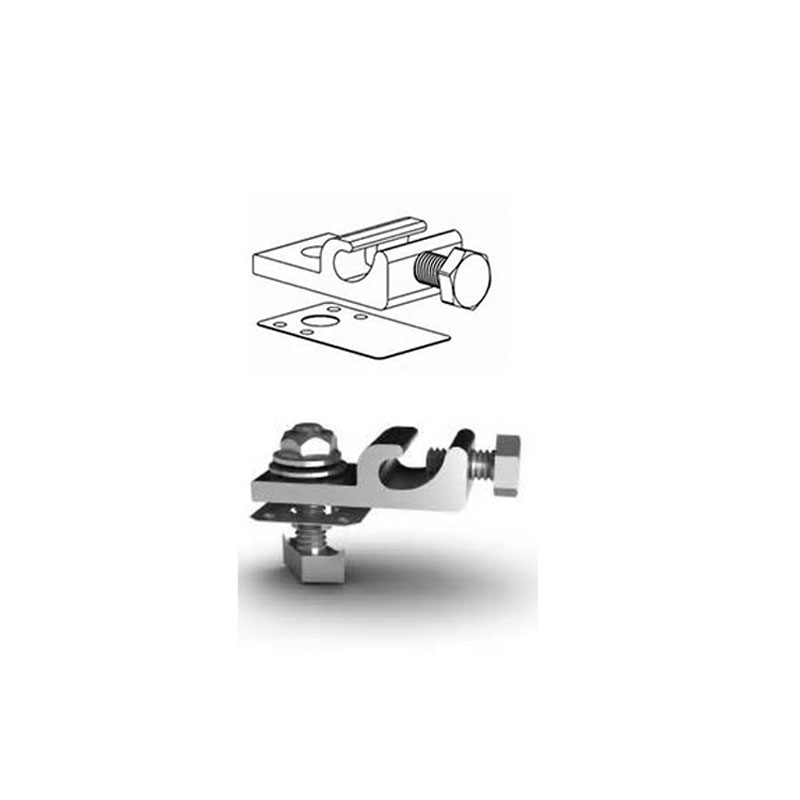

Drawing for this solar grounded lug
Solar grounding lugs factory
SPC is one of the professional solar grounding lugs manufacture factory.
Our factory provides some types of grounding lugs for solar mounting.
One of the model is SPC-GL-06
This model is made of nickel plating aluminum.
The partener parts are stainless steel bolts and grounding washer.
This model is one of the most popular item for solar mounting.
solar grounding lugs factory
Good quantity material which is light weight and easy install for solar panel and solar mounting system.Aluminum alloy body with nickel plating,well conductively.
durable and suitable for out door service.
Can I have data sheet for this aluminum solar grounded lug?
CLIENT:
Hello,
This is Alicia from Mondragon assembly,
I have an inquiry about you grounding lug, could I get more information about your product?
it can not be cooper. It has to be made of aluminum
Can you explain a bit how it is installed? We have never used this before
But do you have datasheet of the product?
Dimensions, material, hardness…?
Thanks,
Alicia Jiang
Mondragon Assembly Kunshan Co.Ltd.
[email protected]
www.mondragon-assembly.com
ANSWER:
Hi Alicia
aluminum solar grounding lug
It’s pretty simple.
Just install them into frame hole.

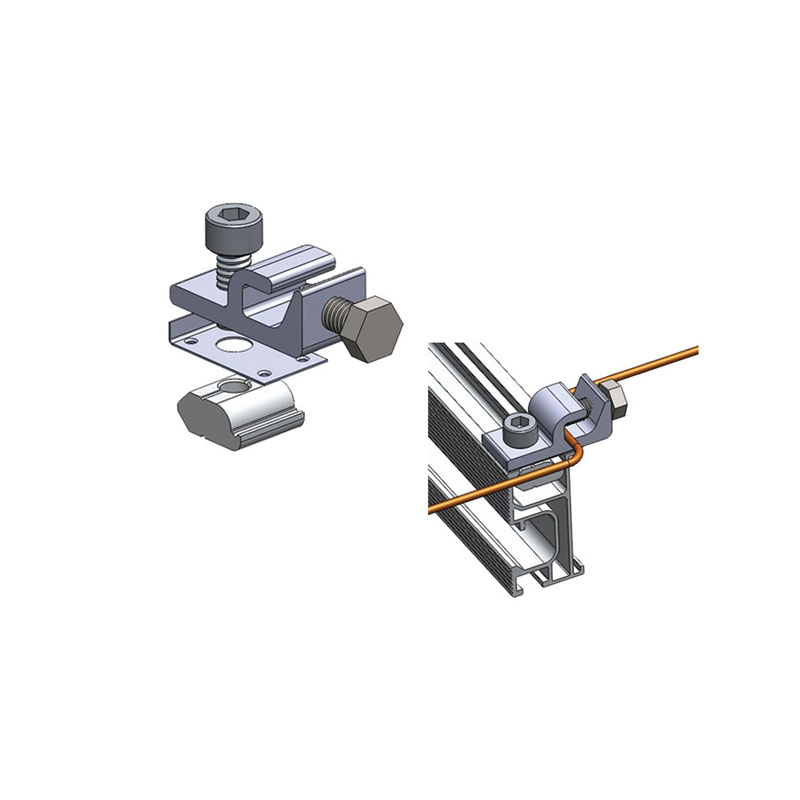

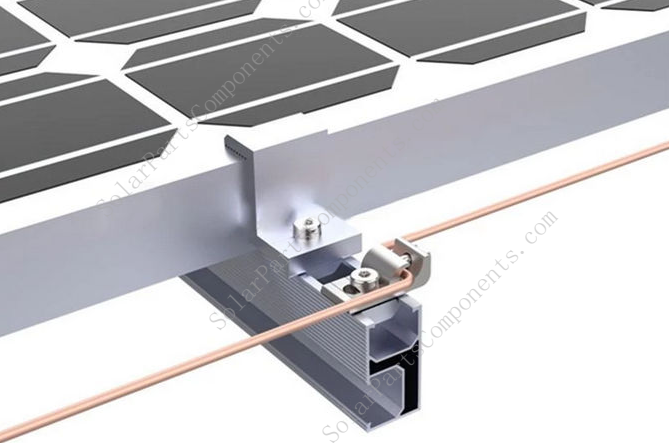

Let cables go through as photos below.
solar grounding lugs installation
datasheet & size of this lugs as below:
pv grounding lug datasheet
Thank you !
Best regards,
PV MODULE GROUNDING KIT FACTORY
