Solar Grounding Pin
- Product Type: Solar grounding pin
- Product Model: SPC-GP-02
- Material: Stainless steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Unframed / Bifacial / Frameless modules
Production Details:
solar grounding pin is one of the most popular solar installation methods.
Solar mid and end clamps bonding with our solar ground pins, replacing the solar grounding clip,save installation time and material cost. Because it is small and exquisite, appearance can not only keep the appearance of the project beautiful, but also ensure the safe operation of the solar system.
solar grounding pin supplier produce all the pins by high-quality stainless steel material. Although the product is small in size, it has the characteristics of high strength, meticulous workmanship, and a smooth surface without burrs. The spike at the center of the top of the steel needle is extremely sharp and is used to pierce the oxide layer on the surface of the aluminum rail, thereby forming an airtight electrical circuit connected with the bracket system.
solar grounding pin factory’ s product is simple and convenient to use. Only need to nail the product into the clamp. When installing the clamp, it can simultaneously pierce the surface of the guide rail and form an electrical circuit. The step of installing the solar grounding clip is omitted, and the use of the clamp pin directly blocks a series of dangers that may be caused. Such: the slipping of the solar grounding clip. It saves the cost and installation cost of grounding clip, shortens the construction period, and saves space.Further more, from all aspects, the use of clamp pin will gradually replace grounding clip!
Features of this solar grounding pin:
–Small and beautiful appearance;
–Strong hardness and corrosion resistance;
–Replacing grounding clip to save costs;
–Ensure safe use of components;
–Easy and quick to install.
Solar Parts Components Factory is a company specializing in the production of solar installation accessories. With 12 years of professional experience, it can provide satisfactory solutions for your solar installation projects. Solar grounding pin is an innovative product carefully launched by our R&D department after careful market research. Compared with solar grounding clip, its advantages are obvious. Our factory can not only provide products that meet the needs of the public, but also customize according drawings. Welcome to purchase.
| Brief Descriptions: | |
| Solar Mounting Components – solar grounding pin | |
| Item type: | Solar grounding pin |
| Type: | SPC-GP-02 |
| Installation Site: | Solar panel |
| Profile Material: | stainless steel |
| PV Modules: | Framed, Frameless |
| Color: | Silvery or according to customer requirements |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955:2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Inquiry of pv grounding clips
PV grounding pins are high-strength fasteners used in PV support systems.
They are corrosion-resistant, wind-resistant, and easy to install.
They are suitable for rooftop and ground PV power stations to ensure that the components are stable and reliable and to increase their service life.
They are widely used in households, industry and commerce, and large-scale photovoltaic projects, and are an ideal choice for improving the safety and durability of PV systems.
Here is a relative inquiry:
Q:
Can I ask you for offer for 100000pcs of PV grounding pins?
A:
What size PV grounding pins do you need? Can you provide the drawing?
We can customize the size according to your needs.
Or you can check the SPC-GP-03.pdf, which is our most popular size.
Q:
Hi, I think this “the most popular” suit me.

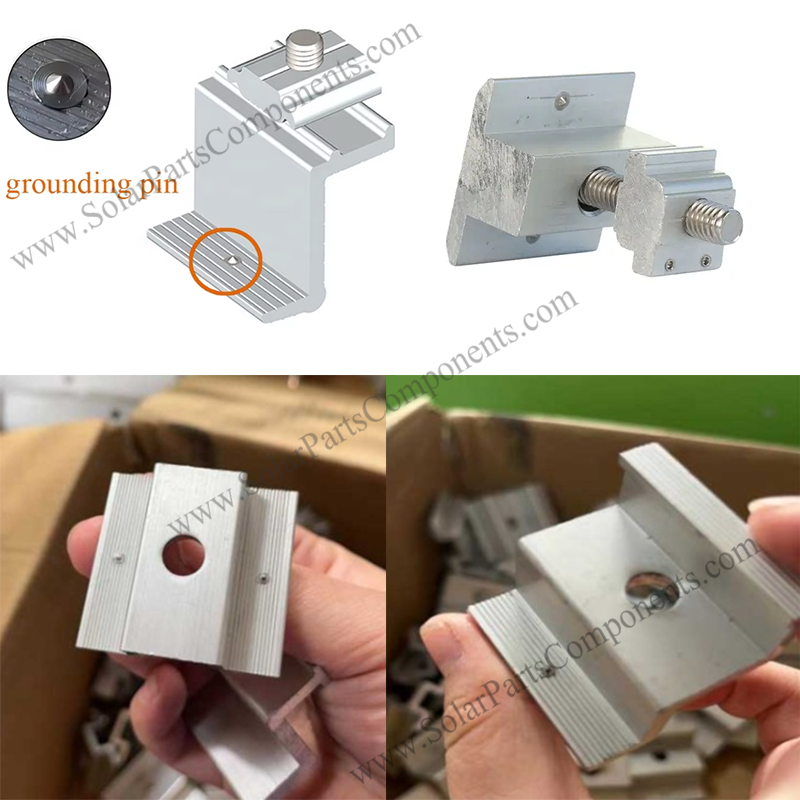

PV grounding pin
solar grounding pins -- an upgraded product based on the solar grounding clips
The combination of solar grounding clips and solar clamp is equivalent to a Solar panel mid clamps with earth.
The emergence of solar grounding pins has reduced the consumption of labor costs during the installation process to a certain extent and improved the installation efficiency.

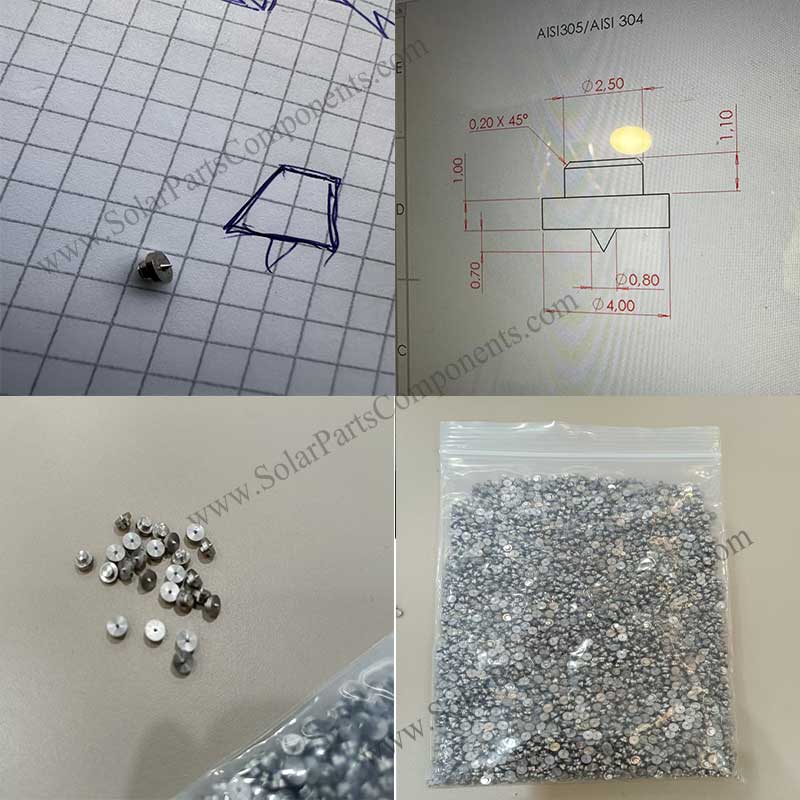

The following is a related inquiry:
Q:
Can I ask you for offer for 100000pcs of solar grounding pins?
Thanks in advance.
A:
Appreciated for inquiry of Solar grounding pin.
What size Solar grounding pin do you need? Can you provide the drawing?
We can customize the size according to your needs.
Or you can check the drawing of SPC-GP-03, which is our most popular size.
Q:
Hi, I think this “the most popular” suit me
Can you send me some “catalogue” of pins? Maybe finally some different will suit us better
A:
The model I sent can be sold for you.
Many model is customized by our clients.
If you have your own design, we also can evaluate and make for you.
Q:
Understand
Volumes from us should be appx 1 000 000 per/year
Solar Grounding Pins

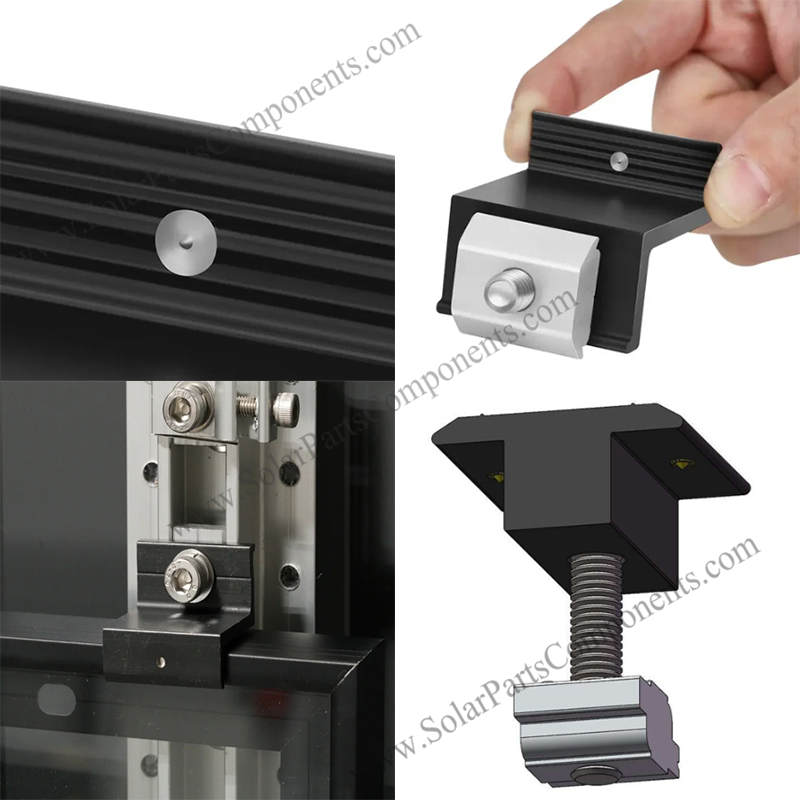

What is the grounding pin for solar clamp?
Grounding Pin for Solar Clamp
The grounding pin for a solar clamp is an new improment for solar panel installation. It ensures the electrical safety and integrity of solar power installations. Also it provides a reliable grounding connection, which helps protect against electrical faults and lightning strikes.
Grounding Pin for Solar Clamp OEM
Key Features:
Electrical Safety: The primary function of the grounding pin is to create a safe path for electrical currents, reducing the risk of electric shock and fire hazards.
Lightning Protection: Proper grounding can help dissipate lightning strikes, protecting the solar equipment and the structure.
Shape and Size: The pin is designed to be easily inserted into a designated hole or terminal on the solar clamp, allowing for secure attachment.
Installation:
Direct Connection: The grounding pin is inserted into solar clamps by machines,the solar clamps with grounding pin connects the solar panel frame or mounting structure to the grounding system of the building.
Ease of Use: Many solar clamps come with integrated grounding pins, simplifying the installation process.
Advantages:
Enhanced Safety: Ensures that any stray electrical current is safely directed into the ground, preventing potential hazards.
Compliance: Helps meet electrical codes and regulations regarding grounding in solar installations.
Make the solar panel mounting more fast, elnimate use of grouding plates,save time and labor cost.
Source of the Solar Grounding Pin.
Solar Grounding Pin evolved from screws, initially used to connect solar clamp and components.
Subsequently, with the development of innovative thinking, the steel needle was designed.
For more details, please check>>
Solar Grounding Pin supplier
As a profeesional manufacure Solar Grounding Pin supplier, SPC carry many types of the grounding pins to meet our client’s requirement.
We also accept customize the grounding pins as our client’s drawing size request.
soalr grounding pin siupplier
Because the conductive clamps are more and more popular for solar mounting, the grounding nails are insert into the solar clamps.
When the solar panels are mounting by the solar clamps. The pins pierce into the surface of the anodized coating of the rails and the frame of solar panels, and creat an electrical path to conduction.
Our factory provide all types of solar grounding pins, also we offer the conductive clamps/ solar clamps with grounding pins too.
For more details, welcome contact us anytime.
