Solar Hanger Bolt for Steel Purlin
- Product Type: Metal Roof Mounting Kit
- Product Model: SPC-FM-020
- Material:zinc-nickel alloys
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Unframed / Bifacial / Frameless modules
Product Description:

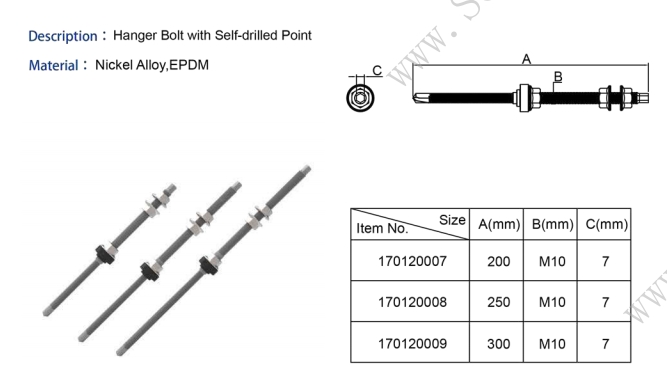

This Solar hanger bolt for steel is designed with self-drilling point. It is applicable for metal or corrugated cement roofs with steel supports. It usually use with aluminum L bracket or SUS304 connecting plate to fix the mounting rail.
Solar hanger bolt for steel purlin is made of zinc-nickel alloys which the strength is higher than copper material and high corrosion resistance.It comes supplied with EPDM rubber gasket and three stainless steel M10 flange nuts. The bracket is locked between the upper two nuts and the height is adjustable, the bottom nut is used for fix the metal sheet of the roof.
It provides a fast installation for metal roof steel purlin solar mounting. Due to theSolar hanger bolt for steel supports have the self-drilling itself, can drill into the metal sheet and the steel purlin or cement directly, don’t need pre-drill the holes. In this way, it save much of the installation time during the on site mounting.
Features of this Solar hanger bolt for steel supports:
- Suitable for steel purlin or cement;
- Easy and fast to install directly;
- Corrosion resistance and durable;
- Efficiently and save cost;
- High quantiy zinc-nickel alloys material;
- Firmly secured with highly waterproof.
Solar hanger bolt wholesale factory, we carry some type of hanger bolt for metal roof solar mounting for both wooden and steel purlin.
Also, our factory provide whole mounting systems for metal roof and tile roof, ground mount, carport…..
If you feel interest in our products or have any solar projects, feel free contact us, we will help you work out and recommend you the turn-key solution for you.
For more details, do not feel hesitate to contact us , our company website: www.solarpartscomponents.com.
| Brief Descriptions: | |
| Solar Roof Mounting Bracket –Solar hanger bolt for steel purlin | |
| Item type: | Solar Metal Roof mounting kits |
| Type: | SPC-FM-020 |
| Installation Site: | Metal Roofing 0-60 degrees |
| Profile Material: | zinc-nickel alloys |
| Fasten Parts | Stainless Steel |
| Color: | Gray |
| PV Modules: | Frameless or Framed |
| Wind Load: | 60m/s |
| Snow Load: | 1.4KN/M2 |
| Modules Orientation: | Landscape/Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Solar Hanger Bolt for Stone-Coated Steel Roofs
Solar Hanger Bolt for Stone-Coated Steel Roofs
Recently, some of our customers inquire about the mounting solution for Stone-Coated Metal Roofing.
Our this solar hanger bolts is suitable for stone-coated steel roofs are specialized fasteners that provide a secure and
stable mounting solution for solar panels on this type of roofing material.
The self-drilled end of this hanger bolt can penetrate into the steel roof to the beam. There is a rubber gasket can
provent the water leakage from drilling. This hanger can work with L feet or flat connect plate to attached the rails.
Solar Hanger Bolt for Stone-Coated Steel Roofs
Key Features:
Self-drilled end: threaded shaft that allows for deep penetration into the roof structure for maximum stability.
Wide Head: Often has a larger head to distribute load and prevent damage to the stone-coated surface.
Material:
Corrosion-Resistant: Typically made from nickel alloy to withstand outdoor exposure and prevent rust.
Durability: Designed to endure harsh weather conditions typical for roofing applications.
Installation:
Direct Attachment: Installed directly into the underlying roof structure, usually at the rafters or framing.
Sealant: Often requires the use of weatherproof sealants or flashing to ensure a watertight installation.
Applications:
Stone-Coated Steel Roofs: Specifically designed to work with the unique texture and structure of stone-coated steel
roofing materials.
Versatile Use: Suitable for various solar mounting systems and configurations.

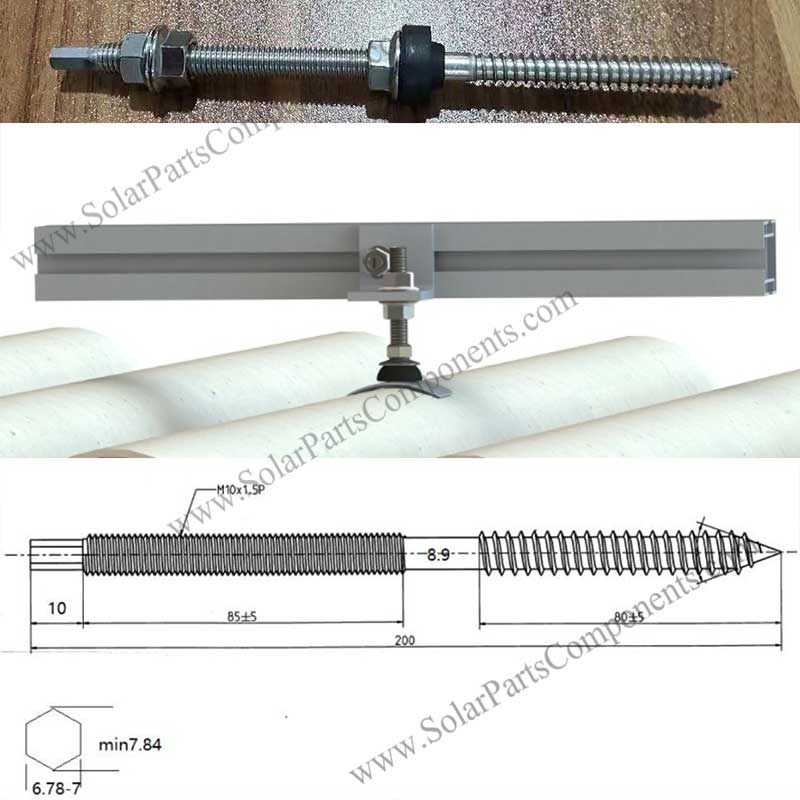

Stee Hanger Bolt for PV
Our steel hanger bolt for PV products can be customized in size according to customer needs.
Whether your project involves timber or steel substructure, we have the flexibility to match the most suitable product for your project.
Q:
I need this item in 3/8” X 3” on the lag side,
I intend to use them on flat tile,
Please let me know the details at your earliest convenience,
Thank you.
A:
Appreciated for inquiry about our hanger bolts.
The thread size details as below and file as file attached .
The factory price please see at attached.
Can I know how much quantity you would need ?
What’s the delivery address ?
Q:
The drawing meets our needs.
We need about 50,000 pieces. Please quote to the port closest to me.
steel hanger bolt for PV
- Overview
-
Product Description:
This Solar hanger bolt for steel is designed with self-drilling point. It is applicable for metal or corrugated cement roofs with steel supports. It usually use with aluminum L bracket or SUS304 connecting plate to fix the mounting rail.
Solar hanger bolt for steel purlin is made of zinc-nickel alloys which the strength is higher than copper material and high corrosion resistance.It comes supplied with EPDM rubber gasket and three stainless steel M10 flange nuts. The bracket is locked between the upper two nuts and the height is adjustable, the bottom nut is used for fix the metal sheet of the roof.
It provides a fast installation for metal roof steel purlin solar mounting. Due to theSolar hanger bolt for steel supports have the self-drilling itself, can drill into the metal sheet and the steel purlin or cement directly, don’t need pre-drill the holes. In this way, it save much of the installation time during the on site mounting.
Features of this Solar hanger bolt for steel supports:
- Suitable for steel purlin or cement;
- Easy and fast to install directly;
- Corrosion resistance and durable;
- Efficiently and save cost;
- High quantiy zinc-nickel alloys material;
- Firmly secured with highly waterproof.
Solar hanger bolt wholesale factory, we carry some type of hanger bolt for metal roof solar mounting for both wooden and steel purlin.
Also, our factory provide whole mounting systems for metal roof and tile roof, ground mount, carport…..
If you feel interest in our products or have any solar projects, feel free contact us, we will help you work out and recommend you the turn-key solution for you.
For more details, do not feel hesitate to contact us , our company website: www.solarpartscomponents.com.
- Specification
-
Brief Descriptions: Solar Roof Mounting Bracket –Solar hanger bolt for steel purlin Item type: Solar Metal Roof mounting kits Type: SPC-FM-020 Installation Site: Metal Roofing 0-60 degrees Profile Material: zinc-nickel alloys Fasten Parts Stainless Steel Color: Gray PV Modules: Frameless or Framed Wind Load: 60m/s Snow Load: 1.4KN/M2 Modules Orientation: Landscape/Portrait Standards: AS/NZS 1170 DIN 1055 GB50009-2012 IBC2009 TUV JIS C 8955: 2011 International Building Code IBC 2009 California Building Code CBC 2010 Warranty 10 years Designed Lifespan 25 years Packing Details: Inner: Bubble bag + inner box + Carton Outer: Wooden Box, Steel Pallet, MDF, etc - FAQ
-
Solar Hanger Bolt for Stone-Coated Steel Roofs
Solar Hanger Bolt for Stone-Coated Steel Roofs
Recently, some of our customers inquire about the mounting solution for Stone-Coated Metal Roofing.
Our this solar hanger bolts is suitable for stone-coated steel roofs are specialized fasteners that provide a secure and
stable mounting solution for solar panels on this type of roofing material.The self-drilled end of this hanger bolt can penetrate into the steel roof to the beam. There is a rubber gasket can
provent the water leakage from drilling. This hanger can work with L feet or flat connect plate to attached the rails.
Solar Hanger Bolt for Stone-Coated Steel Roofs
Key Features:
Self-drilled end: threaded shaft that allows for deep penetration into the roof structure for maximum stability.
Wide Head: Often has a larger head to distribute load and prevent damage to the stone-coated surface.
Material:
Corrosion-Resistant: Typically made from nickel alloy to withstand outdoor exposure and prevent rust.
Durability: Designed to endure harsh weather conditions typical for roofing applications.
Installation:
Direct Attachment: Installed directly into the underlying roof structure, usually at the rafters or framing.
Sealant: Often requires the use of weatherproof sealants or flashing to ensure a watertight installation.
Applications:
Stone-Coated Steel Roofs: Specifically designed to work with the unique texture and structure of stone-coated steel
roofing materials.
Versatile Use: Suitable for various solar mounting systems and configurations.Stee Hanger Bolt for PV
Our steel hanger bolt for PV products can be customized in size according to customer needs.
Whether your project involves timber or steel substructure, we have the flexibility to match the most suitable product for your project.
Q:
I need this item in 3/8” X 3” on the lag side,
I intend to use them on flat tile,
Please let me know the details at your earliest convenience,
Thank you.
A:
Appreciated for inquiry about our hanger bolts.
The thread size details as below and file as file attached .
The factory price please see at attached.
Can I know how much quantity you would need ?
What’s the delivery address ?
Q:
The drawing meets our needs.
We need about 50,000 pieces. Please quote to the port closest to me.
