Solar Metal Roof Mounting Systems – Trapezoid Type
- Product Type: Solar Panel Mounting Systems
- Product Model: Solar-Metal-Roof-Mounting-Systems-Trapezoid
- Material: Aluminium, SUS 304 Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Vertical or Horizontal
- Application: Pitched / Flat Sandwich Roof Top
Product Description :
By using matched SUS 304 or Anodized Aluminium mount clamps, installers can finished solar panels on trapezoid metal roofing well .
Pre-assembled rails, clips and screws can make fast effeciency and quick installation
.
This mounting system can be installed on slope roof from 0 degree to 60 degree .
All standard PV modules can be mounted on pitched trapezoid metal roof with our optimized system designed .
Our versatile roof clamps can be used on most common trapezoidal mounting rail systems . We also can tailor special trapezoidal metal sheet profiles .
Anti-corrosive kits can be mounted with horizontal and vertical PV panels, EPDM rubber can keep rain drops from penetrated in .
Solar panel racking system is light weight but good stability strictly applied with national wind / snow standards .

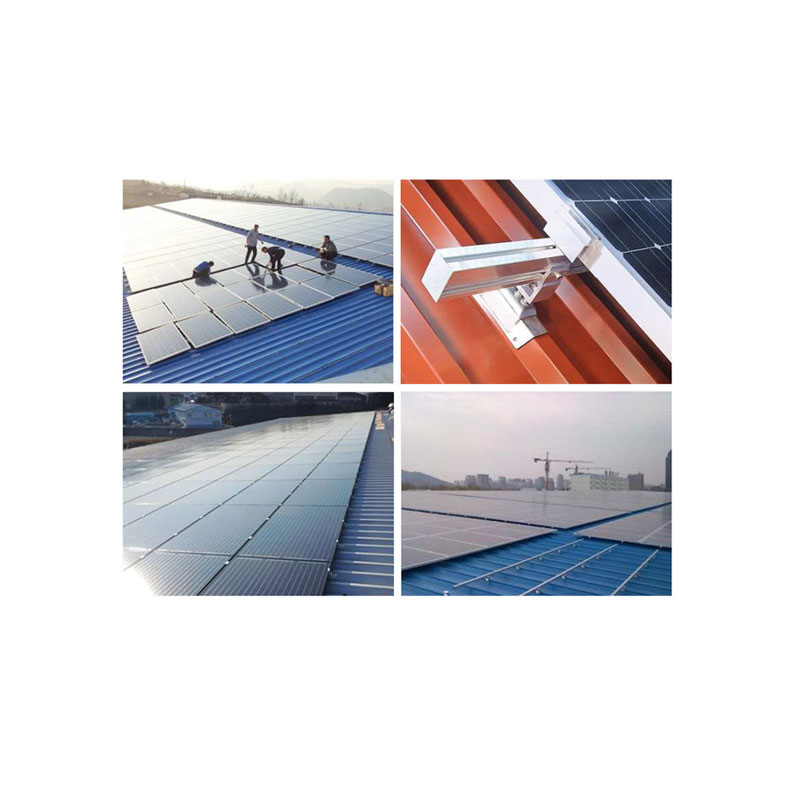

This cost-effective tin sandwich roof mounting system is designed for commercial and residential solar projects .
Advantages :
(1) Fits for framed or frameless solar panels on trapezoidal metal roofing ;
(2) Defferent clamps available for portarait or landscape mounting method ;
(3) Customized solar components acceptable to fit with trapezoid roof profiles ;
(4) Strong and robust mounted system for tin zinc roofs .
Parts and Components for solar panel trapezoidal metal roof racking mounts system:

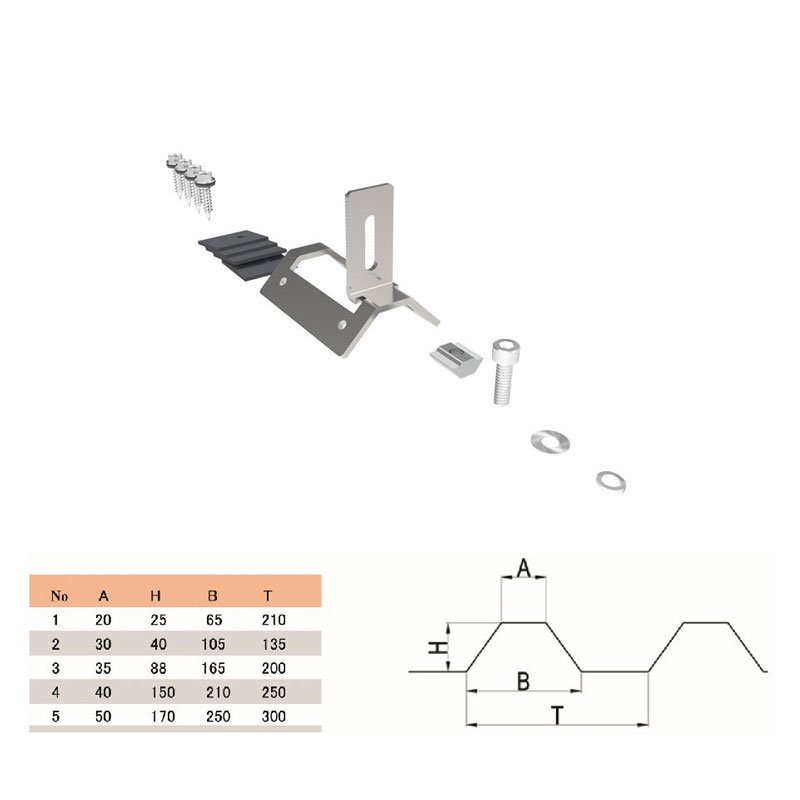

Mid clamp , End clamp , Aluminum Rail, Trapezoid clamp …
Easy Installation, Safety And Reliability, 10-Years Warranty .
Installation Guide :
- Screw trapezoidal clamps on sandwich metal roofing with waterproof integrated rubber pads ;

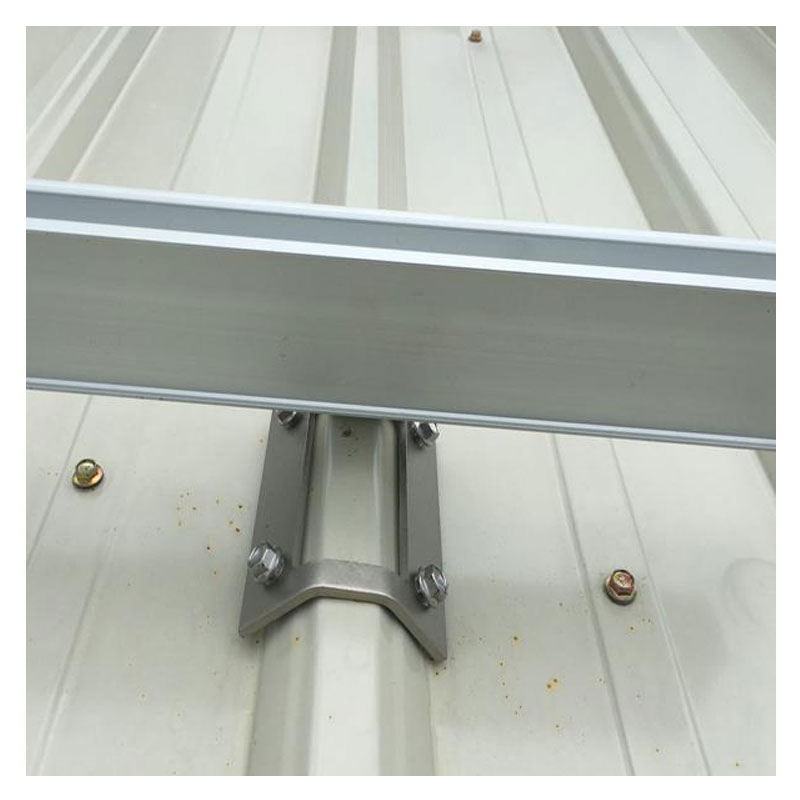

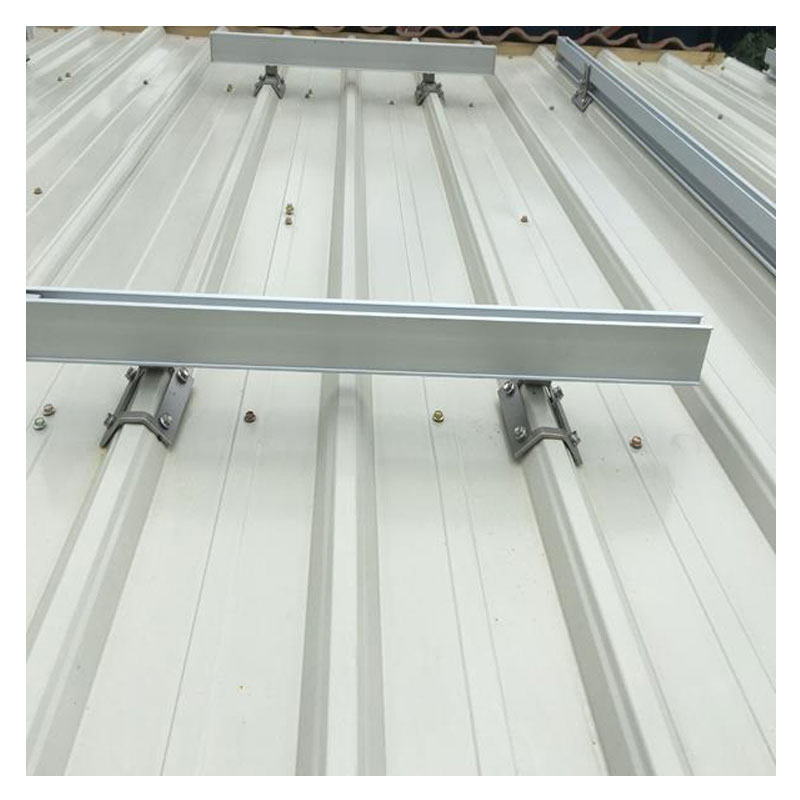

- Fix alum rails on trapezoid clamps ;

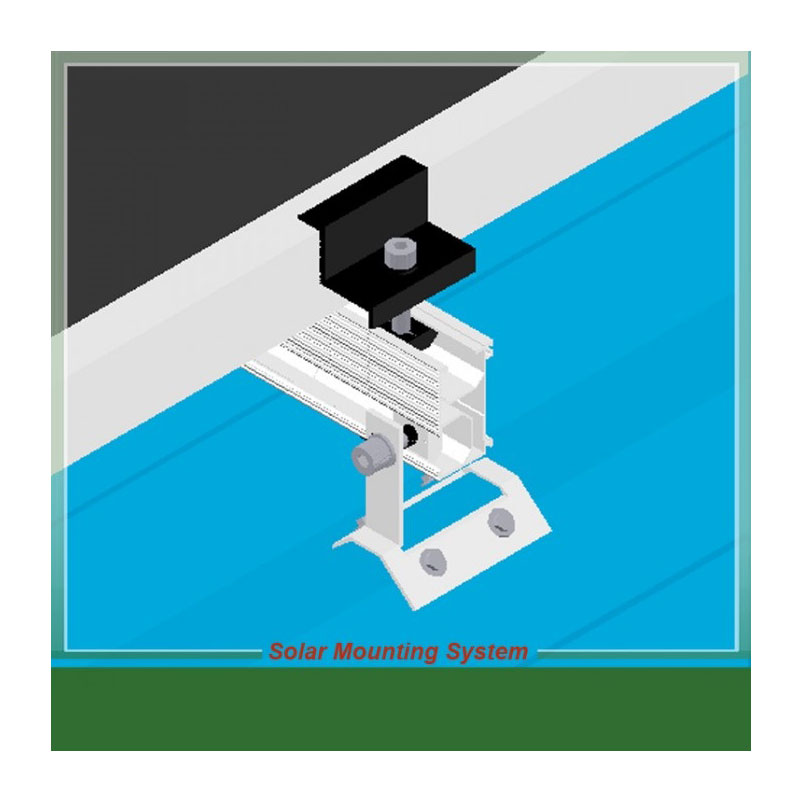

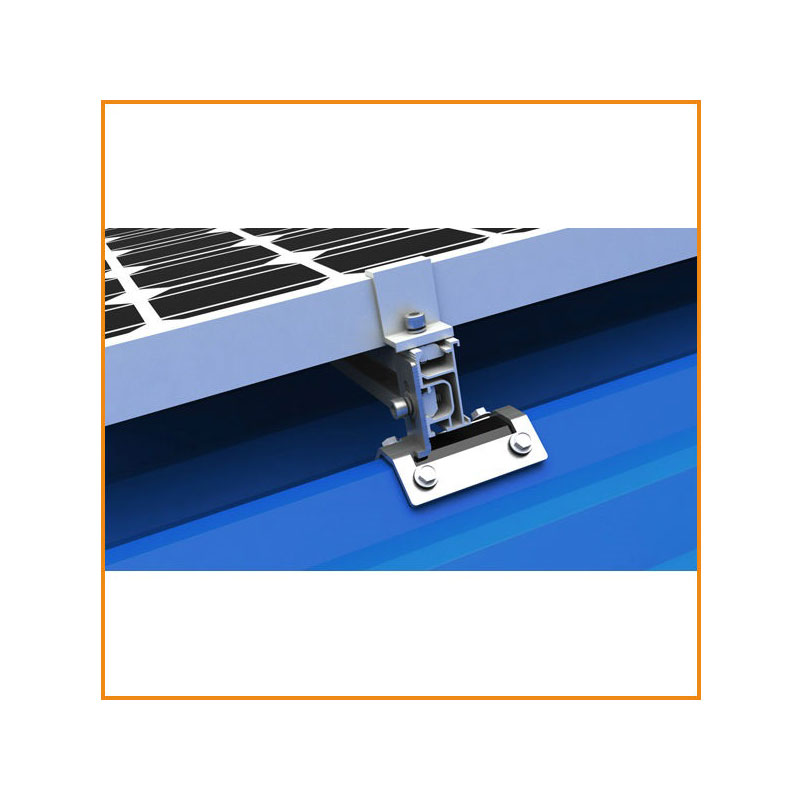

- Mounted PV panels on aluminium tracks with mid & end clamps , grounding lugs …
Install the solar modules according to the solution drawings by Inter Clamp Kits and End Clamp Kits.
| Brief Descriptions : | |
| Mounting systems for trapezoidal metal roof top solar panel installation | |
| Item type: | Metal Roof Mounting Systems |
| Technical Parameters : | |
| Type : | Tin Solar Panel Mounting Kits |
| Installation Site : | Zinc roof top |
| Installation Angle : | 0° ~ 60° |
| Profile Material : | AL 6005 – T5 ( Anodized ) |
| Fasten Parts : | SUS 304 Stainless Steel |
| Small Components : | Aluminum & Stainless Steel |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s ( 130 mph ) |
| Snow Load : | 1.4 KN / M2 ( 30 psf ) |
| PV Modules : | Framed, frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
