SPC is a solar mounting hardware factory, enterprise specializing in the design, production and sales of solar series product accessories.
Its main products include solar brackets, solar cable clips, solar grounding clips, and other accessories.
We have certain experience and strength in the field of solar production accessories, and can choose suitable products for cooperation according to your specific needs.
The following is an inquiry about solar mounting hardware:
Q:
I am the manager of a trade company,
Mainly focus on SOLAR import-export Door to door service. Our company is engaged in the construction of solar stations in Kumanovo,North.
Please give the cost taking into account the delivery to Kumanovo, North Macedonia of the items included in the attachment.
Please also inform me about the delivery time and payment terms.
A:
Thank you for your inquiry.
We are solar mounting hardware manufacture.
Please provide specific shipping address information so that I can better calculate shipping costs for you.
Q:
Без названия
Рядом с этим местом: Куманово, Северная Македония
A:
Hello, we according to the location you provided. Can the goods be transported to this port?—Skopje Macedonia
Q:
Yes you can calculate delivery to Skopje
A:
Please refer to the drawings of solar clamp and Bolt.
Q:
The clamps are fine for us
A:
how about the plate?
I am not sure whether it’s correct. is it possible to share with us, how will you use these plate? it’s would be better for our understanding.
Q:
A:

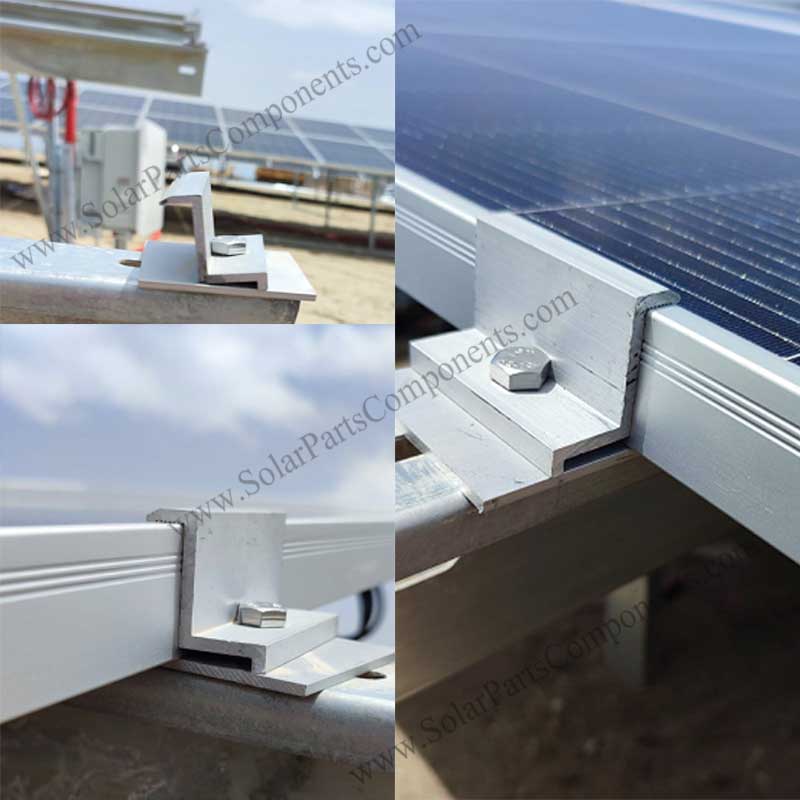

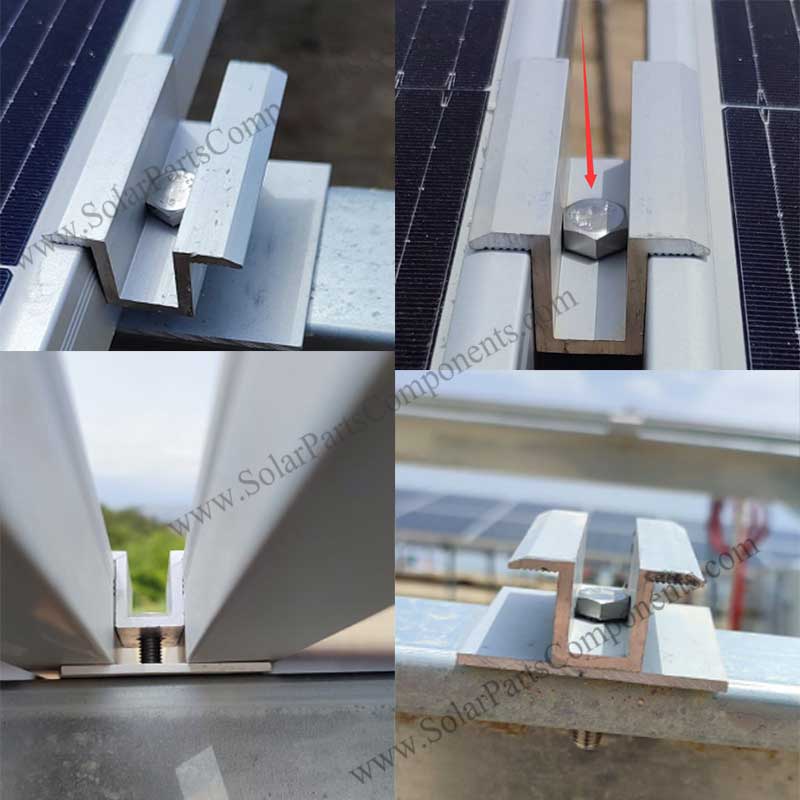

Thank you for sharing and very good photos.
It’s base on this quantity and parameter details.
| Designation | Name | Length, mm |
Material | Qty | |
| 1 | DIN 6921 | Flange bolt М12х30 | 30 | А2-70 | 28514 |
| 2 | DIN 6923 | Flange nut M12 | А2-70 | 28514 | |
| 3 | DIN 9021 (DIN 440) | Body washer М12 | А2-70 | 53956 | |
| 4 | Clamp | End clamp 35 mm | 60 | AL6005-T5 | 4576 |
| 5 | Clamp | Mid clamp 25 mm | 60 | AL6005-T5 | 29730 |
| 6 | Plate | Plate 60х60х3 | 60 | AL6005-T5 | 34306 |
| 7 | DIN 933 | Bolt М8х30 | 30 | А2-70 | 4603 |
| 8 | DIN 933 | Bolt М8х40 | 40 | А2-70 | 29903 |
| 9 | DIN 9021 (DIN 440) | Body washer М8 | А2-70 | 34506 | |
| 10 | DIN 6923 | Flange nut M8 | А2-70 | 34506 |
