Non-adjustable, Bottom Mounted Solar Panel Hooks for Curved / Roman / clay / Spanish tile roofing
180° Curved Tile Roof Hooks Arm – 120 mm Height, non-adjustable range, kit with SUS 304 screws, nuts and slots for Curved/ Roman / Clay / Spanish tile roofing .

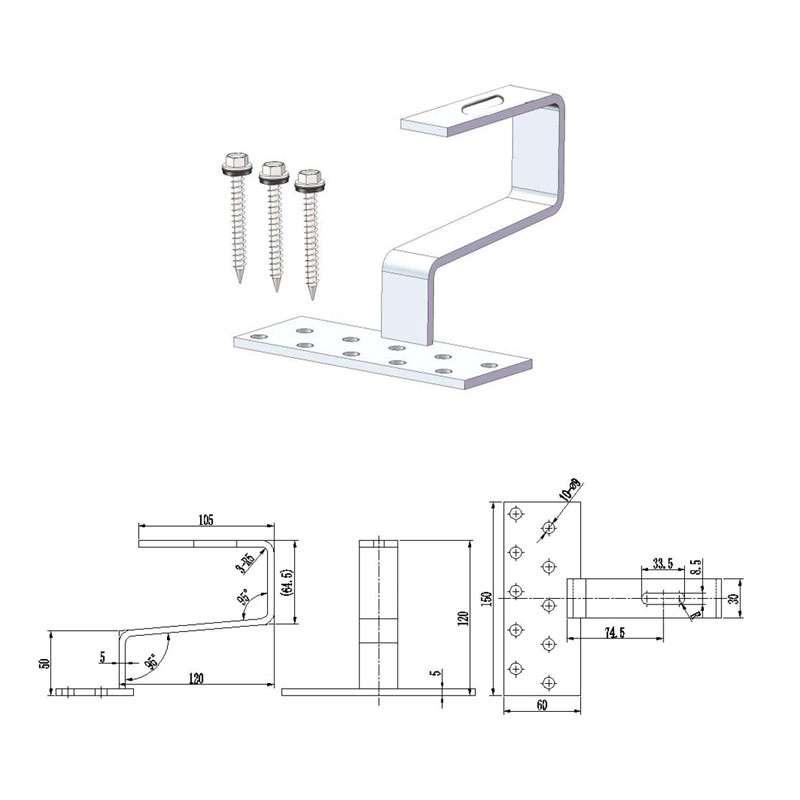

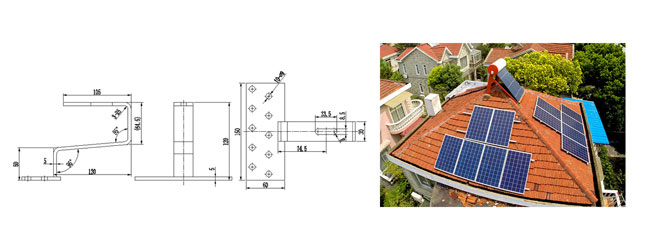

Model : SPC-Tile-Hooks-CNB013
Item : Solar Panel Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS304 Stainless Steel;
Total Size : 150 mm ( Width) × 165 mm ( Deepth ) × 120 mm (Height) /
5 7/8″ (W) × 6 1/2″ (D) × 4 3/4″ (H) ;
Bottom End to Top End : 120 mm / 4 3/4″;
Thickness : 5 mm / 1/5″ ;
Rail Slot Size : 8.5 mm × 33.5 mm / 1/16″ × 1 5/16″ ;
Matched Bolts & Nuts Sizes:
1) SUS 304 Hex Bolt M8 mm × 25 mm x 1 unit;

2) M8×13 Ribbed Lock washers (SUS304) x 1 ;

3 ) D8 Spring washers ( SUS 304 ) x 1;

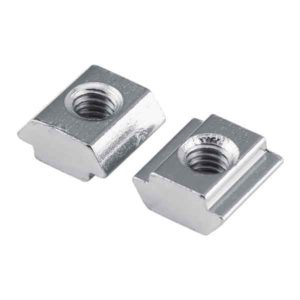

4) Aluminum M8 T sliding nut ;
Base Plate Size : 150 mm × 60 mm × 5 mm / 5 7/8″ × 2 3/8″ × 1/5″ ;
Mounting Screw Slots Size : Φ 9.0 mm Cross Arrangement ( 10 holes ) ;
Matched Screw Size: Hex Washer Head solar mounting screws 6.3 mm (1/4″) x 80 mm ( 3 1/4” ) ;

Weight : 840 (g) / 1.85 (lb) ;
Packing : 30 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″
This fixed Hook SPC-Tile-Hooks-CNB013 is perfect for installing on Clay / Roman / Spanish /Curved tile roofing surfaces .
Our Solar Parts & Components QC Team
stictly test following parameters of this tile roof mounting hooks for solar panels SPC-Tile-Hooks-CNB013 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
More models of our solar panel roof hooks, clamps & brackets are available in www.SolarPartsComponents.com
