Solar Mounting Grounding Plates
- Product Type: solar panel earthing clips
- Product Model: SPC-GW-21
- Material: Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Panels Installation Grounded System
Product Description :
Model : Solar-Panel-Earthing-Plates-SPC-GW-21
Solar Panels Grounding Clips are used for earthing Frame PV arrays between clamps and aluminum rails .
This grounding clip is very important among the whole solar mounting earthing system .
The 10J PV module grounded washer is small, but essential .
Bonding each solar panel to earth for lightning attack protecting with our sus 304 steel plates .
Proper electrical clips should be firmed penetrating to surfaces of steel / aluminum ,
so that it can make a conductive path for whole grounding system and remove static electronics .
Advantages :
– Prevent striking from lightning ;
– Mandatory kits to earth PV frames ;
– Protect static electricity shocking ;
– Gas tight piercing solar panel earth plates ;
| Solar Panel Earthing Plates for PV Modules Installation | |
| Model Number : | Solar-Panel-Earthing-Plates-10J |
| Material | Stainless Steel ( SUS 304 ) |
| Specification | As per drawing / Customized |
| Application | Solar Installing Components |
| Warranty | 8 years |
| Sample | In stock |
| Delivery Date | 7 days |
| Type | Grounded grounding clip |
| Duration | 25 years |
We provide full sizes of earthing clips to meet the needs of different types of clamps and rails. welcome to purchase from us. More information please feel free to visit our website: www.SolarPartsComponents.com.
| Brief Descriptions : | |
| Solar Panel Grounding Plates for solar panel earthing kits | |
| Item type: | Solar Panel Grounding Components |
| Technical Parameters : | |
| Installation Site : | Solar Mounting Installation |
| Profile Material : | SUS 304 Stainless Steels |
| Color : | Zinc coating |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| Module Orientation : | All Directions |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Solar Panel Earthing Plates Factory

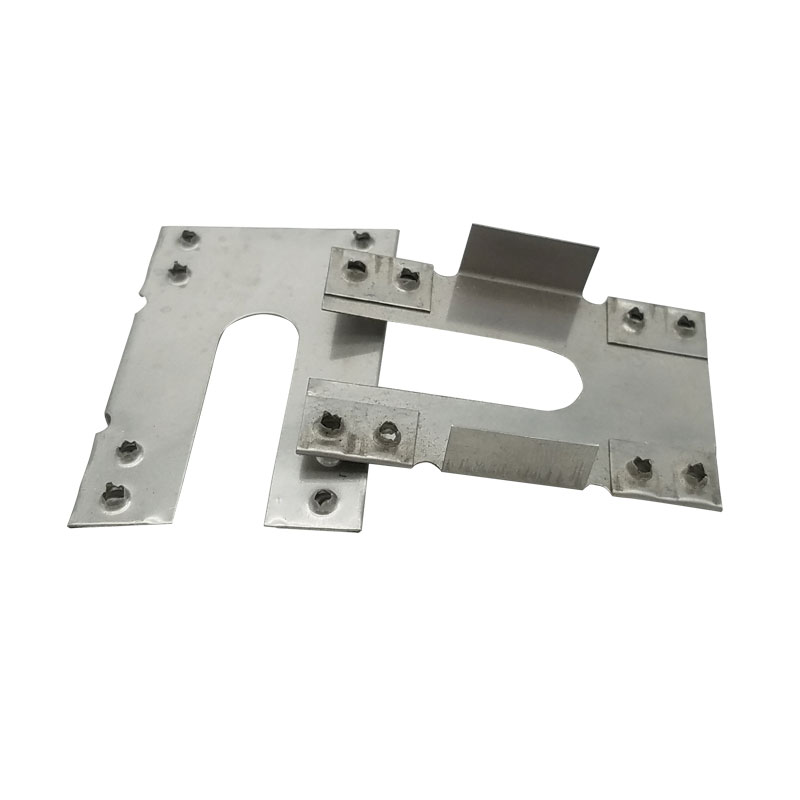

The stainless steel Solar Panel Earthing Plates are installed between the rail and the solar module. The sharp edges are intended to pierce the anodised layer on the PV module. Each module should be earthed to both rails.
Solar Panel Earthing Plates Factory
SPC factory which dedicated to manufacture solar panel earthing plates for more than 10 years experience.
We totally carry about 50 types of PV earthing plates to meet different demand of solar installation.
SPC always provides professional service and good quality products,welcome contact us for more details.
Drawing sizes for Solar Panel Earthing Plates 10J
Earthed PV module mounting rails is very important to avoid electric shocks .

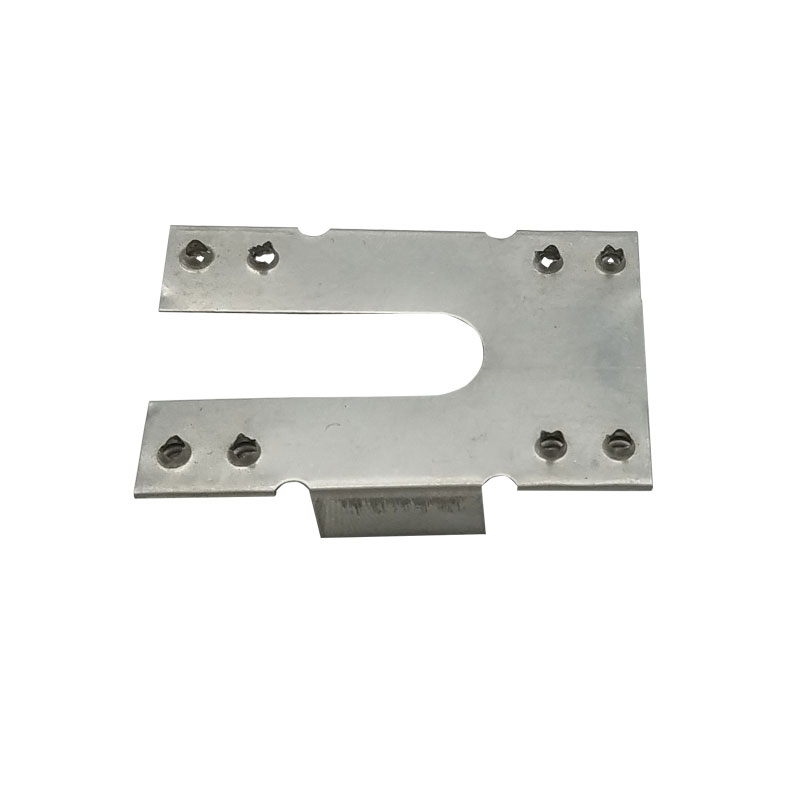

Solar Panels Earthing Plates 10J
Our solar panel earth plate model 10J is used with mid / end clamps to keep solar mounting rails to PV module frames .
Ensuring good earth contact between mounting systems by piercing the surfaces of anodized aluminum rails .
Factory direct solar panel earthing plate 10J wholesale with size and drawing details
Welcome to purchase earth plate for ground solar modules / inverters / DC optimizer to solar racking rails ,
save time / money and delivery time .
Size and Drawing of Solar Panels Earthing Plates SPC-GW-21
Size and Drawing of Solar Panels Earthing Plates SPC-GW-21
