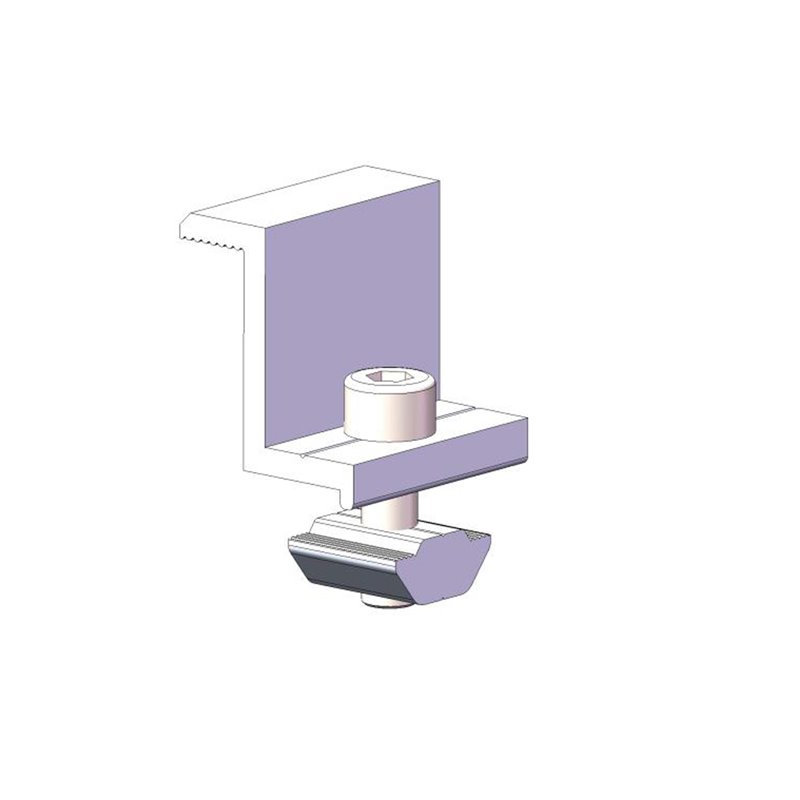

Drawing for Solar panel end clamps
Solar panel end clamps SPC-End-Clamps-ECS for PV modules fixing
Solar panel end clamps SPC-End-Clamps-ECS for PV modules fixing
Model : SPC-End-Clamps-ECS
Item : End clamps for solar panels ;
Finishing : Anodized;
Material : AL 6005 – T5 Aluminum ;
Thickness : 4 mm ;
Total Size : 38 mm ( Width ) × 32.5 mm ( Deepth ) × L (Height) /
1 1/2″ (W) × 1 1/4″ (D) × L” (H) ;
This mounting end clamp series have several height options for different PV modules thickness as below :
| No. | Part. No. | Solar Panel Thickness | L Size ( Height ) | Weight |
| 1 | ECS35 | 35 mm | 34.7 mm | 50 g |
| 2 | ECS38 | 38 mm | 37.7 mm | 51 g |
| 3 | ECS40 | 40 mm | 39.7 mm | 51 g |
| 4 | ECS42 | 42 mm | 41.7 mm | 53 g |
| 5 | ECS45 | 45 mm | 44.7 mm | 54 g |
| 6 | ECS50 | 50 mm | 49.7 mm | 56 g |
Mounting Hole Size ( Φ 8.5 mm × 1 hole):
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 25 mm x 1 unit;
2) M8×13 Ribbed Lock washers (SUS304) x 1 ;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T sliding nut ;
Weight : 56 (g) / 0.12 (lb) ;
Packing : 100 pieces / carton ;
Packing Size : 260 mm ×205 mm × 180 mm /
10 1/4″ × 8 1/16″ × 7 1/8″
This Solar panel end clamps Model SPC-End-Clamps-ECS is an aluminium bracket for fixing ground / roofing installation support .
Our Solar Parts & Components QC Team stictly test following parameters of this end clamps SPC-End-Clamps-ECS item before
delivery.

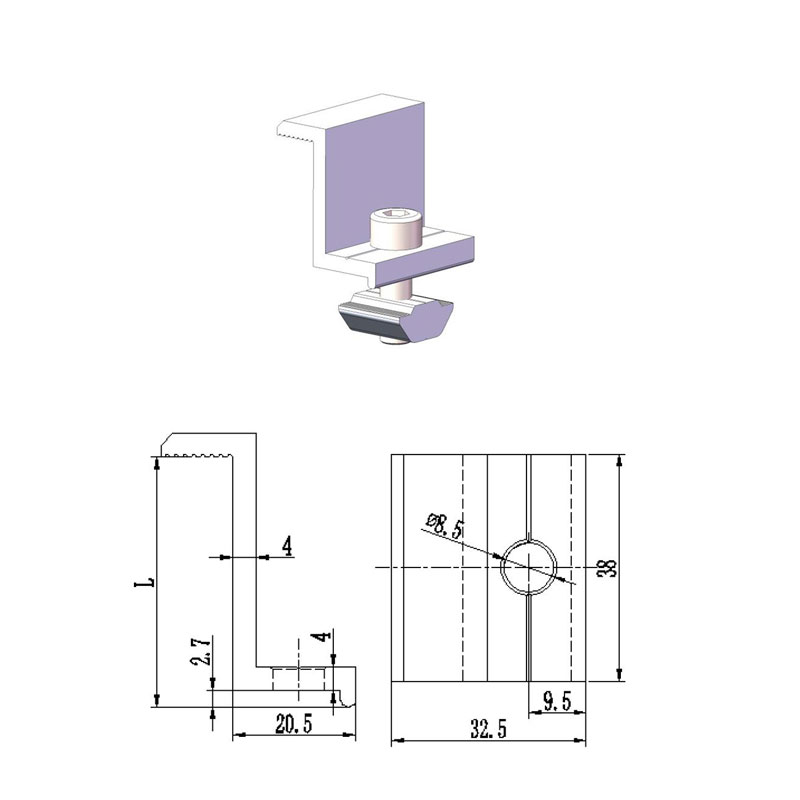

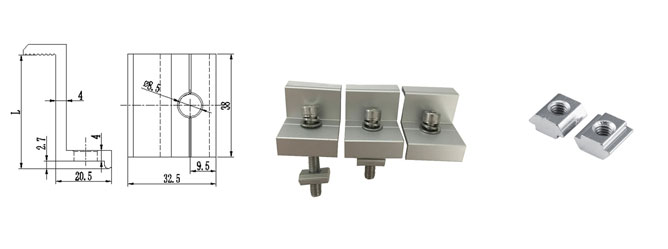

AL6005-T5 PV Modules end clamp drawing, sizes, profile for solar panel mounting .
More models of our end clamps and brackets are available in www.SolarPartsComponents.com
