Solar panel mid clamps with earth
- Product Type:Solar panel mid clamps with earth
- Product Model:SPC-IC-GP40
- Material:AL6005-T5
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Unframed / Bifacial / Frameless modules
Solar panel mid clamps with earth has the most prominent advantage that it has pin on the contact surface with the solar panel (https://cn.topbestsolar.com/solar-grounding-pins-for-earthing).
Pins are made of SUS304 and integrated with the mid clamp, exposing the sharp part, which will pierce the oxide layer on the surface of the solar panel frame during installation, so as to connect the circuit between the panel and rail.
The unique design of the clamp from Solar panel mid clamps with earth supplier makes the mid clamp not only fix the panel but also replace the grounding clip.
The grounding clip is omitted, which cleverly avoids the danger caused by the inadvertent slipping of the grounding clip, and also saves the material demand and costs; and makes the installation process more concise, shortens the construction period, and saves labor and time.
The high-quality aluminum structure of Solar panel mid clamps with earth factory provide brings light weight, strong electrical conductivity, corrosion resistance and beautiful appearance to the product.
This product has been optimized and improved on the basis of ordinary mid clamp, and has been continuously improved to provide a more convenient installation solution for the installation of solar panels.
It is a trustworthy and selected product at present.
Features of Solar panel mid clamps with earth :
- High security;
- Shorten the construction period;
- Save installation time and cost;
- With pindesign, grounding clipless.
Professional manufacturer of PV accessories relies on its innovative solutions to provide customers with satisfactory PV accessories.
With its unique advantages, Mid clamp with pin occupy a certain position in the PV accessories market. SPC will be your best choice!
For more details, please click: https://www.solarpartscomponents.com/
| Brief Descriptions: | |
| Solar mounting component-Solar panel mid clamps with earth | |
| Item type: | Solar panel mid clamps with earth |
| Type: | SPC-IC-GP40 |
| Installation Site: | Metal Roof solar panel mounting |
| Profile Material: | AL6005-T5 |
| PV Modules: | Framed, Frameless |
| Color: | polishing |
| Module Orientation: | Horizontal / Vertical |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955:2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Inquiry of Solar panel mid clamps with earth
Solar panel mid clamps with earth usually refers to an improved solar mid clamp design, which is characterized by the cells with grounded pin structures on both sides of the clamp, which can improve the efficiency and output power of the cells, improve temperature characteristics, reduce power loss, enhance durability, and increase output power.
This clamp can not only improve the efficiency of the system, but also extend the service life. It is an important innovation in the development of solar cell modules.
There have an inquiry about this clamp.
Q:
I hope this email finds you well.
Please note that we are interested in Solar panel mid clamps with earth, please see below pic.

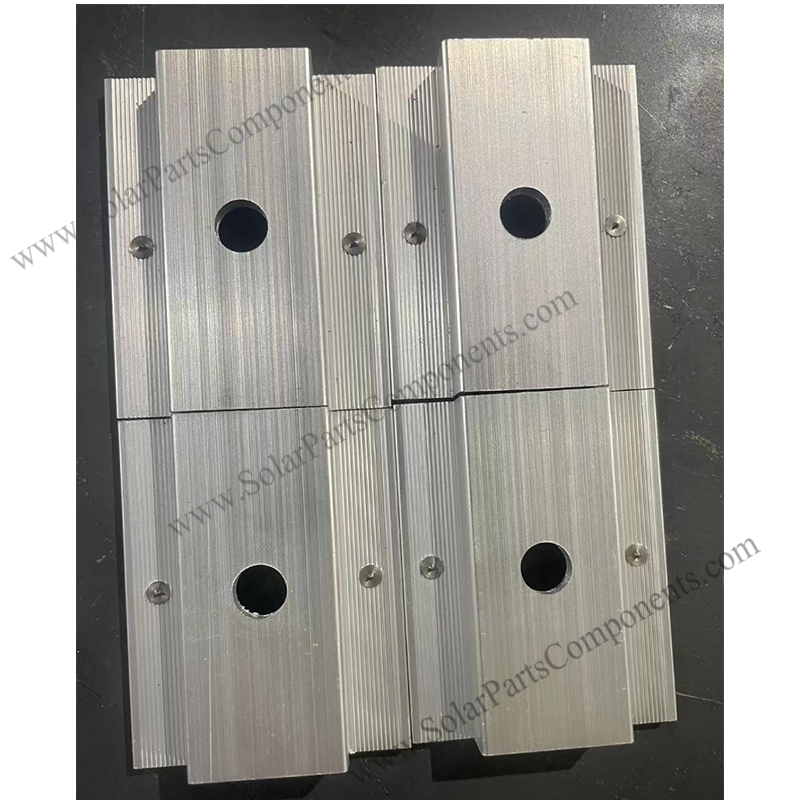

pv clamp
Looking forward to receive from you.
A:
Appreciated for inquiry of Mid clamp with pin.
It’s a perfect solution for grounding plate replacements.
(1) could you send me your mid clamp size details
or you can use our own?
Following is one of our clamp model.

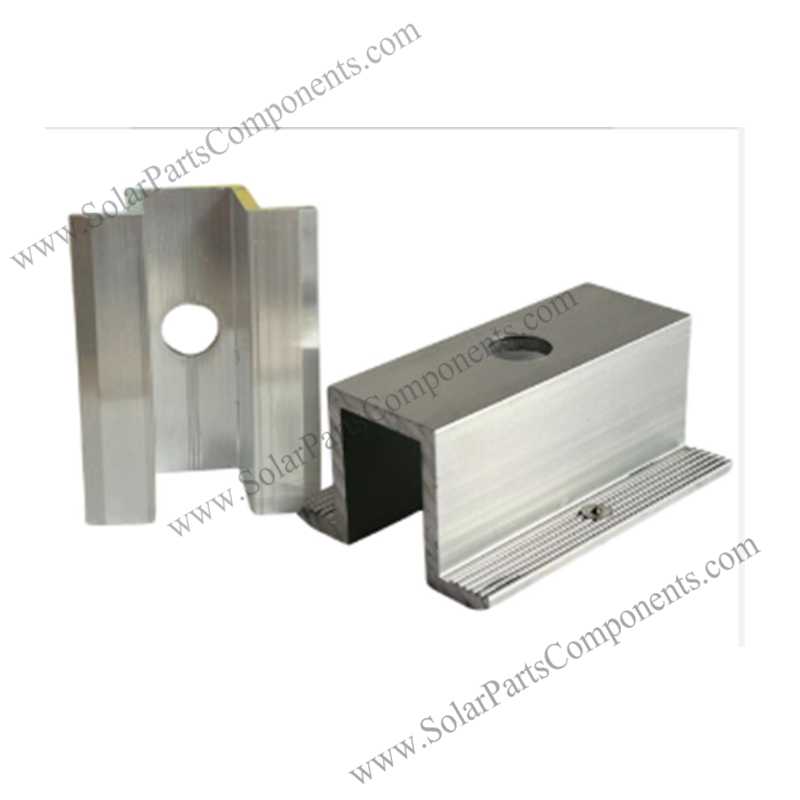

solar clamps
(2) May I know how much quantity do you need?
Looking forward to your early reply!
Q:
I hope this email finds you well.
Please find the following:

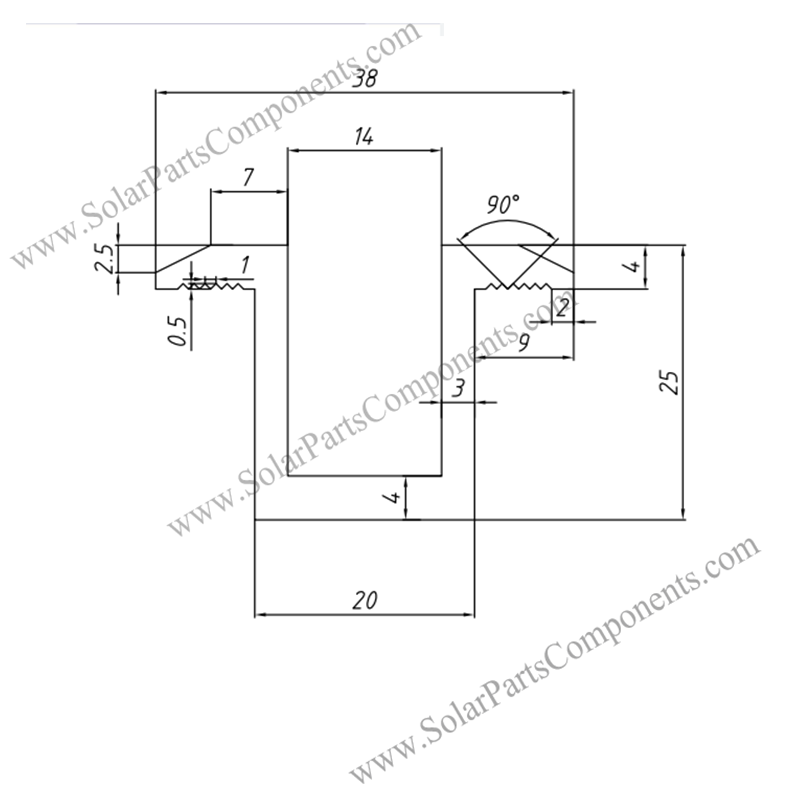

Below mid clamps drawings, length per piece: 40 mm.
Qty: 250,000 Pcs as first order.
Please provide testing certificate.
Awaiting to receive from you.
Solar clamp
Advantages of PV clamp with grounding pin
The PV clamp with grounding pin is an innovative process designed to improve solar installation efficiency and reduce installation costs.
This technology uses a special pin structure to replace traditional solar grounding clip for connecting and conducting current.
It shows significant advantages in reducing material and labor costs and improving conductive efficiency.
Advantages of PV clamp with grounding pin
Solar Mid Clamps with earth customized factory
“Hello
I would like to repeat order Solar Mid Clamps with earth, but some dimension need to change.
The top width need 20mm, the previous order was 14mm. Please quote me for 60000 pcs”
solar mid clamp with earth
“Hi Sam,
Sure, our factory can accept customized as your request.
please kind check our size for your customized mid clamp with earth 60mm in length as you required.”
solar mid clamp with earth OEM factory
“Yes, correct. Please send us quotation for 60000 pcs include shipping cost to Poland.”
“Great, please refer to our quotation for our solar panel mid clamps with earth as file attached.”
Thank you
Solar Mid Clamps with earth customized factory
