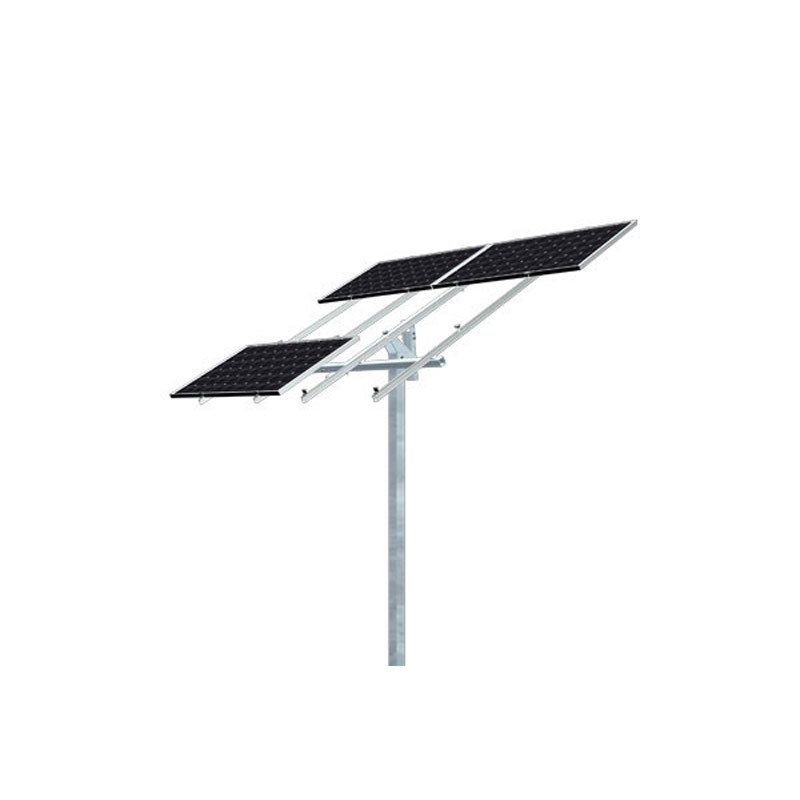

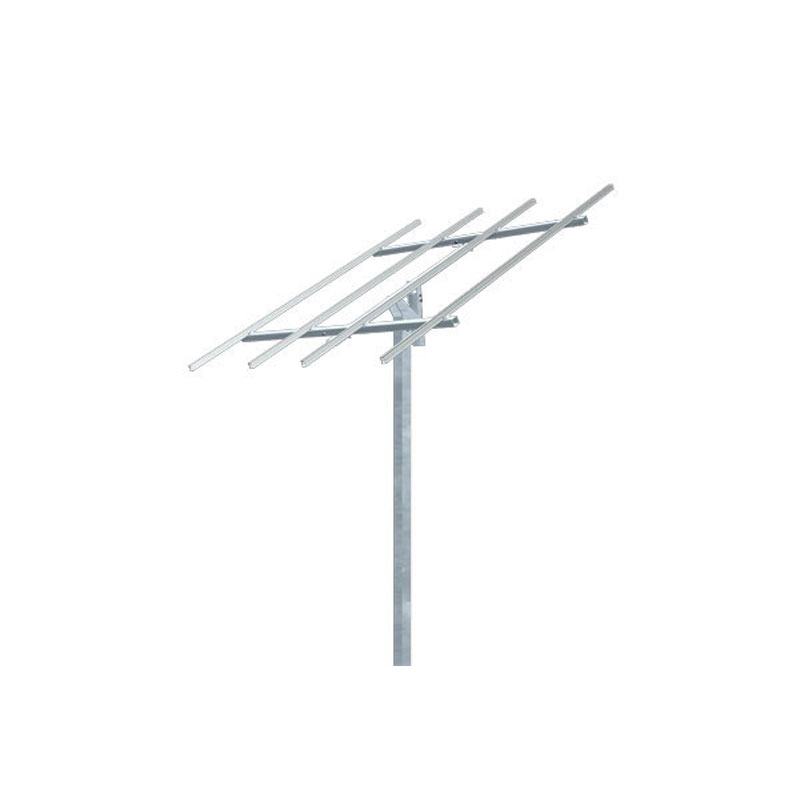

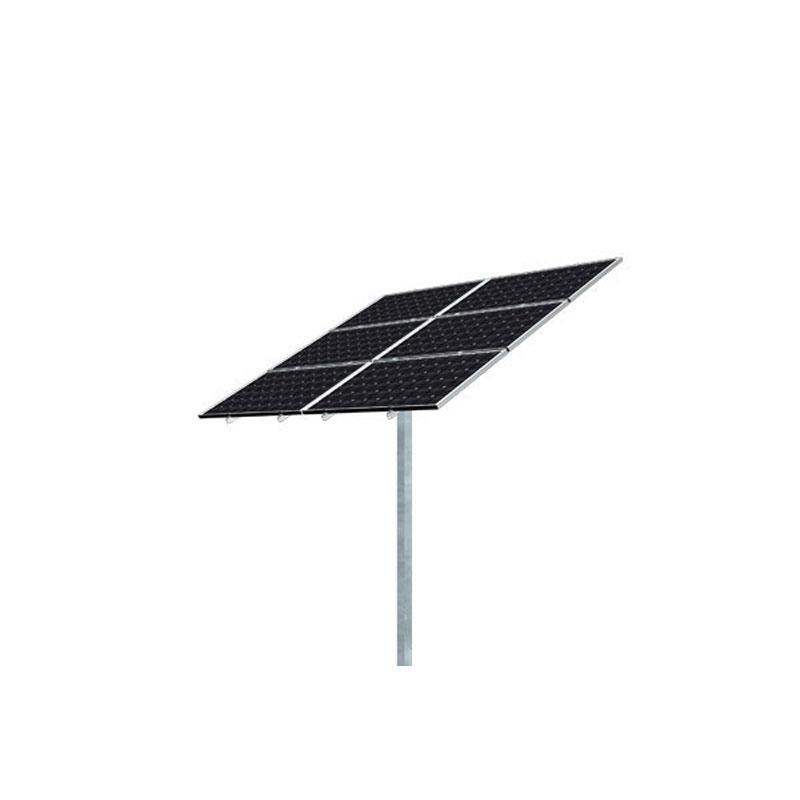

Quadrate Steel Solar Pole Mounting Systems
- Product Type: Ground Solar Panel Mounting Systems
- Product Model:solar-pole-mounting-systems
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Ground flied
Product Description :
This solar pole mounting system is designed for any PV ground field in both open or rough terrain.
The tilt angle can be from 15 degree to 60 degrees.
With our pre-assembled aluminium clamps and rails can be easy and quick installation .
We using high quality anodized alum components and hot-dip galvanized stell for rails that can be great anticorrosion.
This solar pole mounting system is suitable for framed or frameless solar panels, the orientation can be transverse or vertical.
Our standing packing for solar pole mount kit is air bubble bag inside and carton box ouside.
Cartons will have wooden or steel pallet as customers requirement.
Good quality, sturdy and cost-effictive pole mounting kit is a must for PV solar panels on ground field .
Our post ground mounting system can be piled one to two meters deep into the ground.
By using scew poles, you can mount beams, rails and clamps simply .
Ground Solar Pole Mounting System can be quick installed on a single pole, it’s stable, durable …Our professional design team can help your project sucessful : wind, snow, earthquake load …
Our solar system has be calculated precisely with structural mechanics and QA strictly.
Our anti-corrosion for Aluminum alloy Al6005-T5 & Stainless steel 304 & Hot galvanized steel can last at lease 20 yrs lifespan.
Advantages :
- Quick Installation : pri-assembled, packed classified solar pole mounting ;
- Wide Application : any ground terrain with kinds of carbon steel screws ;
- Compatibility : Framed PV , Frame-less PV solar panels ;
- Well QC : Optimized design , 20 Years’ corrosion resistant , premium alum and steel materials, organized time delivery ;
- 10 years’ quality guarantee, 25 years’ design life span .
Parts and Components for this solar mounts system:

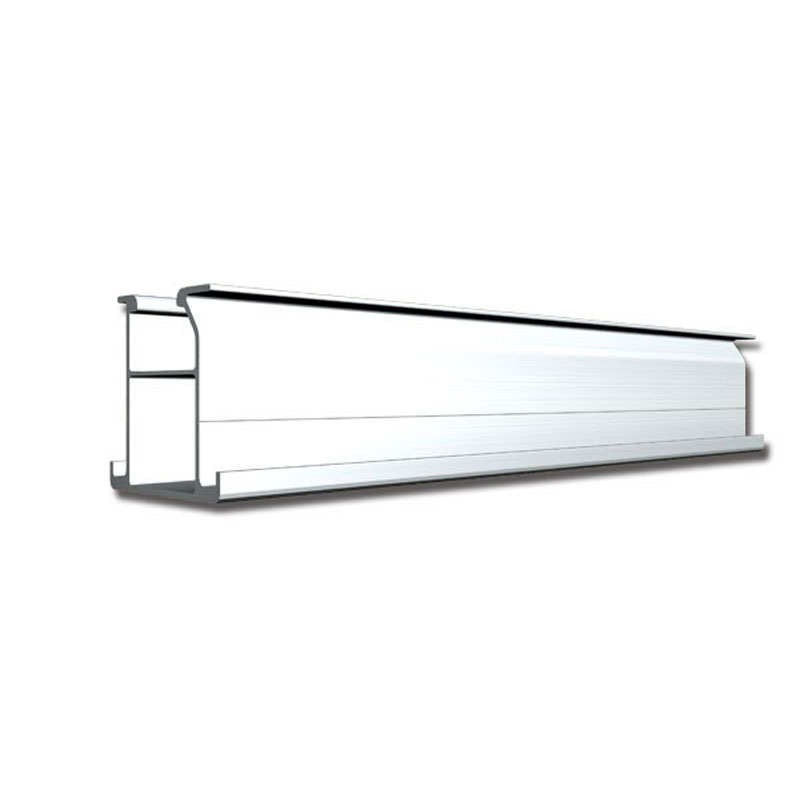

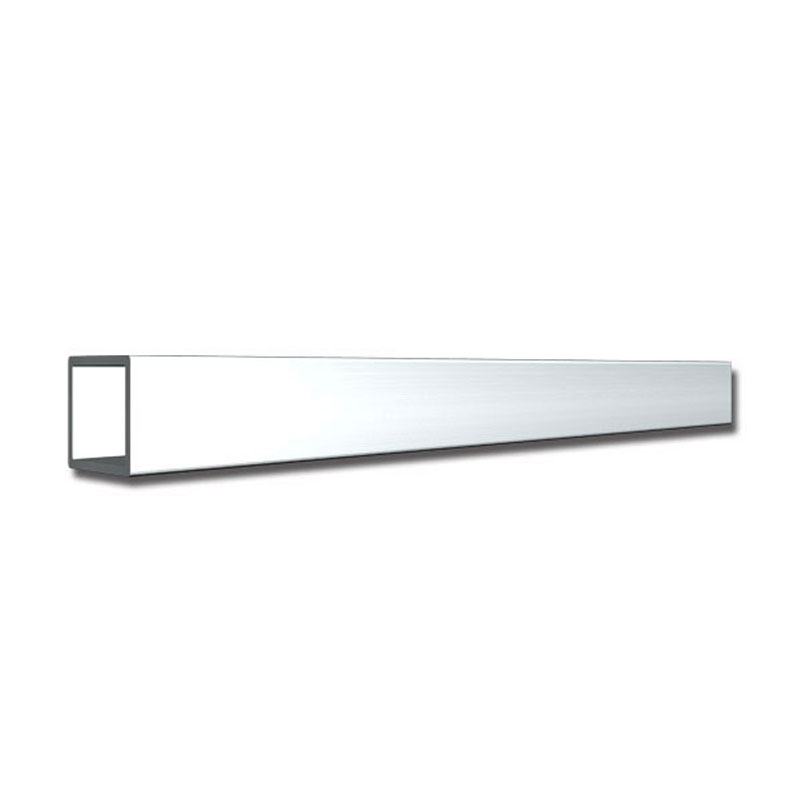

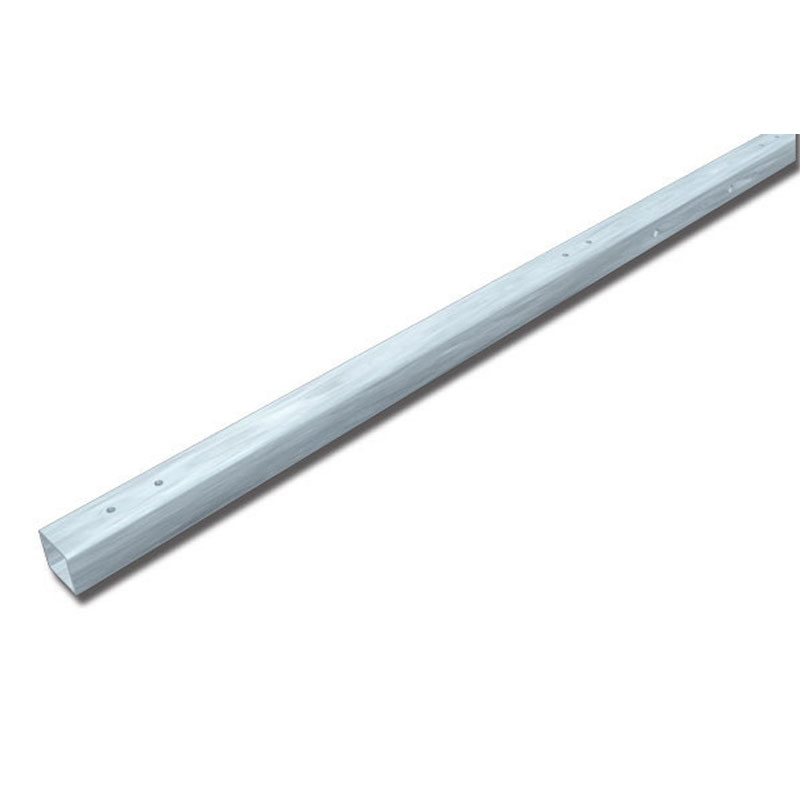

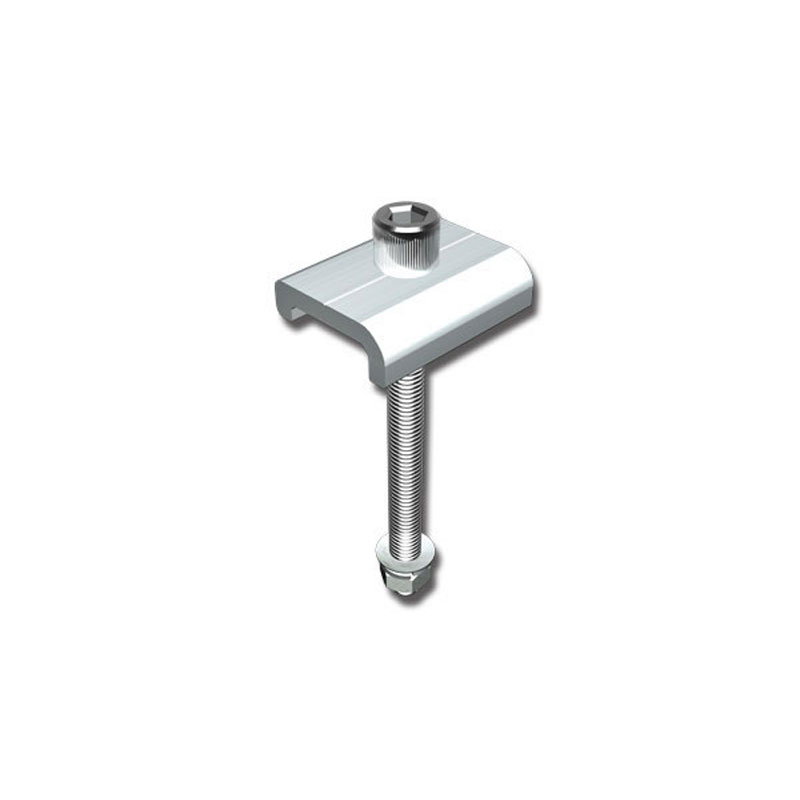

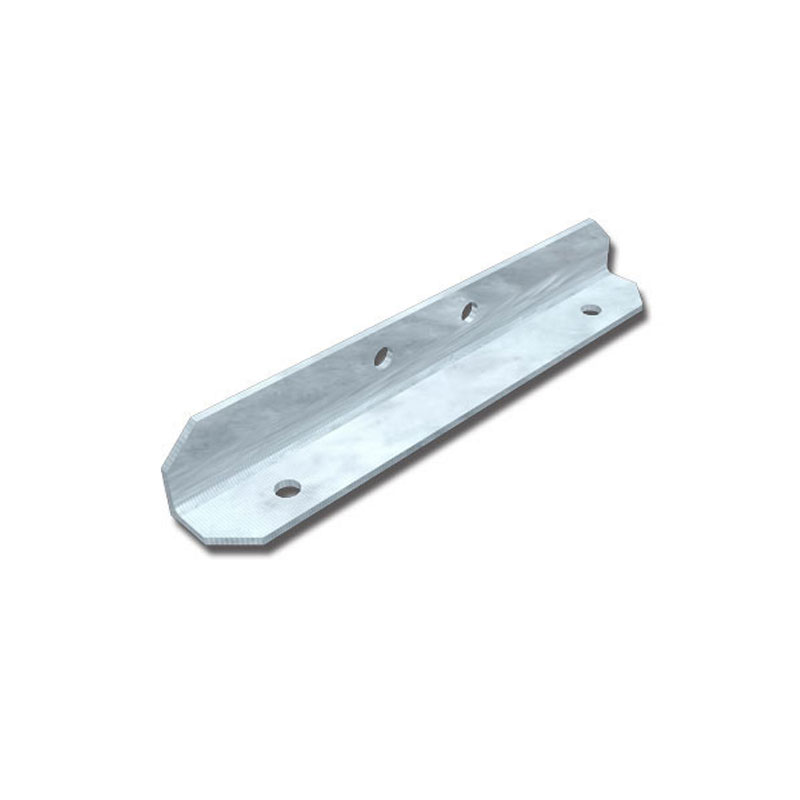

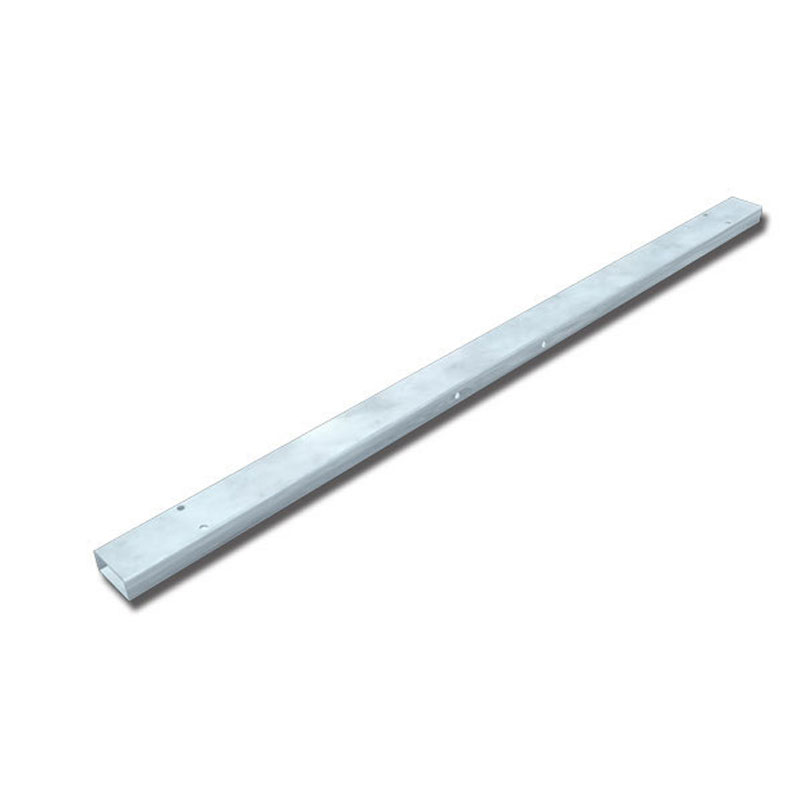

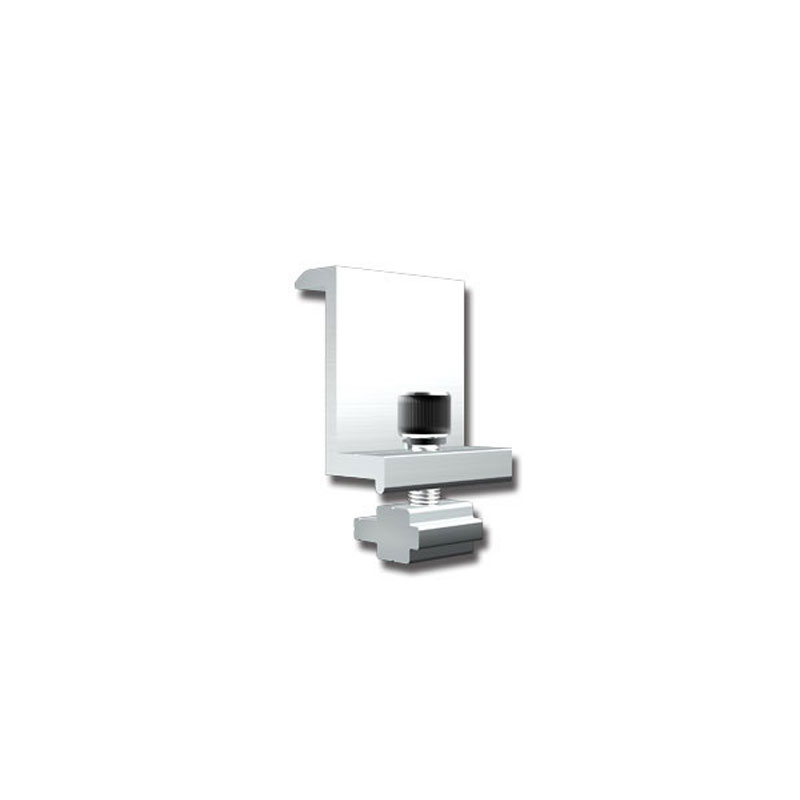

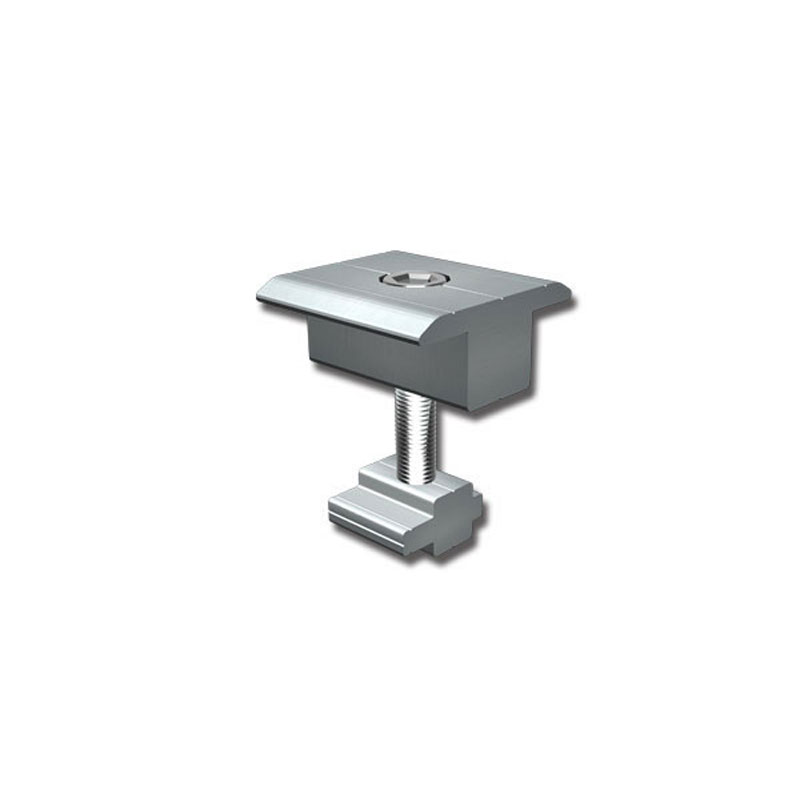

Alum Mid Clamp; Alum End Clamp; Alum C Clamp, Alum Rail, Alum Rail Splice, Girder, Beam connector, Beam,
Adjustable Tube Connector, Ajustable Pole, Splice for post, Quadrate Post.

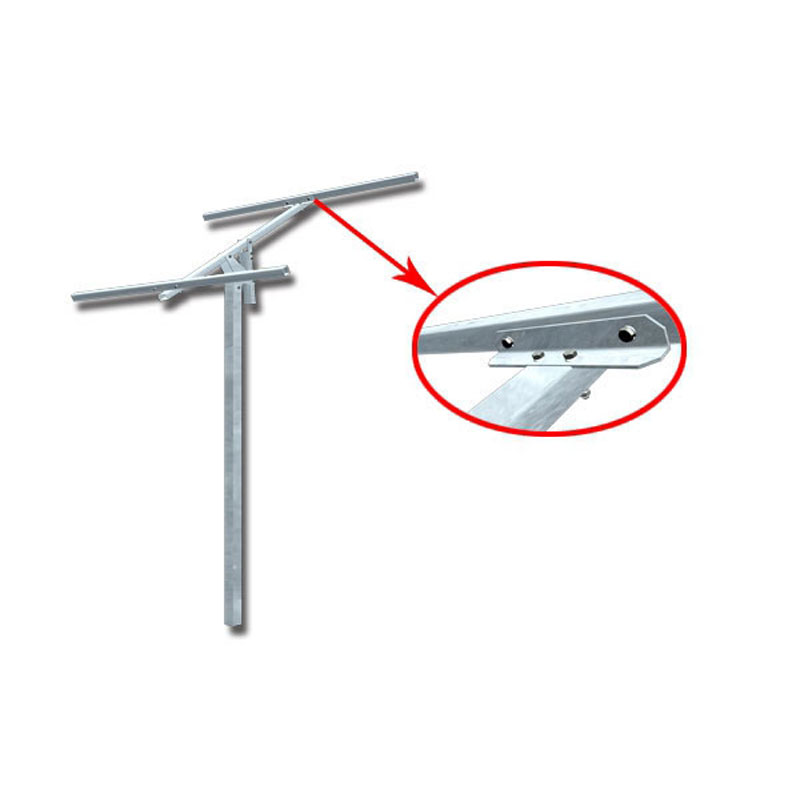

Solar Pole Mounting Systems Installation Components
| Brief Descriptions : | |
| Galvanized Solar Pole mounting systems for ground solar panel installation | |
| Item type: | Ground Mounting Systems |
| Technical Parameters : | |
| Type : | Pole ground solar mounting system |
| Installation Site : | Ground |
| Installation Angle : | 15° ~ 60° |
| Profile Material : | AL 6005 – T5 ( Anodized ) / Q235B (Hot-Dip Galvanized) |
| Fasten Parts : | Aluminum / Stainless Steel |
| Small Components : | AL 6005 – T5 ( Anodized ) |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, unframed |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
