The Solar Railless Clamp is exclusively designed helps to mount the solar systems on rooftop. In adittion, the clamp is designed to catch the standing seams effectively with ease. And our rail clamp offer a secure fastening without penetrating the roof sheets with maximum stability and minimum weight.
The features of the Solar Rail less Clamp
- No penetrating
- Rail less for landscape placement
- Exclusively designed to catch roof seam effectively
- Suitable for large scale industrial and commercial metal rooftops,
- Fast mounting, install without pierce of roof surface;
- Al6005-T5 aluminum in material, reduce roof weight loading;
- Anti corrosive with anodized fine finishing
Railless rooftop clamp 100mm or 140mm is utilized in the following areas:
Small Commercial (0 – 50kW)
Large Commercial
Besides, this Solar Rail less Clamps designed for PV mounting on Kliplock 700 roof sheeting. It is an easy-to-install clamp that securely attaches to the roof sheeting without the need for rails.

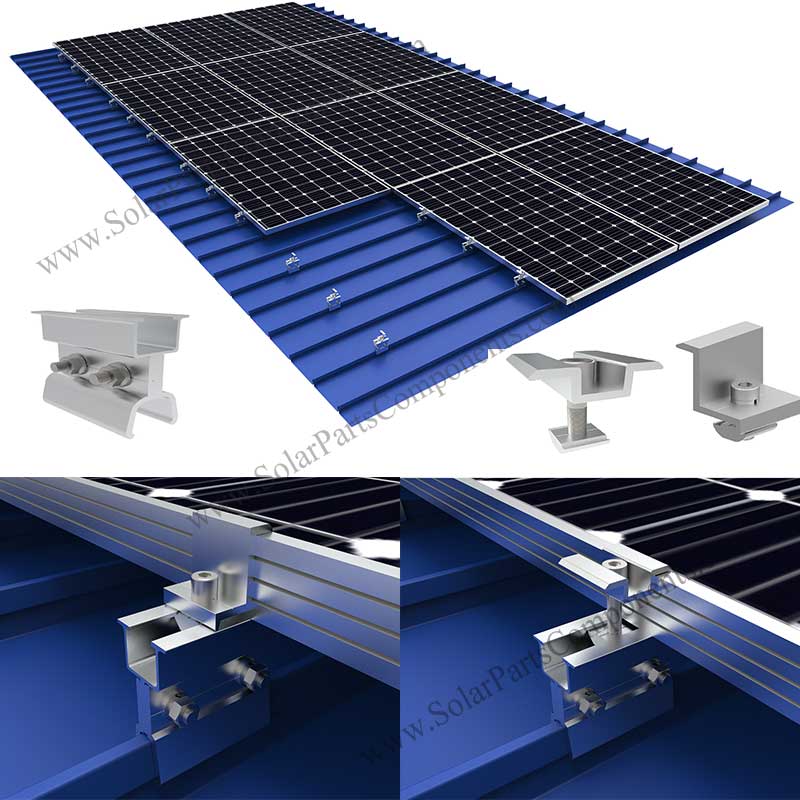

Finally, only three components are required to install the modules directly to the roof. A base mounting clip is 100mm or 140mm long, therefore easy to carry and attach to almost all trapezoidal sandwich roofs. Railless mounting system allow for easy logistics, cost-effective warehousing and easy mounting.
OEM rail-less standing seam clamp designing is workable, please let us know your standing seam sheet details if you need OEM design
Technical Parameters For This aluminum Solar Rail less Clamp
| Brief Descriptions: | |
| Solar standing seam roof clamp –Railless clamp | |
| Item type: | Solar Metal Roof mounting |
| Type: | SPC-CK-12 |
| Installation Site: | Metal Roofing 0-60 degrees |
| Profile Material: | Aluminum |
| Fasten Parts | Stainless Steel / Aluminum T Sliding Nut |
| Color: | Anodized Silvery |
| PV Modules: | Frameless or Framed |
| Wind Load: | 60m/s |
| Snow Load: | 1.4KN/M2 |
| Modules Orientation: | Landscape/Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Welcome get more details from www.SolarPartsComponents.com for this rail less clamp solar mounting system .
