Non-adjustable, Bottom Mounted Solar Panel Hooks for Roman / clay / Spanish / Curved tile roofing
180° Curved Tile Roof Hook Arm – 133 mm Height, non-adjustable range, kit with proper screws, nuts and slots for Roman / Clay / Spanish / curved tile roofing .
Model : SPC-Tile-Hooks-CNB001
Item : Solar Panel Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS304 Stainless Steel;
Total Size : 180 mm ( Width) X 165mm ( Deepth ) X 133 (Height) /
7 7/16″ (W) × 6 1/2″ (D) × 5 1/4″ (H) ;
Bottom End to Top End : 133 mm ;
Thickness : 5 mm ;
Rail Slot Size : 9.0 mm X 47 mm ;
Matched Bolt & Nut Size:
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 30 mm x 1 unit;
2) M8×13 Ribbed Lock washers (SUS304) x 1 ;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T sliding nut ;
Base Plate Size : 180 mm X 50 mm X 5 ± 1.0 mm ;
Mounting Screw Slots Size : 7.5mm X 13.5mm & Φ 7.5 mm Cross Arrangement ;
Matched Screw Size: Hex Washer Head solar mounting screws 6.3 mm (1/4″) x 80mm ( 3 1/4” ) ;
Weight : 744 (g) / 1.64 (lb) ;
Packing : 30 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″

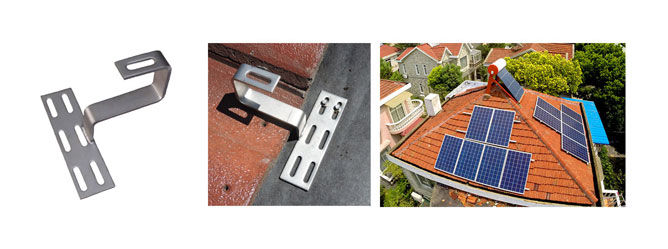

This fixed Hook SPC-Tile-Hooks-CNB001#4 is perfect for installing on Roman / Spanish / Clay / Curved tile roofing surfaces .
Our Solar Parts & Components QC Team
stictly test following parameters of this tile roof mounting hooks for solar panels SPC-Tile-Hooks-CNB001 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
