Solar Roof Mounting Systems
- Product Type: Rooftop Mounting Systems With Tile Bracket
- Product Model:SPC-RF-IK05-DR
- Material: Aluminium, Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Slope Tile Roofing
Product Description:

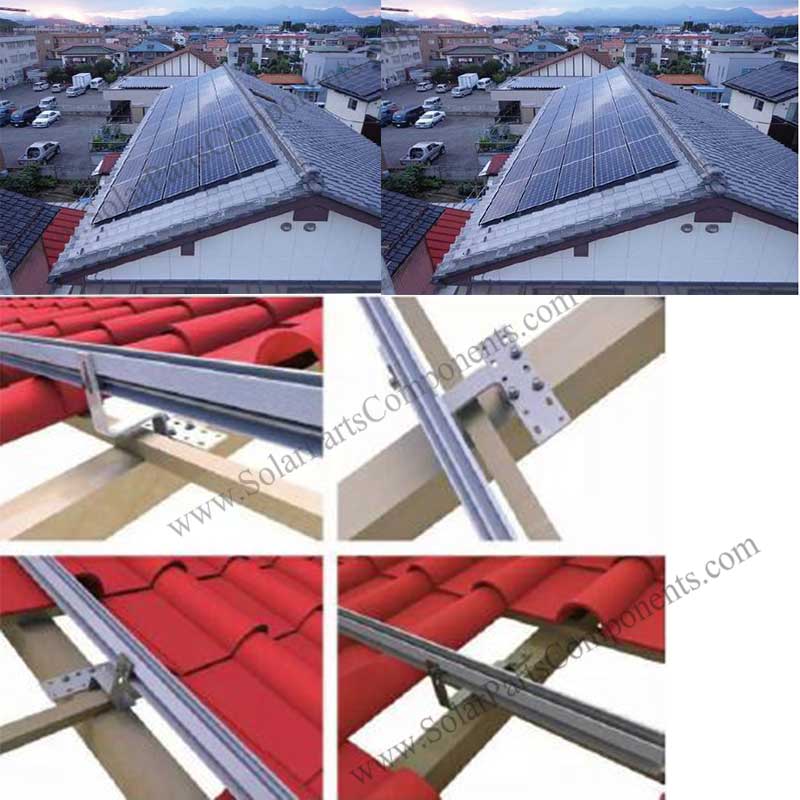

By using tile brackets on roof, solar panels can be mounted on slope tile roofs securely.
The solar racking system (SPC-RF-IK05-DR) is designed for landscape array pv modules with our adjustable tile hooks.
Around 1″-1 1/2″ height adjustable can help keeping whole mounting system in horizontal level,even the rafters are not parallelly array.
feature of this solar roof rack with tile brackets SPC-RF-IK05-DR:
- Vertically adjustable tile hook;
- Cost effective mounting solution;
- SUS 304 / A2 stainless steel & 6005-T5 Alum Structure;
- Anti-corrosive treatment;
- Matched fasteners and parts for choosing;
Parts and Components for solar roof mounting systems, SPC-RF-IK05-DR:
– A2 Tile hook (Model:SPC-IK-05);
– Lag screws / washers / bolts / nut;
– Aluminum Rails;
– External / Internal clamps;
– Flashing plate is optional for water leaking prevention;
Installation procedures for this solar roof rack system with tile bracket:
– Mount tile bracket on wood rafters;
– Fasten with timber screws;
– Fixed aluminum rails on arm of roof hooks;
– Level Adjustment;
– Flashing over the base of tile hooks;
– Fix pv modules on anuminum rails with mid / end clamps;
Pre-assembly packing for our roof mounting kits can save freight / labor / budget cost.
This SPC solar racking system can be mounted with framed or frameless modules to pitched roofing.
Welcome to select more types of pv module racking kits with brackets for your different tile roofs from www.SolarPartsComponents.com
| Brief Descriptions: | |
| Solar roof rack with tile brackets | |
| Item type: | Solar Rooftop Tile Racking |
| Type: | SPC-RF-IK05-DR |
| Installation Site: | Tile Roofing 0 °~ 60° |
| Profile Material: | A2 Stainless Steel, Aluminum Rail |
| Fasten Parts: | Stainless Steel / Aluminum T Sliding Nut |
| Color: | Anodized Silvery |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
Installation Manual for Solar Roof Mounts SPC-RF-IK05-DR
Inquiry of Solar Roof Mounting Systems
A:
Nice to receive your inquiry about our Solar Roof Mounting Systems.
But unfortunately I could not get enough information from your side .
Is there more data like drawings, budget … available for this project ?
Such as following details may favorable for me :
- The dimension of the solar panel: ___________ mm (L*W*T)
- What’s the roof type panel mounted :Tin/Tile/Slate/Shingle(material)
- How about the panel array: __________
- Are there special requirements of wind speed and snow pressure ?
__ m/s anit-wind speed and____KN/m2 snow load.
Looking for your more details and reply .
Thank you !
Q:
PSE SEE MY REPLY BELOW:
Is there more data like drawings, budget … available for this project ? NO BUT MAY BE I CAN PROVIDE PHOTO…BUDGET – NO SPECIFIC
Such as following details may favorable for me :
- The dimension of the solar panel: ___________ mm (L*W*T) 192X92X2 CM BUT PSE USE YOUR STANDARD SIZE
- What’s the roof type panel mounted :Tin/Tile/Slate/Shingle(material) ENFORCED WOOD WITH PROTECTIVE LAYER ON TOP
- How about the panel array: __________ 500 SQUARE METER
- Are there special requirements of wind speed and snow pressure ? NO – THE BUILDING IS NEW AND BUILT IN ACC. WITH SWEDISH VERY FIRM REGULATIONS
__ m/s anit-wind speed and____KN/m2 snow load. NOT RELEVANT
HOPE YOU GOT ENOUGH INFO BUT PSE DO NOT HESITATE TO ASK MORE !!
A:
Continue last email reply .
My engineer send me photos of one our wood roof mounting type for your reference .
He need your roof size and profile detail of your farmhouse, so that he can design according it .
Q:
Thank you for your help!
