Solar panel tile hooks SPC-Tile-Hooks-001C, super sturdy to support clay tile roofing structure .
90° Clay Tile Roof Hook Arm – 166 mm Height, non-adjustable range, kit with proper screws, nuts and slots for Clay / Spanish /
Roman / curved tile roofing .
Model : SPC-Tile-Hooks-001C
Item : Solar Tile Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS 304 Stainless Steel ;
Total Size : 180 mm ( Long) × 156.5 mm ( Deepth) × 166 (Height) /
7 1/16″ (L) × 6 3/16″ (D) × 6 9/16″ (H) ;
Bottom End to Top End : 166 mm ( 6 9/16 Inch) ;
Thickness : 5 mm ;
Rail Slot Size : 10 mm × 47 mm ( 3/8″ ×1 7/8″ );
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 25 mm x 1 unit;

2) M8 x 13 Ribbed Lock washers ( SUS304 ) x 1 unit;

3) D8 spring SUS 304 washer x 1 units ;

4) M8 T Sliding Nut x 1 unit ;
Base Plate Size : 180 mm X 50 mm X 5 mm ( 7 1/16″ × 2″ × 3/16″ ) ;
Mounting Screw Slots Size : 7.5mm X 37mm (6 holes per plate, 2 R X 3 C matrix) Arrangement ;
Matched Screw Size: Hex Washer Head timber screws 6.3 mm (1/4″) x 80 mm ( 3 1/8” ) ;

Weight : 656 (g) / 1.45 (lb) ;
Packing : 60 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″
The Solar Tile Hook Model SPC-Tile-Hooks-001C is an stainless steel bracket fixed roof support used for curved caly roofing .
Our Solar Parts & Components QC Team
stictly test following parameters of this clay tile hooks SPC-Tile-Hooks-001C item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
More models of our solar panel roof hooks & brackets are available in www.SolarPartsComponents.com

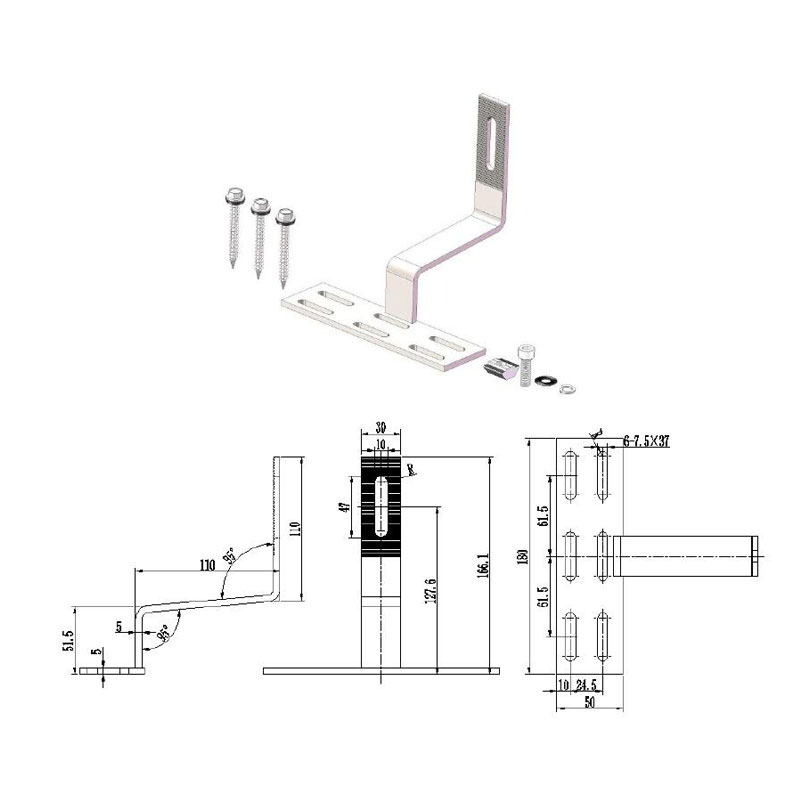

SUS 304 Solar side mounting tile roof hooks drawing, sizes, profile for Clay / Roman /Spanish / Curved tile roofing .
