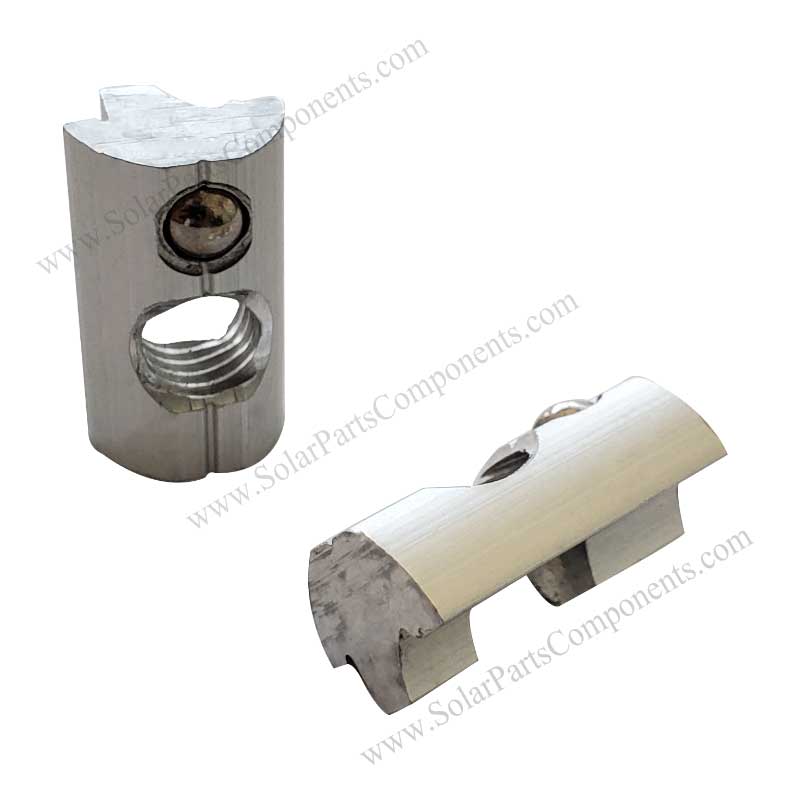

SOLAR SLIDING NUT M8 WITH SPRING BALL
- Product Type: PV Mounting Nut
- Product Model: SPC-M8-Slid-Nut
- Material: Aluminium, Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: Solar Rails
Product Description:
Solar sliding nut M8 with ball is a fasten accessory for PV module installation sliding in aluminum alloy rail.
The roll-in ball with spring loaded can help these nuts stop in any position of rail grooves. This sliding slot nut with spring ball is designed for M8 PV aluminum groove profiles. What ever upper channel or side channel of the mounting rails.

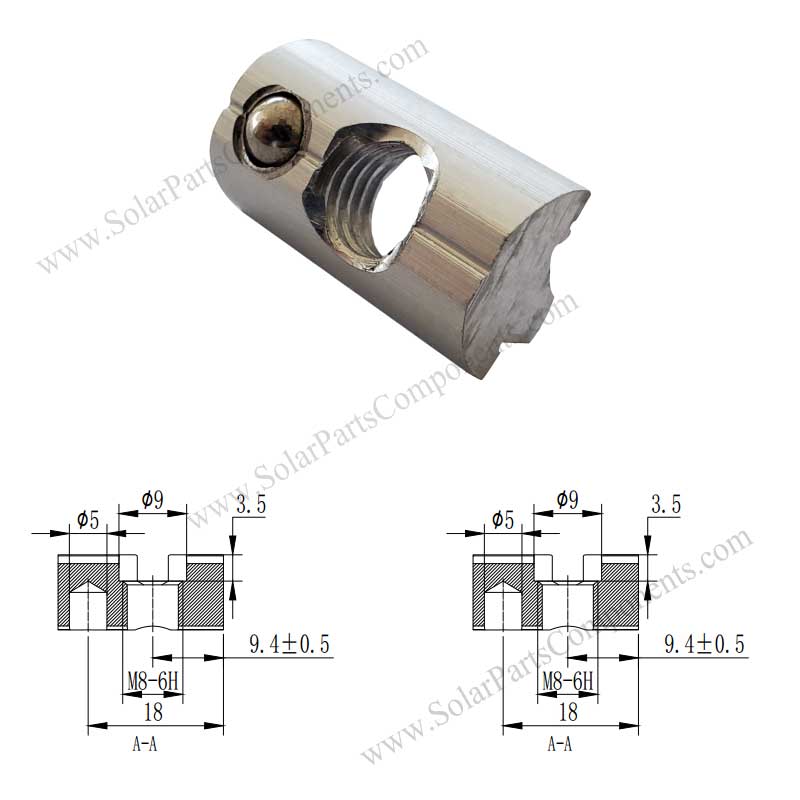

The main body of this nut is made of good quality aluminum(EN AW-6061), the ball and spring inside is made of stainless steel, this M8 sliding nut can offer great stability and long life-span for photovoltaic racking system.

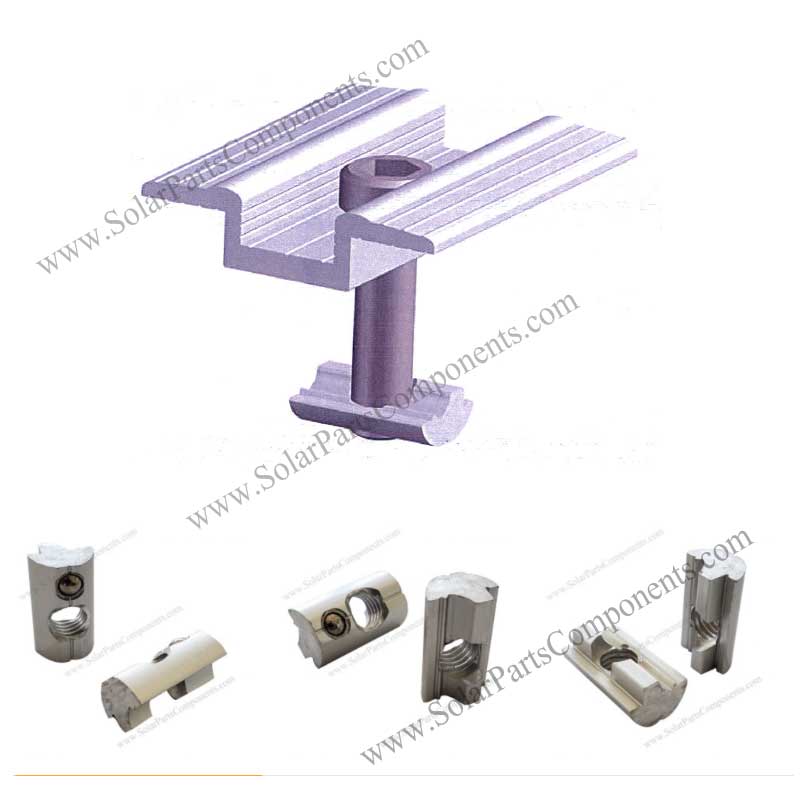

These balled M8 sliding nuts are used together with solar alluminum mount rail clamps.
Features of this sliding nuts M8 with ball for solar mounts:
(1) Corrosion resistance;
(2) Weight: 0.005 KGS;
(3) Individual connection for rails;
(4) Spring ball T Nut ALU 6005-T5 made;
(5) Tightening torque: 15Nm;
(6) Easy to push into rail profil with M8 screw thread sliding Block;
(7) Good hold with mechanics design of spring ball;
Besides M8 bolt size, M4 / M5 / M6 … T slot nuts are also available for these sliding nuts M8 with ball for solar mounts.
More than 10 years experience in the field of solar photovoltaic and pv panels mounting components and installation system.
Welcome to get more details of this Solar Energy Accessories – sliding nut M8 with ball for solar rails from our website:www.SolarPartsComponents.com.
| Brief Descriptions: | |
| Solar Mounting Components – sliding nuts M8 with ball | |
| Item type: | PV mounting slip nut component |
| Type: | Sliding clamp for Rack Mount |
| Installation Site: | PV panel aluminum rails |
| Profile Material: | Aluminum Alloy |
| Color: | Anodized |
| PV Modules: | Framed / Frameless |
| Module Orientation: | Landscape and Portrait |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |

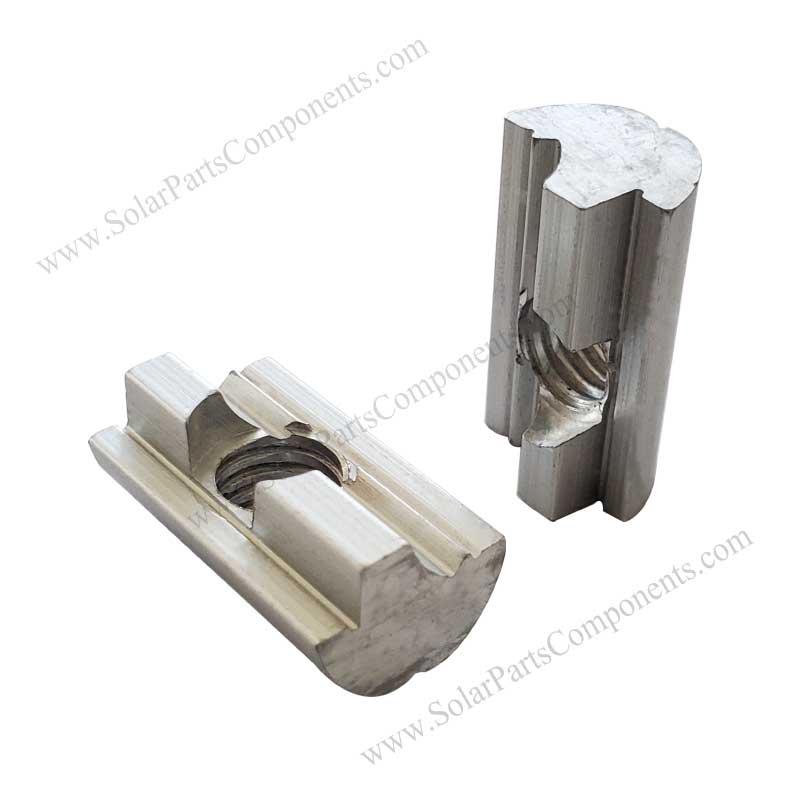

Solar sliding nut M8 with spring ball
This solar sliding nut M8 with ball is mostly used for 20/30/40/45 series construction rails.

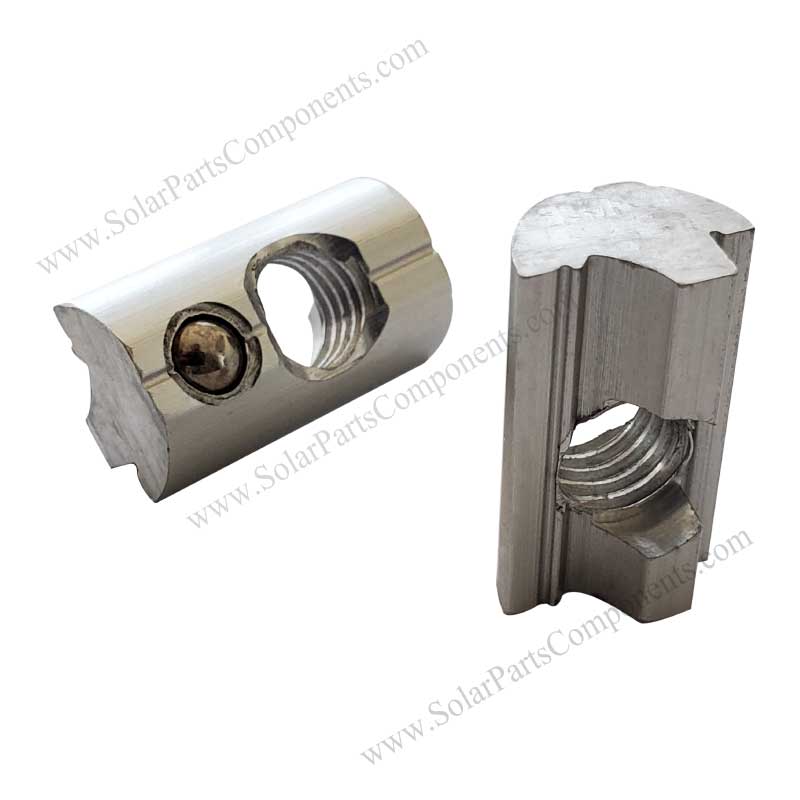

Solar sliding nut M8 with spring ball
High quality aluminum material with anodized, long life service.
Manufacture factory direct, we can accept custimized.
This solar T slot nut M8 is one of the most popular rail nut for solar installers. Light weight material, easy and fast for installation. The spring-loaded ball can prevent unwanted movement of the nut in the slot, so that the solar sliding nut can be inserted in vertical position, as it will not slide from gravity.

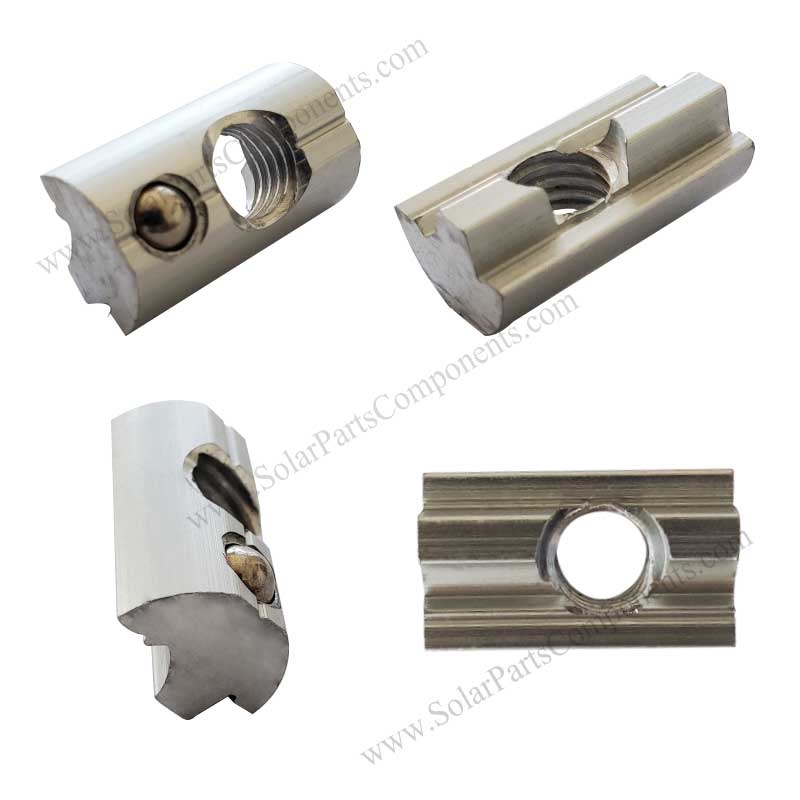

Solar sliding nut M8 with spring ball supplier
It makes solar mounting more easy and more cost-effective.
Welcome contact us for more detail for solar T solt nuts

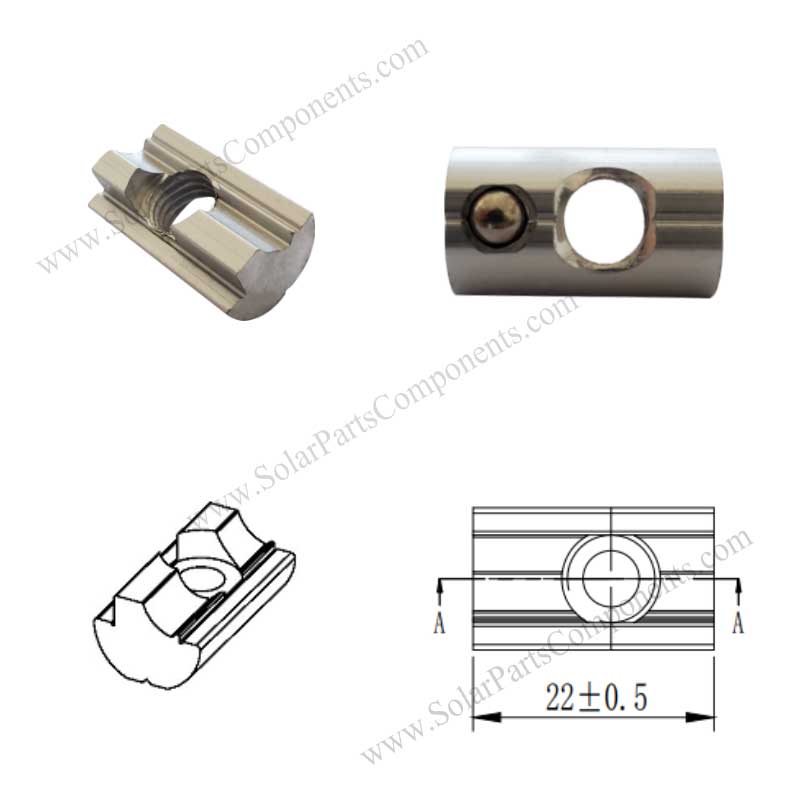

Solar sliding nut with ball factory
Q:
Hi, do you sell solar sliding nut with ball M8?
A:
Yes, may I know how many do you need?
solar sliding nut with ball factory
Q:
Great, that is what I need, can I get a trail order for 10,000 first.
If yes, please quote me with ship cost to Larnaca, Cyprus.
A:
Please refer to the Invoice for 10,000 sliding nuts M8 with ball for solar mounts.
Q：
Thank you, we have done the payment, hope can get them as soon as possible.
A:
Well received, thank you.
10000 pieces of sliding nut M8 with ball for solar rails have been packed,
will be shipped today.
solar sliding nut with ball factory
Solar sliding nuts with ball manufacture factory OEM/ODM
“Hi there, we are a solar accessories distibutor in Europe.
We are interested in your solar sliding nuts with spring ball.
We need big quantity per years.
Could you please quote us 100,000 pieces for each M6 and M8 of this T slot nut with ball.
Thank you
Philip”
Solar sliding nuts with ball manufacture factory
“Hi Philip, thank you for your email.
Yes, we are solar sliding nuts with ball manufacture factory OEM/ODM.
We also accept customized according to our client’s request.
Our factory carry some types with different sizes for the sliding T slot nuts.
T slot nuts for solar mounting:
Size:M4/M5/M6/M8 for 10/20/30/40/45 series…
Material:AL6005-T5+SUS304 spring ball
Fast and easy for installation.The T slot nut have a spring-loaded mechanism which is allowed to be inserted into the extruded aluminum frame and then locked into place with a simple twist.
I have sent out price details for 100,000 pieces for each M6 and M8 of this T slot nut with ball to your email.
Any comments please let us know.”
“They look great,thank you very much.
Let’s proceed this order.”
