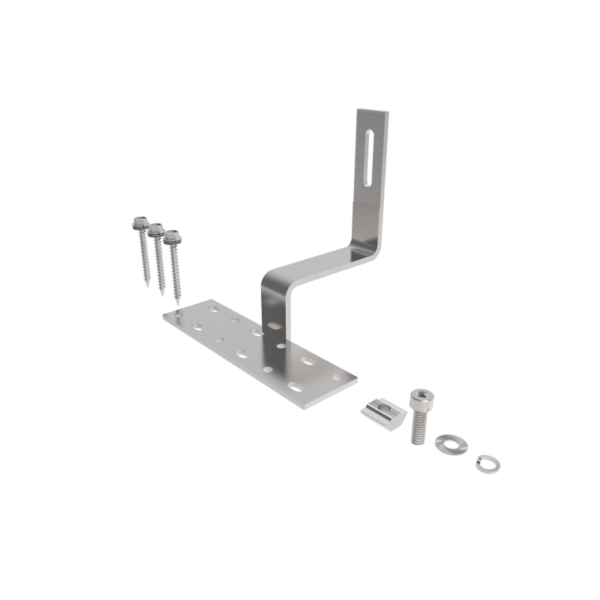

Solar panel tile hooks SPC-Tile-Hooks-001, super sturdy to support curved tile roofing structure .
Item : Solar Tile Roof mount Hooks ;
Finishing : Sandblasting;
Material : SUS 304 ;

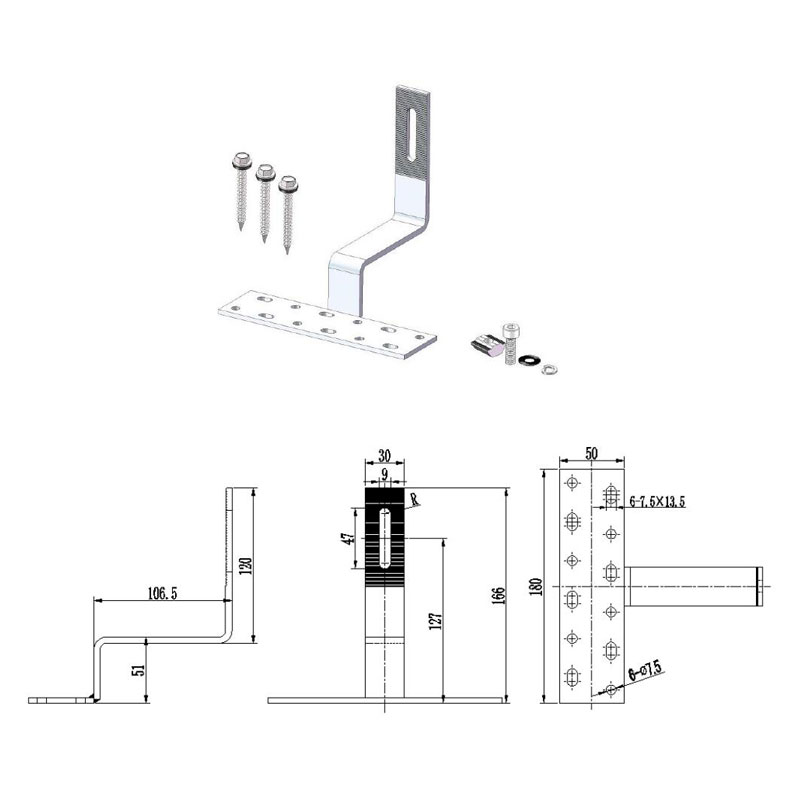

Total Size : 180 mm ( Long) × 156.5 mm ( Deepth) × 166 (Height) /
7 1/16″ (L) × 6 3/16″ (D) × 6 9/16″ (H) ;
Bottom End to Top End : 166 mm ( 6 9/16 Inch) ;
Thickness : 5 mm ;
Rail Slot Size : 9 mm × 47 mm ( 3/8″ ×1 7/8″ );
Matched Bolt & Nut Size:
Inner Hex Head Allen Bolt M 8 mm X 25 mm ( SUS 304);

M 8 T sliding nuts ;
M 8×13 Ribbed Lock washers ( SUS 304 ) x 1 ;

D8 Spring washers ( SUS 304 ) x 1;

Base Plate Size : 180 mm X 50 mm X 5 mm ( 7 1/16″ × 2″ × 3/16″ ) ;
Mounting Screw Slots Size : 7.5mm X 13.5mm (6 holes per plate) & Φ 7.5 mm ( 6 holes per plate). Cross Arrangement ;
Matched Screw Size: Hex Washer Head timber screws 6.3 mm (1/4″) x 80 mm ( 3 1/8” ) ;

Weight : 666 (g) / 1.47 (lb) ;
Packing : 60 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″
The Solar Spanish Tile Hook Model SPC-Tile-Hooks-001 is an stainless steel bracket fixed roof support used for curved Spanish roofing .
Our Solar Parts & Components QC Team
stictly test following parameters of this curved spanish tile hooks SPC-Tile-Hooks-001 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
