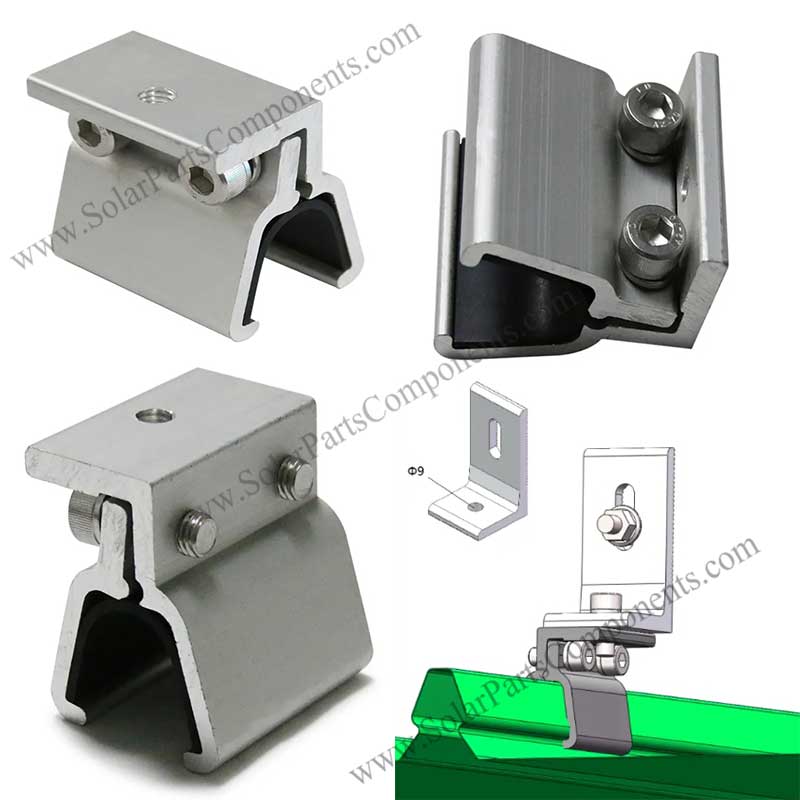

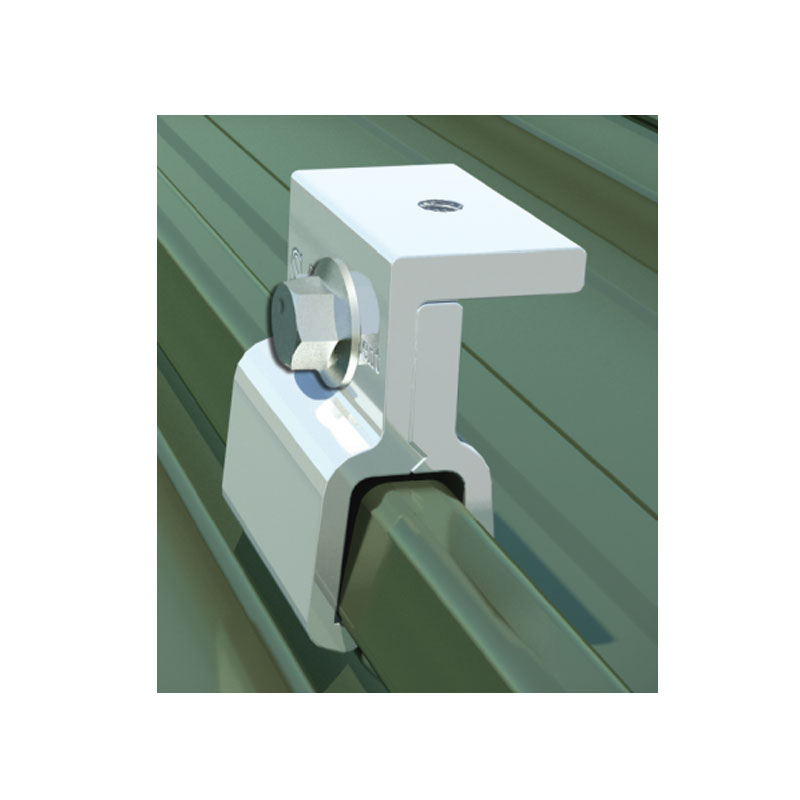

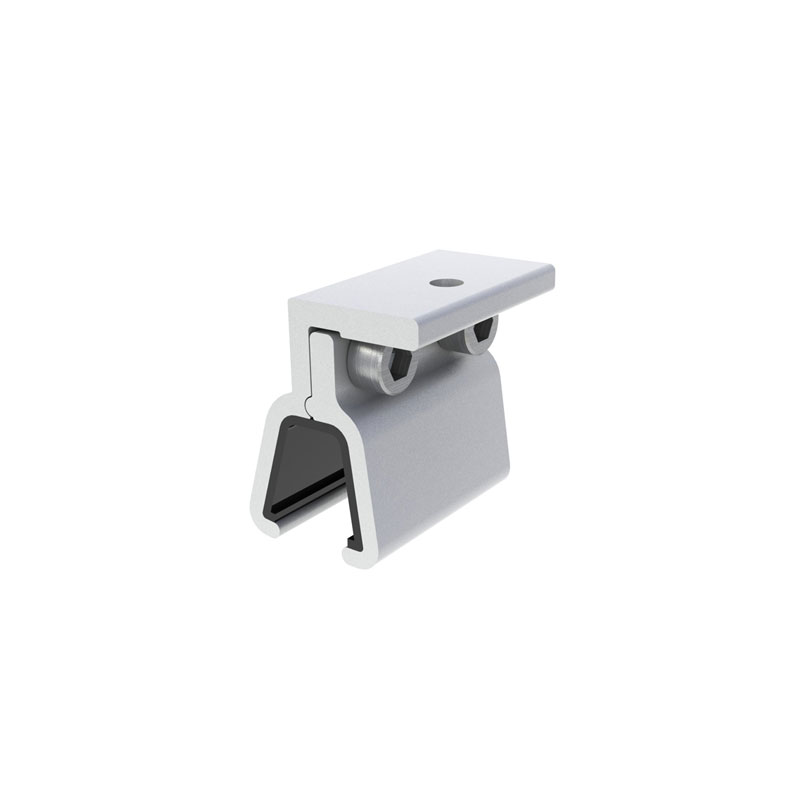

Standing Seam Metal Roofing Clamps SPC-CK-13
- Product Type: solar metal roofing mount clamps
- Product Model: standing-seam-metal-roofing-clamps-brackets-spc-ck-13
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Seam Profile Metal Roofing Solar Panels Installation
Product Description :
By using our ready-made solar standing seam clamps model : SPC-CK-13, it is a good complete solution for metal roofing.
Without penetrating metal roofing, our seam clamps model SPC-CK-13 can be quickly mounted with less other components .
This solar mounting kits for standing seam metal roofing includes: alum rails, jumper strip for bonding rails, standing seam brackets SPC-CK-13, L feet , clamps, hex nuts and screws .
Our standing seam metal roofing clamps -SPC-CK-13 is innovative , no needed drilling, strengthful in structure .
Our default finishing for this solar panel standing seam metal clamp SPC-CK-13 is milling silvery .

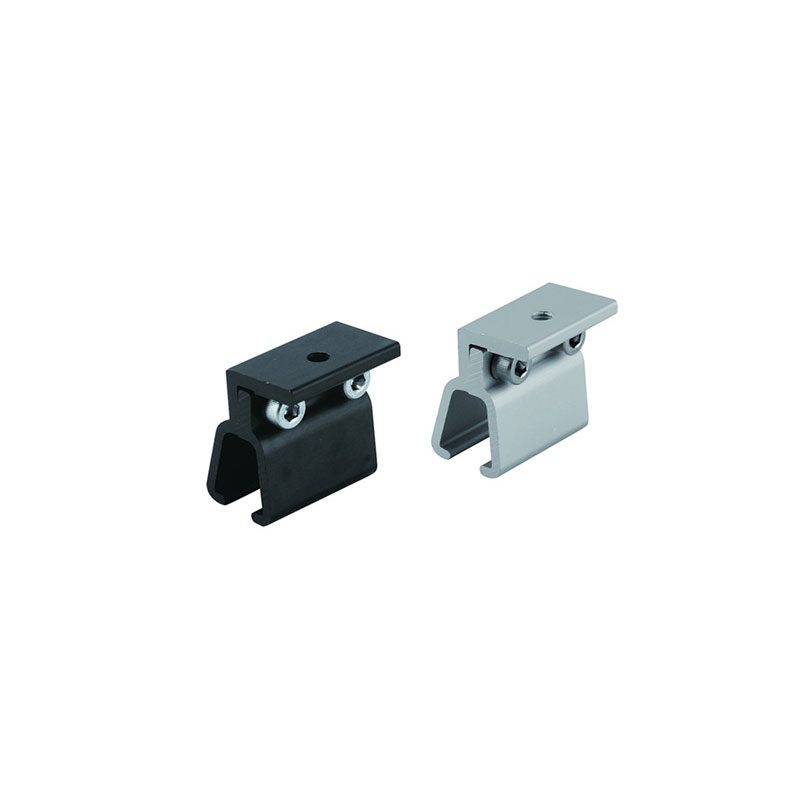

Black color is also available if requiried for specified solar project .
This standing seam metal roof clamp for solar panel mounting system features simple installing and cost-effective .
Advantages :
(1) Our solar standing seam clamps model SPC-001 is fast and easy for installation ;
(2) This standing seam bracket is competitive in cost and you don’t need ballast base for installing .
(3) No damaging or piercing roof seams ;
(4) Mill or black finish, customized color available for matching metal roof system .
Parts and Components for Standing Seam Metal Roofing SPC-CK-13 :
(a) AL 6005 – T5 aluminum seam clamp ;
(b) two sets of SUS 304 Hex bolts, nuts and washer .
This solar panel standing seam clamps model SPC-CK-13 connect metal roofing and aluminum rails directly without drilling, save installation cost .
Click here for more details:
| Brief Descriptions : | |
| Solar Mounting Clamps and Brackets Model SPC-001 for Standing Seam Metal Roof | |
| Item type: | SPC-CK-13 |
| Type : | Solar Roofing Mounting Clamps |
| Installation Site : | Standing Seam Metal Roof |
| Profile Material : | Aluminium 6005- T5+ SUS 304 |
| Fasten Parts : | Stainless Steel |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Inquiry of Solar Standing Seam Metal Roofing Clamps
Solar Standing Seam Metal Roofing Clamps is a perfect choice for metal roof.
Q: Good Morning,
where can i buy some of your Solar Standing Seam Metal Roofing Clamps? I live in Canada.
Cheers
A:
Nice to receive inquiry about our solar mounting clamps SPC-001.
Before Quotation , can I know following details :
(1) How much Quantity you would need ?
(2) What’s the delivery address ? I will cacualte freight cost for you .
(3) What’s the PM module specification ? If you would share me more details of your mounting project that would be great .
(4) Can you send me photos / profile / drawing of your roof tops ? I want to make sure our clamp SPC-001 can fit your roof well .
(5) Do you also need mid / end clamps too ?
Q:
Good Morning,
If they do the job properly I could be looking at ordering a large, dependant on price.
The roof is the snap lock material from Westform metals out of Vancouver,
Mid-end clamps, not at the moment, but for future use, yes.
This is a test module, we are trying to find the ideal clamp for installing panels without penetrating the metal roofs.
A:
OK, I got it.
Solar Standing Seam Metal Roofing Clamp
Solar Standing Seam Klip-lok mounting project
Q：
Good afternoon ,
I trust all is well
I urgently need your assistance with a project that we’re installing next week.
One of my guys was on site and though that the roof was IBR, so we were planning on doing a 10-degree North tilt on the panels (roof angle is 10-degree east).
When our main installer went to do the final site visit last week, he advised that the roof is Klip-lok mounting and not IBR.
Can you please advise regarding the possibility of doing a 10-degree North tilt on Klip-lok mounting with the roof angle being 10-degree East.
- 143d North Rand Rd, Beyers Park, Boksburg, 1459
136 Panels (17 Panels per string): Specsheet attached
Roof angle is East, and we would like to tilt the panels 10-degrees north.
Klip-lok mounting- ayout
A：
Dear Hardus,
Thank you for your inquiry,
Attached our design for your reference at first.
Klip-lok with triangle mounting
For this Klip-lok mounting, we have long-term stock, and if you think it is feasible, we can support you to ship it next week and assist you in installing this project.
Thanks with best regards,
Solar Standing Seam Metal Roofing Clamps
Q:
I am from Sun Electricity, nice to meet you.
I got your contact from Gonzalo Navarro on his visit at Shanghai PV Expo.
We have a request for rooftop solar structures and we would like to consider a commercial proposal from your side in FOB conditions.
The main features are the following:
Installation on Sandwich panel rooftop
Power Plant: 1.5-2 MWp
Solar module dimensions: 1.956×0.992m (HeightxWide). Tilt: 20
Configurations: Please consider the following options so we can evaluate different alternatives.
Portrait 1V: (Tables of 1×20 modules)à Number of tables: 295 Tables.
Portrait 2V: (Tables of 2×10 modules)à Number of tables: 295 Tables.
Landscape: 4H (Tables of 4×5 modules)à Number of tables: 295 Tables.
Do not hesitate to contact us if you need any extra info.
Thank you very much.
A:
I am very appreciated Gonzalo Navarro ‘s introduction .
Nice to know you and recieve enquiry about your coming Sandwich panel roof top project .

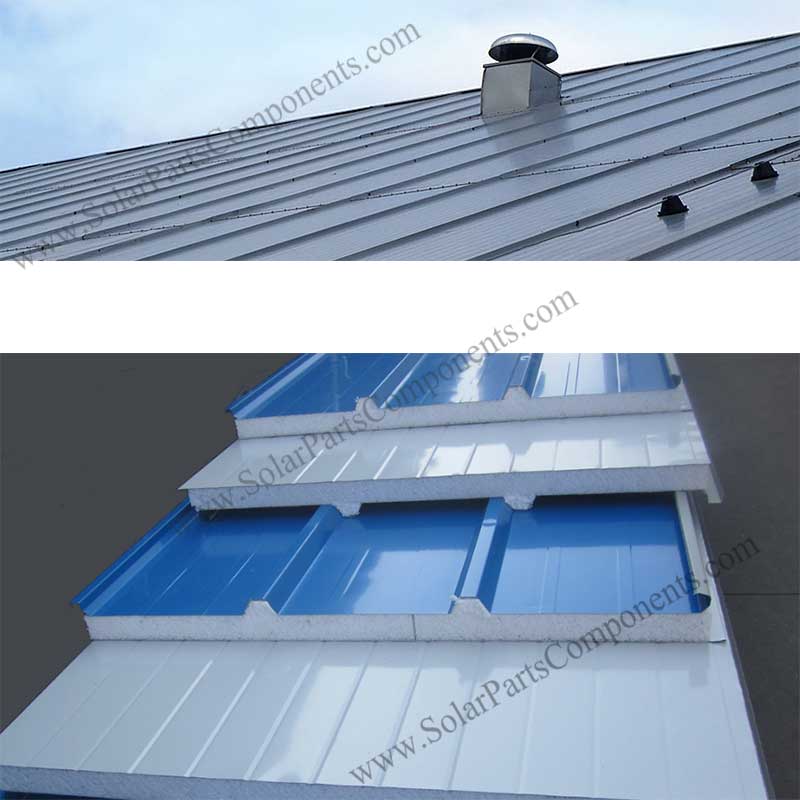

(1)First of all I would make sure ” sandwich panel rooftop ” is also call metal roof top as following :
Solar Metal Roofing Clamps
Solar Standing Seam Metal Roofing Clamps
(2)Since we have several types of clamps for sandwich panel rooftop, can you let me know your profile ?
Sizes, photos,drawing … would be great .
(3)Following is one of our mounting structures for your reference :
I am not sure it can meet your requirement , ” Tilt: 20 degree ” .
If you have any current ready installation details, please send me more details.
I will check it and come back to you proper solution and fob price offer soon. .
Thank you & look forward for early reply!
Q:
Thanks for your reply,
Concerning your queries you have pointed previously:
(1)- That is correct. Metal rooftop is the same rooftop topology as sándwich panel.
(2)- I send you some sample photos of Antaisolar Solution for this kind of roofs. With this structure it is posible to adjust the tilt or inclination of the solar panels.
Could you send us the quoation in yuans?
For any further questions do not hesitate to contact me.
Thank you!.

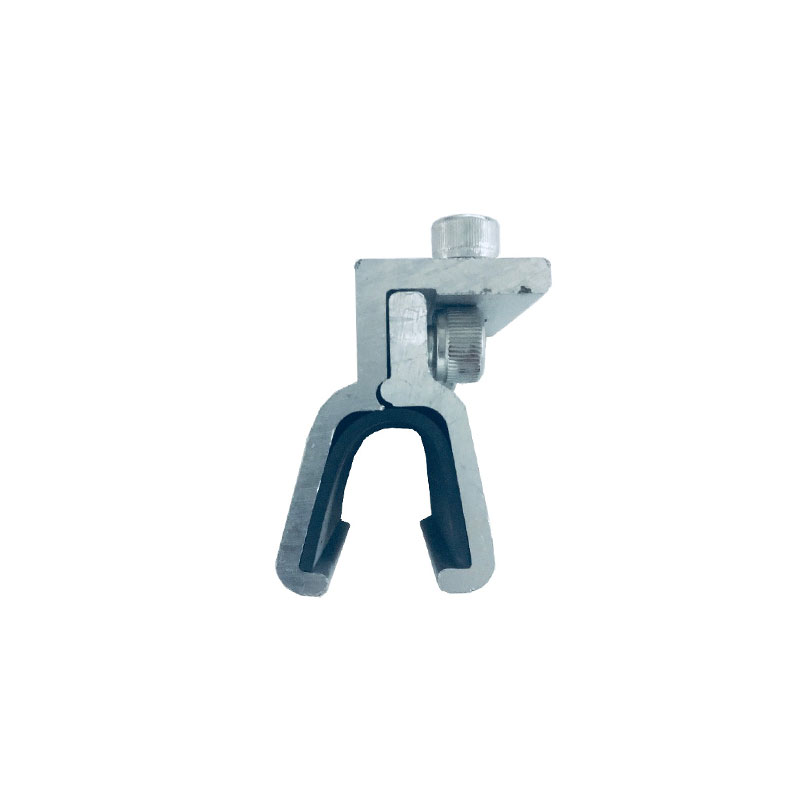

Improved solar clamp for klip lok roofing with our SPC-001 model
Our solar clamps are Aluminum 6005-T5 low profile in material and SUS304 bolts and caps .
Features of this Klip-Lok standing seam metal roof clamps :
– More simple structure than our SPC-004 model ;
– Non-penetrating and prevent damaging roof surface ;
– EPDM rubber protection inside clamp ;
– Can fit flush and slope solar panel installation with our 001 klip lok clamp ;
– Simple & quaick installation ;
More customized solar clamps are available for different metal roof manufacturers : BLUESCOPE / LYSAGHT / STRAMIT / FIELDERS / METROLL
/ STEELINE …
Welcome to send metal sheet details, I will recommend correct clamp for you !

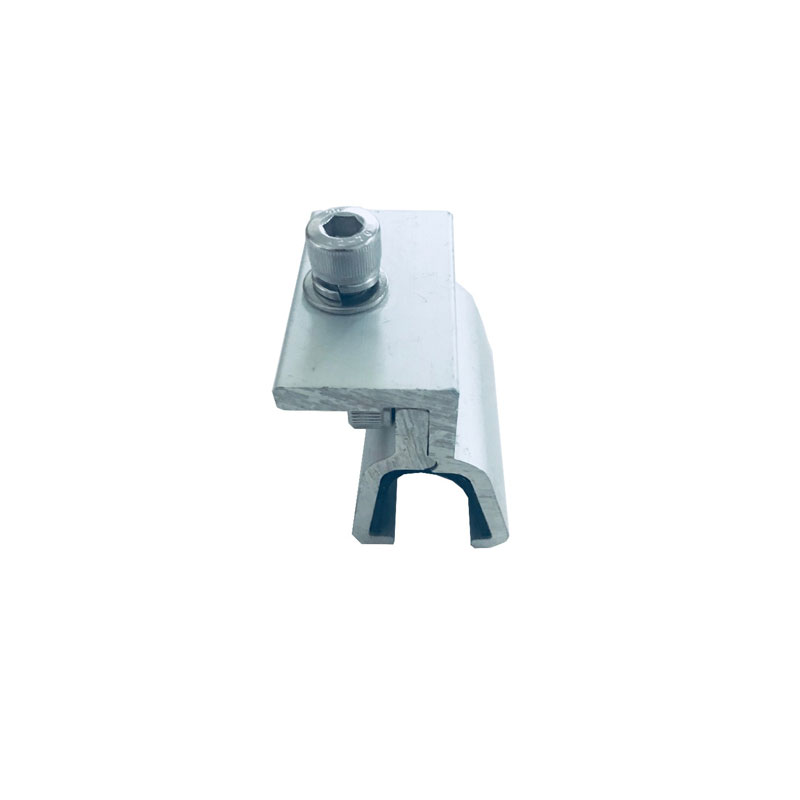

klip lok clamp SPC-001
Solar Standing Seam Metal Roofing Clamps Factory
Q:
I am trying to find out the the clamping range of Solar Standing Seam Metal Roofing Clamps SPC-CK-13 bracket. My standing seam roof has a lock profile of 7/8″ wide and 1″ tall. I need to make sure this bracket will open wide enough and clamp down on the seam to lock in the bracket.If these will work, what am I looking at for a delivery time frame to Washington state for 500 of them?
Thank you,
A:
I will order them to be delivered to:

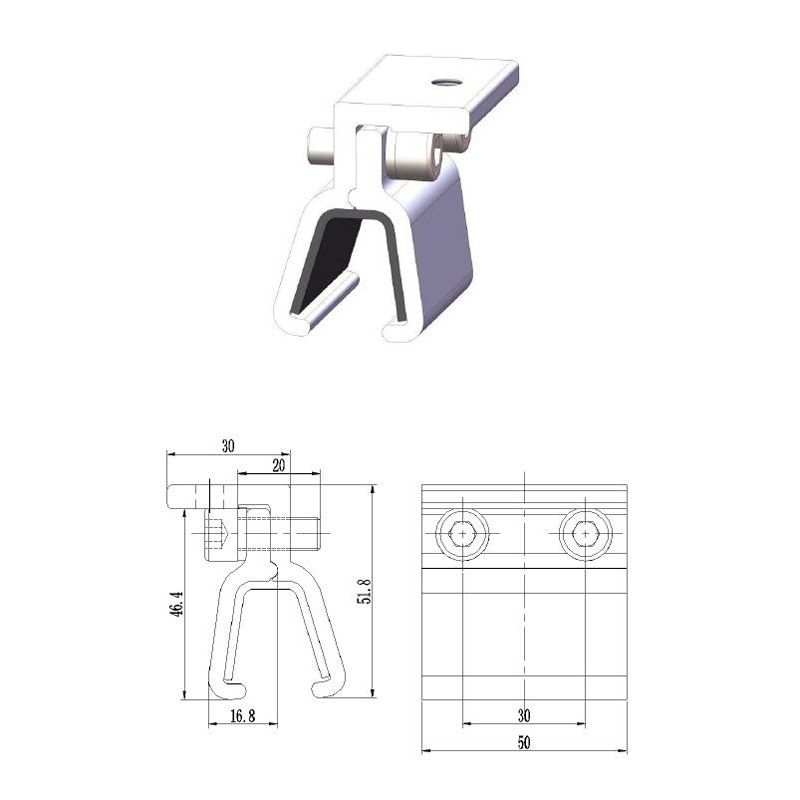

Drawing for this Solar tin Metal Roofing Clamps SPC-001
Size , profile and drawing for spc-001 tin roof sheet mounting bracket
How soon can I get 20 clamps SPC-001 ?
”
Need mounting clamps,
How soon can I get these solar clamps SPC-001 ? Price ?
PV module metal roof clamps, SPC-001
Steve
St. McDode, Tx 78650
”
”
Dear Mr. Steve
Appreciated for your inquiry about our metal roof clamps, model: SPC-001.
Base on 20 sets in quantity,
Please refer to invoice generate from PAYPAL which I sent email to you.
We can ship them 3 days against payment.
Solar Racking Parts & Components Factory
Sales Team
“
Metal Roof Mounting System with Clamps
Metal roof mounting structure with brackets
Introduction:

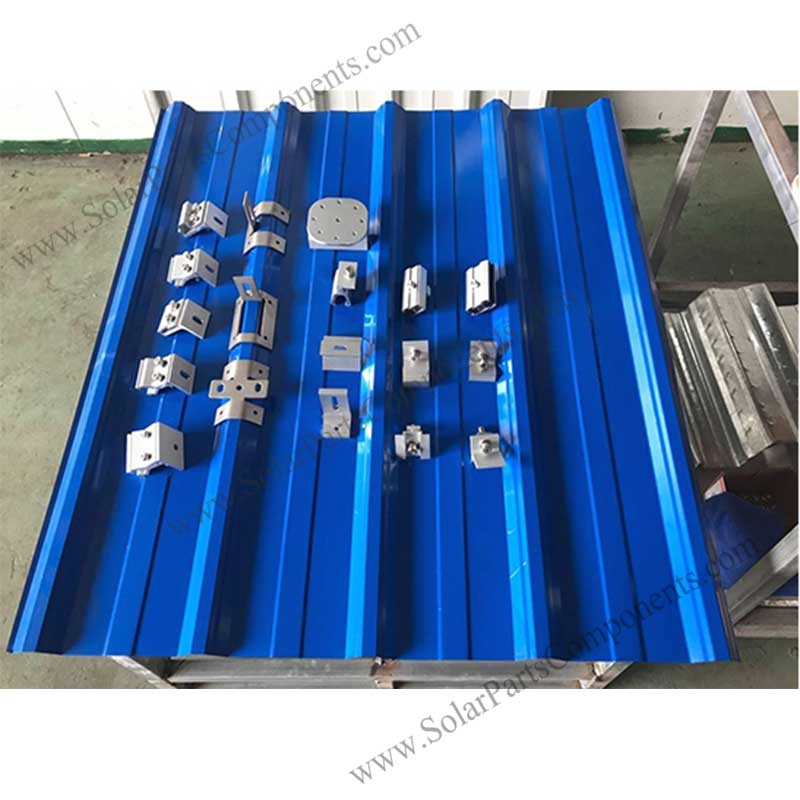

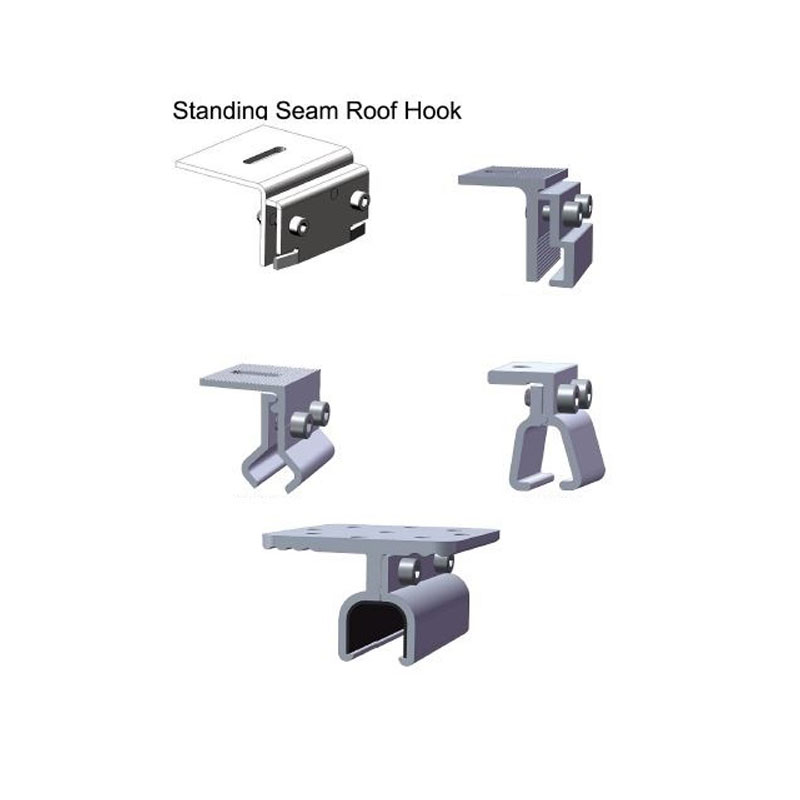

Solar Parts Components Factory carry a serial of clamps and brackets which can fix on different metal roofing
profiles .
We also can tail for installers base on special solar panel mounting requirements .
This is a kind of railess roof mounting system which can save total project cost well . PV modules are fixed directly
on our brackets without whole piece of aluminum rail .
Very easy for transportation and installing . Our solar mounting clamps can be used for both residential or
commercial tin metal roof tops .
CE / SGS material report / strength analysis report for wind speed and snow load available for evaluation .
Welcome to purchase your clamps and hooks for your flat / compose shingle / tile / seam / trapezoidal metal roofs and ground mounting system from www.SolarPartsComponents.com
