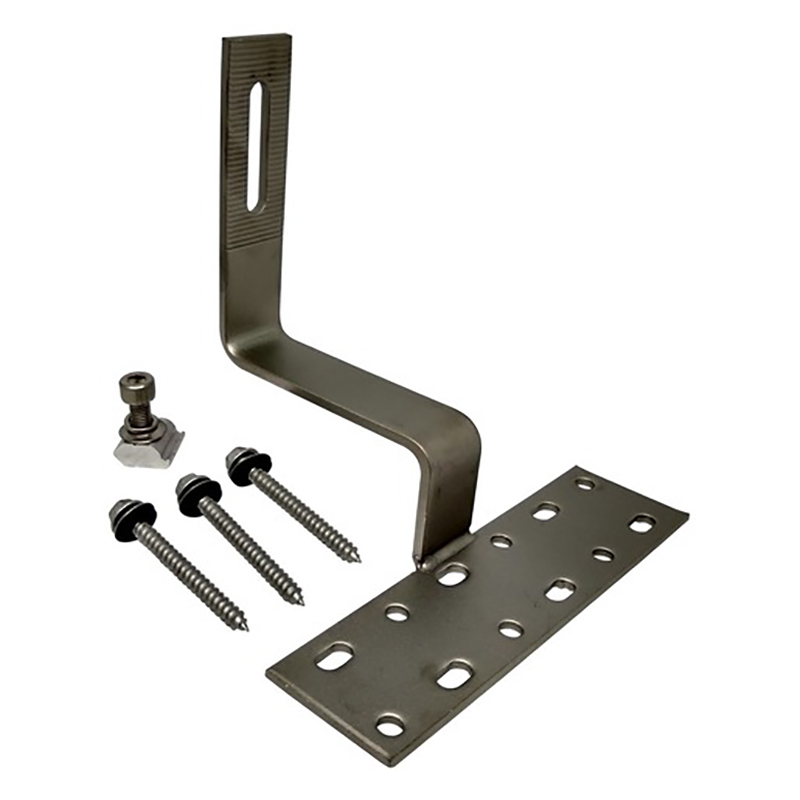

Solar tile hook mounts SPC-IK-01 are used on Roman tile roof, it is made of SUS 304 stainless steel and has strong stability. Suitable for extremely weather and framed/ frameless solar panels. Fits for portrait and landscape array. The height can be adjustable in 2 cm to work with our rails base on roofing condition. Various tile hooks are available with different roman tile roofs.Pre-assembled in our factory can save time and cost.
Features:
1. The porous design suit well to roof level deviation;
2. SUS 304 made this system has strong stability;
3. It has 10 years warranty and 25 years lifespan;
4. Max Wind Speed: <60m/s;
5.Snow Load: <1.4KN/m2.
Tile roof hook mounting SPC-IK-01 slotted connection provide vertical adjustment for array leveling. Strong design reduces the quantity of tile hooks and roof connection required. The arm of the hook is fabricated from SUS 304 Stainless Steel for maximum hardness and lowest possible thickness. Generally without cut or break of tiles to install. We also provide professional designers /sales/ after-sale team service.

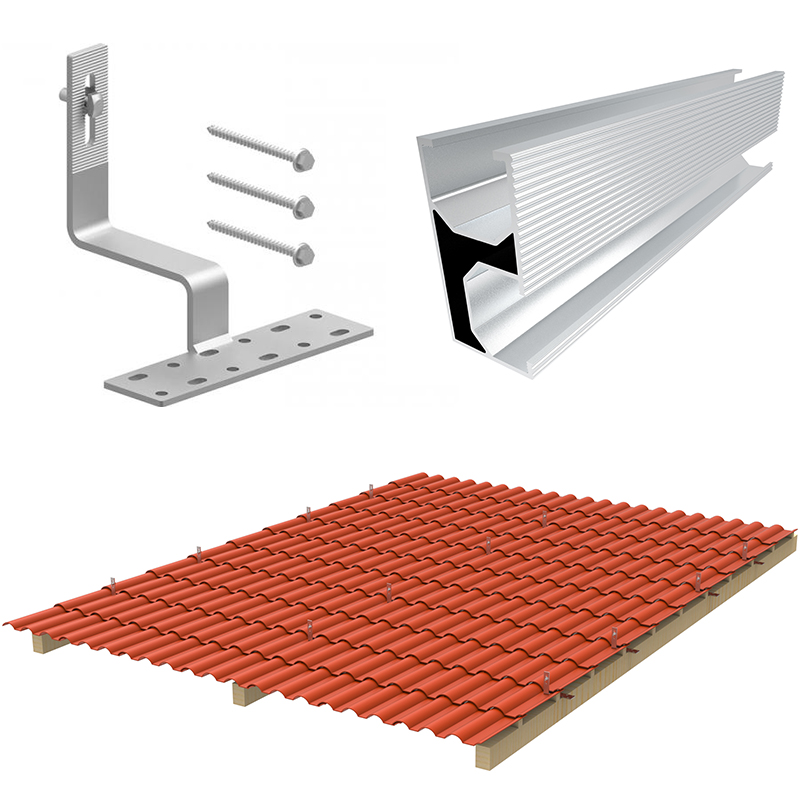

Tile hook roof mounting system SPC-IK-01 can be side-mounted installed together with our Rail 01,with matched wooden screws, washers, bolts and nuts etc. So solar projects can be finished efficiently and quickly.
Advantages:
A. Suitable For the surface of Roman tiled roof with different thickness; height adjustable and flexible replacement of fittings to meet many demands.
B. Multiple opening designs of connecting plates and other fittings to effectively fulfill the position adjustment.
C. Have no damage to the waterproof system of the slope.
D. Durable and 100% recyclable.
E. Low cost and elegant appearance.
Tile hook roof mounting system installation:
1.Put away Roman tiles from the installation position ; 2.Then mark red lines on the wood rafter; 3.Fix all the hooks, use Drilling Bit to pre-drill three holes ; 4.Use sealants to fill the holes ; 5.Fixed Roman tile roof hooks with matched wood screws. 6.Put back the Roman tiles then use M8x25 bolt nuts to install with Rail 01; 7.Check installed correct and safe.
Our solar Roman tile roof hooks and other products are hot sale in Europe, the United States, the Middle East and Southeast Asia. They are manufactured by machines, which is brought from domestic and foreign well-known enterprises.
