Universal Curved & Flat Tile Roof Hooks, adjustable, Bottom Mounting

Product Description :

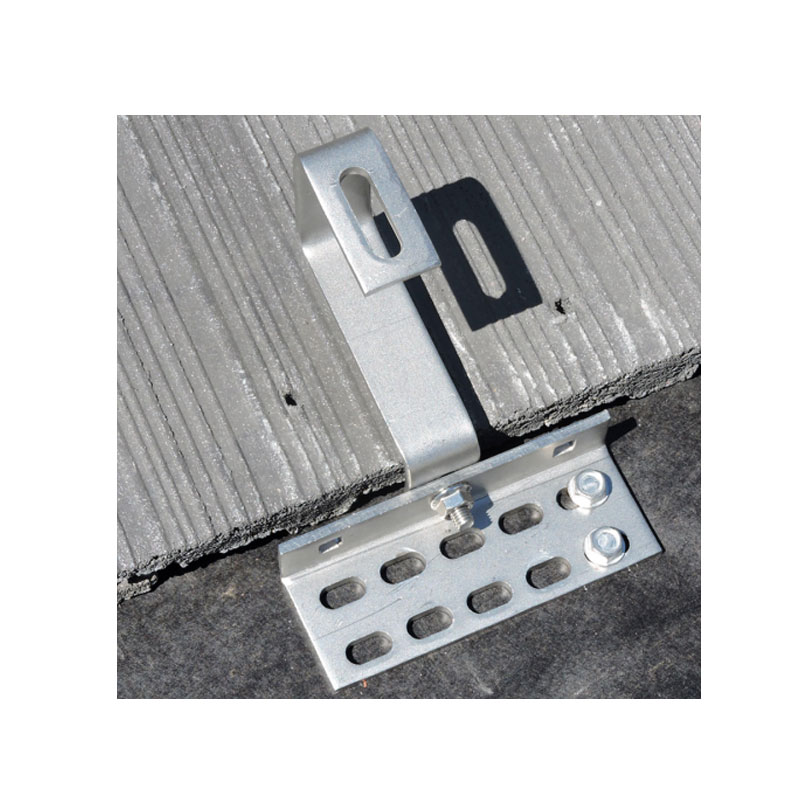

Adjustable solar roof hooks for all tiles with or without battens.

The installation is for Bottom rail mounting – 180 degree horizontal .



The range for adjustment is 10 mm, makes flexible moving during mounts to the roofing whatever for curved or flat tiles.

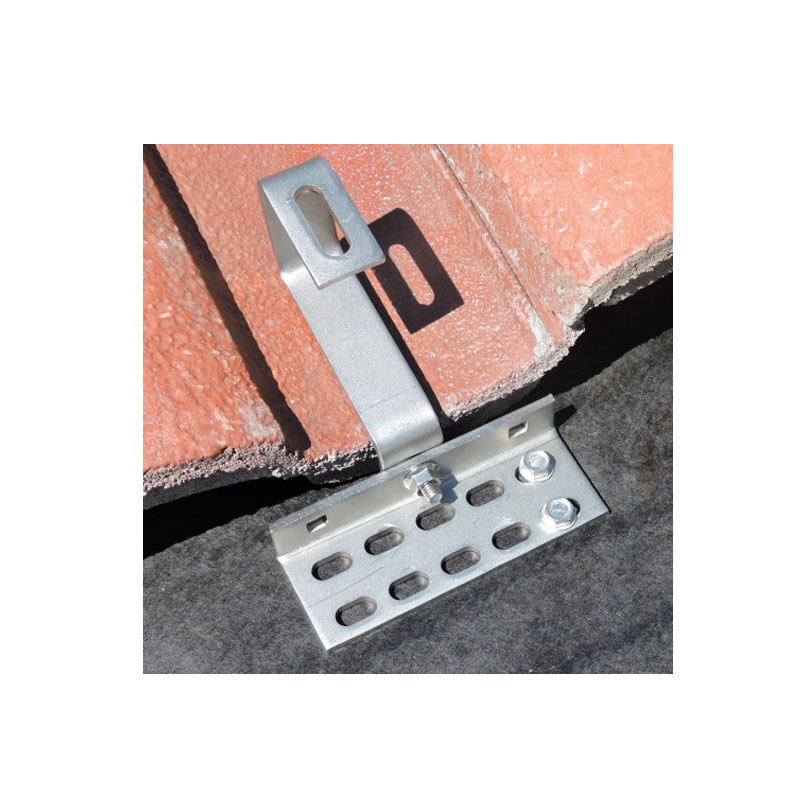

The adjustable arm can fit for roman tile, clay tile or flat tiles.

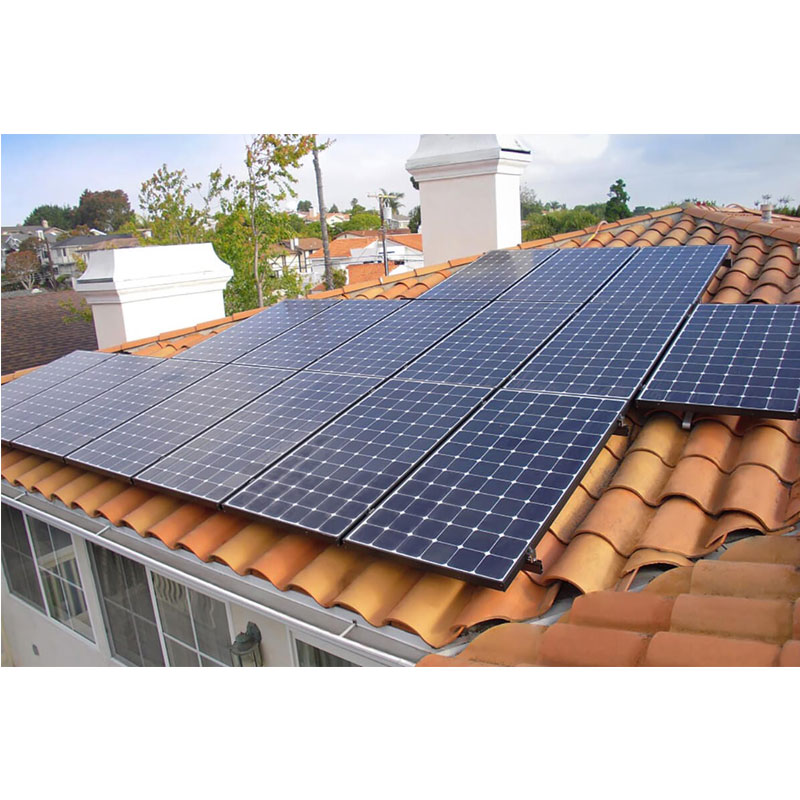

Muti-functional solar roof hook mounts for Bottom rails can perfectly for Spanish tiles and flat tile roofing. Just by loose or tighten fitting easily.





Advantages :





1. Universal applied for both curved & flat tiles ;



2. Adjustable according to height of tile thickness;



3. Easy operation and installation with pre-assembled packing ;



4. Offer 10-Years Warranty for our Bottom mounted rails roofing hooks ;



5. Quality Guarantee with Good quality 304 Steen and AL 6005 – T5 Aluminium .

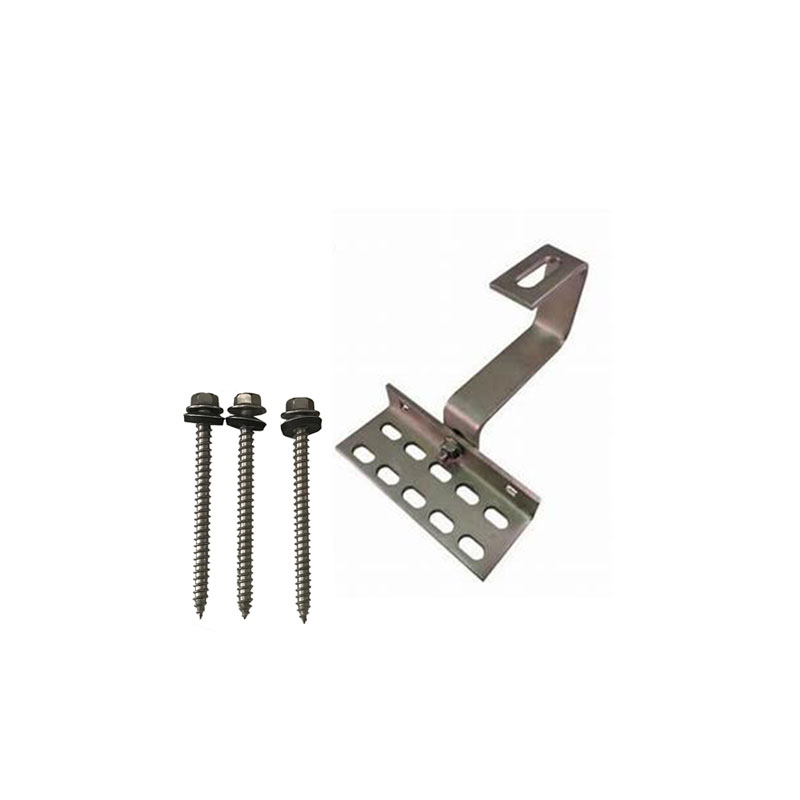

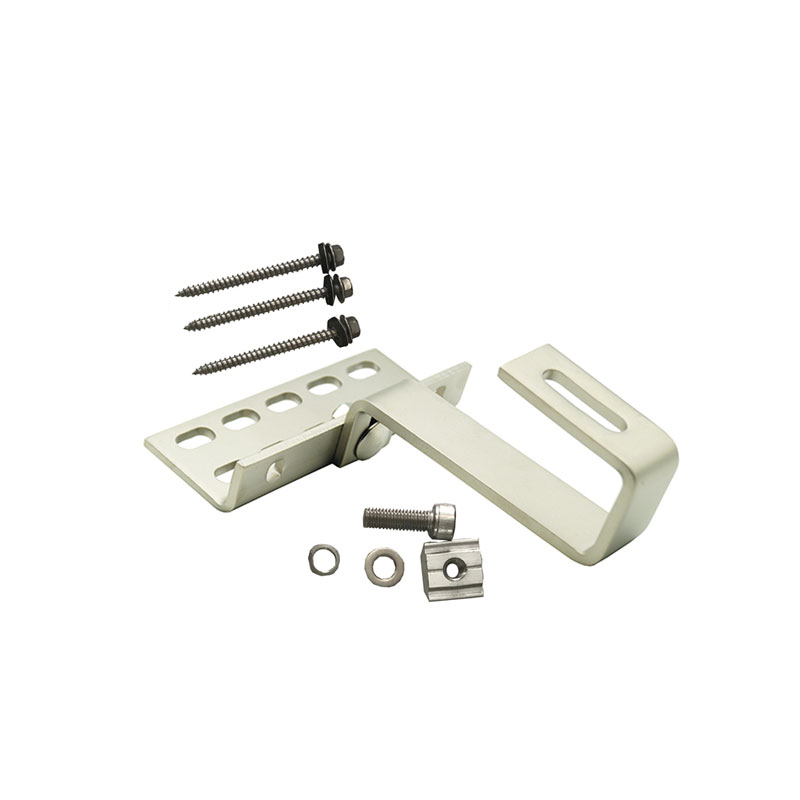

Parts and Components for this Universal Solar Tile Roof Hooks, Adjustable, Bottom Mounting :

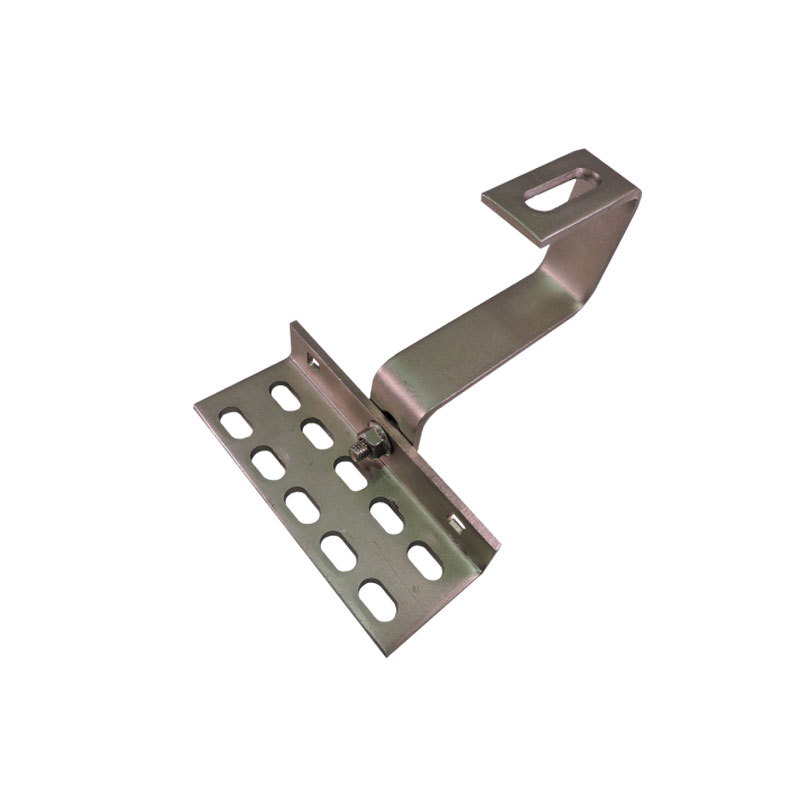

stainless adjustable roof hook ;

Mushroom head carriage bolt;

Hexagon nut;

Hexagon socket head bolts;

T sliding nut block;

Spring Washer

Sharp-point screw

Brief Descriptions :
Solar Mounting Components – Universal Tile Roof Hooks, Adjustable, Bottom Mounting
Item type:	Muti Functional Solar Tile Roof Hooks
Type :	Curved or Flat Roof Hooks
Installation Site :	Pitched Roof
Profile Material :	SUS 304 Stainless Steel
Fasten Parts :	Stainless Steel / Aluminum T Sliding Nut
Color :	Silvery or according to customer requirements
Wind Load :	60 m / s
Snow Load :	1.4 KN / M2
PV Modules :	Framed, Frameless
Module Orientation :	Portait and Landscape
Standards :	AS/NZS 1170
	DIN 1055
	GB50009-2012
	IBC2009
	TUV
	JIS C 8955 : 2011
	International   Building Code IBC 2009
	California   Building Code CBC 2010
Warranty	10 years
Designed LifeSpan	25 years
Packing Details :
Inner :	Bubble bag+inner box+Carton
Outer :	Wooden Box, Steel Pallet, MDF, etc
