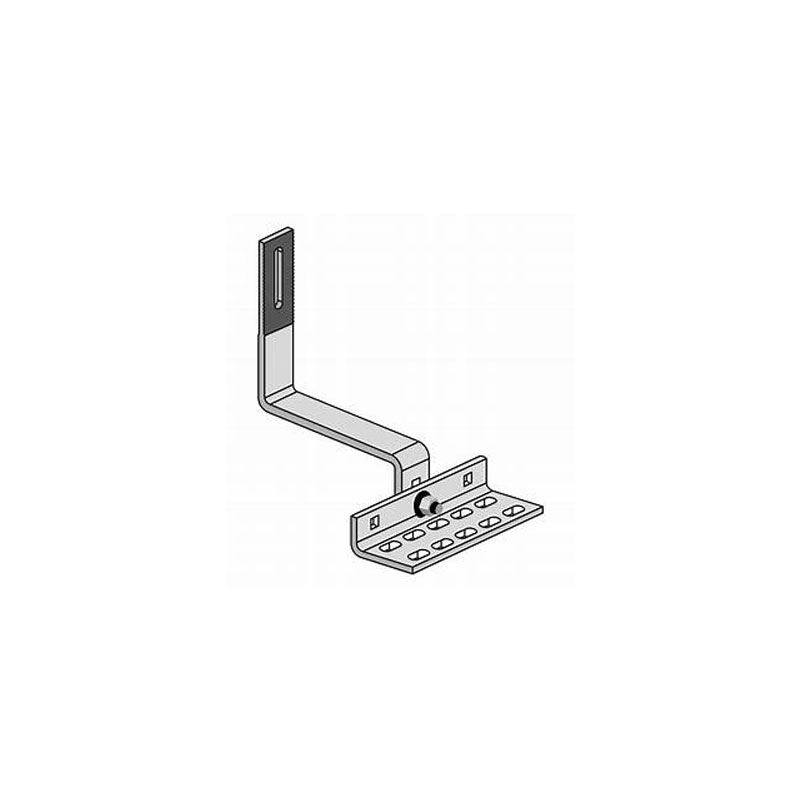

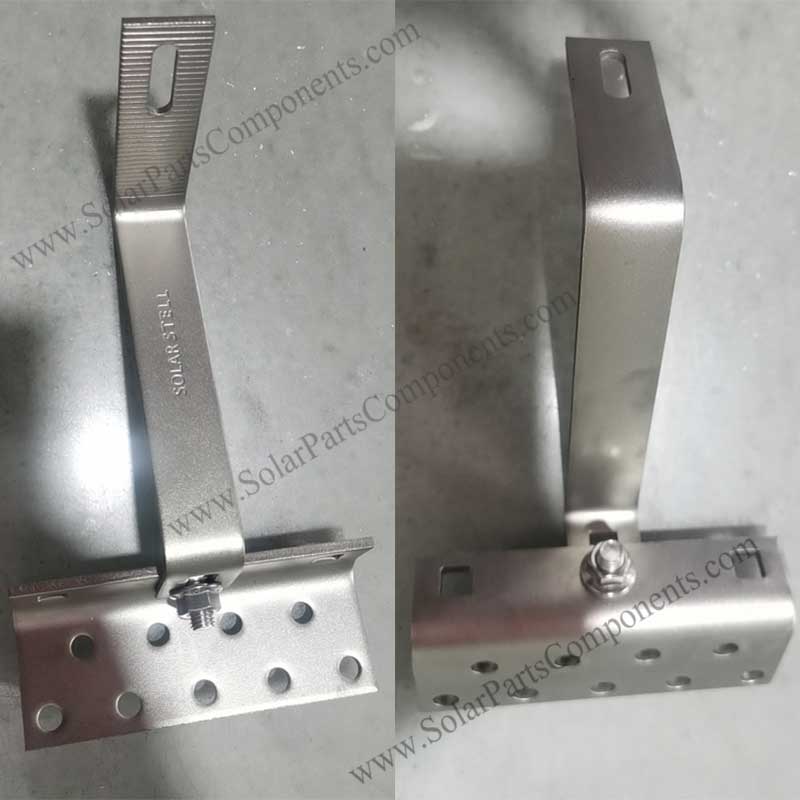

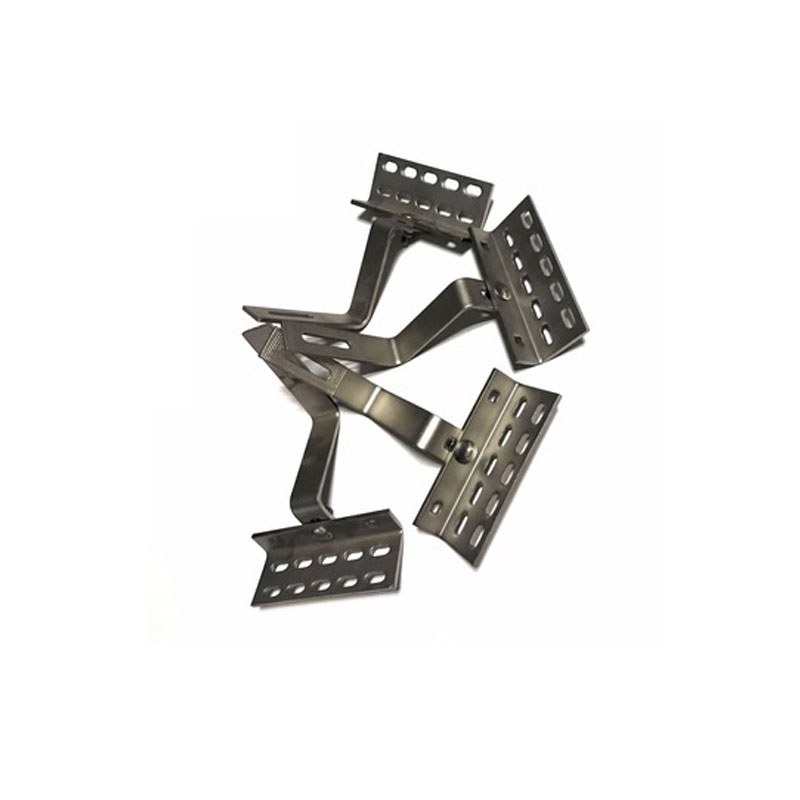

Universal Curved & Flat Tile Roof Hooks, adjustable, Side Mounting
- Product Type: Solar Tile Roof Hooks
- Product Model: SPC-IK-02
- Material: Aluminium, SUS 304 Steel , Aluminium
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Curved or Flat Roofing
Product Description :
Adjustable solar roof hooks for all tiles with or without battens. The installation is for side rail mounting – 90 degree vertical .
The range for adjustment is 10 mm, makes flexible moving during mounts to the roofing whatever for curved or flat tiles.
The adjustable arm can fit for roman tile, clay tile or flat tiles.
Muti-functional solar roof hook mounts for side rails can perfectly for Spanish tiles and flat tile roofing. Just by loose or tighten fitting easily.
Advantages :
- Universal applied for both curved & flat tiles ;
- Adjustable according to height of tile thickness;
- Easy operation and installation with pre-assembled packing ;
- Offer 10-Years Warranty for our side mounted rails roofing hooks ;
- Quality Guarantee with Good quality 304 Stainless Steel ;

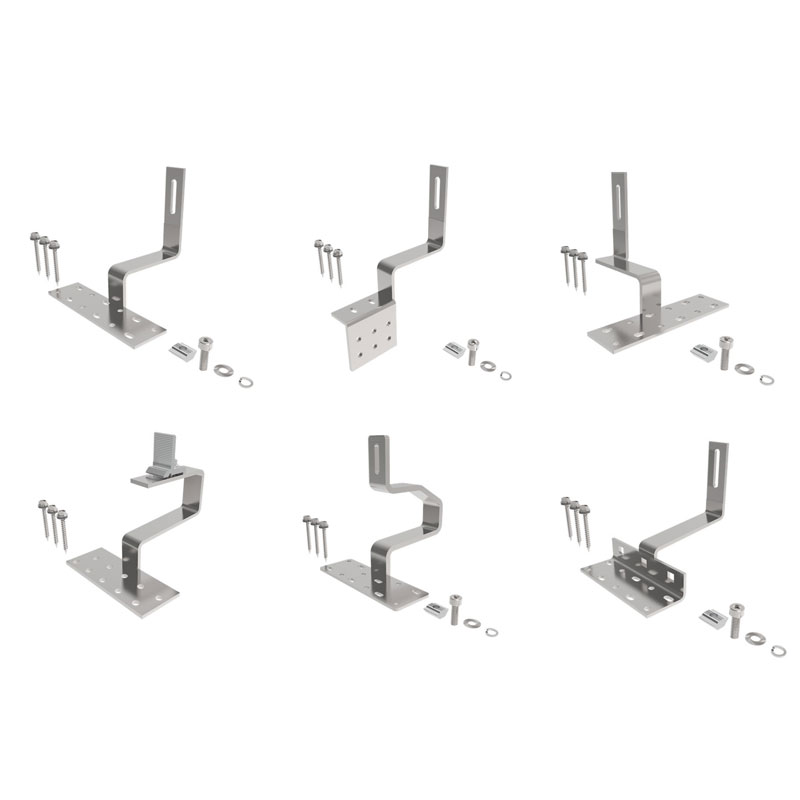

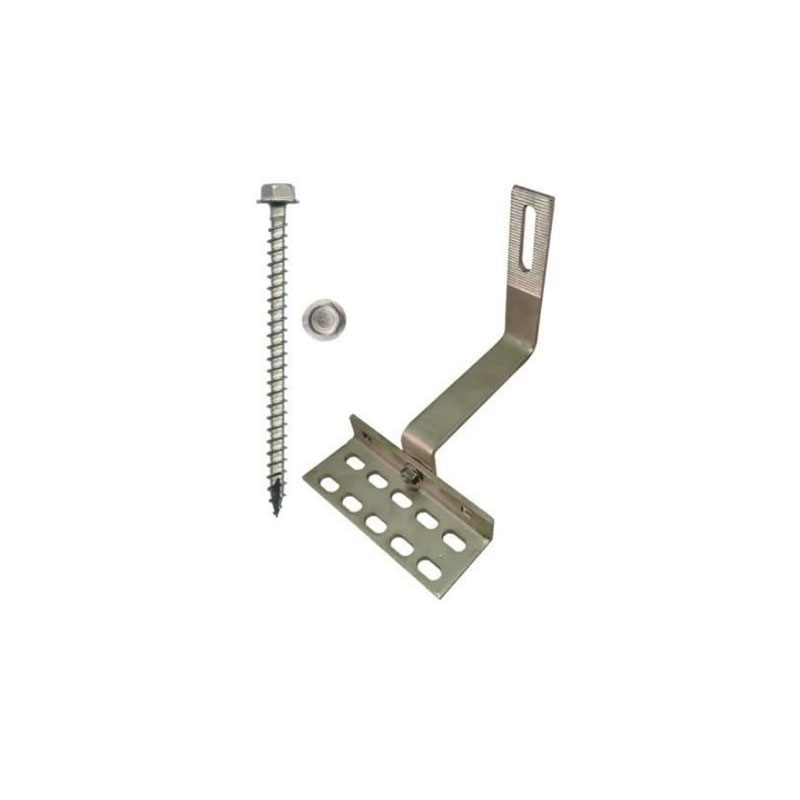

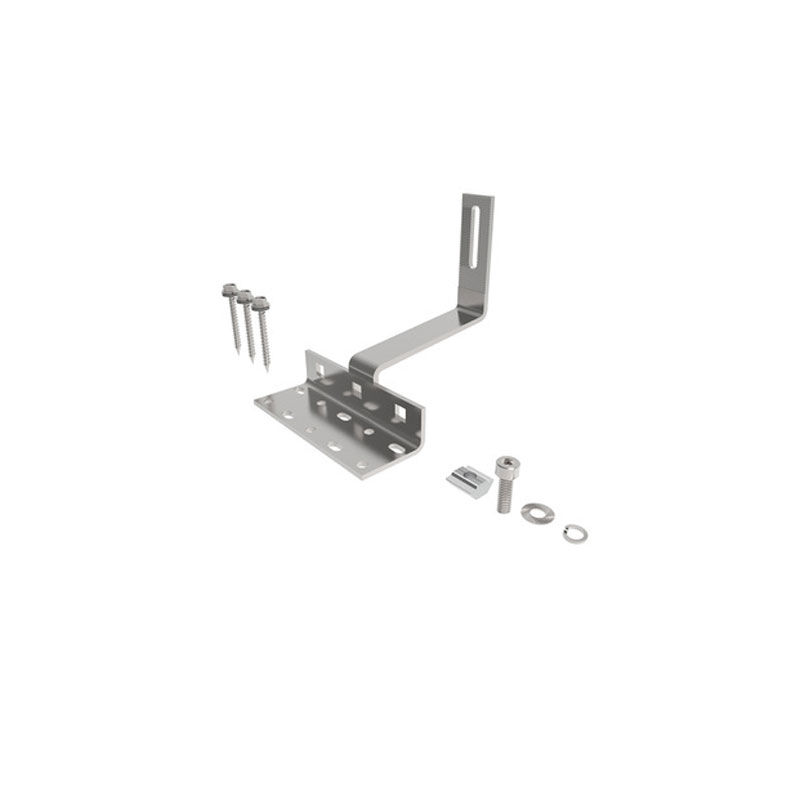

Parts and Components for this Universal Solar Tile Roof Hooks, Adjustable, Side Mounting :
stainless adjustable roof hook ;
Mushroom head carriage bolt;
Hexagon nut;
Hexagon socket head bolts;
T sliding nut block;
Spring Washer
Sharp-point screw
If you’re interested in other solar mounting components, we’d love to discuss with you about more and answer any questions you might have. As a professional manufacturer of PV mounting kits, SPC is a great option for you. Click here for more details and information: www.SolarPartsComponents.com
| Brief Descriptions : | |
| Solar Mounting Components – Universal Tile Roof Hooks, Adjustable, Side Mounting, SPC-IK-02 | |
| Item type: | Muti Functional Solar Tile Roof Hooks |
| Type : | Curved or Flat Roof Hooks |
| Installation Site : | Pitched Roof |
| Profile Material : | SUS 304 Stainless Steel |
| Fasten Parts : | Stainless Steel / Aluminum T Sliding Nut |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |

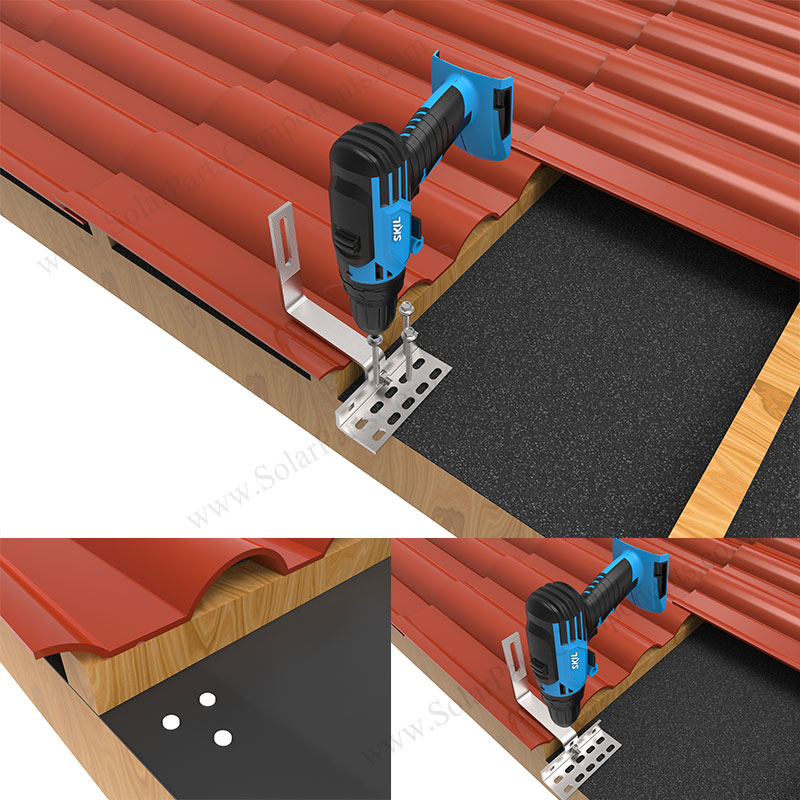

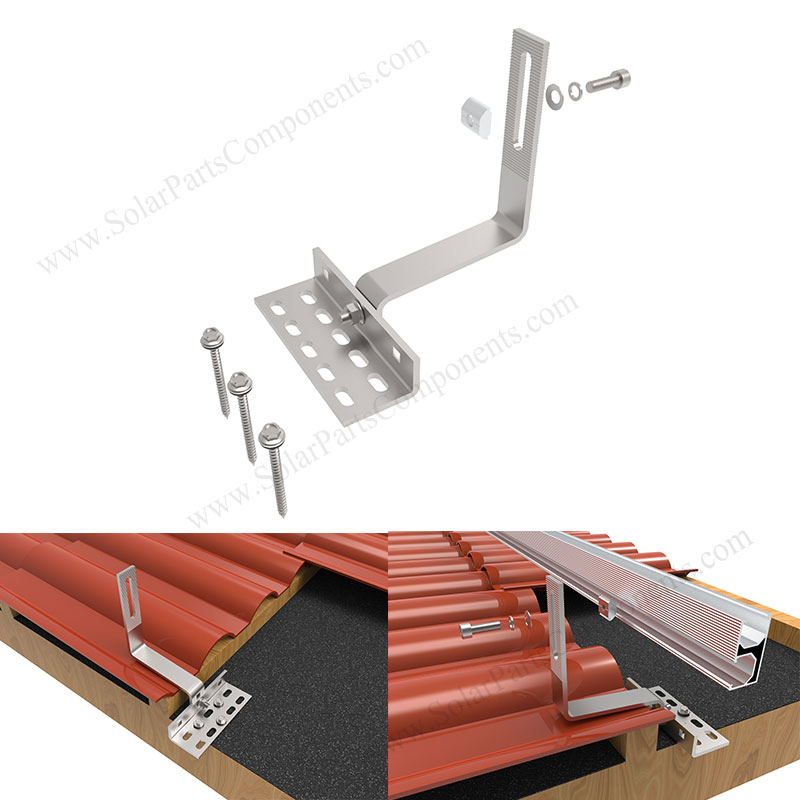

Installation Manual for Solar Roof Hooks SPC-IK-02
Installation Guide for Solar Roof Hooks Model : SPC-IK-02,
This SUS304 stainless steel bracket fits most of tile roof profiles, side mounted.
More details, Kindly click below >>>
Information of Universal Solar Tile Roof Hooks.

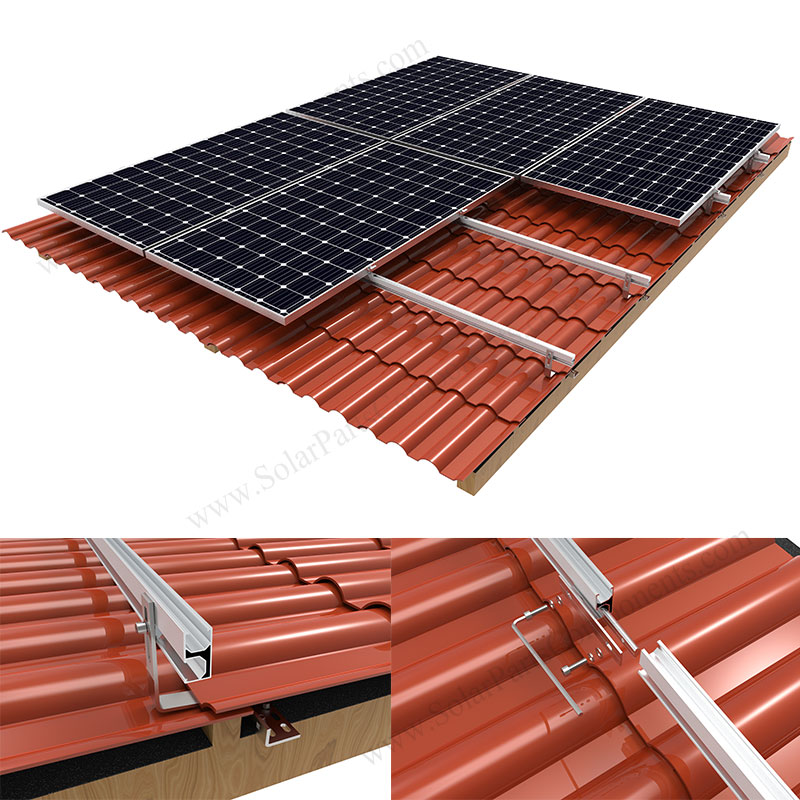

Universal Solar Tile Roof Hooks is suitable for solar system installation on tile roofs.

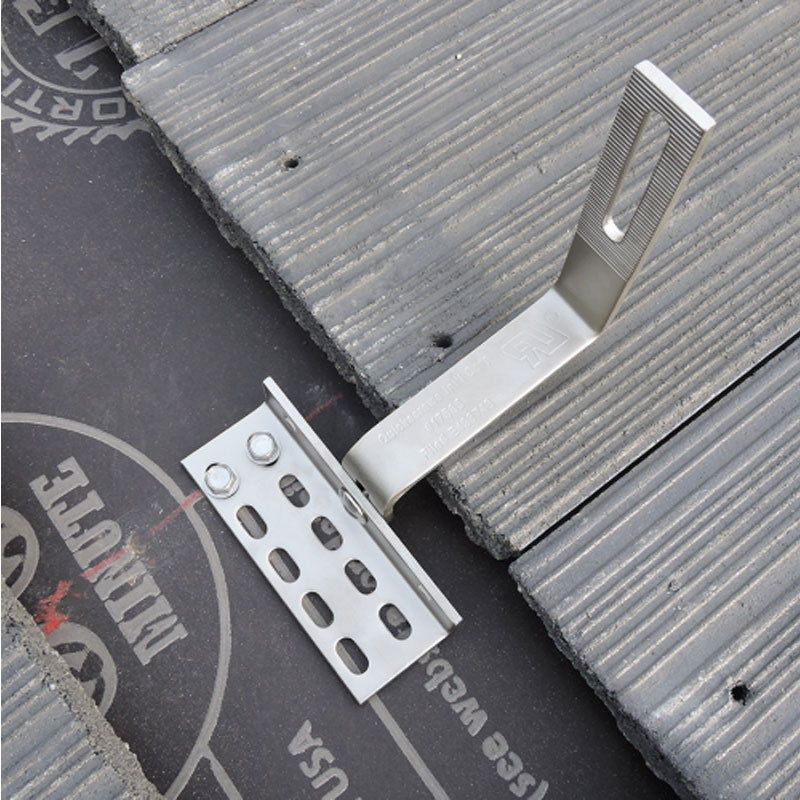

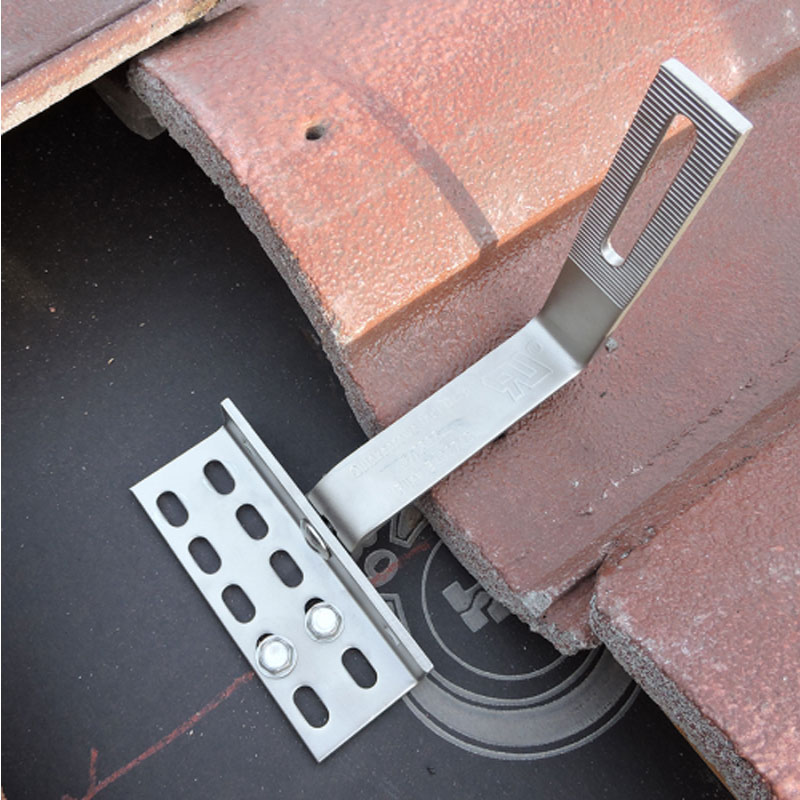

This hook can be used on curved or flat tile roofs.
There are three options at the bottom of the hook that can be adjusted according to the installation situation.
This hook is made of SUS304 material and is extremely strong.
It can provide solid support for the installation of solar systems and is one of the most popular solutions at the moment.

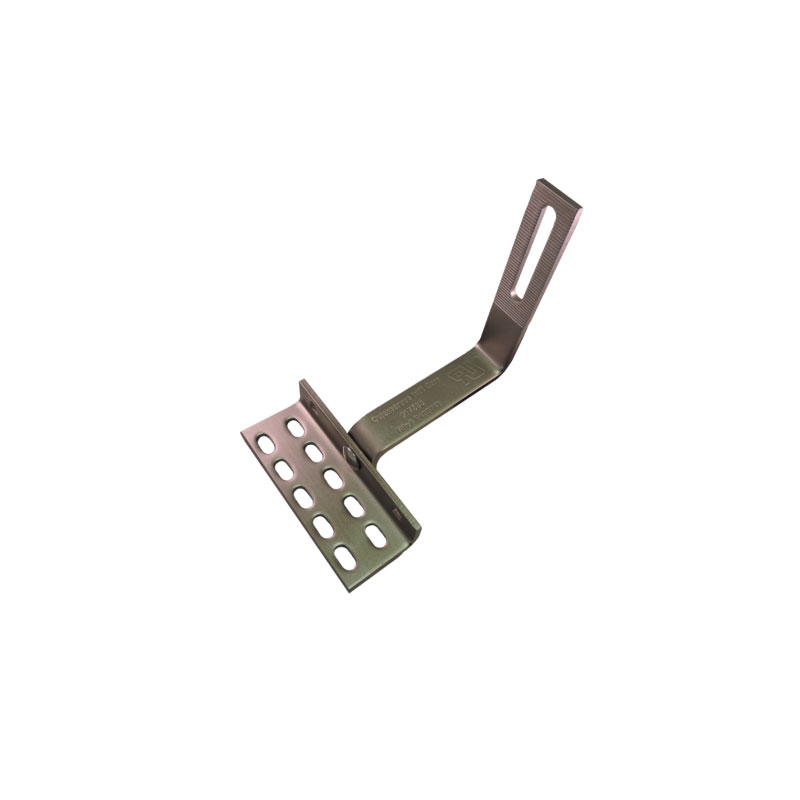

Universal Solar Tile Roof Hooks
Hot sale solar panel hooks for universal roofing

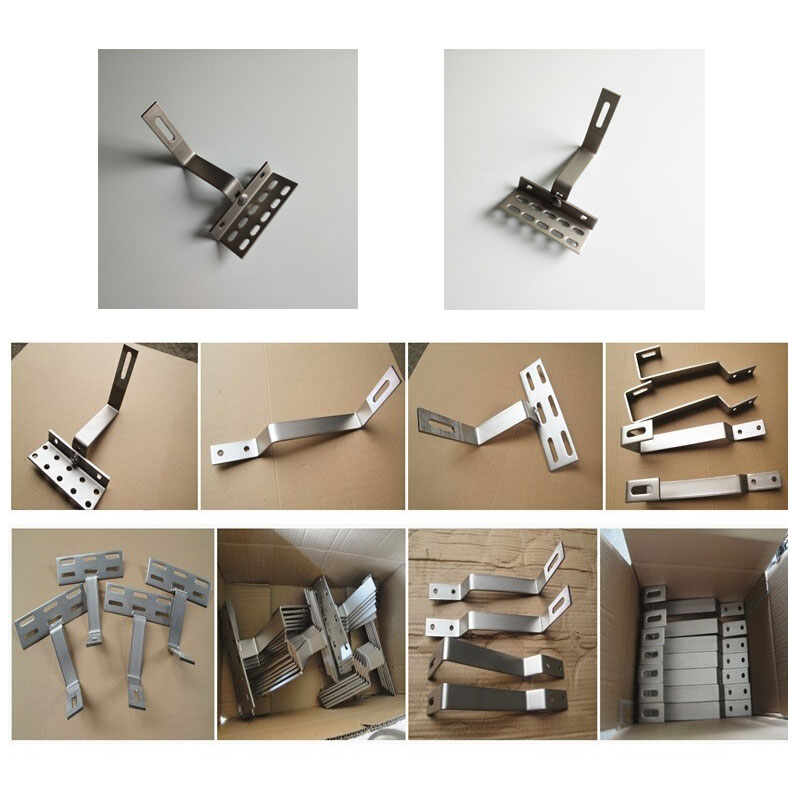

Factory direct solar tile roof hooks wholesale for universal tile roofing .
profile for this universal curved / flat Tile Roof Hook
Size details and profile for PV Module universal Tile Roof Hook Drawing, SPC-Tile-Hooks-AC040-001
Drawing for this Solar Side Mounted Tile Roof Hook
Size details and profile for Solar Side Mounted Tile Roof Hook Drawing, SPC-Tile-Hooks-AC008-001
What are Universal Solar Tile Roof Hooks specifications?

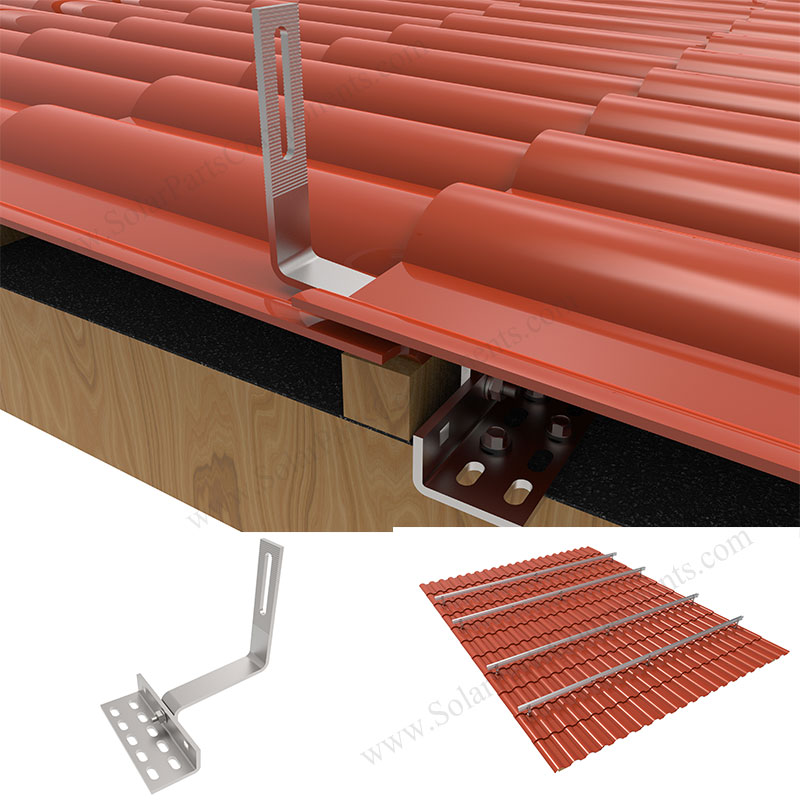

PV tile roof hooks is generally suitable for the solar installation system of flat roof, curved roof and glazed tile roof. The installation method is side installation, 90° perpendicular to the track of the component. The bottom of the hook has a 10mm adjustable range, which can be adjusted flexibly according to the installation situation to meet the structural requirements of different roofs.
Solar tile roof hook professional manufacturer

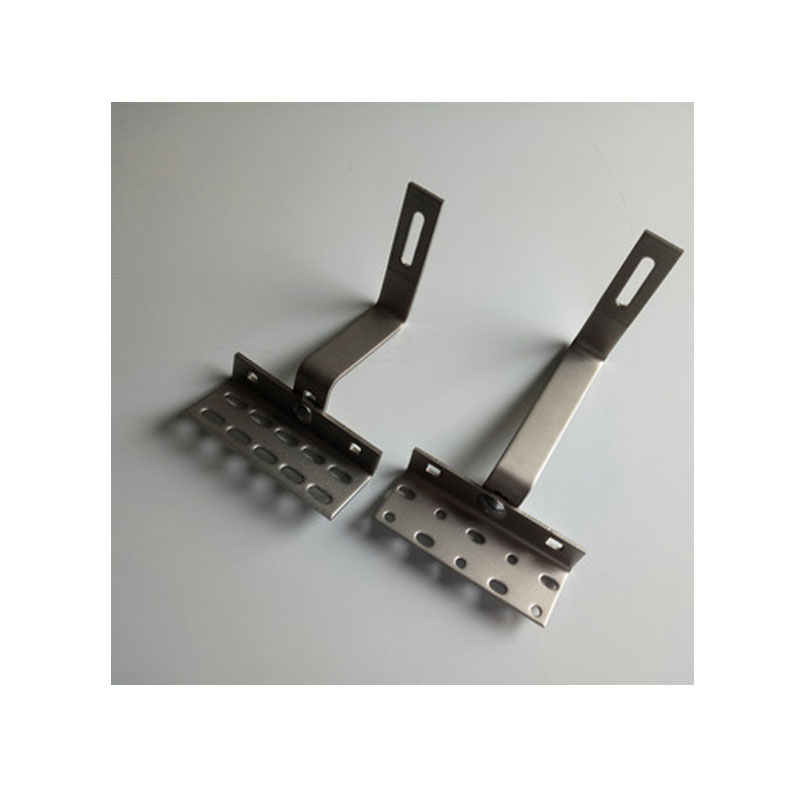

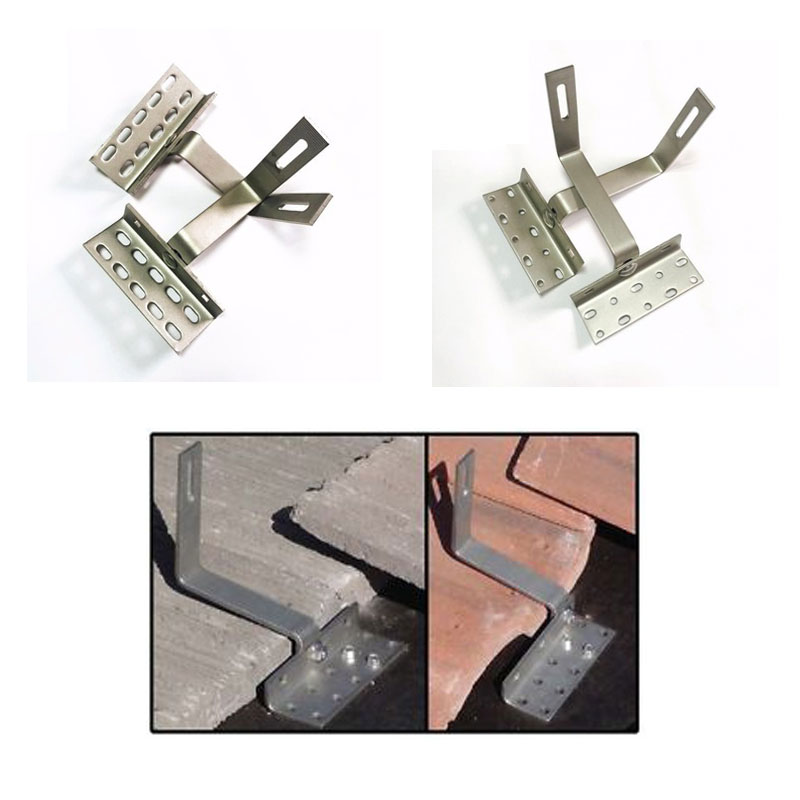

Universal tile roof hook, base adjustabe with three hole for horizontal adjustable points.This tile roof hook is designed for most flat and curved tile roof solar mounting.

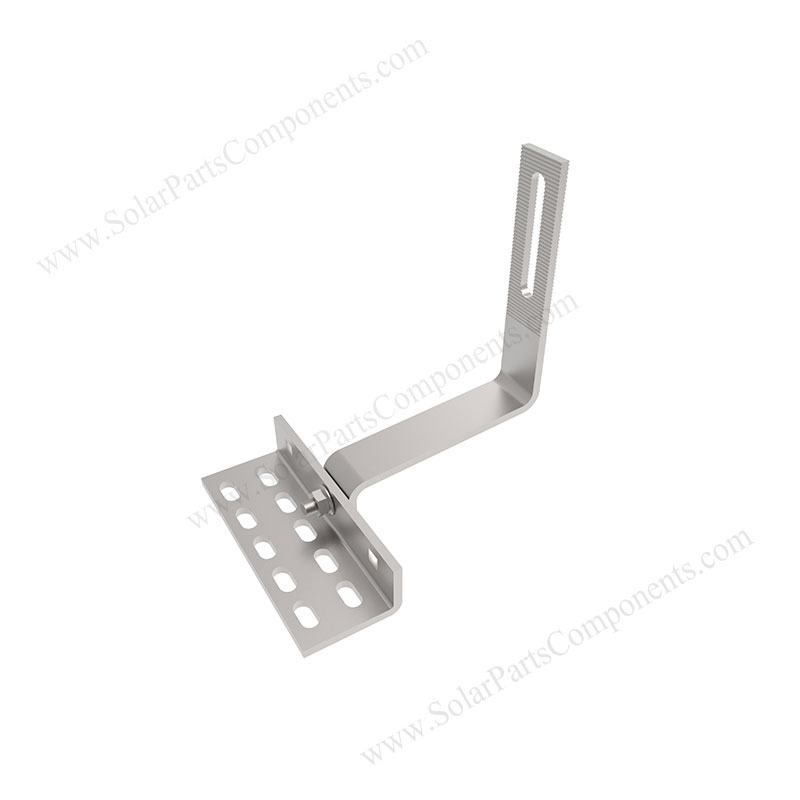

universal tile roof hook
Features:
1.Material:SUS304
2.Plate Dimension:140mm x 54 mm x 31mm
3.Thickness;5 mm
4.Hole of the plate:M10, accepts accepts 5/16″ or 3/8″ bolts
5.Upper long hole:Ø9 x 69mm (M8)
6.Three hole point level adjustable
7.Optional accessories: 5/16″x3″ Wood Screws,bolt & rail nut
Universal Solar Tile Roof Hooks Adjustable for Side Mount Rails, easy and quickly for installation, professional manufacturer with 12 years experience, factory direct, competitive pricing.
