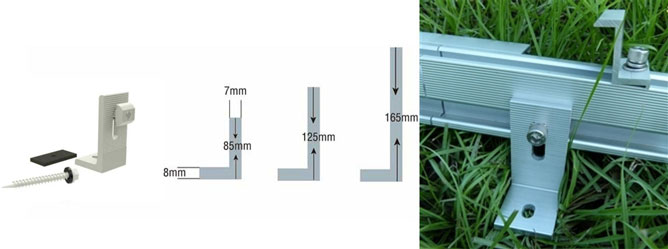

Solar panel aluminum clamps SPC-L-Foot-001, super sturdy to support sandwich roofing sheet structure .
Item : Solar Tin Metal Roof mount Clamps ;
Finishing : Anodized;
Material : AL6005-T5 ;
Total Size : 30 mm ( Long) × 40 mm ( Deepth) × 85 (Height) /
1 3/16″ (L) × 1 5/8″ (D) × 3 3/8″ (H) ;
Matched Bolts, Screws, Nuts, Accessories for this Sandwich roof clamps SPC-L-Foot-001:
Rail Mounting Slot Size : 8.5 mm X 48.5 mm /
5/16″ X 1 15/16″
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 20 mm x 1 unit;

2) D8 spring SUS 304 washer x 1 units ;

3) M8 x 13 Ribbed Lock washers ( SUS304 ) x 1 unit;

4) M8 T Sliding Nut x1 unit;
Mounting Screw Slots Size : Φ 7.0 – 8.5 mm
Matched Screw Sizes:
1) 6.3 x 80 Timber screws ( 20# dacromet ) x 1 unit ;

2) EPDM rubber pads x 1 pcs ;

Weight : 126 (g) / 0.28 (lb) ;
Packing : 50 pieces / carton ;
Packing Size : 260 mm ×205 mm × 180 mm /
10 1/4″ × 8 1/16″ × 7 5/16″
The Tin Bracket SPC-L-Foot-001 is an aluminium screw fixed roof support used for metal roofing surfaces.
Our Solar Parts & Components QC Team
stictly test following parameters of this sandwich metal roof mount bracket for solar panels SPC-L-Foot-001 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
