Trapezoidal metal short rail
- Product Type:Solar Panel Mounting Rail
- Product Model:SPC-SM-R01
- Material:AL6005-T5
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation:Horizontal / Vertical
- Application: Framed / Bifacial / Frameless modules
Details:
Trapezoidal sheet metal rail is made of high-quality AL6005-T5, without interfere with the surface of the roof, you can choose to install modules vertically or horizontally, and the products are strictly in accordance with the industry Standard processing, the total length of the guide rail is 400mm, and 24 holes are designed on both sides, which is easy to operate during installation.
An outstanding feature of trapezoidal sheet metal rail for solar is its high availability, the design of the short guide rail greatly reduces the material cost, thanks to our innovative, Which can reduce the installation time to a minimum, the product is highly resistant to corrosion, which ensures a long service life of the guide rail, and offering the possibility of full recycling, the rails are specially designed for the installation of solar panels.
The installation method of trapezoidal sheet metal rail for solar panel is simple and easy to use. When installing, just follow the steps:
In the first place, clean the metal roof tile and mark it according to the construction location and size;
Secondly, put the metal sheet rail flat on the two crests of the trapezoidal sheet metal roof, and apply the sealant before tapping the self-tapping screws;
Thirdly, install the metal sheet rail on the two crests of the metal roof tile with self-tapping screws, and apply a layer of sealing glue on it after fasten the self-tapping screws;
Next, lay the panel on the trapezoidal sheet metal rail for solar, pay attention to the distance between the guide rails, the distance between the longitudinal direction is about1/2 of the long side of the board, and the distance between the horizontal direction is adjusted according to the length of the short side of the panel, and the metal sheet rail needs to be installed on the two wave crests, the distance between the plates depends on the size of the mid clamp;
Finally, fix the solar panel on the metal sheet rail with end clamp, fix the panels with medium pressure, and install all the solar panels in sequence.
Features of this trapezoidal sheet metal rail for solar mounts:
- High availability, long service life;
- The installation method is simple and easy to use;
- High-quality material selection, high corrosion resistance;
- Accept Customized.
Trapezoidal sheet metal rail manufacture factory direct, good quality and reasonable price with best service. For more details about solar mounting components, welcome contact us any time.
Our website: www.SolarPartsComponents.com
| Brief Descriptions: | |
| Solar mounting component-trapezoidal sheet metal rail | |
| Item type: | Solar Panel Mounting Rail |
| Type: | SPC-SM-R01 |
| Installation Site: | Metal Roof solar panel mounting |
| Profile Material: | AL6005-T5 |
| PV Modules: | Framed, Frameless |
| Color: | polishing |
| Module Orientation: | Horizontal / Vertical |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955:2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag + inner box + Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
What is the benefits of the Solar Trapezoidal metal short rail System?
The Solar Trapezoidal metal short rail System is simple and quick mounting solution forplacing solar panel on trapezoidal roof,just only Short Rail,Mid Clamp and EndClamp,quite easy for installation.
Trapezoidal Roof Short Rail Mounting System is a revolutionary solar roof mounting solution that sets the standardon trapezoid steel sheet roofs.The whole system contains only 3 components, it is compact, simple and very quick toinstall.lt remains the most cost-effective solar roof mounting system for metal roof.
Solar Trapezoidal metal roof short rail system
The benefits:
1. Mini rail supports solar panel without aluminum rail.
2.Three parts only, save 40% installation time at least.
3.Easy to mount with screw.
4.Anti-corrosion and rust-resistance.
Our systems – your choice! The versions with the short rail is easy to handle on site thanks to their preassembled components. Then you’ll get neat cable routing and a load-distributing connection to the trapezoidal sheet. Our Trapezoidal metal roof solar short rail systems for modules in portrait meet every requirement.
What‘s applications for the trapezoidal sheet metal rail?
Solar Panel Trapezoidal Metal Sheet Rail are made of aluminum alloy, high load capacity and corrosion resistance. Our rail can be used on every kind of roof, such as garden houses, garage roofs, sheds with corrugated iron roofs. And it also can be installed in various places such as yachts, RVs, industries, houses, tin sheds, etc.
Solar short rail
Using our short rail can help customers to save more cost and help our customer to save more material cost and installation time.
It is easy to be fixed on the metal sheet.
Solar Panel Short Rails
The benefits of the solar metal rail mini rail
High Quality Material: Made of lightweight aluminum alloy material with excellent corrosion resistance and weather resistance; and equipped with four stainless steel screws, which are often used on any regular or irregular surface, easy to transport, and stable to install.
Waterproof Rubber Pad: The bracket comes with 4 pieces of waterproof EPDM rubber pads, no need for additional rail reinforcement, more waterproof, non-slip, sturdy and durable.
Screw hole design: The photovoltaic guide rail has many screw holes, which can be installed in any hole according to your angle, so that the direction of guide rail is more suitable for your needs. We offer two length sizes 280mm/400mm
The solar clamp compatible for Trapezoidal sheet metal rail.
These two clamps are compatible with the trapezoidal sheet metal rail above, which can simplify installation costs and processes.
Q:
Do you have Haticon mid-clamps and End-Clamps?
Such as below:

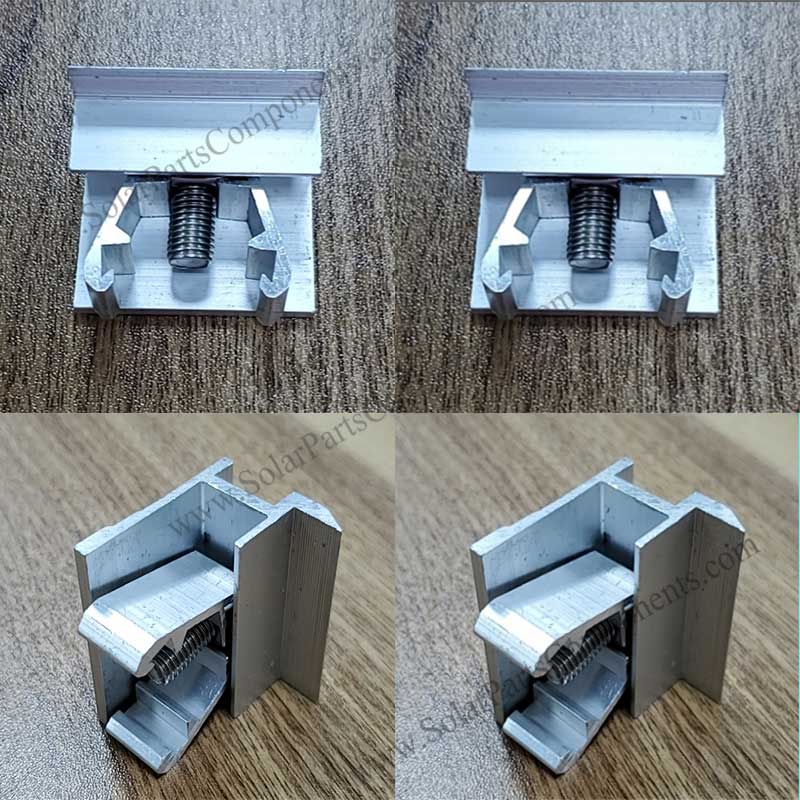

solar clamp
I appreciate any help on this.
A:
Can I know how much quantity you would need ?
I will evaluate them and come back to you tomorrow.
Q:
2500 of the mid-clamp assemblies
1600 of the End-clamp assemblies
If you have prepackaged I can settle for slightly lest or more.
A:
I just check our factory, we happen to have these two models in stock.
You can place an order directly with me and we will ship them as soon as possible.
Why use the Trapezoidal sheet metal rail?
Trapezoidal sheet metal rail Mini rail is a popular and simple solar panel mounting system specially designed for trapezoidal metal rooftops. Trapezoidal sheet metal rail Mini rail is use for trapezoidal metal roof and corrugated metal roof, it can make the solar panel orientation both in landscape and portrait, which is a smart design for solar metal roof installation. It’s cost-effective mounting solutions which just request only 3 compoments–Mid and end clamp and mini rail.

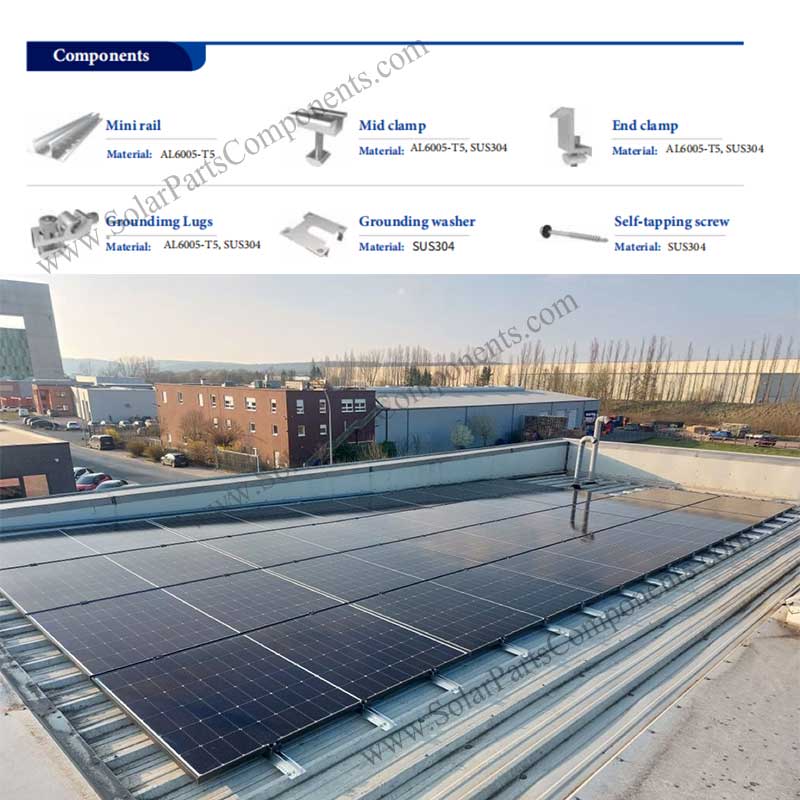

trapezoidal metal roof rail
Made from high-quality AL 6005-T5 and EPDM rubber, it offers excellent corrosion and seepage resistance.
The 10-year warranty and 25-year service life are our commitment to quality and durability.
Additionally, the system’s simple design makes it easy to install, pack and transport, which is a significant advantage for those who want to minimize installation time and costs.
trapezoidal metal sheet mini rail
suitable for various metal roofs
Design the project according to the project, and flexibly choose the configuration of the installation system components.
-Save installation time and cost
Pre-assembled components and clear installation manuals are provided to save the time and cost of on-site installation and provide a better return on investment.
-Compatible with different types of solar modules
Compatible with most framed 60-cell, 72-cell, half-cut battery modules and frameless modules.
The installation steps for this trapezoidal metal roof rail are as follows:
- According to the location and dimensions of the project construction drawings. Find the location of the roof main beams/purlins and the rail installation location, and mark the corresponding metal roof covering，than Place the U-shaped rail flat on the two crests of the trapezoidal roof, and apply sealant before driving self-tapping screws.
As shown in the picture

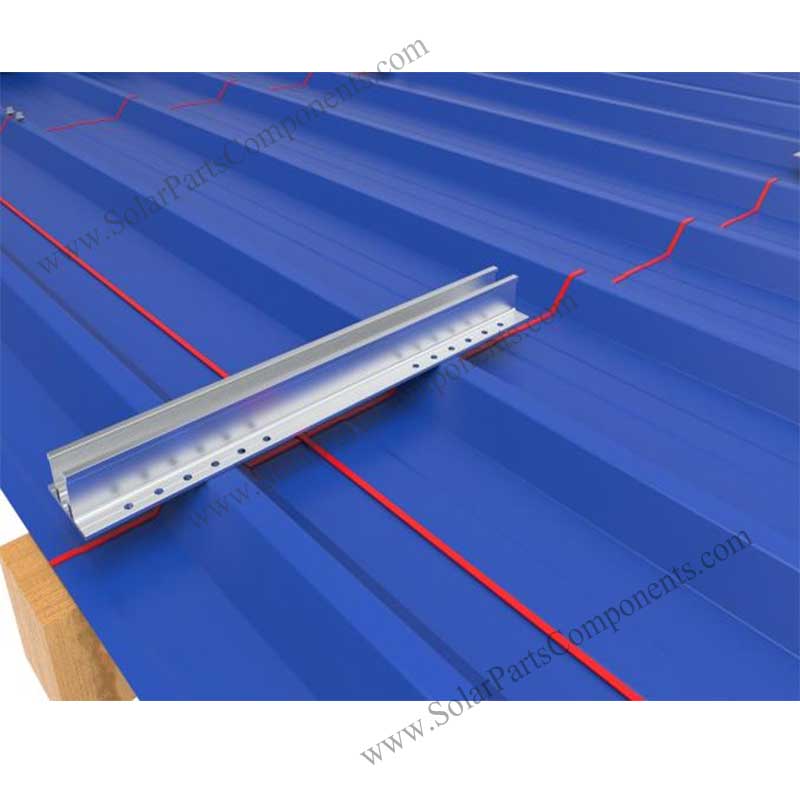

mini rail
2. Lay the solar panel on the U-shaped rail and Use end clamp to fix the solar panel on the U-shaped rail, After fixed the end clamp, Use mid clamp to fix the solar panel to the solar panel, as shown in the picture

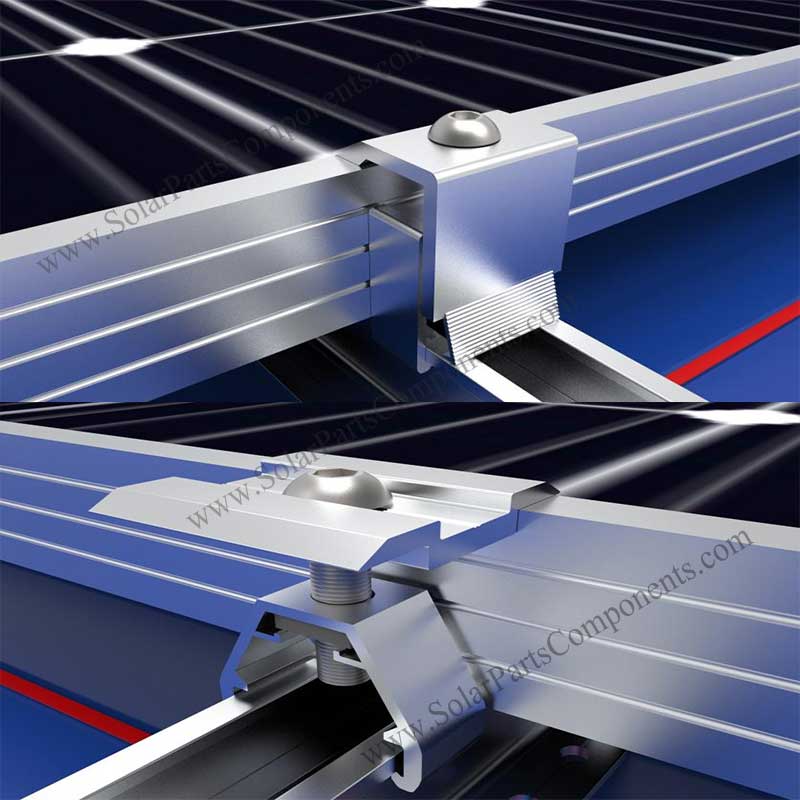

Mini rail installation
3. Install the second solar panel or rows of solar panels in sequence as per step1 -step2.

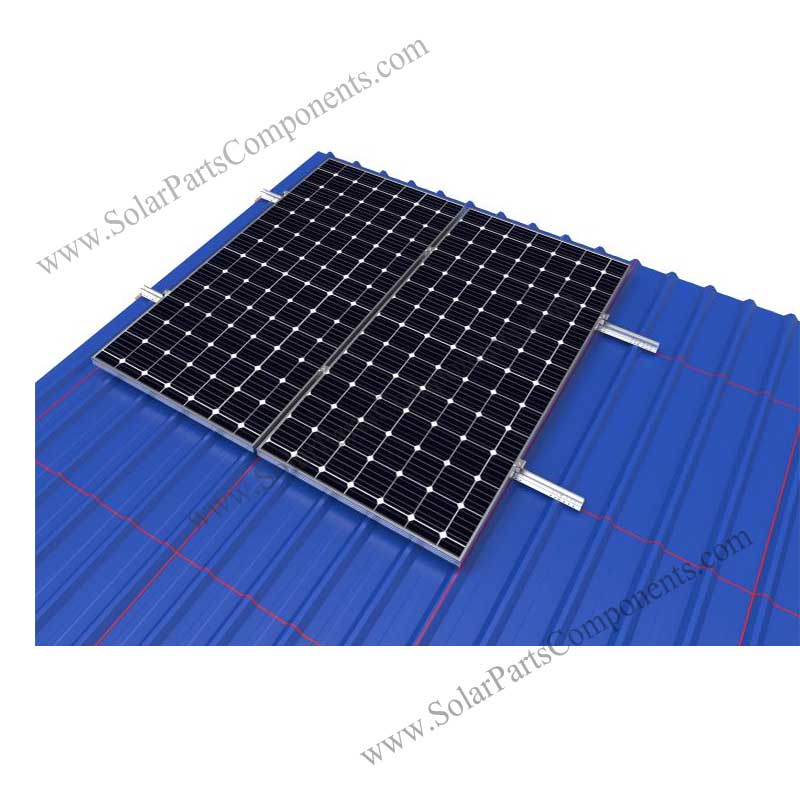

short rail system
4. Finished
